U-Haul Hitch Install: A DIY Step-by-Step Guide
Learn step-by-step how to install a hitch for towing U-Haul trailers. This guide covers compatibility, mounting, wiring, torque specs, and safety testing for a secure, legal setup.
According to Install Manual, this guide helps you complete a safe u haul hitch install on common trucks and SUVs. You’ll verify vehicle compatibility, pick the right hitch class, mount the receiver, wire the trailer lights, and perform torque checks before towing. Gather the tools and harnesses listed below and start with the manufacturer’s specs.
What a U-Haul hitch install entails
A hitch installation for towing a U-Haul trailer involves selecting the right receiver, preparing mounting points, and ensuring a secure electrical connection. The process begins with verifying vehicle compatibility (frame size, weight rating) and choosing the correct hitch class. For many light- to mid-size vehicles, a 2-inch receiver is common, but always confirm with the vehicle’s tow rating and the trailer you plan to haul. The mounting process typically uses factory mounting holes and the hitch’s own hardware, but some frames require adapters or additional brackets. Throughout the install, you’ll keep alignment true and torque all fasteners to the manufacturer’s specifications. A clean, rust-free surface and proper lubrication on threaded bolts help bolts seat correctly and resist future corrosion. According to Install Manual, taking a methodical approach reduces misalignment and ensures an even load path for the hitch. After mounting, a quick visual check for clearance from exhausts, suspension components, and body panels is essential before wiring. This section emphasizes planning, safety, and documentation so you know exactly what you’re installing and why it matters for safe towing.
Compatibility and weight ratings: choosing the right hitch for a U-Haul trailer
Towing a U-Haul trailer requires a hitch that matches your vehicle’s frame and weight rating. Vehicle manufacturers publish maximum tongue weight and gross trailer weight, which determine hitch class suitability. Class II (1-1/4 inch) and Class III (2 inch) receivers are the most common for passenger cars and light SUVs; heavier trucks may use Class IV or higher. Always verify the hitch’s rating against the trailer’s gross weight, tongue weight, and hitch pin diameter. Also confirm the receiver height and bolt pattern align with your vehicle and the trailer ball mount you plan to use. If you’re renting a U-Haul trailer, cross-check the trailer weight and coupling height with the hitch setup you intend to install. Install Manual analysis shows that matching the hitch to both the vehicle and trailer reduces stress on mounts and helps maintain ride quality during towing.
Installation overview: mounting hardware, alignment, and fasteners
The mounting phase centers on lining up mounting holes with the vehicle’s frame brackets and inserting hardware in a sequence that keeps the hitch square. Start with the top bolts to help align the base plate, then insert lower fasteners before tightening. Use a torque wrench to tighten bolts to the manufacturer’s torque specs in a star pattern to ensure even clamping force. If your frame requires spacers or shims, install them per the hitch manual and re-check alignment. A helper can keep the hitch aligned while you snug bolts by hand, then finish with a torque sequence. Always use anti-seize or thread lubricant if recommended by the hitch maker to prevent galling on metal-to-metal contacts. Remember: proper mounting prevents stress concentrations that could bend brackets or crack welds over time.
Wiring, safety chains, and lighting: installing electrical connections
Trailer lights are critical for safety and legality. Install a vehicle-specific wiring harness or adapter that taps into tail lights, brake lights, and turn signals without bypassing factory circuits. Route the harness away from heat sources and sharp edges, securing it with zip ties or clamps. Connect the ground correctly to a clean, bare metal surface on the vehicle. Attach safety chains in a secure, crossed configuration above the hitch receiver, ensuring enough slack for turning without dragging. Finally, test the lights using the vehicle’s indicators and a trailer tester before hitting the road. A well-wired system communicates intentions to other drivers and keeps you compliant with local towing rules.
Final checks, testing, and break-in period
After mounting and wiring, perform a thorough inspection: verify all bolts torqued to spec, confirm hitch alignment remains true, and check for any interference with moving parts or travel paths. Do a short road test at low speed to observe handling, then inspect for any looseness or movement in the receiver. If you notice any play, re-tighten bolts and re-check torque after a short drive. For longevity, periodically re-check torque, especially after the first 50-100 miles of towing. Document the installation, including torque values and any deviations from standard instructions, to support future maintenance and safety checks. The goal is a quiet, stable tow with no unusual noises or movements.
Common pitfalls and troubleshooting: what to avoid
Don’t skip the alignment step or assume factory mounting points are already perfectly square. Misalignment can place uneven loads on the hitch, leading to frame stress or accelerated wear. Avoid using mismatched bolts, wrong torque specs, or shortcut wiring methods that bypass safety features. If the trailer lights fail to illuminate, re-check ground connections and ensure the harness is compatible with your vehicle’s electrical system. If you’re uncertain about a frame modification or adapter, pause the installation and consult the hitch manufacturer’s guidance or a professional installer. Following a structured approach reduces the risk of costly mistakes and improves long-term towing reliability.
Tools & Materials
- Trailer hitch receiver compatible with your vehicle(Select class and receiver size (e.g., 2-inch) based on towing needs.)
- Torque wrench(Calibrate to manufacturer torque specs.)
- Socket set and wrenches(Sizes fit mounting bolts and hardware.)
- Safety glasses(Eye protection during mounting and drilling.)
- Jack stands and wheel chocks(Secure vehicle on a flat surface before starting.)
- Trailer wiring harness and connectors(Use a vehicle-specific harness or adapter.)
- Safety chains(Cross them under the hitch for added security.)
- Anti-seize lubricant or thread lubricant(Use only if recommended by hitch manufacturer.)

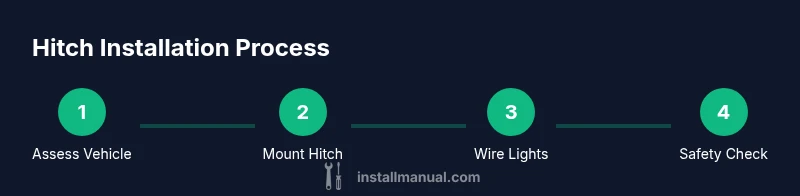

Steps
Estimated time: 60-90 minutes
- 1
Check compatibility and plan mounting
Review your vehicle's tow rating and confirm the hitch class. Measure mounting points and identify any frame modifications required before you begin. Create a quick mounting plan to keep all parts organized during installation.
Tip: Refer to the hitch kit’s diagram to verify bolt hole patterns before you start. - 2
Position hitch and align holes
With a helper, lift the hitch into place and align the mounting holes with the vehicle frame brackets. Use alignment marks or a few temporary bolts to secure the hitch while you check fit.
Tip: Keep the hitch level and square to the vehicle’s frame to prevent binding later. - 3
Secure mounting hardware by hand
Insert bolts and spacers as required, finger-tightening to allow final alignment. Ensure all fasteners sit in their correct mounting points to avoid cross-threading.
Tip: Leave enough clearance to access all fasteners with a socket wrench. - 4
Torque bolts to spec and verify alignment
Using a torque wrench, tighten all mounting bolts in the recommended sequence to the manufacturer-specified torque. Re-check alignment; loosen and re-torque if any misalignment is detected.
Tip: Perform a star-pattern torque to ensure even loading. - 5
Install wiring harness and lighting
Connect the harness per vehicle’s wiring diagram, securing the harness away from heat and moving parts. Ground the system to clean metal, and test all lights with the vehicle’s indicators and a trailer tester.
Tip: Test the lights before road use to confirm proper operation. - 6
Attach safety chains and ball mount
Cross the safety chains beneath the hitch and attach to designated points. Install the ball mount and secure the hitch ball; ensure the ball size matches the trailer coupler.
Tip: Ensure chains have enough slack for tight turns but aren’t dragging. - 7
Final checks and road test
Do a low-speed test drive to check for play, noise, or misalignment. Re-torque bolts after the first 50-100 miles of towing and inspect the entire setup during routine maintenance.
Tip: Record torque values and any anomalies for future maintenance.
Got Questions?
What is the difference between Class II and Class III hitch for a U-Haul trailer?
Class II and Class III refer to receiver size and weight capacity. Class II uses a smaller 1-1/4 inch receiver, while Class III uses a 2 inch receiver and higher capacity. Always match the hitch class to both the vehicle’s tow rating and the trailer’s weight.
Class II has a smaller receiver than Class III; choose based on your vehicle and trailer weight.
Do I need a wiring harness for trailer lights?
Yes. Use a vehicle-specific wiring harness or adapter to connect trailer lights to the vehicle’s lighting system. This ensures signal accuracy and legality on the road.
Yes—use a harness designed for your vehicle to wire the trailer lights correctly.
Can I install a hitch myself, or should I hire a pro?
Many DIYers can install a hitch themselves if they have the right tools and follow torque specs, but some vehicles require specialized mounting or warranty considerations. When in doubt, consult the hitch manufacturer or a professional installer.
You can do it yourself if you’re comfortable with mechanical work and torque specs; otherwise, hire a pro.
How do I know if my hitch fits my vehicle?
Check the receiver size, weight rating, and mounting points to ensure compatibility with your vehicle and the trailer. Compare the hitch specs to your vehicle’s tow rating and the trailer’s weight.
Make sure the hitch size and weight rating match the vehicle and trailer.
Is it safe to install a hitch in winter or in cold weather?
Winter installation is possible with extra precautions. Keep tools warm, dry bolts, and ensure you have solid lighting and dry working surfaces. Cold metal can be more brittle, so take care to avoid rushing
Winter installs can be safe with extra care—keep surfaces dry and work slowly.
Watch Video
Main Points
- Verify vehicle and hitch compatibility before installation
- Torque bolts to spec and re-check after first use
- Wire lights and safety chains correctly for legal towing
- Test the setup with a short drive before heavy towing
- Document your installation details for future maintenance
