How to Install a Hitch Receiver: A Step-by-Step Guide

Understanding Hitch Install Basics

Installing a hitch receiver expands your vehicle's cargo options, from towing trailers to carrying bikes. Before you lift a wrench, know that hitch installs involve choosing the right class and compatibility with your vehicle's frame, weight ratings, and electrical connections. According to Install Manual, starting with the correct hitch type and a clean mounting surface reduces misalignment and wear. A standard hitch kit typically includes the receiver, mounting bolts, a crossmember, and a finish plate; you will also need basic hand tools and a torque device. Weight ratings are critical; exceeding them can affect handling and safety. Always consult the vehicle owner’s manual and hitch manufacturer’s instructions for allowed tongue weight and gross trailer weight. For renters or DIYers, a no-drill option may exist for some vehicles, but many setups require drilling or frame mounting. This guide focuses on bolt-on, frame-mounted hitches for reliability and long life. Always plan for a symmetrical setup and consider inspecting the area for rust or damage before installation. The Install Manual Team emphasizes safety and planning as foundational steps.

Types of Hitch Receivers and Mounts

There are several hitch receiver classes and mounting configurations, each designed for different towing needs and vehicle frames. The most common receivers slide into a dedicated frame rail and bolt to mounting points. Choose a hitch that matches your vehicle’s frame design, weight rating, and the type of trailer or rack you plan to use. Heavier-duty options offer higher tongue weight and gross trailer weight capacities, while lighter-duty models are easier to install. Some setups use a fixed mount, others employ adjustable brackets to accommodate different wheelbases or bumper configurations. Consider the environment where the vehicle operates (city streets vs. rough terrain) and how often you’ll disconnect the hitch. Finally, verify compatibility with your existing wiring harness and electrical connectors for trailer lights and brakes. The right choice minimizes wear, reduces noise, and improves overall safety during towing.

Tools, Materials, and Prep

Before you begin, assemble a complete kit and confirm you have all essential tools. A typical hitch installation requires the hitch receiver, mounting bolts and nuts, lock washers or locknuts, a ball mount and ball, wiring harness (if you tow trailers with lights), anti-seize compound, thread locker, a torque wrench, and a ratchet with appropriate sockets. You’ll also need a floor jack or ramps and jack stands if you’re lifting the vehicle. Have a friend assist or use a sturdy lift to keep the hitch aligned during installation. Lay out hardware in the pattern specified by the hitch manufacturer and check each piece for damage. Keep a clear workspace free of dirt and debris to prevent fastener contamination. Always read the instruction manual and check for any vehicle-specific notes, such as frame reinforcements or drilling requirements. The goal is a clean, square mount with all fasteners fully retracted before tightening.

Safety First: Vehicle and Environment

Hitch installs involve significant wrenching near the vehicle’s frame and undercarriage. Park on a flat, level surface and engage the parking brake. If you have to work on an incline, use wheel chocks on both sides. Wear safety glasses and gloves to protect eyes and skin from sharp edges and hot components. Disconnect the vehicle battery if you will be handling electrical connections beyond the wiring harness. Never work under a vehicle supported only by a jack; use jack stands for stability. Check for exhaust heat shields, fuel lines, and nearby wiring that could be damaged during mounting. Ensure there is adequate clearance for exhaust components and trailer clearance when the hitch is installed. If you are unsure about any step, seek professional assistance or contact the hitch manufacturer for guidance. The Install Manual Team highlights safety as non-negotiable.

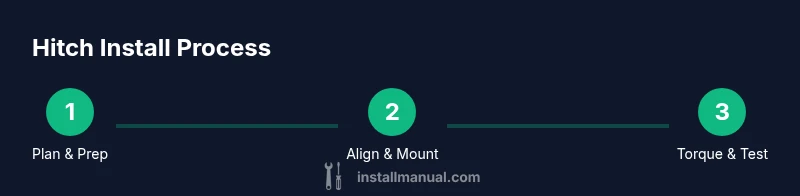

Planning the Install: Measurements and Alignment

Accurate alignment ensures the hitch sits level and distributes weight evenly. Start by cleaning the mounting surface and inspecting mounting points for corrosion or cracks. Use a ruler or straightedge to verify the frame rails are parallel and that the mounting holes line up with the hitch brackets. If the holes aren’t perfectly aligned, you may need to loosen other components or use shims if approved by the manufacturer. Dry-fit the hitch by holding it in place with a helper, then check ground clearance and bumper overhang. Confirm that the receiver opening is square to the centerline of the vehicle. Do a final check against the planned ball height relative to the trailer coupler to prevent tongue weight issues. The goal is precise alignment before you install hardware, which minimizes rework and ensures a clean, quiet ride.

Step-by-Step: Mounting the Hitch to the Frame

1. Position the hitch assembly under the vehicle and align the mounting holes with the frame rails. 2) Have a helper hold the hitch in place while you insert the alignment bolts. 3) Start all bolts by hand to prevent cross-threading, then snug them finger-tight before final tightening. 4) Tighten bolts in the recommended sequence from the manufacturer to ensure even clamping force. 5) Recheck the alignment, adjust if necessary, and re-torque as recommended. 6) If your kit includes reinforcement plates, install them per the instruction sheet. 7) Verify there is no interference with exhaust components or body panels. Tip: use a wooden block to cushion contact points and avoid bending the hitch. The time for this step varies with vehicle complexity and hardware but plan for the majority of the install.

Step-by-Step: Securing Bolts and Checking Torque

With the hitch loosely in place, tighten each fastener in a sequence that spreads load evenly. Use a torque wrench to bring fasteners to the manufacturer’s specified value and re-check after a short test fit. If hardware includes lock washers or thread lockers, apply as directed. Avoid over-tightening, which can strip threads or fatigue the frame. After securing the bolts, inspect for gaps, misalignment, and any signs of binding. You may need to adjust spacers or shims if the kit requires them. Finally, verify that any removable rails or crossmembers sit flush with the frame and that all fasteners move freely without binding. This step prevents looseness that could cause rattling or failure during towing.

Wiring Harness Considerations and Electrical Safety

If your trailer uses lights, brakes, or a battery disconnect, you’ll need a compatible wiring harness. Review the vehicle’s electrical system and the hitch’s wiring harness to determine the correct connection method (e.g., 4-wire, 7-wire). Route wires away from hot exhaust components and moving parts. Use zip ties and protective grommets to prevent chafing. Test the lights with the trailer connected and check for proper operation of brake, turn, and tail lights. Grounding points must be clean and secure; poor ground can cause failing signals. Some vehicles require a separate converter or CAN-bus module to communicate with the trailer. If you’re uncomfortable with electrical work, hire a pro. The goal is safe, visible, and reliable trailer lighting on the road.

Final Checks, Break-In, and Maintenance

After installation, perform a thorough inspection. Check that all fasteners are torqued to spec and the hitch remains level under load. Do a quick drive without a trailer to listen for rattles, looseness, or contact with the bumper. Inspect mounting points for rust or paint damage and address issues promptly. Periodically re-torque fasteners as part of maintenance, especially after heavy use or off-road driving. Check the wiring harness and lights before each trip. Lubricate moving parts if recommended by the hitch manufacturer and keep a spare set of hardware in your vehicle in case of loss or damage on a trip. The Install Manual Team emphasizes that regular upkeep prolongs hitch life and keeps towing safe.

Common Pitfalls and Troubleshooting

Common issues include misalignment, loose bolts, rubbing against exhaust or fuel lines, and wiring faults. If you notice any misalignment, recheck mounting points and repeat the torque sequence. Loose bolts can flutter and wear out holes, while improper wiring may cause non-functioning lights. If you cannot solve a problem, consult the hitch manufacturer’s guide or contact a qualified technician. In some cases, you may need to replace hardware or reinforced brackets. Always remove the trailer if you suspect overload or structural damage and seek professional assistance. The goal is a reliable hitch that remains secure under load and in varied weather conditions.
