UV Install: Safe UV-C Lamp Setup for Home Systems
A comprehensive guide to UV install of UV-C lamps in home HVAC or water systems, covering planning, safety, placement, wiring, maintenance, and troubleshooting.
In this guide, you will learn to safely install a UV-C lamp for disinfection in an HVAC or water system, including placement, electrical safety, and maintenance. According to Install Manual, you’ll need basic hand tools, PPE, and a UV-C lamp kit. Follow local codes and the brand’s safety guidance for safe, effective installation. This quick answer outlines the essential steps and checks to decide if you should proceed.
What UV Install Is and Why It Matters\n\nUV install refers to adding a UV-C disinfection lamp to a home system to inactivate microbes in air or water circuits. UV-C devices are widely used in residential settings to enhance hygiene and reduce microbial load. This section explains the principles behind UV-C light, how it interacts with microorganisms, and why a properly planned installation matters for safety and effectiveness. When executed correctly, UV install can complement existing filtration and sanitation measures without replacing them. The term UV-C lamp, ballast, and housing must be selected to match the specific system and airflow, water flow rate, and the space constraints of your home. Always consult manufacturer instructions and local codes before you begin. For homeowners tackling installation tasks, this is a task where methodical planning, adherence to safety practices, and a clear maintenance plan pay off in reliability and health benefits. The Install Manual team emphasizes that proper placement and shielding are critical to avoid exposure and ensure maximum effectiveness.
Safety First: PPE, Codes, and Electrical Precautions\n\nSafety is the foundation of any UV install. UV-C light can cause skin and eye irritation, so always wear rated eye protection, gloves, and long sleeves when handling lamps. Before you begin, verify that the electrical supply is turned off at the main breaker and lock it out if you’re working in a shared space. Check for local codes or HOA rules that govern disinfection equipment installations, and ensure your chosen product is certified for residential use. If your system includes a duct or water line, make sure the enclosure provides adequate shielding and labeling to prevent accidental exposure by occupants. Safety documentation from the lamp manufacturer should guide mountings, sealants, and maintenance intervals. Install Manual’s approach emphasizes documenting any electrical changes and testing the circuit safely after installation.
Assessing Your System: Is UV-C Right for You?\n\nNot every home needs a UV install, but UV-C lamps can be advantageous in specific scenarios, such as high humidity environments, stubborn biofilm, or spaces with known microbial concerns. Evaluate your current filtration, airflow, and water quality to determine whether UV-C adds value beyond existing systems. Consider the equipment compatibility: duct-mounted UV-C units for HVAC should fit within the air handler’s footprint and avoid obstructing airflow; water-line installs require compatibility with pipe materials and flow rates. Consult installation manuals and, if needed, a professional to assess risk and benefits for your unique home. The goal is to ensure a preventative layer of disinfection without introducing new hazards or maintenance burdens.
Planning Placement: In-HVAC vs Point-of-Use\n\nPlacement determines effectiveness and safety. In-HVAC installations sit along the air stream, typically near the filter or ahead of the blower, to maximize exposure while minimizing direct contact with occupants. Point-of-use units are placed at specific bathrooms or kitchens where localized disinfection is desired, often with dedicated shutoff and bypass options. When planning, map airflow paths, identify accessible power sources, and ensure that the lamp’s housing allows for routine cleaning and lamp replacement. Keep the lamp away from moisture sources unless the enclosure is rated for damp locations. The Install Manual guidance stresses shielding and labeling to prevent accidental exposure.
UV Lamp Selection and Sizing: What to Choose\n\nChoose a UV-C lamp kit that matches your system’s dimensions and airflow or water flow rate. Larger spaces often require higher-output lamps or multiple lamps in parallel, while smaller ducts may rely on compact modules. Ensure the ballast and electronics are rated for your voltage and are compatible with your control system. Look for certifications and LED indicators for status signals. Avoid generic, non-certified lamp kits that lack safety documentation. Proper sizing improves disinfection performance and reduces the risk of overexposure due to malfunction.
Wiring, Power, and Mounting: Key Considerations\n\nPower off is non-negotiable during wiring. Use a dedicated circuit if possible or proper breaker protection, and connect with appropriately rated wire nuts and strain reliefs. Mount the lamp securely using brackets or a supplied housing, ensuring it is stable against vibration and airflow. Route cables away from moving parts and moisture, and seal penetrations to prevent leaks or drafts. Label the system clearly for future maintenance and independent inspections. If your installation involves controls, integrate interlocks or timers to prevent the lamp from operating when access panels are open.
Maintenance and Replacement Scheduling\n\nUV-C lamps degrade in intensity over time, so replacement follows a recommended schedule from the manufacturer. Keep a maintenance log with the lamp model, replacement date, and expected service life. Clean the enclosure and inspect seals for wear during each replacement. Check the ballast operation with a visual indicator or meter if available. Regular servicing maintains disinfection effectiveness and protects household occupants from exposure during maintenance.
Troubleshooting Common Issues During UV Install\n\nIf the lamp fails to illuminate, verify power, ballast operation, and wiring connections. Inspect protective shielding and mounting for gaps that could expose occupants. Look for abnormal noises or buzzing that may indicate loose wiring or ballast failure. Use a non-contact tester to confirm voltage in the proper locations before touching wires. When in doubt, consult the lamp’s manual or a licensed technician. The goal is safe, reliable operation with minimal downtime.
Health, Safety, and Environmental Considerations\n\nUV-C devices should be used as part of a holistic hygiene strategy, not as a sole solution. Exposure to UV-C can harm eyes and skin, so shielded enclosures and restricted access are essential. Dispose of old lamps according to local hazardous-w waste guidelines and recycle components where possible. If your home has pets, children, or elderly residents, implement additional safety measures and consider professional install verification to ensure compliance with safety standards.
Tools & Materials
- UV-C lamp kit (lamp, ballast, housing)(Certified for residential use; ensure compatibility with your system)
- Safety goggles (UV-rated)(ANSI Z87.1 or equivalent; protective for eye exposure)
- Nitrile gloves(Protect hands during handling; avoid oils on lamp glass)
- Screwdriver set (Phillips and flathead)(For mounting brackets and access panels)
- Multimeter or voltage tester(Verify power is off before wiring)
- Drill with appropriate bit(If creating new mounting holes or zip-throughs in panels)
- Mounting brackets or enclosure(Secure mounting to withstand vibration and airflow)
- Silicone sealant (neutral cure)(Seal penetrations and protect from moisture)
- Wire nuts and electrical tape(Secure connections and provide strain relief)
- Marker labels and maintenance log(Document placement and replacement dates)

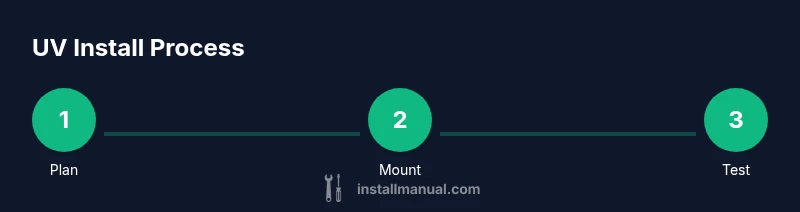

Steps
Estimated time: 90-120 minutes
- 1
Prepare workspace and power down
Turn off the system power at the main breaker and lock out the circuit if needed. Gather all tools and verify you have the lamp kit, PPE, and mounting hardware. This minimizes the risk of shock or accidental exposure during installation.
Tip: Label the circuit to prevent others from restoring power mid-task. - 2
Assess mounting location
Review manufacturer guidelines and map the airflow or water flow to choose a location with minimal obstructions and easy access for lamp replacement. Ensure the enclosure provides adequate shielding and fits within the space constraints.
Tip: Choose a location where drips or condensation are unlikely to reach the lamp housing. - 3
Install mounting bracket or enclosure
Mount the bracket or housing on a solid surface using screws or fasteners appropriate for the mounting material. Ensure a solid, vibration-resistant attachment and check that the lamp will not contact moving parts.
Tip: Use rubber grommets or padding to reduce vibration transmission. - 4
Mount the UV-C lamp and connect ballast
Secure the lamp in its housing and connect to the ballast according to the manufacturer’s wiring diagram. Align the lamp so that airflow or liquid flow passes across the lamp surface for effective exposure.
Tip: Never touch the lamp glass with bare hands; use gloves when handling. - 5
Wiring and electrical connections
With power still off, connect wires using approved connectors, secure with strain relief, and label the circuit. Double-check color coding and ensure there are no loose strands that could short.
Tip: Keep connections away from moisture and use heat shrink where possible. - 6
Seal penetrations and protect from moisture
Apply silicone sealant around any penetrations to prevent leaks and maintain enclosure IP rating. Confirm there are no gaps that could channel moisture toward electrical components.
Tip: Allow sealant to cure fully per product instructions before powering on. - 7
Test the system safely
Power on the system and observe lamp operation using the indicator or meter. Look for stable illumination and listen for abnormal noises. If anything looks off, power down and recheck connections.
Tip: Stand back during the initial test to avoid direct exposure. - 8
Integrate controls and interlocks
If your lamp is integrated with a control board or duct system, ensure interlocks or timers prevent operation when access panels are open. Test the interlock function and confirm safe shutdown behavior.
Tip: Document wiring and control settings for future maintenance. - 9
Document installation and maintenance plan
Record model numbers, serials, location, and maintenance dates. Create a simple schedule for lamp replacement and filter changes, and store this information with the system documentation.
Tip: Take photos of the setup for quick reference later.
Got Questions?
What is UV install and when should I use it?
UV install involves placing a UV-C lamp in home HVAC or water systems to inactivate microbes. It’s most beneficial where humidity is high or where residual microbial control is desired. Always assess compatibility and safety before proceeding.
UV install adds a UV-C lamp to your system to reduce microbes. It’s most helpful when humidity is high or you want extra disinfection; ensure it’s compatible with your setup and installed safely.
Do I need an electrician to install UV-C lamps?
Electrical work should be performed by someone familiar with residential electrical codes. If your installation involves new wiring, dedicated circuits, or controls, consult a licensed electrician or HVAC technician.
If you’re adding new wiring or controls, hire a licensed electrician or HVAC tech to ensure safety and code compliance.
Are UV-C lamps safe for home use?
When used with proper shielding, enclosure, and maintenance, UV-C lamps can be safe for home installations. Avoid direct exposure; follow manufacturer instructions and local codes to minimize risks.
Yes, with proper shielding and maintenance UV-C lamps can be safe at home. Don’t expose skin or eyes, and follow the manual and local codes.
Can I install UV-C in water lines or HVAC by myself?
DIY is possible for simple, well-documented installs, but more complex systems involving water lines or integrated controls should be done with professional guidance to ensure safety and code compliance.
It’s doable for simple setups, but for complex water or control-integrated installs, a pro is safer.
What maintenance is required after UV install?
Replace lamps per the manufacturer’s schedule, inspect seals for wear, and keep the enclosure clean. Maintain a simple log of replacement dates and test indicators.
Replace the lamp at the recommended interval, check seals, and keep a maintenance log.
What signs indicate my UV-C system is not functioning?
If the lamp does not illuminate, shows a flicker, or you detect reduced output, inspect power, ballast, and wiring. Listen for unusual noises and check for exposure hazards.
Look for no light, flicker, or reduced output. Check power, ballast, wiring, and ensure there’s no exposure risk.
Watch Video
Main Points
- Plan placement before mounting.
- Power down and verify safety before wiring.
- Choose a lamp size matching system and airflow.
- Shield and label all components for safety.
- Document maintenance and replacement dates.
