How to Install UV Disinfection at Home
Learn how to install UV disinfection equipment safely at home with a clear, step-by-step process, safety tips, and maintenance guidance from Install Manual.
You can install UV disinfection equipment to sanitize drinking water or indoor air. This guide explains how to select the right UV system, prepare for installation, and execute a safe, code-compliant setup. You’ll verify the water or air flow, electrical supply, and maintenance needs, then follow step-by-step instructions to complete the install.
How UV disinfection works
According to Install Manual, understanding how UV disinfection works helps you plan a safe, effective install uv. UV-C light targets the genetic material of microorganisms, preventing replication. In a home setup, a UV device is installed in-line with either the cold-water line or the air-handling path, depending on your goal. When fluid or air passes under UV exposure inside a sealed chamber, microbes lose the ability to cause illness. The lamp sits inside a quartz sleeve within a protective housing to prevent direct contact. Regular maintenance and proper shielding are essential to keep people safe while achieving reliable performance. The design also emphasizes that UV is an adjunct to, not a replacement for, existing filtration or treatment steps. A thoughtful layout reduces risks and helps ensure consistent results over time. During install uv projects, planning the placement and access for maintenance is crucial for long-term success.
Safety considerations and PPE
UV systems emit powerful light and can pose hazards if mishandled. Always wear UV-rated safety glasses, gloves, and long sleeves when handling lamps or opening housings. Never look directly at an energized lamp, and avoid reflecting UV light from shiny surfaces. Use protective covers and install interlocks so the lamp shuts off when the housing is opened. Work only with the power disconnected unless you are performing a controlled test under supervision and following local electrical codes. If you must work near water, keep shoes dry and use appropriate seals to prevent leaks. The Install Manual team emphasizes strict safety protocols and documented procedures to protect occupants and technicians alike.
Selecting the right UV system for your home
Choosing the correct UV system starts with understanding your goal (water vs. air disinfection) and your home’s flow or ventilation. For drinking water, select a unit designed for your water quality and desired contact time, with a quartz sleeve and sturdy housing. For air, pick a unit sized for the air handling unit or duct where it will sit, ensuring the duct can tolerate the unit’s heat output. Look for units with clear specifications on lamp life, warranty, and ease of replacement. Remember that UV is a complement to filtration and sterilization, not a replacement. The Install Manual team recommends matching the system to your household needs and reviewing local codes before purchasing. This choice impacts maintenance needs and future service.
Planning the installation space and layout
Map the installation area, noting access for maintenance, power supply, and shutoffs. For water-based systems, plan how to route cold-water lines to the unit and ensure proper drainage where applicable. For air-based installations, confirm available space in the duct and verify that the unit will not pose clearance hazards or obstruct airflow. Ensure vibration-free mounting and secure all connections with appropriate brackets and seals. A well-planned layout minimizes service interruptions and helps you access components for regular checks.
Electrical and plumbing prerequisites
Ensure the installation complies with electrical codes by using a GFCI-protected outlet in damp locations and integrating proper overload protection. Shut off power at the main breaker before starting, and verify there is no voltage present on exposed conductors. Use a multimeter to confirm circuits are dead before touching wires. For plumbing lines, install appropriate shutoff valves and strainers to protect the lamp from debris. Use plumber's tape on threaded fittings and ensure watertight seals. Proper electrical and plumbing readiness reduces the risk of shocks, leaks, and later service calls.
Mounting, housing, and securing components
Secure the UV housing to a stable surface with manufacturer-approved mounting hardware. Ensure the quartz sleeve is clean and free from scratches before assembly. Install any interlocks and sensors per the instructions so the unit automatically shuts off if the housing is opened. Verify clearances to combustible materials and ensure there is no risk of accidental contact with live components. A solid mounting plan keeps vibrations low and prolongs lamp life, making future maintenance easier.
Maintenance routines and lamp care
Establish a routine to inspect the lamp, sleeve, and seals regularly. Replace the lamp according to the manufacturer’s schedule and keep spare sleeves on hand. Clean the quartz window gently with a soft cloth and approved cleaning solutions, avoiding abrasives. Keep a maintenance log and replace worn seals to maintain performance. The Install Manual analysis shows that timely maintenance supports sustained UV effectiveness and consistent disinfection.
Troubleshooting common issues
Power not turning on? Check the outlet, switch, and interlock wiring; ensure the unit is receiving power. If the lamp glows dimly or cycles on/off, inspect the sleeve for fouling, verify flow rate, and examine ballast connections. If no light appears, consult the manual for lamp replacement steps and verify that the protective housing remains sealed. Document any observed faults and plan for service if readings fall outside expected ranges.
Next steps and post-install expectations
After installation, run a controlled test to confirm UV exposure within design parameters and to verify there are no leaks or air bypass. Document the installation with photos and notes for future service. Create a maintenance schedule and set reminders for lamp and sleeve replacement. The Install Manual team recommends keeping safety and performance in focus to ensure a compliant, reliable UV install.
Tools & Materials
- UV disinfection unit(Ensure compatibility with your water line or air duct)
- Quartz sleeve(Keep clean and free of scratches)
- GFCI-protected electrical outlet(Wet/damp location code compliance)
- Mounting brackets and hardware(Use manufacturer-approved fasteners)
- Silicone sealant (UV-rated)(Waterproofing and seal integrity)
- PVC piping and fittings(Only if plumbing integration is used)
- Teflon tape and thread sealant(Seal threaded connections)
- Multimeter(Verify electrical safety before touching conductors)
- Safety glasses and work gloves(Personal protective equipment)
- Tape measure(Plan clearances and mounting positions)
- Marker or pencil for labeling(Label lines and access panels for future service)
- Electrical wire nuts and conduit(Secure and protect wiring)

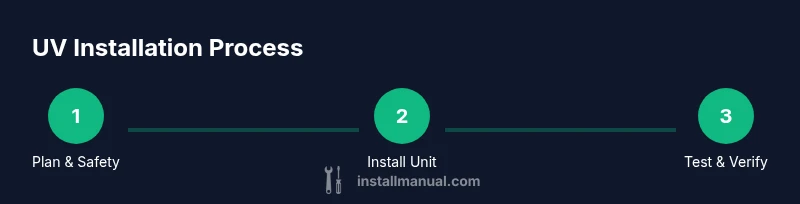

Steps
Estimated time: 45-75 minutes
- 1
Assess requirements
Identify whether you are treating water or air, estimate flow or ventilation needs, and confirm local code requirements for a UV install. Verify space availability and access to power and service lines. Document any special constraints before purchasing equipment.
Tip: Start with the goal (water vs air) and confirm that your planned unit supports it. - 2
Shut off power and isolate area
Power down the circuit feeding the installation area and apply a lockout/tagout if required. Confirm there is no voltage by testing with a multimeter. This prevents shocks during mounting and connections.
Tip: Always double-check power is off before touching exposed conductors. - 3
Mount the unit housing
Mark mounting locations, then attach the unit using manufacturer-approved brackets. Ensure the surface is sturdy and the unit sits level to avoid vibration. Leave space for maintenance and cable routing.
Tip: Use a level and pre-drill pilot holes to ensure a clean, secure mount. - 4
Route electrical supply
Run appropriate wiring to the unit and connect to a GFCI-protected outlet. Keep conductors shielded and away from moisture paths. Close any open wiring with proper connectors and strain relief.
Tip: Keep a clean wiring path to minimize wear and future faults. - 5
Connect plumbing or ductwork
Attach the UV unit to the water line or duct according to the manufacturer's instructions. Use proper seals and valves to prevent leaks and ensure no debris enters the system. Test all joints for watertight integrity before applying pressure.
Tip: Do not overtighten fittings; use adequate sealant and torque as specified. - 6
Install lamp, sleeve, and seals
Place the lamp inside the sleeve and ensure the seal around the housing is intact. Inspect for cracks and ensure the sleeve remains clean. Reassemble the housing carefully and verify interlocks function as designed.
Tip: Handle the lamp by its ends and avoid touching the glass surface. - 7
Install interlocks and sensors
Connect safety interlocks and any monitoring sensors that shut off UV exposure when the housing is opened. Verify wiring integrity and ensure alarms or indicators are accessible for daily checks.
Tip: Interlocks are critical for safe operation; test them with the housing open. - 8
Test and verify operation
Power the system and perform a controlled test run. Check for leaks, verify there is no bypass, and confirm the unit reaches normal operating conditions. Document readings and any adjustments made during testing.
Tip: Schedule a follow-up test after your first weeks of use.
Got Questions?
What is UV disinfection and how does it work in homes?
UV disinfection uses UV-C light to inactivate microorganisms by disrupting their genetic material. In homes, UV is typically used to augment water or air treatment without adding chemicals, and it should be used alongside filtration and proper system design.
UV disinfection uses UV-C light to inactivate microbes in water or air, and is best used with other treatment steps. It's important to follow installation and maintenance guidelines.
Is UV safe for residential use?
Yes, when properly installed with protective housings, interlocks, and trained handling. Follow manufacturer and local code requirements to minimize exposure risks to occupants and technicians.
UV devices are safe for homes when installed with safety features and proper handling.
Do I need a professional to install UV systems?
Installation can be done by a skilled DIYer, but it involves electrical work and plumbing or duct work. Consult local codes and consider a professional if you are uncertain about electrical, piping, or safety requirements.
If you're unsure about electrical or plumbing work, hire a licensed professional.
How often should UV lamps be replaced?
Lamp replacement frequency depends on the manufacturer's specification and usage. Replace when output declines or as recommended in the manual to maintain effectiveness.
Replace the lamp per the manufacturer’s schedule or when efficiency drops.
Can UV treatment affect water taste or odor?
UV treatment itself does not add chemicals or alter taste; however, ensure the system is properly maintained to avoid fouling or byproducts from other parts of the system.
UV won’t change taste if the system is well maintained.
Can UV devices treat both air and water in the same system?
Some installations are designed to handle either water or air depending on the configuration. Check the product capabilities and ensure you select the correct type for your application.
Check the product specs to confirm whether a unit handles water or air.
Watch Video
Main Points
- Plan space and access before buying equipment
- Choose a UV system matched to your goal
- Prioritize safety and code compliance
- Schedule regular lamp and sleeve maintenance
- Test thoroughly after install uv completion
