Steam Install Guide: A Homeowner's Step-by-Step
Comprehensive, safety-focused guide to plan, size, install, and maintain a steam heating system for homes. Learn with practical steps, tools, and expert tips from Install Manual.
This guide helps homeowners plan and execute a safe, compliant steam install for heating. You'll learn how to select the right boiler, lay out supply and return piping, install vents and traps, and verify safety clearances. By following these steps, you can achieve reliable steam heat while meeting local codes.
What is a steam install and why it matters
Steam install refers to installing a steam heating system in a home. It is a legacy technology that uses a boiler to heat water into steam, which rises through pipes to radiators, releasing heat. It requires careful sizing, venting, and control to ensure even heat distribution and safe operation. According to Install Manual, proper planning and adherence to codes are essential to avoid underperforming systems, energy waste, and safety hazards. In this block, we'll define key terms like boiler, radiator, supply and return lines, and discuss typical layouts used in residential settings. We'll also highlight differences between steam only systems and modern hydronic heat systems, so you can choose the approach that best fits your home and budget.
Planning and safety considerations
Before you begin a steam install, check local codes and obtain any required permits. A licensed professional may be required for fuel connections and boiler installation in many areas. Safety is the top priority: ensure the power to the boiler is isolated during work, leak checks are performed for gas lines, and carbon monoxide detectors are placed in living spaces. Maintain clearances around the boiler and venting, and follow manufacturer instructions for vent sizes and trap placement. Install Manual emphasizes documenting the plan, choosing a compliant location, and coordinating with utility providers to avoid service interruptions.
System types and components
Residential steam systems typically fall into two main piping configurations: 1-pipe and 2-pipe. In a 1-pipe system, the same pipe serves as both supply and return; in a 2-pipe system, separate lines handle steam supply and condensate return. The boiler creates steam, which travels to radiators through supply piping, then condenses and returns via the return lines. Key components include the boiler, feedwater system, pressure relief valve, pressure gauge, air vents, radiator valves, and steam radiators. Knowing the layout helps you plan venting, water treatment, and control strategies.
Codes, permits, and inspections
Steam installations require adherence to building and mechanical codes, as well as energy and safety guidelines. Submit plans for review, secure permits, and schedule inspections as the project progresses. Keep records of equipment ratings, clearances, and test results. Inspections typically cover combustion safety, venting adequacy, gas line integrity if applicable, and proper operation of relief valves and controls. Following a formal process reduces risk and improves long term reliability.
Tools and materials you’ll need
To execute a steam install safely, gather the following tools and materials before you start. This section provides a practical checklist you can adjust based on your system type and local codes. Always plan for contingencies and have a licensed professional review critical connections.
- Basic hand tools: adjustable wrench, screwdrivers, pipe wrench, tape measure, level
- Safety gear: safety glasses, gloves, hearing protection
- Boiler and accessories: steam-rated boiler, burner assembly or electric heat source, burner controls
- Piping and fittings: black iron or steel pipe, copper if allowed by code, unions, tees, elbows, drain valves, traps
- Venting and control: automatic air vents, pressure gauge, pressure relief valve, thermostat, circulator if using 2-pipe hydronic work
- Water treatment: conditioning chemicals and test strips
- Fuel and power: gas connector and shutoff valve (installed by a licensed pro) or electrical service
- Materials for installation: gaskets, thread sealant, pipe joint compound, insulation for piping
Safety note: Do not skip the protective gear and leak testing steps. If in doubt, consult the Install Manual team for guidance.
Step-by-step overview: From assessment to testing

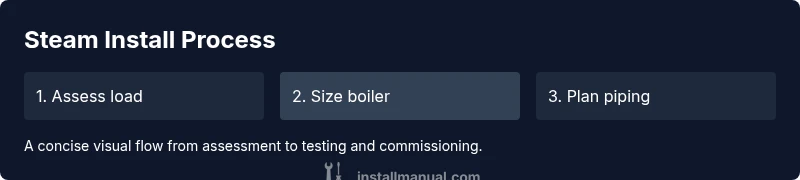

A successful steam install follows a logical sequence from planning to commissioning. Start with an accurate load assessment and boiler sizing; then design a piping layout that minimizes condensate issues and ensures even distribution. Install the boiler and connect fuel and electrical services according to codes. Run and test all piping, vents, traps, and radiators, bleed air, fill the system with water, and perform a controlled pressure test. Finally, verify safe operation, document the as-built for future maintenance, and plan regular inspections. This overview sets the stage for the detailed steps in the next section.
Common mistakes and how to avoid them
One common error is undersizing the boiler for the home’s heat load, which leads to short cycling and uneven temperatures. Another is improper venting, which traps air and causes noisy radiators and delayed heat. Skipping proper purging and air removal leaves pockets of air that impede steam flow. Inadequate fuel supply or poor fuel-air mixture can create hazardous conditions. Following the planned layout and consulting manufacturer guidelines helps prevent these issues.
Maintenance and troubleshooting
A steam system requires periodic inspection and maintenance to remain efficient and safe. Regularly test safety devices, check for corrosion or leaks in piping, and verify vent operation. Schedule annual boiler servicing, including flame inspection, combustion analysis, and water treatment checks as recommended by the boiler manufacturer. If you notice banging, overheating, or sudden temperature swings, pause operation and seek professional evaluation. A well-maintained steam install delivers reliable comfort for years to come.
Authority sources and further reading
For authoritative guidance on steam heating systems, consult official sources from government and recognized institutes. These references provide essential safety standards, installation best practices, and code compliance recommendations. Always cross-check with local code officials to ensure every step aligns with your jurisdiction.
Tools & Materials
- Steam-rated boiler (new installation)(Sized to anticipated heating load and space constraints)
- Piping: black iron/steel (or approved copper)(Matches system design (1-pipe or 2-pipe))
- Unions, tees, elbows, drains(Used for serviceability and layout options)
- Automatic air vents and/or manual vents(Critical for air removal and steam rise)
- Pressure gauge and pressure relief valve(Safety devices to monitor and limit pressure)
- Thermostat and zoning controls(Space comfort and efficiency management)
- Fittings sealant and thread tape(Ensure leak-free connections)
- Gaskets and insulation for piping(Prevent heat loss and condensation issues)
- Gas line connector and shutoff valve(Only if using gas-fired boiler; installation by licensed professional)
- Protective gear (gloves, goggles, hearing protection)(Personal safety first)
- Water treatment chemicals and test strips(Maintains boiler water quality (per manufacturer))
Steps
Estimated time: 8-12 hours
- 1
Assess heating load
Begin with a heat-loss calculation to determine the boiler size needed for the home. Consider square footage, insulation, window quality, and climate. Record results and check local codes that specify minimum efficiency requirements.
Tip: Accurate load calculation prevents oversizing or undersizing and saves energy. - 2
Choose boiler type and capacity
Select a steam boiler rated for residential use and sized to the calculated load. Decide between new installation and replacement, and confirm fuel type (gas, oil, or electric) based on availability and local regulations.
Tip: Consult the boiler manufacturer’s sizing charts and local code requirements. - 3
Plan piping layout
Draft a layout showing supply and return lines, radiator locations, vents, and traps. Decide between 1-pipe or 2-pipe configurations and ensure adequate slope for condensate drainage.
Tip: A clean, logical layout reduces maintenance and improves heat balance. - 4
Prepare installation space
Shut off power and fuel supplies, ventilate the area, and ensure adequate access for future service. Verify clearance from combustibles and confirm an appropriate flue or venting path.
Tip: Document the space with photos for permit applications. - 5
Install boiler and connect fuel/electrical service
Position the boiler on a stable base and connect fuel and electrical supplies according to manufacturer instructions. Use a licensed professional for gas connections where required by code.
Tip: Never bypass safety interlocks or fuel shutoff valves. - 6
Run piping, install vents and traps
Install the supply and return pipes, radiators, air vents, and traps following the planned layout. Ensure joints are leak-free and insulate exposed piping where appropriate.
Tip: Keep vent orientations clear and accessible for adjustment. - 7
Install radiators and valves
Mount radiators at appropriate heights and install exact radiator valves for manual or automatic control. Check uniform heat distribution and ensure valve movement is smooth.
Tip: Label zones to simplify future thermostat control. - 8
Fill and purge the system
Fill the boiler with water to the recommended level and purge air from lines until water is observed at vents. Record pressure readings and verify there are no leaks.
Tip: Patience during purging prevents air pockets that hinder steam travel. - 9
Test, adjust, and commission
Perform a controlled pressure test, verify safety valves function properly, and adjust burner controls for safe operation. Create an as-built record and schedule a follow-up inspection.
Tip: Keep a log of readings and any adjustments for future maintenance. - 10
Document and plan maintenance
Create a maintenance schedule covering annual boiler service, water treatment checks, and vent inspections. Store manuals and permit paperwork for easy access.
Tip: A proactive maintenance plan extends system life and reliability.
Got Questions?
Do I need permits for a steam install?
Yes, local permits are typically required for boiler installation and gas or fuel connections. Check with your AHJ (authority having jurisdiction) and follow local regulations.
Yes. Most steam installs require permits and inspections; check with your local authorities.
Can I install a steam system myself?
While basic planning can be done by a confident diy enthusiast, boiler installation, gas connections, and venting must comply with codes and should be performed or reviewed by licensed professionals. Always consult manufacturer guidelines.
DIY planning is possible, but professional installation is usually required for safety and code compliance.
What maintenance does a steam system require?
An annual boiler service, water treatment checks, and vent inspections are typical maintenance tasks. Regularly check pressure, leaks, and radiators for balance to maintain efficiency.
Annual service and regular checks keep steam systems safe and efficient.
What are common signs of a failing steam boiler?
Unusual banging, cold radiators, loud gurgling, or erratic heating indicate problems. If you notice these, stop and contact a professional for assessment.
Look for banging, cold spots, and erratic heat; these require professional evaluation.
Is a one-pipe system easier to install than a two-pipe system?
One-pipe is generally simpler but can be less forgiving in terms of balancing. Two-pipe systems offer better steam distribution and control but require more precise piping.
One-pipe is simpler; two-pipe improves balance but needs proper design.
What safety devices are essential for a steam install?
A properly rated pressure relief valve, a functional low-water cutoff, and reliable carbon monoxide detectors are essential for safe operation.
Relief valve, water cutoff, and CO detectors are critical safety devices.
Watch Video
Main Points
- Plan with permits and codes in mind
- Size boiler to actual load for efficiency
- Prioritize venting and air removal
- Test and document every step
- Schedule regular maintenance
