Where to Install Steam: A DIY Guide for Homeowners
Learn where to install steam in a home, how to plan for space and safety, and follow a clear, step-by-step approach to installing a steam heating component with confidence.
This guide helps homeowners determine the best location for a steam heating component, outline essential safety steps, and provide a clear, step-by-step approach. You’ll learn planning considerations, required tools, and practical checks before, during, and after installation. Follow code requirements and manufacturer guidance to ensure a reliable, safe setup.
Understanding where to install steam and why placement matters
When planning a steam heating installation, the location you choose affects safety, efficiency, and serviceability. The question of where to install steam often comes up early in a project, and making a well-informed choice can simplify maintenance and reduce energy waste. In this section we explore core considerations that influence site selection, such as proximity to the boiler or furnace room, access for future service, and how heat and humidity affect adjacent spaces. For homeowners tackling this topic, remember that a proper site reduces risk and supports long-term performance. The phrase where to install steam frequently appears in planning conversations, and recognizing the factors at play helps ensure your system operates safely and efficiently. This is not merely a matter of convenience; it’s about aligning with local codes, manufacturer instructions, and your home’s layout. By understanding these basics, you can make a smarter choice before you begin any work.
Planning considerations: space, access, and code compliance
Effective placement starts with a plan. Consider clearance around the unit, room ventilation, and access for future service. A well-planned location minimizes noise, reduces heat transfer to sensitive spaces, and supports safe venting and condensate drainage. Local codes often specify minimum distances from walls, doors, and combustible materials, so consulting the building code as you decide is essential. Also think about proximity to water supply, drainage, and electrical or gas service—these influences determine ease of routing and help prevent costly retrofits later. In addition, ensure there is a practical route for routine maintenance checks and for replacing components without displacing furniture or obstructing walkways. Finally, involve other systems that might share space, such as laundry or water heaters, to avoid interference and ensure convenient access for emergency shutoffs.
Space and location options in different home layouts
Basements and utility rooms are common, but not universal options. If you have a basement, place the steam unit where it has adequate clearance and where condensate can drain without impacting living spaces. In homes without basements, consider garages or dedicated mechanical closets that are adequately vented and away from living areas. Attics are generally discouraged due to extreme temperatures and accessibility challenges. If you retrofit an existing space, plan for vibration isolation and secure mounting to minimize noise and movement. Each layout has trade-offs: basements can simplify gravity drainage, while mechanical closets can centralize maintenance. The goal is to maximize safety, minimize heat exposure to sensitive spaces, and preserve accessibility for service checks and future upgrades. Remember to verify that the chosen location complies with local regulations and does not compromise egress or fire separation.
Safety, permits, and code compliance
Steam installations involve gas, electricity, and pressurized systems, so safety is non-negotiable. Before work begins, confirm whether permits are required in your area and ensure all inspections are scheduled. Install CO detectors and proper ventilation around any combustion equipment, and verify that exhaust paths meet code requirements. Electrical connections should follow National Electrical Code (NEC) guidelines or your local equivalent, with grounding and appropriate overcurrent protection. Gas lines, if present, require careful handling, gas leak testing, and proper shutoff valves. Always maintain clear access to shutoff controls and emergency disconnection points. Finally, document the installation with schematics and keep copies for future service calls or code inspections. Compliance is not just about passing a checklist; it’s about protecting occupants and reducing risk.
Tools, materials, and prep work
A successful steam installation starts with the right toolkit and materials. Essential tools include a wrench set, pipe wrenches, tubing cutters, Teflon tape, pipe dope, a torque wrench where appropriate, a leak detector spray, and a voltage tester. You’ll also need appropriate piping, vent components, mounting hardware, and safety gear such as gloves and eye protection. Prepare a clean, organized workspace with easy access to a nearby power source and proper ventilation. Label all pipes and valves to create a clear schematic of feed, return, vent, and condensate lines. Have a helper available for heavy lifting and to assist with alignment and fitting connections. Finally, ensure you have a plan for waste portioning and an established method for leak testing after connections are made.

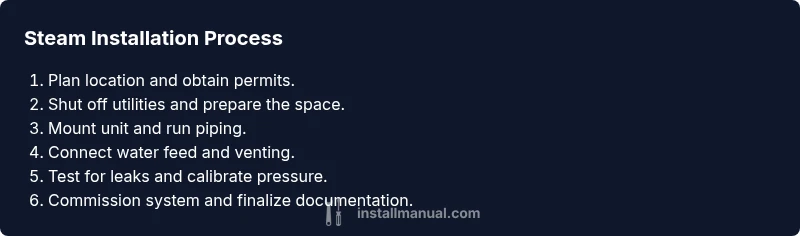

Step-by-step overview of the installation workflow
Below is a high-level workflow to help you understand the typical sequence without duplicating the formal, itemized steps provided later. Start by shutting off power and gas supplies, then review the site for accessibility and drainage. Mount the steam unit securely and route piping to water feed, condensate return, and venting. Install safety devices and sensors, followed by hydrostatic and pressure tests to confirm integrity. If everything checks out, perform a controlled commissioning with a slow ramp-up while monitoring for leaks, temperature, and pressure stability. Finally, document all connections and ensure that the system is ready for routine maintenance. This overview sets the stage for the detailed, stepwise instructions that follow in the dedicated Step-by-Step section.
Maintenance, testing, and long-term care after installation
Maintenance is the key to longevity for steam systems. Schedule periodic inspections to verify venting operation, check for leaks, test safety devices, and confirm pressure settings align with manufacturer recommendations. Regularly purge the system to remove sediment and ensure efficient heat transfer. Keep the area around the unit clean and unobstructed, and replace any worn gaskets or seals promptly. Document test results and keep a log of maintenance activities for future reference. Tenants and homeowners should monitor audible or visual indicators of malfunction and respond quickly by shutting down the system and seeking professional help if needed.
Common mistakes and how to avoid them
Rushing the planning phase can lead to misalignment with code requirements and poor system performance. Skipping proper venting or attempting to reuse incompatible components often causes inefficiency or dangerous conditions. Inadequate access for service or poorly labeled piping complicates future maintenance. Over-tightening connections can damage threads and create leaks, while under-tightening can lead to slow leaks. To avoid these issues, double-check clearances, validate all connections with leak testing methods, and ensure compliance with local codes before energizing the system. A carefully planned, properly executed installation reduces the risk of calls for emergency service and increases the overall lifespan of the steam system.
Tools & Materials
- Wrench set(Adjust sizes 10-14 mm for common fittings)
- Pipe wrenches(Use for threaded fittings and piping)
- Tubing cutter(Clean edge cuts for copper or steel tubes)
- Teflon tape (PTFE) and pipe dope(Seal threaded connections; apply evenly)
- Leak detector spray(Test all joints for leaks after assembly)
- Voltage tester(Verify power is off during work)
- Safety gear (gloves, goggles)(Protect hands and eyes during pressure tests)
- Gas detector(Critical if gas lines are involved)
- Mounting hardware and anchors(Securely attach the unit to structure)
- Basic level and plumb tool(Ensure proper alignment of piping)
- Drain pan and bucket(Manage condensate during initial tests)
Steps
Estimated time: variable depending on system complexity
- 1
Shut off utilities and safety check
Turn off power to the area and close any gas supply valves if present. Use a gas detector to verify there are no lingering fumes. This prevents accidental ignition or electrical shock while you work.
Tip: Double-check that all switches are in the off position and test for voltage before touching wires. - 2
Select installation location with clearance
Choose a site that provides easy access for maintenance, has proper ventilation, and maintains required clearances from walls and combustibles. Confirm that condensate drainage can be directed to an appropriate drain.
Tip: Mark the spot and check for hidden pipes or wiring behind walls before drilling. - 3
Mount unit securely and level
Bolt the steam unit firmly to a stable surface or wall stud. Use a level to ensure the unit sits flat to avoid vibration and noise during operation.
Tip: Use vibration isolation pads if the area experiences structural vibration. - 4
Route water feed and condensate return lines
Connect the feed line with approved piping, ensuring clean routing to minimize pressure drop. Install a condensate return path to the boiler or steam source with proper slope for drainage.
Tip: Keep feed and return lines separate from electrical conduits to prevent cross-contamination. - 5
Install venting and safety devices
Attach the vent or exhaust components per manufacturer instructions. Install safety relief valves and pressure gauges as required, ensuring they are accessible for inspection.
Tip: Verify vent clearance and aim directions away from living spaces. - 6
Perform leak test and calibrate pressure
Seal joints and perform a hydrostatic test or leak check according to the code. Bring the system to the recommended operating pressure and check for any fluctuations or leaks.
Tip: Document test results and address any leaks before proceeding. - 7
Commission and finalize documentation
Power the system, monitor initial operation, and confirm stable pressure and temperature. Update schematics and log all settings for future service or inspections.
Tip: Keep a copy of the installation manual with the system records.
Got Questions?
Do I need a permit to install a steam boiler?
Many jurisdictions require a permit for installing steam boilers or major renovations. Check local building codes and schedule inspections as required by your area. Hiring a licensed professional may be necessary for permitting and compliance.
Check your local building codes for permit requirements and plan inspections as needed. Permits are often required for safety and compliance.
Can I install a steam boiler myself as a homeowner?
DIY installation is possible for simple, small-scale systems only in some regions, but most steam boiler installations involve gas lines, electrical work, and venting that require licensed professionals. Always verify local regulations before starting.
In many areas, professional installation is required due to gas and electrical safety concerns. Check local rules before proceeding.
What maintenance is required after installation?
Regular inspections, vent checks, condensate removal, and safety device tests are important. Schedule annual or semi-annual service, depending on usage and manufacturer recommendations. Keep a maintenance log for reference.
Plan regular service and keep a maintenance log to track components and test results.
What safety checks should I perform before starting a steam system?
Ensure gas and electrical systems are shut off during assembly, verify no leaks, confirm venting is correctly installed, and test emergency shutoffs. Perform a final leak test prior to energizing the system.
Do a final leak test and verify safety devices before first operation.
What are common mistakes during steam installation?
Rushing planning, skipping venting, using incompatible components, and neglecting proper drainage are common issues. Taking time to verify compliance and performing thorough leak testing helps prevent failures.
Take your time with planning and testing to avoid leaks and safety issues.
How long does a typical steam installation take?
Duration varies with system size, location, and existing infrastructure. Expect several hours to a full day for complex setups, including permits, testing, and commissioning.
It depends on complexity; plan for several hours to a full day.
Watch Video
Main Points
- Plan a code-compliant location with adequate clearance
- Gather tools and materials before starting
- Test for leaks and safety before commissioning
- Document installation for future service and inspections
