Install Mini Split: Step-by-Step Guide for DIY Homeowners
Learn how to install a mini split system with a clear, step-by-step approach. This guide covers planning, placement, wiring, vacuuming, and testing for safe, efficient cooling.
Goal: You will install a mini split system yourself, following a detailed, step-by-step process. This includes planning, selecting placement, mounting the indoor unit, routing lines and wiring, installing the outdoor unit, vacuuming the refrigerant lines, and performing a final test. Basic DIY skills, common tools, and strict safety precautions are assumed.
Understanding mini-split systems: components and operation
According to Install Manual, a typical mini split consists of an indoor evaporator unit, an outdoor condenser, a refrigerant lineset, and a compact inverter-driven compressor. The arrangement provides zoned cooling with no ductwork, making it ideal for retrofit projects or spaces with limited access. The indoor unit handles cooling or heating, while the outdoor unit rejects heat outside. The system is controlled by a wall-mounted or handheld remote, and the lineset carries refrigerant between the two units. Important: refrigerant handling is subject to local regulations, and many jurisdictions require certification to work with refrigerants. This section lays the groundwork for planning and safe installation.
Planning your installation: layout, zoning, and code checks
The success of a mini split installation hinges on careful planning. Start by selecting a position for the indoor unit that minimizes direct sun exposure and maximizes airflow to the room. Ensure there is an unobstructed path for the exterior unit with adequate clearance for service and airflow. Consider ceiling height, wall structure, and the availability of a nearby electrical outlet and a condensate drain. Check local codes or homeowner association rules for permissions related to outdoor condenser placement and electrical connections. If you live in a rental or a high-humidity climate, additional considerations for condensation control and drainage are essential. This phase sets the stage for safe, compliant installation.
Sizing, placement, and indoor unit height considerations
Correct sizing matters more than aesthetics: a unit that’s too small will struggle to maintain comfort, while an oversized unit wastes energy and short-cycles, reducing efficiency. Use the manufacturer’s space calculator or consult a professional to determine BTU requirements based on room size, insulation, number of windows, and climate. For placement, avoid walls that trap heat from sun exposure, heavy furniture blocking airflow, or obstructions that hinder service access to the interior unit. The indoor unit should be mounted at a height that allows for comfortable airflow and easy remote control operation, typically at a level where warm air can circulate effectively away from occupants. Remember: proper clearance around the unit is required for maintenance.
Energy efficiency, refrigerant, and airflow basics
Mini splits use inverter-driven compressors that adjust output to match cooling or heating demand, which improves efficiency and comfort. Refrigerant lines must be insulated to prevent energy losses and condensation on exterior walls. Airflow is critical: proper ductless zoning delivers even temperatures without large energy penalties. A well-sealed installation minimizes air leakage and reduces the load on the outdoor unit. If you’re replacing an old duct system, note that a properly sized mini split can outperform many legacy systems in energy use. Always follow the manufacturer’s guidelines for line length, incline, and refrigerant charge to maintain efficiency and warranty coverage.
Preparing for installation: permits, safety, and visibility
Before starting work, confirm whether permits are required in your jurisdiction. Electrical work should be performed by a qualified person; many regions require a licensed electrician for outdoor condenser wiring and disconnects. Ensure the work area is safe: turn off power at the breaker, wear eye protection, and use a stable work surface. Plan for contingencies such as access to a power source, weather protection for wall penetrations, and secure mounting locations to minimize vibration and noise near living areas. This phase reduces last-minute surprises and supports a clean, safe installation.
Common mistakes and how to avoid them
Common errors include improper mounting height, insufficient clearances around the indoor unit, and inaccurate distance between indoor and outdoor components. Skipping a proper wall pass-through and failing to insulate lineset increase energy loss and condensation risk. Another frequent mistake is underestimating drainage requirements, which leads to water damage or mold growth. To avoid these issues, double-check clearances with the unit’s installation manual, perform a test fit before drilling, and use the correct pass-through kit with weatherproofing.
Post-installation: maintenance and long-term care
After commissioning, perform a full function test: set to cooling and heating modes, verify airflow distribution, and listen for unusual noises. Clean or replace the air filters as recommended by the manufacturer. Schedule periodic checks for refrigerant leaks, electrical connections, and condensate drainage. A quick annual inspection helps preserve efficiency, extend system life, and maintain warranty terms. Document model numbers, installation dates, and service visits to support future maintenance.
Budgeting and long-term costs
Budget for the upfront cost of equipment (indoor and outdoor units), installation hardware, and any professional services if you choose to hire help. Expect ongoing costs such as electricity usage, filter replacements, and potential maintenance visits. While ductless systems can be cost-effective in targeted spaces, you should compare total cost of ownership against alternative cooling strategies over a typical 10–15 year horizon. Planning ahead helps avoid sticker shock and ensures a smooth, sustainable cooling solution.
Tools & Materials
- Drill with masonry bit set(For mounting bracket anchors and wall penetrations)
- Stud finder(Locate studs for indoor unit mounting)
- Level(Ensure indoor unit is perfectly level for drainage)
- Tape measure(Accurate spacing from walls and windows)
- Wall sleeve and piping kit(Pass-through and weatherproofing between indoors and outdoors)
- Hole saw / cutting tool(Create an interior wall pass-through for lineset)
- Vacuum pump(Remove moisture from lineset before charging)
- Refrigerant line insulation(Prevent energy loss and condensation)
- Electrical tester or voltage tester(Verify power is off before wiring)
- Screwdrivers (Philips and flat)(Mounting brackets and electrical connections)
- Condensate drain tubing/pump(Ensure proper drainage of condensate)
- Personal protective equipment (gloves, eye protection)(Safety first during cutting and wiring)

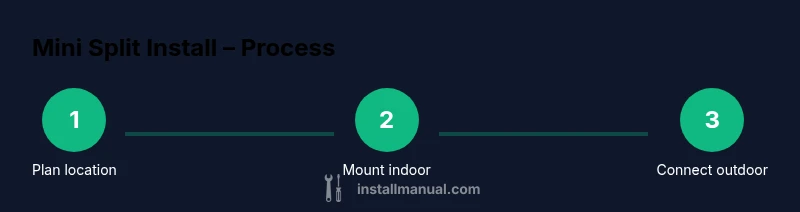

Steps
Estimated time: 4-8 hours
- 1
Assess space and select model
Review room size, window placement, and insulation to determine BTU needs. Choose a ceiling- or wall-mounted indoor unit that fits the room’s layout and airflow goals. Confirm outdoor unit placement with minimal obstructions and adequate airflow.
Tip: Double-check room dimensions and climate considerations before purchase to avoid over- or under-sizing. - 2
Choose mounting location for indoor unit
Pick a wall with ample clearance for service and unrestricted airflow. Avoid direct sunlight and heat sources, which can skew performance. Mark height so installation bracket alignment is precise.
Tip: Use a level line and a stud finder to ensure robust mounting and long-term stability. - 3
Install indoor mounting bracket
Secure the mounting bracket to studs or a solid wall anchor system at the marked height. Verify the bracket is level, as an off-angle unit compromises drainage and efficiency. Install the wall sleeve and prepare the interior pass-through.
Tip: Pre-drill holes and use proper anchors to handle vibration and weight. - 4
Drill through wall and route lineset
Create a neat wall pass-through for the lineset, electrical conduit, and condensate drain. Feed the lineset from the indoor unit to the exterior location while maintaining a gentle slope for drainage. Seal exterior penetrations to prevent air leakage and water intrusion.
Tip: Keep lineset length within manufacturer guidelines to avoid excessive pressure losses. - 5
Mount outdoor unit and secure connections
Position the outdoor condenser on a solid base with level alignment. Connect refrigerant lines, electrical wiring, and the condensate drainage path. Ensure the outdoor unit has clear airflow on all sides.
Tip: Use vibration isolation pads to reduce noise transfer to the building structure. - 6
Electrical wiring and disconnect
Connect the internal and external units according to the manufacturer’s wiring diagram. Install a properly rated disconnect near the outdoor unit if required by code. Verify all connections are tight and protected against the weather.
Tip: If uncertain about electrical codes, hire a licensed electrician to ensure compliance. - 7
Vacuum, test, and charge system if needed
Pump down the lineset to remove moisture, then test for leaks. If the system requires refrigerant charge, follow the manufacturer’s specifications and local regulations. Run the unit in cooling and heating modes to confirm proper operation and airflow.
Tip: Do not charge refrigerant yourself if you are not certified; follow local laws and manufacturer guidance. - 8
Finish, seal, and document
Seal penetrations with weatherproof materials and install cover plates. Recheck all fasteners and strain reliefs. Document installation details for warranty and future maintenance.
Tip: Store model numbers, serial numbers, and installation dates for easy reference during service.
Got Questions?
Do I need a permit to install a mini split?
Permits vary by location. Electrical work and outdoor unit installation often require permits, and a licensed electrician or contractor may be needed. Check your city or county building department guidelines before beginning.
Permits vary by location; electrical work and outdoor installation often require approval. Check local codes before you start.
Can I install a mini-split myself, or must I hire a pro?
DIY installation is possible for some models with basic HVAC knowledge, but refrigerant handling, electrical wiring, and code compliance may require a licensed professional. Review manufacturer guidelines and local regulations before proceeding.
DIY is possible for some models, but refrigerant work and wiring may require a professional. Check local rules first.
How long does a typical installation take?
Most installations take several hours to a full day, depending on wall type, mounting height, and whether electrical work is done by a pro. Plan for contingencies such as weather or access limitations.
Most installations take several hours, sometimes a full day depending on complexity.
Do I need a drainage line or condensate pump?
Yes. The condensate line must be routed to a drain or pump to prevent water damage and mold. Proper slope and venting are essential for reliable drainage.
A proper drainage line or condensate pump is required to remove condensation.
What electrical work is required for a mini-split?
Electrical work includes connecting to a dedicated circuit, installing a disconnect box if required by code, and ensuring correct voltage and breaker sizing. Have a licensed electrician verify the setup if you’re unsure.
Expect dedicated circuits and proper disconnects; consult a licensed electrician if unsure.
Are there safety concerns with refrigerant and pressurized lines?
Refrigerant handling involves hazardous materials and pressurized lines. Do not attempt to vent or recover refrigerant without proper training and equipment. Follow local regulations and manufacturer instructions.
Refrigerant work is hazardous; don’t attempt it without proper credentials.
Will installing a mini-split affect warranty if I DIY?
DIY installation may affect warranty if the manufacturer requires professional installation for coverage. Always follow warranty terms and keep documentation of your installation.
Check the warranty terms; some require professional installation for coverage.
Watch Video
Main Points
- Plan layout before mounting.
- Use proper tools and safety gear.
- Comply with local permits and codes.
- Test thoroughly after commissioning.
- Consult a professional for refrigerant work.
