How to Install a Ceiling Fan at Home
Learn how to install a ceiling fan safely with Install Manual's step-by-step guide. From planning and wiring to mounting and testing, this educational tutorial helps homeowners, renters, and DIY enthusiasts.
Goal: you will install a ceiling fan safely and efficiently. This guide covers selecting a fan, wiring basics, mounting, and testing, with practical safety tips. Before you begin, ensure you have a compatible fan, a rated electrical box, power off, and the right tools. Follow these steps to install house fan correctly and comfortably.
Safe planning and prerequisites
Before you install house fan, plan thoroughly to prevent future wobble or electrical hazards. In warm rooms, a properly chosen ceiling fan can boost comfort and reduce cooling costs when combined with sensible room layout. According to Install Manual, thoughtful planning helps prevent vibration and noise by ensuring the fan is correctly sized, mounted, and wired. Start by assessing room size, ceiling height, and expected airflow from your chosen model. Verify the existing electrical box is rated for a ceiling fan and decide whether a downrod is needed to achieve the correct height. If you discover an inadequate box or poor mounting conditions, plan to reinforce or replace the support. Gather tools and confirm you have a clear workflow before you begin. A small planning pause now saves effort and frustration later.
Fan selection and compatibility
Choosing the right fan is about airflow, blade design, and compatibility with your room. The Install Manual team recommends selecting a fan with a suitable airflow rating for the space, a blade span that fits the room, and a motor type that minimizes noise. Consider room function (bedroom, living area, kitchen) and ceiling height when evaluating mount options and downrod length. Check for compatibility with existing light kits if you want combined lighting. By focusing on compatibility first, you reduce the risk of wobble, heat buildup, or inefficient performance. Read the manufacturer’s specs and look for a unit that offers quiet operation and durable bearings for longevity.
Electrical considerations and codes
Electrical safety is non-negotiable. Always switch off power at the breaker before touching any wiring. Use a voltage tester to confirm the circuit is de-energized, and never assume a dormant switch is safe to work on. Ensure wiring practices comply with local codes and the NEC or equivalent in your area, especially if you’re upgrading an old box or adding a fan to a retrofit. If you’re unsure about wiring, consult your local electrical inspector or a licensed professional. The goal is a safe, compliant connection that won’t trip breakers or pose shock hazards.
Mounting and mechanical setup
The mounting step is critical for stability and safety. Install the fan-rated electrical box securely to the ceiling joist or use a fan-rated box for added support. Attach the mounting bracket to the box, making sure it’s level and firmly fastened. If you’re mounting on textured ceilings or drywall, use appropriate anchors and long screws to reach solid framing. A solid mount prevents wobble and reduces motor strain during operation. Keep the work area clean and reachable so you can complete bracket installation before wiring.
Wiring and connection steps
With power secured and the fan mounted, connect the fan wires to the house wiring using flame-retardant wire nuts: connect neutrals to neutrals (white), hots to the appropriate switched hot (usually black for fan power), and ground to the house ground. If your fan includes a light kit, connect its hot lead to the light switch line as directed by the manufacturer. Cap and insulate all connections, then carefully tuck wires into the electrical box and reattach the canopy. Adhere to color codes and manufacturer instructions to avoid improper operation or safety hazards.
Blade attachment and balancing
Attach fan blades in sets, following the sequence recommended by the manufacturer. Tighten all screws evenly to avoid a wobbly blade set. If your blades are unbalanced, use the balancing kit provided with the fan to locate and apply balancing weights to the appropriate blades. Unbalanced blades can cause vibration, shortening motor life and increasing noise. Double-check blade alignment after initial run and adjust as needed for smooth, quiet operation.
Final testing and safety checks
Restore power and run the fan at low, medium, and high speeds to test performance. Listen for unusual noises and watch for wobble or imbalance. Verify that the light kit (if installed) operates correctly and that the pull chains or wall switches respond as expected. Perform a final inspection of wire connections, canopy fit, and blade balance. If anything feels unsafe or unstable, power down, recheck mounting, and correct before continued use.
Authoritative sources
For electrical safety and installation best practices, consult official resources:
- OSHA: electrical safety guidelines and worker protections (https://www.osha.gov)
- Energy.gov: energy-efficient lighting and cooling guidance (https://www.energy.gov)
- NREL: broader building and energy references (https://www.nrel.gov)
Tools & Materials
- Ceiling fan (rated for ceiling mounting)(Select a model appropriate for room size and mounting height.)
- Mounting bracket(Must be compatible with the chosen electrical box.)
- Fan-rated electrical box(Supports the fan’s weight and rotation.)
- Downrod (optional)(Use if ceiling is very high or you want to lower the fan.)
- Wire nuts(For safe wire connections and insulation.)
- Screwdriver set (Phillips and flathead)(Tighten screws evenly to prevent loosening.)
- Wire stripper/cutter(Cleanly strip insulation for solid connections.)
- Voltage tester(Confirm power is off before handling wires.)
- Ladder(Safe reach to ceiling height.)
- Pliers(Grip and twist wires as needed.)
- Stud finder (optional)(Locate joists for bracket mounting.)
- Electrical tape(Seal exposed conductor ends and secure wires.)

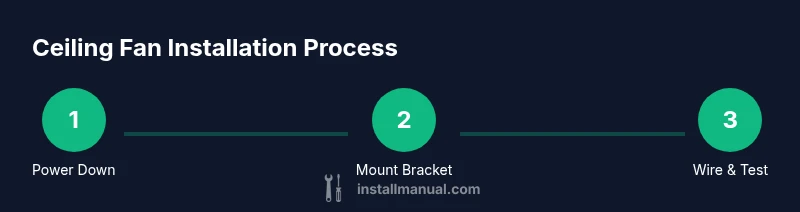

Steps
Estimated time: 60-120 minutes
- 1
Power down and verify
Turn off the circuit at the breaker and use a voltage tester to confirm the power is off at the location where you’ll work. This prevents electrical shock during fixture removal and wiring.
Tip: Always test twice; assume power is live until proven off. - 2
Remove existing fixture
Carefully detach the current light or fixture, supporting its weight as you disconnect wires. If a ceiling box is exposed, inspect its condition and ensure it’s safe to reuse or replace.
Tip: Have a helper hold the fixture while you disconnect wiring. - 3
Install the ceiling box or brace
If your current box isn’t fan-rated, install a compatible fan-rated box secured to a joist or ceiling structure. Attach the mounting bracket to the box, ensuring it’s level and firmly anchored.
Tip: A level bracket prevents wobble and misalignment. - 4
Assemble the fan on the ground
Assemble any required pieces (motor, downrod, and canopy) on a stable surface before mounting. Follow the manufacturer’s instructions to avoid missing parts.
Tip: Double-check blade-order and blade-to-hat alignment. - 5
Hang the fan and begin wiring
Lift the fan to the mounting bracket, secure the canopy, and connect the ground first, then neutral and hot wires per the fan’s wiring diagram.
Tip: Keep wire lengths neat; avoid pinching wires during canopy installation. - 6
Attach blades and balance
Mount blades or blade sets according to the manufacturer’s sequence and tighten evenly. If wobble occurs, use the balancing kit to pinpoint and correct heavy blades.
Tip: Balance is essential for quiet, long-term operation. - 7
Final checks and test run
Restore power, run through all speeds, and check for wobble, noise, or misfiring lights. Adjust as needed and secure any loose screws.
Tip: Test the fan with the light kit on and off if applicable. - 8
Safety check and cleanup
Inspect wiring, ensure no exposed copper, and verify all hardware is tightened. Clean the work area and store tools properly.
Tip: Leave a clean, safe space with clear access to switches. - 9
Review maintenance steps
Create a simple maintenance plan: periodic blade balance checks, dusting, and confirming a secure canopy over time.
Tip: A quick annual balance check preserves efficiency.
Got Questions?
Do I need an electrician to install a ceiling fan?
If wiring is in good condition and you’re confident with basic electrical work, you can install a ceiling fan yourself. However, if you encounter old or unsafe wiring, a complex switch setup, or you’re unsure about code compliance, hire a licensed electrician.
If the wiring is straightforward, a confident DIYer can install it. For older homes or uncertain codes, call a pro.
Can I install a house fan by myself?
Yes, many homeowners install a ceiling fan themselves by following a step-by-step guide and using a fan-rated box and proper mounting. Read the manufacturer’s instructions and ensure you have all essential tools.
Yes, DIY is common with the right guide and safe practices.
What height should a ceiling fan be installed at?
Most installations position the fan blades around seven feet above the floor for standard ceilings, with adjustments for higher ceilings where needed to maintain air circulation around the room center.
Typically around seven feet, with adjustments for tall ceilings.
How do I balance a ceiling fan?
If your fan wobbles, use the manufacturer’s balancing kit to locate the out-of-balance blade and apply weights as directed until the wobble stops.
Balance with the kit that comes with the fan, adjusting weights as needed.
What tools do I need to install a ceiling fan?
Essential tools include a screwdriver, wire stripper, voltage tester, ladder, and a stud finder. Having these ready before you start speeds up the process and reduces trips up and down the ladder.
You’ll want basic tools like a screwdriver, wire stripper, voltage tester, ladder, and stud finder.
Watch Video
Main Points
- Plan and verify wiring before starting
- Choose a fan with appropriate airflow and compatibility
- Mount securely to prevent wobble and noise
- Balance blades for smooth operation and longevity
- Consult a professional if local codes or wiring feel uncertain
