Ceiling Fan Install Near Me: Step-by-Step DIY Guide
Discover a safety-first, step-by-step approach to ceiling fan installation near you. This Install Manual guide covers planning, tools, wiring basics, mounting options, and common pitfalls to help you complete a code-compliant, efficient installation.
Goal: safely install a ceiling fan near you with a clear, step-by-step approach. You’ll verify local electrical codes, gather necessary tools, mount the ceiling brace, wire the fan motor, attach the canopy and blades, install the light kit if needed, balance the blades, and run a test with the switch and remote. When in doubt, hire a pro.
Why ceiling fan install near me matters
According to Install Manual, ceiling fans are not just decorative fixtures; they actively improve comfort, reduce hot spots, and help regulate indoor temperature. In warm climates, a properly installed fan can complement air conditioning and lower energy usage when sized correctly for the room. The decision to install a ceiling fan often reflects a balance between comfort, cost, and convenience. This section explores why homeowners pursue ceiling fan installation near me, what benefits to expect, and how to approach the project with safety and clarity. You’ll learn about blade direction, room sizing, and mounting considerations that influence performance and long-term reliability.
Planning and sizing: pick the right fan for your space
Before you crawl into the attic or lift a box from the shelf, plan for your room’s exact needs. Ceiling fans come in a range of blade spans that correlate with room size, ceiling height, and airflow goals. A small bedroom may require a 36-42 inch fan, while large living areas often benefit from 52-72 inch blades. Height matters too; if the ceiling is higher than eight feet, you’ll likely need a downrod to place the blades at an optimal height. In Install Manual’s experience, incorrect sizing leads to inefficiency and wobble rather than comfort. This block guides you through measuring space, estimating airflow, and selecting a model that fits your décor and safety requirements.
Safety and code basics you must follow
Safety tops any ceiling fan project. Start by turning off power at the breaker and testing the fixture box with a non-contact tester to confirm no voltage. Use a fan-rated ceiling box and bracket that can bear the fan’s weight and movements. Remove the old fixture carefully, noting wire color order. If the home’s wiring or box seems unfamiliar, pause and consult a licensed electrician. Local codes may require a pull chain or wall switch wiring, and some jurisdictions mandate certain brackets or joist reinforcements. Following these guidelines reduces the risk of shocks, fires, and damage to the ceiling structure.
Layout and mounting: mounting options and wiring approach
Understanding the mounting layout is essential before you drill or lift. You’ll assess whether the ceiling box is attached to a joist or a ceiling truss and decide between a flush-mount or a downrod style. If a stub box exists, you may need to replace it with a fan-rated box and install a brace or joist adapter. Wiring approaches vary: some fans include a separate light kit, while others integrate wiring inside a single harness. Plan for a clear wiring path, avoid running conductors through insulation or overhead ductwork, and keep wires protected with proper cable clamps. This planning phase pays off during assembly by reducing wobble, miswiring, and service calls later.
Practical installation steps overview: from prep to test
With the planning complete, the actual installation becomes a sequence of deliberate actions. During the prep, clear the workspace, check attic access, and lay out all parts. Install the mounting bracket to the box, then thread house wires through the canopy. Connect the fan’s hot and neutral leads to the house wires, connect ground, tuck away extra wire, and secure the canopy. Attach the downrod, motor housing, and blades, then balance the assembly with a blade balancing kit if wobble appears. Finally, install the light kit (if included), fit the remote receiver, and test all functions with the wall switch and remote in a dry, comfortable environment.
Tools & Materials
- Voltage tester(Test power at fixture box before handling wires.)
- Non-contact voltage tester(Verify circuit is de-energized.)
- Screwdriver set (Phillips #2 and flathead)(Essential for mounting bracket and canopy screws.)
- Wire strippers(Prepare house wires for connections.)
- Wire nuts (appropriate gauge)(Secure spliced wires.)
- Electrical tape(Seal and protect wire splices.)
- Fan-rated ceiling box(Must support fan weight and movement.)
- Fan mounting bracket(Provides stable attachment to box/bracket.)
- Ladder or scaffold(Safe elevation to the ceiling height.)
- Downrod (if needed)(Used for high ceilings or styling.)
- Pliers and scissors(General handling and wire management.)
- Blade balance kit(Corrects any wobble after install.)
- Safety goggles(Protect eyes during drilling and wiring.)

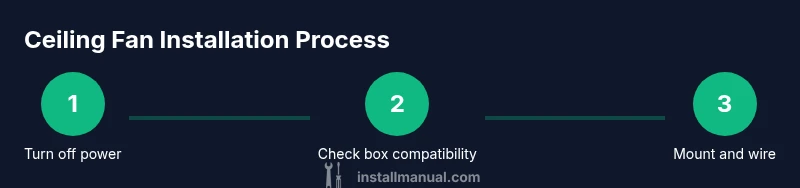

Steps
Estimated time: 45-90 minutes
- 1
Turn off power at the breaker
Locate the correct breaker and switch it to OFF. Use a non-contact tester to confirm no voltage at the existing fixture box. This prevents shocks while you handle wiring.
Tip: Double-check with the tester before touching wires. - 2
Identify ceiling box compatibility
Inspect whether the ceiling box is rated for fan use and how it’s attached to the joists. If the box isn’t rated or is loose, plan to upgrade to a fan-rated box with appropriate bracing.
Tip: If in doubt, consider a professional assessment. - 3
Remove existing fixture
Carefully disconnect wires from the old fixture, noting color order. Remove mounting screws, and keep all hardware organized for re-use or replacement.
Tip: Take a photo of the wiring before disconnecting. - 4
Install fan-rated box and brace
Replace the old box with a fan-rated option and install any necessary brace or joist adapter. Ensure the box is snug and vertical so the fan will sit level.
Tip: Test the box with a short push to confirm stability. - 5
Mount the mounting bracket
Attach the bracket to the ceiling box using the provided screws. Make sure it’s tightened securely and perfectly perpendicular to the ceiling to avoid wobble.
Tip: Use a level to confirm bracket alignment. - 6
Run and secure wiring
Feed house wires through the canopy and into the fan housing. Leave extra length for connections, then secure the wires with clamps if present.
Tip: Keep conductors away from heat and sharp edges. - 7
Connect fan wires
Match fan wires to house wires by color codes (hot, neutral, ground). Cap each connection with a wire nut and wrap with electrical tape for security.
Tip: If your fan has a separate light wire, connect it as instructed by the manufacturer. - 8
Attach canopy and downrod
Slide the canopy over the downrod and secure the canopy screws. Ensure the canopy is flush with the ceiling and that no wires are pinched.
Tip: Install the downrod before wiring if you have a long ceiling height. - 9
Install blades and balance
Attach blades in a uniform pattern and tighten screws in small steps to avoid warping. If wobble occurs, use a balancing kit or adjust blade weight as directed.
Tip: Check that blade edges are clean and free of moisture or debris. - 10
Install light kit/remote and test
If your model includes a light kit, install it according to the instructions and connect the receiver. Re-check all screws, then restore power and test fan functions with the switch and remote.
Tip: Test speed settings at low, medium, and high for stability. - 11
Final safety checks and cleanup
Inspect wiring for exposed conductors, ensure all connections are insulated, and confirm the fan sits level without contact to any ceiling elements. Clean up tools and store hardware properly.
Tip: Keep a spare set of screws and fasteners for future maintenance.
Got Questions?
Do I need a fan-rated ceiling box to install a ceiling fan?
Yes. A fan-rated ceiling box provides safe support for the fan’s weight and movement. If your existing box isn’t rated, upgrade before proceeding.
Yes, you need a fan-rated box to support the fan; upgrade if your current box isn’t rated.
Can I install a ceiling fan myself if I’m not experienced with electrical work?
With careful planning and adherence to safety practices, a motivated DIYer can complete a standard install. If you encounter complex wiring, structural concerns, or local code issues, hire a licensed electrician.
With care, a standard install can be DIY, but hire a pro for wiring or structural concerns.
What should I do if the fan wobbles after installation?
First balance the blades and tighten all mounting screws. Verify the fan is level and the canopy is flush with the ceiling. If wobble persists, check for bent blades.
Balance blades and ensure tight, level mounting; check for bent blades if wobble continues.
Is a remote control required for operation?
No, but many modern fans use a wall switch or remote for convenience. If you install a remote receiver, ensure compatibility with your fan model.
Remote isn’t required, but it can improve convenience if you choose one.
How should blade direction be set for seasons?
For summer, run blades counterclockwise to create a cooling breeze. In winter, reverse to clockwise to circulate warm air along the ceiling.
Counterclockwise in summer, clockwise in winter for best airflow.
How long does installation typically take?
Time varies with ceiling height, box type, and experience. Plan for more time if you’re upgrading wiring or mounting hardware.
It varies, but expect more time with complex wiring or high ceilings.
Watch Video
Main Points
- Plan first with power off
- Choose fan size based on room
- Secure a proper mounting box and bracket
- Balance blades and test functionality after install
