How to Install a Gas Furnace: A Step-by-Step Guide
A comprehensive, safety-focused guide for homeowners and DIY enthusiasts on installing a gas furnace, with planning, venting, gas supply, electrical considerations, commissioning, and when to hire a licensed professional.
Installing a gas furnace is a major, regulated task that requires permits, proper venting, and safe gas connections. This guide explains the key steps and safety considerations, but a licensed HVAC professional should perform the installation and final inspection to ensure code compliance and reliable operation.
Regulatory and safety prerequisites
Regulatory compliance begins with understanding local building codes, permits, and inspection requirements. In most jurisdictions, a gas furnace installation requires a permit from the building department and an inspection by the authority having jurisdiction (AHJ) to verify venting, gas piping, combustion air, and electrical connections meet minimum standards. According to Install Manual, the safest approach is to involve a licensed contractor early in the planning process, especially for fuel-guelled appliances. This helps prevent code violations and safety hazards that could arise from improper sizing, venting, or gas fittings. Planning ahead also reduces the chance of costly rework or failed inspections later in the project. The Install Manual team emphasizes documentation, permits, and coordination with your local utility for a smooth process.
Planning the installation and site assessment
Before selecting equipment, assess the space, clearances, and existing infrastructure. Evaluate the layout of the mechanical room, accessibility for servicing, and proximity to bedrooms or living areas where combustion gases could pose risks. Consider future needs such as thermostat compatibility and potential upgrades to a smart-control system. A professional will perform a load calculation to determine the correct furnace size for your home, balancing efficiency with comfort. They will also review ductwork, air returns, and zoning to ensure even heat distribution. From a homeowner perspective, gather measurements, confirm electrical availability, and confirm that gas service capacity matches the furnace requirements. This planning phase reduces surprises during installation and ensures the unit can be properly vented and connected.
Venting, combustion air, and CO considerations
Gas furnaces require proper venting to expel combustion byproducts safely. The vent system must be appropriately sloped, vent material rated for the exhaust temperature, and sized to avoid backdrafts. Combustion air must be accessible from the outdoors or from a designated indoor source, depending on the home’s construction and local code. Carbon monoxide detectors should be installed on each sleeping level and near living spaces to provide early warning in case of venting issues. Improper venting or restricted air supply can lead to dangerous CO buildup or inefficient furnace operation. Work with a licensed professional to determine the correct venting configuration and to verify that CO alarms are placed and tested according to code recommendations.
Gas supply, fittings, and leak testing basics
Gas supply connections must be fitted with approved components and corrosion-resistant hardware. The installer should perform a careful leak test using soapy water or a calibrated detector after connecting the gas line and before turning on the furnace. Always shut off the gas supply when not operating the system or during any service procedure. A professional will ensure gas-pressure specifications, valve types, and leak-detection protocols comply with local standards. Do not attempt to modify gas lines without the necessary training and tools, and never rely on guesswork to judge a proper seal. Safety-first practice includes verifying shut-off accessibility and labeling all gas lines clearly for future maintenance.
Electrical work, thermostat interfaces, and commissioning
Electrical connections for a gas furnace involve low-voltage controls and a 120/240V supply in many layouts. The installer must confirm proper grounding, wiring, and clearances around the unit, as well as correct thermostat compatibility. If you plan to use a smart thermostat (e.g., a Nest), verify compatibility and wiring requirements, then configure the thermostat for fan control, stage heating, and energy-saving modes. Commissioning includes verifying furnace operation through ignition, flame sensing, inducer operation, and safe startup/shutdown sequences. The commissioning process should include a functional check of safety interlocks, high-limit switches, and flame rollout prevention to ensure reliable, safe operation under real-world conditions.
Post-install checks, permits, and professional involvement
After the furnace is installed, the AHJ typically conducts a final inspection to confirm compliance with local codes, venting integrity, and gas-piping safety. Collect and organize all manufacturer install manuals, permit records, and inspection reports for future service. Schedule a professional start-up and a post-install performance check to confirm efficiency, emissions, and proper airflow throughout the home. Document maintenance intervals and set reminders for annual inspections. The pathway to a successful installation depends on careful planning, adherence to safety protocols, and timely professional involvement when required by code. Based on Install Manual analysis, projects that prioritize permits and inspections tend to result in fewer safety issues and better long-term performance.
Authority sources
- Energy.gov – Heating systems and safety guidance for gas furnaces: https://www.energy.gov/energysaver/heating-and-cooling/heating-systems/gas-furnaces
- EPA – Indoor air quality and venting considerations: https://www.epa.gov/indoor-air-quality-iaq
- OSHA – Safety guidelines for gas appliances and job site safety: https://www.osha.gov
Tools & Materials
- Gas furnace (properly sized for your home)(Professional selection and installation recommended; do not DIY a replacement without training.)
- Gas shut-off valve wrench(Used to isolate gas supply during work; ensure valve is accessible.)
- Gas pressure gauge / leak detector(For pressure testing and leak detection during commissioning.)
- Vent piping and fittings (gas-rated)(Materials and size must meet code requirements; proper slope is essential.)
- Combustion air intake components(Ensure adequate air supply per code; may require openings or ducting.)
- Carbon monoxide detectors (UL-listed)(Install in accordance with local code and near sleeping areas.)
- Electrical tools and wiring accessories(Grounding, wiring, and control wiring must meet electrical code.)
- Gas-rated sealant/tape and fittings(Use appropriate sealants for gas connections; avoid thread sealants not rated for gas.)
- Permits and inspection paperwork(Keep on-site for the AHJ review and final inspection.)
- Personal protective equipment (PPE)(Gloves, eye protection, and ventilation as needed during work.)
- Manuals and schematics(Maintain manufacturer installation guides for reference.)

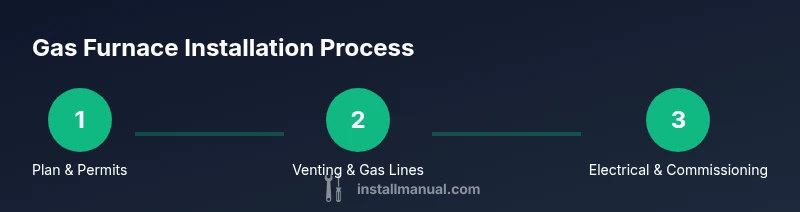

Steps
Estimated time: 4-12 hours
- 1
Verify regulatory requirements
Check local building codes and confirm permit requirements before beginning any installation work. This step includes identifying required inspections and scheduling them with the AHJ. Documentation should be ready for review. Why: Ensures future inspections will be smooth and ensures you comply with safety standards.
Tip: Consult your local building department early and obtain a clear list of required permits. - 2
Shut down utilities and isolate gas
Shut off the main gas supply valve and disconnect any existing appliance connections per code. Verify electrical isolation and lockout procedures where applicable to prevent accidental energization during work. Why: Prevents gas leaks and electrical hazards while work is in progress.
Tip: Double-check that the gas valve is fully closed using both the valve handle position and a downstream test. - 3
Assess placement and clearances
Choose a location with adequate clearances, accessibility for service, and proper ventilation. Confirm there is enough space for ductwork, exhaust piping, and future maintenance tasks. Why: Proper spacing reduces heat stress, improves efficiency, and makes servicing easier.
Tip: Measure space and mark clearance zones to avoid last-minute adjustments. - 4
Prepare venting and combustion air paths
Plan the vent route with appropriate slope, materials, and termination details. Ensure combustion air intake is not blocked and follows local requirements for indoors or outdoors access. Why: Correct venting prevents backdrafts, CO buildup, and poor furnace performance.
Tip: Avoid sharp bends and ensure all joints are properly sealed. - 5
Connect gas supply and test for leaks
Install gas fittings with approved materials and sealants. Perform a leak test using a soap solution or calibrated detector at all joints before bringing the furnace online. Why: Even small leaks are a major safety risk and can cause fire or poisoning hazards.
Tip: If you detect a leak, shut off gas immediately and contact a licensed professional. - 6
Make electrical and thermostat connections
Run control wiring and ensure proper grounding. If integrating a smart thermostat, verify compatibility and configure for optimal efficiency and safety features. Why: Incorrect wiring can cause ignition failures or unsafe operation.
Tip: Label wires clearly and test all control circuits before startup. - 7
Commission and safety testing
Perform ignition tests, flame sensing checks, inducer operation, and interlock verification. Confirm CO detectors are functioning, and verify airflow and temperature setpoints are correct. Why: Commissioning confirms the system operates safely and within design specs.
Tip: Document test results and keep a copy of the commissioning report. - 8
Document permits and inspections
Compile all manuals, permit approvals, and inspection records. Schedule any required follow-up inspections and plan for routine maintenance intervals. Why: Provides a verified trail for future service and resale, and supports ongoing safety.
Tip: Store documents in a dedicated folder for quick access. - 9
Closeout and handover
Review the installed system with the homeowner, explain basic operation, maintenance needs, and warning signs for abnormal operation. Ensure the thermostat and controls are functioning correctly. Why: Clear user guidance prevents misuse and extends equipment life.
Tip: Provide emergency contact information and a maintenance schedule.
Got Questions?
Is it legal for a homeowner to install a gas furnace without a contractor?
In many places, installing a gas furnace requires a licensed contractor and an approved permit. Always check your local codes before starting and consider professional involvement to ensure safety and compliance.
Homeowners should verify local licensing and permits before attempting installation; professional help is advised.
What permits are typically required for gas furnace installation?
Most jurisdictions require building permits and a gas-fitting inspection. Your AHJ will verify venting, gas piping, electrical connections, and overall safety.
Permits and inspections are usually mandatory for gas furnace work.
Do I need CO detectors installed near a new gas furnace?
Yes. Install UL-listed CO detectors near sleeping areas and on each floor as per local code. Regularly test and replace batteries.
Yes, CO detectors are essential for safety and should be tested regularly.
Can I install a gas furnace if I have gas experience but no HVAC license?
Even with gas experience, most areas require HVAC licensing for furnace installation due to safety and environmental concerns. Check local rules and consider hiring a pro.
Licensing rules vary by location; verify requirements before proceeding.
How long does a typical gas furnace installation take?
Timeline varies by home and system complexity. A straightforward replacement can take several hours; new installs or venting changes may extend to a day or more.
Installations can take several hours or longer depending on complexity.
What maintenance should follow a new gas furnace installation?
Schedule annual professional inspections, replace air filters regularly, and keep CO detectors functioning. Maintain a log of service dates.
Keep up with annual checks and maintenance to ensure safety and efficiency.
What safety checks should I perform before the first startup?
Verify gas valve is closed, inspect venting, confirm electrical connections, and ensure detectors are ready. Start only after a licensed professional approves.
Make sure the system is inspected and approved before first startup.
Watch Video
Main Points
- Always involve a licensed HVAC professional for gas furnace installation.
- Obtain permits and pass final inspections to comply with code.
- Ensure proper venting, combustion air, and CO detection for safety.
- Document all manuals, permits, and inspection reports for future service.
