Gas Fireplace Install: Step-by-Step Guide for DIYers
A practical, step-by-step guide for homeowners to install a gas fireplace, covering venting, permits, safety checks, testing for leaks, and finishing details.
With a gas fireplace install, you’ll plan venting, obtain permits if required, and safely connect a gas supply while maintaining clearances per code. Choose the right unit for your space, and in many areas hire a licensed gas fitter for final hookup and inspection. The Install Manual team emphasizes safety and compliance as the top priorities throughout the process.
Gas fireplace install prerequisites and planning
According to Install Manual, a successful gas fireplace install starts with careful planning. Assess the room layout, heat load, and available wall space. Confirm there is a viable path for venting or direct-vent routing, and ensure structural support for the appliance. Gather manufacturer guidelines and local codes to determine minimum clearances from combustibles, electrical access, and the location of the gas shut-off. Early planning also means choosing a unit that matches the space, fuel type, and aesthetics while budgeting for permits if required. Coordinate with any nearby fuel sources and consider how the unit will integrate with existing finishes or a new mantel. By laying out the plan before you purchase, you minimize back-and-forth and keep the project on schedule.
Tools & Materials
- Gas-rated flexible connector(Match inlet/outlet size; keep length minimal; code-compliant)
- Gas shut-off valve near appliance(Easily accessible for emergency shutoff)
- Gas piping (CSST or black steel)(Per unit and code, with proper bonding)
- Pipe thread sealant rated for gas(Do not use household thread sealant)
- Non-combustible mounting surface (fire-rated board/brick)(Supports mounting and heat protection)
- Vent kit compatible with unit type(Direct-vent or chimney adapter per model)
- Carbon monoxide detector and smoke detector(Place near living areas and sleeping spaces)
- Tools: wrenches, screwdrivers, level, drill(Include pipe wrenches and gas-rated sealant remover)

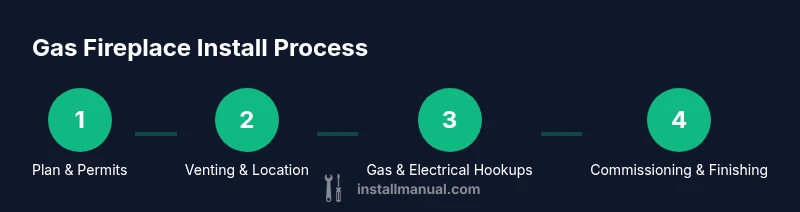

Steps
Estimated time: 4-8 hours
- 1
Verify space and clearances
Measure the installation area and verify manufacturer clearances. Confirm there is unobstructed access for venting and servicing the unit. Ensure the wall structure can support the appliance and guard against combustibles.
Tip: Use a level and painter’s tape to mark the exact mounting position. - 2
Check permits and local codes
Contact the local building department to determine permit needs and inspection requirements. Gather product manuals and site plans to support the application.
Tip: Keep permit cards and approvals readily accessible on site. - 3
Mount the fireplace securely
Attach the unit to a sturdy, noncombustible surface per the manufacturer’s mounting kit. Use proper fasteners and ensure the unit is level for proper flame operation.
Tip: Double-check alignment before final tightening. - 4
Install venting or direct-vent path
Install the vent run according to the model’s instructions, maintaining required slopes and clearances. Seal joints and ensure exterior termination is clear of obstructions.
Tip: Avoid sharp bends and ensure unobstructed exhaust path. - 5
Route and connect gas supply
Run the gas line from the shut-off valve to the appliance inlet. Use gas-rated fittings and protect lines from mechanical damage.
Tip: Shut off gas before working and test for leaks after assembly. - 6
Make final gas connections and leak test
Connect the appliance with appropriate fittings and apply leak-detect solution on joints. Repressurize the system per code and check for bubbles indicating leaks.
Tip: Do not use open flame to test for leaks. - 7
Electrical hookup and ignition (if applicable)
If your unit uses electric ignition or a remote, connect per the wiring diagram and ensure a safe power supply. Use a GFCI outlet if required by code and position wiring away from heat.
Tip: Follow the manufacturer’s wiring diagram exactly. - 8
Finish, seal, and commission
Install trim and surround, seal gaps with fire-rated sealant, and perform a full operating test. Verify flame, heat delivery, thermostat and remote controls.
Tip: Document serial numbers and take a photo record for warranty purposes.
Got Questions?
Do I need a professional to install a gas fireplace?
In most areas, gas line work and venting require a licensed gas fitter and inspector. Homeowners may handle non-pressurized tasks, but safety compliance is essential.
Typically you should hire a licensed gas fitter for gas lines and venting. Homeowners may handle some non-pressurized tasks, but code compliance is essential.
What permits are needed for gas fireplace installation?
Most jurisdictions require building permits and inspections for gas appliances. Check with your local building department and the gas utility.
Most places require a building permit and inspection for gas fireplaces; verify with your local authority.
Can I install a gas fireplace myself?
Some aspects like finishing touches can be done by homeowners, but gas connections, venting, and final hookup usually require a licensed professional.
DIY is limited; gas connections and venting typically require a professional.
What costs should I expect for installation?
Costs vary widely based on unit type, venting, and labor. Get quotes from multiple gas professionals to understand the total investment.
Costs vary; talk to local pros for quotes and factor in permits, unit price, and labor.
How long does installation take?
Most installations take several hours to a full day, depending on venting complexity and space preparation.
Typically a few hours to a day depending on venting and space prep.
What maintenance is required after install?
Schedule annual inspections, check for gas leaks, clean burners, and replace worn gaskets. Ensure detectors are working.
Have an annual check, look for leaks, and keep detectors working.
Watch Video
Main Points
- Plan permits early and document approvals
- Choose venting type matching your home and code
- Securely mount unit on a noncombustible surface
- Test all gas connections for leaks before final commissioning
- Install detectors and finish trim for safe, lasting operation
