Install 3 Way Dimmer Switch: Step-by-Step Guide
Learn how to install a 3-way dimmer switch safely with a clear, photo-guided approach. This guide covers wiring basics, required tools, safety checks, and testing to ensure reliable dimming from two switch locations.
In this guide you will learn how to install a 3 way dimmer switch safely, including identifying existing wiring, turning off power, and connecting the dimmer's common and traveler wires correctly. You’ll need basic hand tools and a voltage tester. Follow the numbered steps to complete a code-compliant, functional dimmer setup.
What is a 3-way dimmer switch and why use one?
A 3-way dimmer switch lets you control the same light from two different locations. It adds flexibility for living rooms, stairs, or long hallways. Because two switches share the same lighting circuit, you must wire and test correctly to avoid open circuits or shorts. The Install Manual team emphasizes careful planning and using a compatible dimmer that supports your bulb type and load. A properly installed 3-way dimmer improves comfort, energy use, and lighting control without sacrificing safety.
A three-way setup differs from a simple single-pole dimmer by requiring coordination between two switches. Some dimmers are designed as masters with remotes, while others are true 3-way devices. Before you begin, verify that the dimmer model you choose supports the two-switch configuration and your lighting load. Consulting the dimmer’s wiring diagram and your home’s electrical code helps prevent common miswirings that waste time or cause nuisance flicker.
Safety first: electrical basics
Electrical work carries risk of shock, arc flash, and fire if misapplied. Begin by turning off the circuit at the main panel or breaker box. Use a tester to confirm the switch box is de-energized before touching any wires. Do not work on live conductors, keep tools dry, and wear insulating gloves if available. This step is essential to prevent injury and equipment damage. When in doubt, pause and consult a licensed electrician. Remember that even with power off, some components can retain a charge and pose a hazard.
Planning and choosing the right dimmer
Select a 3-way dimmer that matches your bulbs (LED, CFL, incandescent) and load. Confirm whether the dimmer requires a neutral or if it is a two-wire model. Review the product instructions for maximum wattage and compatible switches. If two locations share a dimmer, ensure you have a master and a companion or a true 3-way dimmer pair designed for that circuit. Budget for quality devices that offer smooth dimming, reduced flicker, and compatibility with your lighting scenario.
Tools and materials you’ll need
Having the right tools on hand makes the job safer and faster. The core items include a compatible 3-way dimmer, a tester to confirm power is off, screwdrivers, wire strippers, wire nuts, electrical tape, and a faceplate. A ladder or stable step stool helps reach the switch box. Keep spare wire and a camera note of existing wiring to aid reassembly. Consider adding a non-contact voltage tester and a multimeter for extra verification. A clean, labelled workspace reduces mistakes and speeds up the process.
Wiring concepts: common, travelers, and ground
In a typical 3-way setup, one wire is the common, and two wires are travelers. The common may be connected to the hot feed or the load at one end of the circuit. The two travelers carry the switched signal between switches. Ground wires should be connected to the dimmer’s ground. If you’re unsure which wire is common, refer to the existing switch’s terminal with the darker colored screw, or consult the dimmer’s wiring diagram. Never interchange traveler and common wires, as this can prevent proper dimming or cause the circuit to stay on.

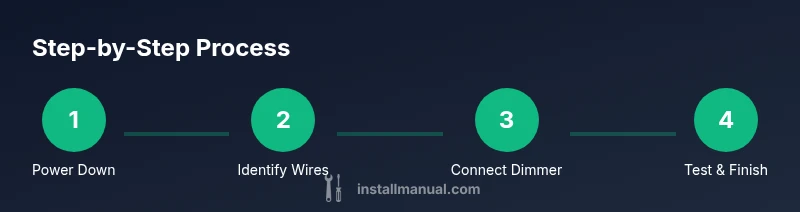

Step-by-step installation overview
This overview aligns with a safe, code-compliant approach: power off, remove the old switch, identify wires, connect the dimmer’s leads (common to the dimmer’s black, travelers to the dimmer’s red/white), cap neutrals if present, attach the ground, mount the device, and restore power to test operation from both locations. Always follow the manufacturer’s wiring diagram for your specific dimmer model. If your box is crowded, consider removing extra wires or using a deeper electrical box to reduce heat and improve comfort.
Testing and troubleshooting after installation
With power restored, test each switch position to confirm smooth dimming and proper on/off behavior. If any switch operates incorrectly, double-check connections, verify the travelers aren’t swapped, and ensure the dimmer is intended for a 3-way setup. If the dimmer flickers at low settings, it may not be LED-compatible or the load is outside the dimmer’s rating. Document any unusual behavior and revert to the original configuration if uncertainty remains.
LED compatibility, code tips, and maintenance
LED lighting requires compatible dimmers to prevent flicker or humming. Check for LED-rated loads and the dimmer’s minimum load. For safety, install on a properly grounded box and secure all wiring. Keep the electrical box accessible, and periodically inspect the dimmer and connections for signs of wear or overheating. Regular maintenance reduces the risk of nuisance flicker and prolongs device life.
Tools & Materials
- 3-way dimmer switch (compatible with your wiring)(Ensure LED compatibility if using LEDs; check load rating)
- Non-contact voltage tester(Verify power is off before touching wires)
- Flathead screwdriver(For grounding screws and terminal connections)
- Phillips screwdriver(Faceplate and mounting screws)
- Wire strippers/cutters(Trim insulation neatly without nicking conductors)
- Wire nuts or twist-on connectors(Cap unused conductors securely)
- Electrical tape(Seal exposed conductors and tidy wiring)
- Faceplate(Cover the finished installation)
- Ladder or stable stool(If the switch box is high, use a safe perch)
Steps
Estimated time: 30-60 minutes
- 1
Power down and verify no voltage
Turn off the circuit at the main panel or breaker box. Use a non-contact tester to confirm the switch box is de-energized before touching any wires.
Tip: Test at least twice in two different spots to confirm zero energy. - 2
Remove the faceplate and old switch
Unscrew the plate and the switch from the box. Gently pull the device out to expose wires, keeping track of which screw terminals each wire is attached to.
Tip: Take a photo of the original wiring for reference. - 3
Identify common and traveler wires
Look for the wire connected to the common terminal (often on a darker screw). Use a tester or refer to the existing wiring diagram to confirm the two travelers.
Tip: Label wires with tape to avoid mixing them up. - 4
Connect the dimmer leads
Attach the dimmer’s common lead to the identified common wire, and connect the two traveler wires to the dimmer’s traveler leads. Attach ground to the green ground wire or screw.
Tip: Keep connections tight and lint-free; avoid loose wires. - 5
Secure and mount the dimmer
Push the wires back into the box, mount the dimmer, and reattach the faceplate securely.
Tip: Make sure there’s no pinched wire and that the dimmer sits flush. - 6
Power up and test
Restore power at the breaker and test both switch positions. Adjust the dimmer to confirm smooth operation across the range.
Tip: Test full brightness and the dimmest setting to ensure stable performance.
Got Questions?
Do I need to replace both 3-way switches when installing a dimmer?
Usually you replace one end with a compatible 3-way dimmer and leave the other end as a standard 3-way switch or use a companion dimmer per the product instructions. Always follow the dimmer’s guide.
Typically you replace one end with a dimmer and use a companion switch per the instructions.
Will a dimmer work with LED bulbs?
Yes, if the dimmer is LED-compatible and rated for the bulb load. Check the dimmer’s LED compatibility and minimum/maximum load.
Yes, but only with an LED-compatible dimmer and appropriate load.
Is a neutral wire required for most dimmers?
Most older 3-way dimmers don’t require a neutral. Some LED-friendly models may, so verify the device specifications for your wiring.
Most do not need a neutral, but check your dimmer’s specs.
What if the dimmer doesn’t work after installation?
Power off, double-check wiring against the diagram, verify traveler connections, and ensure the dimmer is intended for 3-way use. If issues persist, consult an electrician.
Double-check wiring; if it still fails, seek professional help.
What safety precautions should I take?
Always shut off power at the breaker, test for voltage, keep water away, and use insulated tools. Do not bypass safety features or defeat ground connections.
Turn off power, test, and use safe tools.
Can I install a dimmer in a multi-gang box?
Yes, but ensure the box has enough space for all wires and proper box fill. Use a compatible dimmer and keep circuits organized.
Yes with adequate space and correct dimmer choice.
Watch Video
Main Points
- Identify wires before disconnecting any switch.
- Power off and test to confirm de-energization.
- Match dimmer leads to common and travelers correctly.
- Test in both switch positions after installation.
- If uncertain, seek professional help.
