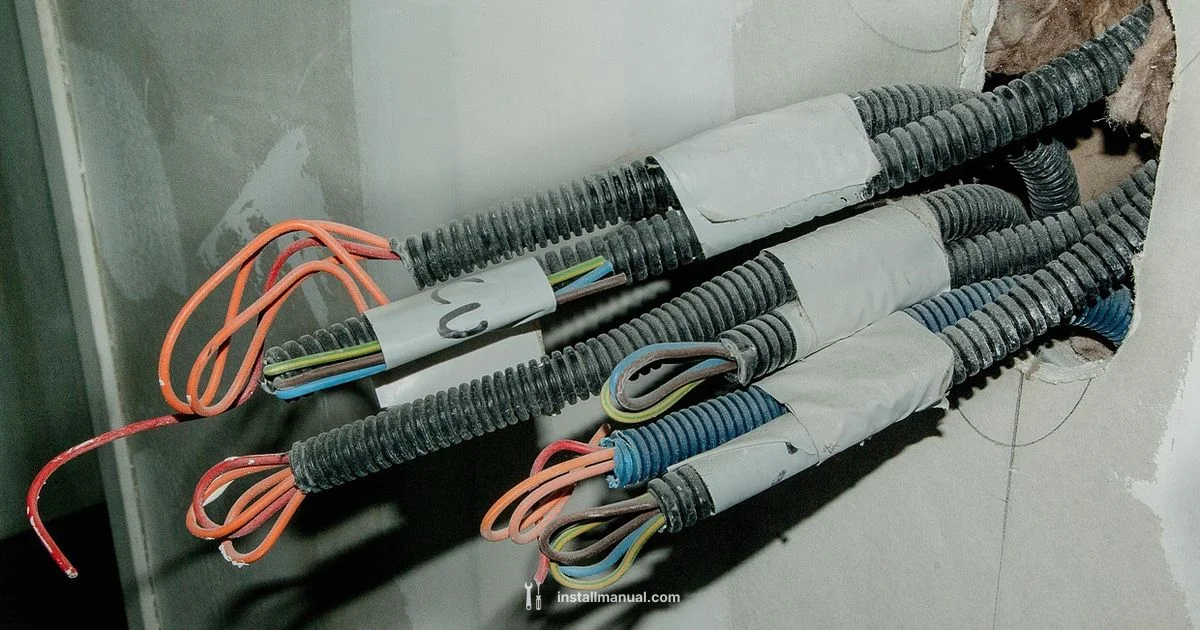

Install 3 Way Switch: Step-by-Step Guide for DIY
Learn how to install a 3-way switch safely with two locations. This homeowner-friendly guide covers wiring basics, tools, step-by-step instructions, safety tips, and testing to ensure reliable operation in 2026.
By following these steps, you will successfully install a 3-way switch to control a single light from two locations. This quick guide covers safety basics, identifying line, load, and traveler wires, and making the correct connections at both switch boxes. You’ll also learn how to test the circuit safely before restoration.
What you’ll accomplish with install 3 way switch
Installing a 3-way switch gives you the ability to control a single light from two different locations. This is a common setup in hallways, stairwells, and rooms where convenient control improves usability. In this guide from Install Manual, you’ll learn how to plan, wire, and test a standard 3-way switch circuit, along with safety steps and troubleshooting tips. You’ll also see how to identify the two traveler wires and the common wire at each box, how to label them, and how to avoid mixing them up. The goal is to deliver a clear, repeatable method that reduces guesswork and keeps your home’s electrical system safe. By following these steps, you’ll gain a practical skill that applies to future DIY electrical projects in 2026 and beyond. The article uses simple language and diagrams to illustrate typical configurations, including what to do when the light is controlled from a fixture box instead of an opposite switch.
Safety: electrical basics and codes
Before you touch any wiring, the top priority is safety. Start by turning off the circuit at the home’s main panel and double-checking that the power is off using a non-contact voltage tester. Lockout/tagout if you have access to a workplace-style panel. Wear protective gear like safety glasses and insulated gloves. Do not work on live wires, and never assume a circuit is de-energized based on memory or prior work. Local electrical codes may require certain box fill, grounding, and labeling practices; check your jurisdiction's rules or consult a licensed electrician if you’re unsure. Install Manual emphasizes documenting changes and testing in a well-lit area to avoid mistakes.
Understanding 3-way wiring fundamentals
A 3-way switch arrangement uses two three-way switches, two traveler wires, and a common terminal at each switch. In most cases, the common terminal is on the black screw, and travelers use the red and white wires (re-identified with tape if needed). The light is connected to the common on one switch, while the line hot feeds the common on the other. The traveler wires connect the two switches and carry current when the circuit is closed. Ground wires must be connected to the switches and the metal box if present. Understanding these roles helps you wire accurately and diagnose issues when the light doesn’t work as expected.
Planning your wiring path and safety checks
Consider the physical layout of your home. Decide whether the power source is at the first switch or at the light fixture, because that changes which wire becomes the common. Plan routes for the travelers so they stay inside the wall or behind the switch box, avoiding nails, screws, or heat sources. Keep neutrals tied together in the lighting circuit and out of the switches if the box is not designed for neutral connections. Finally, label the cables with tape or markers before removing any screws to reduce wiring confusion later.

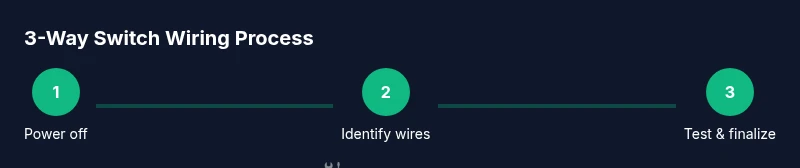

The install sequence: a high-level overview
A successful install follows a repeatable sequence. Start with power off, remove the old switches, and label each wire. Then identify which wire is the common at each location and connect it to the common terminal of the new 3-way switches. Attach the two traveler wires to the traveler terminals, connect grounds, and secure each switch in its box. Reattach the faceplates and restore power to test operation. If the lights don’t behave as expected, re-check the common and traveler connections against a wiring diagram.
Troubleshooting common issues and verification
If the light won’t come on at one or both locations, re-check the connections and confirm you didn’t swap travelers with the common. If the fixture is permanently on or off, the common at one switch may be misidentified. Use a multimeter or non-contact tester to confirm voltage on the line and at the switch positions during testing. Also verify the switch is wired to the correct fixture and that there are no loose wires in the backstab or wire-nut connections. Finally, replace any damaged switches and ensure the ground is securely connected.
Authority Sources
Electrical safety guidelines come from recognized authorities and standards bodies. For more detailed regulations and best practices, consult these reputable sources and verify with local codes. These references provide context on safe electrical work, wiring practices, and required documentation. Always cross-check instructions with the latest edition of applicable standards.
Practical notes for DIY install
Keep a clear workspace, work methodically, and avoid rushing. If at any point you feel unsure, stop and seek professional guidance. This approach helps ensure your safety and the reliability of the wiring for years to come. Remember that practice, patience, and careful labeling reduce mistakes and enhance outcomes for 2026 and beyond.
Tools & Materials
- Flathead screwdriver(For faceplates and terminal screws)
- Phillips screwdriver(For mounting screws)
- Non-contact voltage tester(Verify no voltage before handling wires)
- Voltage tester or multimeter(Test live circuits and continuity)
- Wire cutters/strippers(Prepare wires for connection)
- Electrical tape(Insulate and label wires)
- Wire nuts (set)(Join spliced wires securely)
- Grounding screw and pigtail(Ensure proper grounding)
- Three-way light switches (2)(Each end of the circuit needs a 3-way switch)
- Faceplates (2)(Finish and safety cover)
Steps
Estimated time: 60-90 minutes
- 1
Power down and verify
Shut off the circuit at the breaker panel and use a non-contact tester to confirm no voltage in both switch boxes. This is the single most important safety step to prevent shocks or arc faults.
Tip: Always confirm both boxes are de-energized before touching wires. - 2
Remove existing switches
Carefully remove the switch plates and the switches themselves. Note how wires are attached and keep track of any push-in connections. Do not yank wires; loosen with the proper screwdriver.
Tip: Take photos from multiple angles before disconnecting anything. - 3
Label wires by function
Label the wire that was on the common terminal at each location. Label travelers as A and B. Correct labeling prevents miswiring when installing the new 3-way switches.
Tip: Use colored tape or permanent markers visible after reinstallation. - 4
Identify the common terminals
On each old switch, identify the terminal connected to the feed (hot) or load (to the light). The common terminal is usually the one with a different colored screw (often black).
Tip: Double-check with your plan diagram or wiring schematic. - 5
Connect the common wires
Attach the common wires to the common terminals of the new 3-way switches. Ensure snug connections without over-tightening. Ground wires must also be connected to the grounding terminals.
Tip: Touch each wire to the terminal briefly to confirm a secure seat before tightening. - 6
Connect traveler wires
Attach the two traveler wires to the traveler terminals on both switches. The order of travelers matters for testing; keep them labeled consistently.
Tip: If colors are reused, tape to maintain traveler identification across devices. - 7
Ground and secure
Attach the ground wire to the green grounding screw on both switches and in the metal box if present. Re-secure switches into the boxes and replace faceplates.
Tip: Ensure the ground path is continuous; loose ground can cause safety issues. - 8
Restore power and test
Turn the breaker back on and test the switch positions. Confirm that the light turns on/off from both locations and that the two switches operate correctly in all combinations.
Tip: If the light behaves oddly, recheck common vs traveler wiring against the wiring diagram. - 9
Final checks and cleanup
Make sure all connections are tight, wire nuts secure, no bare conductors are exposed, and the boxes are free of clutter. Reinstall faceplates and label the circuit for future reference.
Tip: Keep spare parts and documentation handy for future maintenance.
Got Questions?
Do I need to turn off power at the main panel to install a 3-way switch?
Yes. Always turn off the circuit at the breaker and verify with a non-contact tester before touching any wires. This reduces the risk of shock or arc faults during wiring.
Always turn off power at the breaker and verify with a tester before handling any wiring.
Can I install a 3-way switch if there is no neutral in the switch box?
Yes. Most 3-way configurations do not require a neutral at the switch box. The neutral typically remains spliced at the fixture unless a modern code requires it in the box.
Typically, no neutral is needed in a 3-way switch box; neutrals are usually at the light fixture.
What happens if I swap traveler and common wires?
Swapping the traveler wires with the common can cause the switches to behave unpredictably or not work at all. Recheck the identification of the common terminals and rewire as needed.
Switching travelers with the common can make the circuit fail to operate correctly; rewire to match the terminals.
Are smart 3-way switches compatible with all setups?
Many smart 3-way switches work with existing wiring, but some setups require add-on remotes or neutral wiring. Check the product documentation and your circuit layout before upgrading.
Smart 3-way switches often need compatible remotes or neutrals; read the manual for your exact setup.
How can I identify which wire is the common at each box?
The common terminal is usually the black screw. The wire on that terminal is the common, while the other two wires are travelers. Label them to avoid confusion when installing the new switches.
Look for the black screw on the switch; that terminal is the common. Label wires to stay organized.
What should I do if the light stays on or never turns off after installation?
Re-examine the common vs traveler wiring and confirm both switches are wired to the correct terminals. A misidentified common can keep the circuit closed, causing the light to stay on.
If the light won’t toggle, double-check common and traveler wiring and rewire as needed.
Watch Video
Main Points
- Identify common and traveler wires before wiring.
- Always de-energize the circuit and verify with a tester.
- Label wires and keep track of which switch controls what.
- Test thoroughly from both locations after installation.
