How to Install Baffles in the Attic: A Step-by-Step Guide

Why attic baffles matter

According to Install Manual, attic baffles play a crucial role in maintaining proper attic ventilation. An attic relies on a continuous flow of air from soffit vents up to the roofline to carry heat and moisture out of the space. When insulation is piled up too high near the eave, or when insulation blankets are installed without a dedicated channel, the airflow gets choked. Attic baffles are purpose-built channels that sit between joists to create a clear, unobstructed path for air to move from soffit vents into the attic cavity.

Without properly installed baffles, insulation can press against the underside of the roof sheathing and close off the vent paths. This reduces vent efficiency, increases moisture buildup, and can contribute to mold growth, wood rot, and energy loss. Baffles also stabilize the insulation height by preventing it from sagging into the vent space, which helps maintain consistent R-values across the attic. They are especially important in renovations, new insulation installations, or attic re-insulation projects where existing vent channels may be compromised.

Investing in attic baffles is an upfront expense that pays off through better ventilation, more predictable temperatures, and lower risk of ice damming in winter. When you choose baffles, you’re selecting a long-term solution that works with a wide range of roof types, including vaulted or flat ceilings. The goal is to maintain free air movement along the soffit line while insulation remains securely in place above the baffles. The Install Manual team emphasizes planning: measure bays, select the right type, and install with care to preserve vent paths. This approach reduces repairs later and supports healthier indoor air quality by promoting moisture control and consistent attic dryness.

When to install baffles

Attic baffles are particularly beneficial during insulation projects, renovations, or re-insulation. If you’re upgrading insulation to improve energy performance, or if you’re restoring an attic that has settled insulation, adding baffles before or during installation helps preserve the critical vent channel. If you’re opening the attic to run new wiring or installing a new HVAC duct in the attic, examine the vent paths and plan to leave clear air channels behind every bay.

In older homes, soffit-to-roof ventilation depends on clear, unobstructed pathways. When you notice insulation filling the bay near the eave, or if you see insulation pressed tight against the underside of the roof deck, it’s a sign that baffles are needed. If you’re replacing attic insulation, baffles give you a predictable space to place insulation without encroaching on the vent path. Even when you’re not adding new insulation, it may be wise to install baffles if you observe compressed insulation near the eave or if you’ve found signs of moisture damage in the attic.

Timing matters: install baffles before insulating to establish the channel, or do it promptly when upgrading existing insulation to avoid having to redo the work. The goal is to create a continuous air intake channel so that outside air can move in through soffit vents and exhaust through the roof without being blocked by insulation.

Types of attic baffles

There are several common types of attic baffles, and choosing the right one depends on your roof structure, climate, and budget. Pre-formed plastic or rigid foam baffles are popular for their durability and ease of installation. Cardboard or fiberboard options can be more economical but may deteriorate over time in humid climates. Foam cores offer a lightweight option with good rigidity, while plastic options tend to hold their shape best in large attic spaces. Consider whether you need adjustable length, how well the product resists moisture, and how easy it is to secure to joists.

When comparing brands, look for a product that fits standard joist spacing (typically 16 inches on center) and reaches up to or above the insulation line without crushing the vent path. If you have vaulted or irregular joist angles, you may need flexible or sectional baffles that can bend around obstructions. The right choice keeps air moving from soffit vents to the attic interior, without allowing insulation to block that airflow.

Planning and measuring your layout

A successful installation starts with precise planning. Begin by locating all soffit vents and mapping each joist bay that connects to a vent. Measure the bay width and the distance from the soffit to the top of the insulation surface in each bay. Baffles should extend from the soffit opening and rise above the anticipated insulation level to establish a clear channel. If insulation height varies between bays, you may need longer baffles in some areas and shorter ones in others.

Record measurements for every bay so you can order the correct quantity and length. Confirm that there are no hidden obstructions like electrical cables, pipes, or HVAC ducts that would require trimming or specialized baffle pieces. Always plan to leave a slight clearance between the baffle and the roof deck to prevent contact that could trap moisture. Finally, assess lighting and access: working in an attic requires stable footing and a clear path for moving baffles into place.

Tools and materials overview

A successful install relies on a concise toolkit. You’ll need attic baffles of the right type and length, a measuring tape, a utility knife or scissors for cutting, a ladder or sturdy step stool, and a way to secure the baffles to joists—typically galvanized nails or heavy-duty staples with a hammer or staple gun. A pencil helps mark lengths, while a work light or headlamp ensures visibility in dim attic spaces. It’s wise to have a glove pair and safety glasses to protect your hands and eyes from rough insulation and debris. Optional items include foil tape to seal joints and a small amount of lightweight sealant for gaps that might admit air around the edges.

Always keep your work area tidy and avoid overloading any single bay; plan your layout so you can install without forcing insulation aside excessively or compressing any vent pathways.

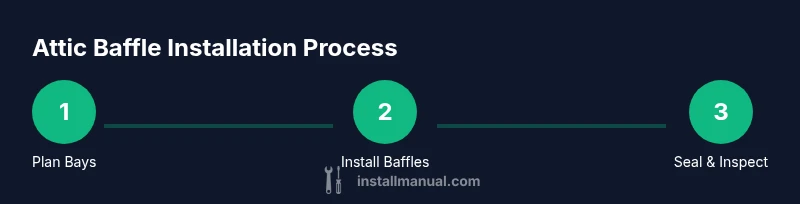

Installation overview: what to expect

The process of installing attic baffles is straightforward but demands attention to detail. You’ll begin by identifying every bay and confirming vent orientation. Place each baffle at the base of the bay so it creates a direct channel from the soffit vent into the attic space. Move along each bay, sliding the baffle between joists and resting it against the top plate or the edge of the insulation. Secure the baffle to the joist with nails or staples at regular intervals to prevent movement during insulation work. Finally, double-check that all baffles do not touch the roof deck and that there is no compression of the vent path.

In a typical installation, you’ll address one bay after another, then run a quick check to ensure airflow remains unobstructed. If you’re replacing insulation, consider resealing and adjusting baffles to maintain unobstructed vent channels. While the steps are simple, the result—improved attic ventilation and more consistent insulation performance—is well worth the effort.

Maintenance and long-term considerations

After installation, schedule a periodic check of attic baffles, especially after major weather events or insulation projects. Look for signs of wear, warping, or moisture exposure that could reduce effectiveness. If you notice sagging insulation near the eave or any compression against the vent path, adjust or replace affected baffles to reestablish proper airflow. In damp climates, inspect for mold or moisture buildup around joints and edges, and reseal as needed. Keeping baffles accessible during future insulation projects will save time and protect the vent paths over the life of the attic.

Safety and building codes

Always follow basic safety practices when working in an attic. Wear a dust mask, safety glasses, and gloves to protect against fiberglass particles and sharp components. Use a sturdy ladder or platform and avoid overreaching. Check local building codes for requirements related to attic ventilation and insulation setups, as some jurisdictions specify minimum clearances or vent area. If you’re unsure about electrical wiring or adding ducts, consult a licensed professional. Adhering to safety and code guidance helps ensure a reliable, energy-efficient attic that performs over time.
