Install Soffit Vents: Step-by-Step Guide for Homeowners
Learn how to install soffit vents to improve attic ventilation, reduce moisture, and boost HVAC efficiency. This comprehensive, code-aware guide covers vent types, placement, planning, safety, and maintenance for homeowners and DIY enthusiasts.
By the end of this guide you will know how to install soffit vents to ensure proper attic ventilation, reduce moisture, and improve energy efficiency. You’ll choose vent types, determine placement, and seal joints to prevent leaks. This process requires basic tools, careful measurement, and adherence to local building codes. We’ll cover safety, vent sizing considerations, and ways to avoid common airflow mistakes.
Why soffit vents matter
According to Install Manual, proper attic ventilation is essential to prevent moisture buildup, ice dams, and heat buildup. Soffit vents form the intake side of the ventilation system, letting outside air flow into the attic when paired with ridge vents or other exhaust vents. In many homes, insufficient ventilation leads to warped sheathing, mold, and reduced insulation effectiveness. By installing soffit vents, homeowners create a steady air path that removes warm, humid air and replaces it with cooler outside air. This improves energy efficiency and prolongs roof life. Good attic ventilation also helps your HVAC system run more efficiently, because conditioned air doesn’t get trapped in a hot attic. When planning, think about channeling fresh air from the eave line to a ridge or exhaust vent, creating a balanced flow rather than a single open hole. Before you cut, verify structural rafters and electrical runs above the soffit. Use a stud finder and a flashlight to map safe cutting zones. Wear eye protection and a dust mask. Choose vent types that suit your soffit’s depth and the amount of air needed for your attic area. If your home has thick insulation, you may need special baffles to prevent insulation from obstructing airflow.
Types of soffit vents and where to place them
There are several vent options, including perforated aluminum soffit vents, vinyl continuous vents, and vented panels that snap into place. The key is to provide unobstructed intake air at the soffit line. For most homes, install vents along the entire run of each soffit opening to maximize intake, with gaps no larger than a small, even spacing between sections. When you have ridge vents, you typically pair the soffit vents with the exhaust path to achieve cross-ventilation. If your attic insulation is thick, use air baffles behind the vents to keep insulation from blocking airflow. Some vent systems come with pre-installed foam gaskets; if not, apply a bead of silicone sealant to seal around the edges to prevent leaks. Avoid venting directly into a crawl space; you want the attic air to exit through an upper vent or ridge vent. Always check local codes for net-free-vent area requirements.
Planning your attic layout and vent sizing
Start by measuring the attic floor area you want to ventilate. Record the length and width of each plane where soffit vents will be installed. If you have multiple attic sections, plan vents for each bay separately. Check for any electrical wires, plumbing lines, or HVAC ducts that cross the soffit area, and avoid cutting into them. Inspect the existing insulation level; if it’s very thick, you may need to install baffles first to ensure air can reach the soffit openings. Gather your vent materials and tools before you cut. Consider the climate: in humid climates, more intake may be required to balance with exhaust. Finally, ensure you have a ladder safe enough to reach eaves and a helper if you need to pass vents up to the attic opening. Mapping locations on paper or a digital plan reduces guesswork and minimizes waste.

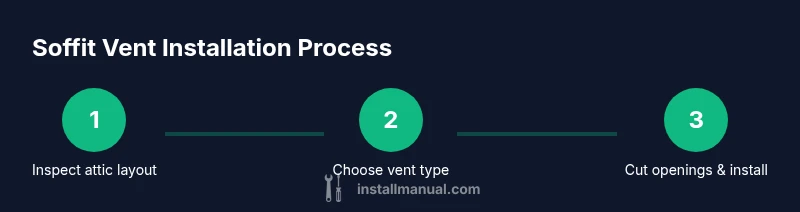

How to install soffit vents (overview)
This section provides a high-level overview of the steps you will perform in more detail in the step-by-step block. Begin by opening the attic hatch and inspecting the soffit area to confirm where to place vents. Mark the cut lines on the soffit with a pencil, then drill starter holes to guide your saw. Use a jigsaw or a suitable hole saw to cut openings to fit the vent piece, ensuring smooth, square edges. Attach vent sections according to the manufacturer’s instructions; seal the outer edges with silicone or approved sealant to prevent leaks. Finally, re-check that insulation near the vents is not blocking the intake; reposition or add baffles if necessary. After installation, test airflow by feeling for incoming air at the vents and ensuring a balanced draft from soffit to ridge. Safety first: avoid working on ladders near power lines and wear PPE.
Maintenance and safety considerations
After you install soffit vents, periodically inspect them for obstructions, insect nests, or debris. Clogged vents reduce airflow and undercut the ventilation plan. In spring and summer, check that pollen and dust haven’t accumulated. If you notice higher attic temperatures, re-check insulation levels and ensure baffles remain in place. Always seal gaps around vent edges to keep moisture out of the eaves. If you smell mold or see water staining around the soffit area, address moisture sources immediately. Finally, consult a licensed contractor if you encounter electrical runs or structural concerns above the soffit line.
Tools & Materials
- Soffit vents(Choose vents that match the length of the soffit and attic needs)
- Measuring tape(For accurate vent placement and layout)
- Pencil or marker(Mark cut lines clearly on the soffit)
- Safety goggles(Protect eyes from dust and debris)
- Dust mask or respirator(Keep dust out of your lungs)
- Work gloves(Protect hands while cutting and handling vents)
- Tin snips or a jigsaw(Cut vent openings cleanly)
- Silicone sealant(Seal vent edges to prevent leaks)
- Vent air baffles(Install if insulation could block airflow)
- Caulking gun(Apply sealant evenly around edges)
- Ladder or scaffolding(Safe access to eaves)
- Flashlight/headlamp(Illuminate dark attic corners)
Steps
Estimated time: 60-120 minutes
- 1
Prepare the workspace and safety gear
Put on PPE, clear the area, and lay out vents and tools. Confirm attic access and ensure the ladder is stable. Take measurement notes and review the vent plan before cutting.
Tip: Have a helper ready to hand up vents and keep the work area steady. - 2
Map vent locations and mark cut lines
Using measuring tape, mark the soffit locations along each run. Use a straightedge to draw clean cut lines and double-check spacing against the attic plan. Mark a small pilot hole at each cut corner.
Tip: Mark a backup vent location in case a cut line crosses an obstruction. - 3
Cut openings for vents
Cut along the marked lines with tin snips or a jigsaw, starting at the pilot holes. Keep edges square and smooth to ensure proper vent seating. Clean debris from the openings.
Tip: Cut slowly and wear eye protection to avoid kickback. - 4
Install vents and seal edges
Fit each vent into its opening, securing per the manufacturer’s directions. Apply silicone sealant around the edges to prevent air leaks, then wipe away excess sealant for a neat finish.
Tip: If using foam gaskets, press firmly to create a tight seal. - 5
Adjust insulation and install baffles if needed
Check that insulation near the vent won’t block airflow. Install baffles behind vents where insulation is high, ensuring a clear path from soffit to vent.
Tip: Keep a gap between insulation and vent open for air to flow freely. - 6
Test airflow and perform final checks
With the attic access closed, test airflow by temporarily creating a light breeze along the eaves. Confirm air is moving toward the ridge or exhaust vent. Recheck seals and tidy up.
Tip: Document vent locations for future inspections.
Got Questions?
Do I need to remove insulation to install soffit vents?
Usually you don’t fully remove insulation. You may need to move or trim it away from the vent opening and install baffles to maintain a clear airflow path. Follow local code guidance and manufacturer recommendations.
You typically don’t remove all insulation. Move or trim it away and add baffles if needed to keep air flowing freely.
Can I install soffit vents without attic access?
Access is highly recommended for safety and accuracy. If access is limited, you should consult a professional who can safely position and seal vents from outside or via alternative routes.
Limited access makes the job risky and harder to seal properly; consider a pro if you can’t access the attic safely.
How long does soffit vent installation take?
For a typical attic with clear access, expect a few hours from planning to final sealing. Complex layouts or restricted access can extend the timeline.
Most homeowners complete the project in a few hours, depending on attic access and layout.
Should I hire a contractor for vent installation?
If you’re uncomfortable working on ladders, cutting into soffit, or dealing with insulation and sealants, hiring a licensed contractor is wise. They’ll ensure code compliance and a proper seal.
If you’re not comfortable with ladders or cutting into soffit, a pro can ensure safety and code compliance.
How can I tell if vents are working after installation?
Observe air movement at the vent openings when a breeze is present or during a fan test. If air isn’t moving, recheck seals, baffles, and any obstructions.
Look for clear air movement at each vent; if you don’t see it, recheck seals and baffles.
Should I vent both sides of the attic?
Yes, when possible, venting on multiple soffit runs improves air distribution and reduces stagnant pockets. Pair with ridge or other exhaust vents for best results.
Vent multiple soffit runs if you can; it helps airflow throughout the attic.
Watch Video
Main Points
- Plan ventilation to balance intake and exhaust from soffit to ridge.
- Keep insulation away from vent openings using baffles.
- Seal vent edges to prevent moisture intrusion and air leaks.
- Test airflow after installation to confirm proper performance.
