Shower Tile Install: A Complete Step-by-Step Guide
Learn how to install shower tile with a clear, DIY-friendly method. This guide covers prep, waterproofing, layout, cutting, setting, grout, sealing, and maintenance for a durable, leak-free shower.
This guide shows you how to install shower tile from prep to sealant. You'll learn substrate prep, waterproofing, layout planning, cutting, setting, grout, and sealing for a durable, leak-free shower. Whether you’re refreshing a bachelor bath or renovating a master ensuite, these steps emphasize safety and quality without specialist tools.
Planning and Preparation
According to Install Manual, thorough planning is the foundation of a durable shower tile install. Start by mapping the shower area, measuring walls, and estimating tile counts. Decide on tile size, pattern, and grout color before you begin. Create a simple layout plan that centers on the back wall and balances symmetry across the shower. Consider moisture exposure, potential water splashes, and ventilation. A clear plan reduces on-site mistakes and keeps you within budget while ensuring keywords like shower tile install are addressed in practical, actionable terms for homeowners and DIY enthusiasts.
- Define the usable shower surface and identify obstructions.
- Choose a tile that offers slip resistance and ease of cleaning.
- Plan for expansion joints around niches, curbs, and angles to prevent cracking.
Safety first: wear eye protection when cutting tiles, and keep the work area clean to prevent slips or cuts.
Substrates and Waterproofing Systems
A successful shower tile install begins with a solid, moisture-resistant substrate and reliable waterproofing. Remove any old coverings that may compromise the installation. Install cement backer board (CBU) or other approved cementitious substrates, ensuring a flat, plumb surface. Apply a waterproof membrane or a liquid waterproofing system over all joints and corners, including niches and shower benches. Use a slope or pre-slope toward the drain to ensure proper water drainage. For wall installations, seal all seams and fastener penetrations and maintain a consistent moisture barrier behind the tile. These steps are essential to prevent mold and water damage and are a core focus of reputable shower tile install practices.
- Use corrosion-resistant screws and washers for backer boards.
- Follow membrane manufacturer instructions for coverage and overlap.
- Treat corners with extra membrane or sealing compound to prevent leaks.
Tile Selection and Design Considerations
Tile selection shapes both aesthetics and performance in a shower tile install. Choose tiles with a non-slip surface suitable for wet environments and verify that thickness and warpage are within acceptable limits. Larger tiles reduce grout lines and can create a cleaner look in smaller showers, but they require a flatter substrate and careful setting. Mosaic patterns offer visual interest but demand precise spacing and consistent cutting. Select a grout color that complements the tile and inspect edges for consistency. Plan for trim pieces or bullnose edges at shower entrances or around shelves to finish with a professional look. A thoughtful design enhances durability and simplifies maintenance over time.
- Test tiles for color consistency and consistency across lots.
- Pair color with grout to achieve the intended visual effect.
- Account for expansion joints in wider wall sections to prevent cracking.
Layout, Centerlines, and Cutting Plan
A precise layout reduces the number of awkward cuts and ensures an even tile field. Start by establishing a vertical centerline and a horizontal baseline, then lay out full tiles along these guides. Use spacers to maintain uniform gaps and avoid shifting during setting. Mark cut lines on tiles before cutting and double-check against the substrate before final placement. For showers with irregular niches or curved corners, draft a cutting plan that minimizes extremely small tiles near the brink of walls. A well-planned layout reduces waste and improves the visual balance of the final shower tile install.
- Dry-fit rows on the wall to confirm alignment.
- Reserve full tiles for the most visible areas.
- Label sections for cutting for quick reference during install.
Surface Prep and Backer Board Installation
Before setting tiles, prepare a clean, flat surface and install the backer board in a consistent pattern. Ensure edges are flush with adjacent walls and that fasteners are fully countersunk. Tape seams and apply thinset or waterproofing over the joints as required by the substrate and membrane system. When attaching backer boards, avoid overdriving screws to prevent warping. A properly prepared surface reduces tile lippage and guarantees a uniform setting bed for the entire shower tile install.
- Check for flatness with a long straightedge and adjust as needed.
- Use corrosion-resistant screws and proper screw spacing.
- Seal edges where backer boards meet corners or niches.
Tools & Materials
- Ceramic or porcelain tiles for shower walls(Select slip-resistant textures; ensure thickness consistency with substrate and membranes)
- Cement backer board (CBU) or equivalent(Moisture-resistant substrate; ensure flatness and proper fastening pattern)
- Waterproof membrane or liquid waterproofing system(Follow manufacturer directions; seal all seams and penetrations)
- Thinset mortar (modified or unmodified per tile/membrane)(Mix according to product guidelines; work in small batches to avoid set time loss)
- Tile spacers(Maintain uniform grout joints; adjust for edge cuts as needed)
- Grout (cementitious or epoxy)(Choose grout type based on tile and environment; epoxy offers superior stain resistance)
- Silicone sealant for edges and corners(Use for perimeter joints and transitions; cure surface dry times per product)
- Safety gear (gloves, goggles, mask)(Protective equipment when cutting tile and mixing mortars)
- Wet saw or tile cutter(For straight cuts and clean edges; keep blades sharp)
- Notched trowel and trowel-friendly spacers(Select trowel size to match tile back side for full bedding)
- Grout float and cleanup sponges(Clean excess grout promptly to avoid staining)

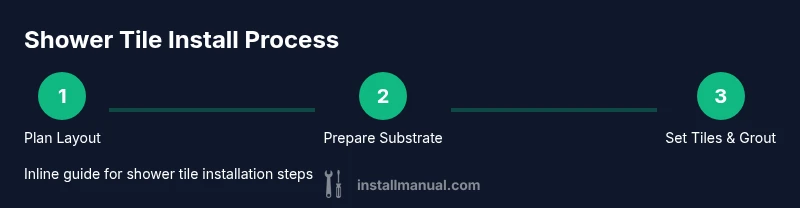

Steps
Estimated time: 8-12 hours active work, plus grout and sealant cure time
- 1
Plan layout and centerlines
Begin with a clear plan: measure the shower area, identify the centerlines, and determine where full tiles will fall. Mark guidelines with a pencil or chalk and dry-fit a few rows to confirm spacing and symmetry before applying adhesive. This ensures consistent grout lines and minimizes awkward cuts at edges.
Tip: Double-check measurements on multiple walls to avoid a pocket of misalignment later. - 2
Prepare substrate and install backing
Remove old coverings if present and install the cement backer board securely, ensuring it is flat and plumb. Tape joints and seal as required by your membrane system. A stable, flat substrate prevents tile lippage and long-term cracking.
Tip: Use a straightedge to verify flatness across the entire shower surface. - 3
Apply waterproofing and set up drainage
Install the waterproof membrane over seams and corners, and ensure the drain area is properly prepared with pre-slope for optimal drainage. Follow product guidelines so the membrane seals well with the backer board and wall surfaces.
Tip: Pay special attention to corners and transitions where leaks are most likely. - 4
Mix thinset and start tile placement
Mix thinset per the manufacturer’s directions and use a notched trowel to apply a bed to the wall. Begin with full tiles on the back wall and work outward, pressing each tile firmly with slight twisting motions for full bedding.
Tip: Back-buttering larger tiles improves adhesion and squaring. - 5
Cut tiles for edges and fixtures
Measure and score tiles for edges, niches, and around fixtures. Use a wet saw for clean, straight cuts and dry-fit pieces before setting. Ensure cuts are precise to maintain consistent grout lines.
Tip: Test-cut a spare tile first to confirm the blade quality and accuracy. - 6
Maintain level and alignment
Periodically check that tiles remain level and plumb as you progress. Use guides or a spirit level to confirm evenness across rows and walls. Small adjustments early prevent major alignment issues later.
Tip: Work in small sections to keep lines crisp. - 7
Allow thinset to cure before grouting
Let the thinset cure according to product instructions, keeping the area dry and protected from foot traffic. Once cured, you can begin grouting with confidence in tile stability.
Tip: Avoid epoxy grout until you understand cure times and mixing requirements. - 8
Apply grout and clean excess
Grout the joints using a grout float held at a shallow angle; work diagonally to force grout into joints. Wipe excess grout with a damp sponge before it hardens and buff tiles to a clean finish after initial set.
Tip: Avoid leaving grout residue on the tile surface to prevent staining. - 9
Seal edges and joints
Apply silicone sealant at all perimeter joints, corners, and where the wall meets the shower base. This helps accommodate movement and prevents water intrusion. Allow grout to cure before applying sealant if needed.
Tip: Use a precise bead and smooth it with a sealant finishing tool for a neat edge. - 10
Final cleanup and inspection
Wipe tiles, inspect for lippage or uneven grout lines, and ensure all edges are sealed. Schedule any sealant coatings or final polish per product instructions and remove protective coverings. A thorough final check ensures long-lasting performance.
Tip: Document any issues so you can address them before use.
Got Questions?
Do I need a waterproof membrane for a shower tile install?
Yes. A waterproof membrane or liquid membrane is essential behind wall tiles and at joints to prevent water damage. Follow the membrane manufacturer's guidelines for coverage and overlaps.
Yes. A waterproof membrane is essential to stop water from seeping behind the tiles; follow the product's directions for proper installation.
Can I tile over existing tile?
Only if the old tile is firmly bonded, flat, and clean. If not, remove the existing tile to ensure a stable base for the new shower tile install.
Only if the old tile is solid and flat; otherwise remove it for a proper base.
What tile patterns work best in small showers?
Simple layouts with larger tiles reduce grout lines and can visually enlarge the space. For height, consider vertical layouts or mosaics that create the illusion of more space.
Simple layouts with larger tiles help small showers feel bigger; vertical patterns add height.
How long does grout cure, and when can I use the shower?
Cure time depends on the product and humidity. Follow the manufacturer's instructions before exposing the grout to moisture.
Cure time depends on the product and humidity; wait for the recommended time before using the shower.
What grout color should I choose with white tile?
A grout color close to the tile creates a seamless look; a contrasting grout highlights the grid and adds texture. Consider maintenance and stain resistance when selecting.
Matching grout to the tile looks seamless; contrasting grout gives a bolder, grid-like look.
Are silicone seals required after grout?
Yes, silicone around edges and corners accommodates movement and prevents water intrusion where tile meets other surfaces.
Yes. Silicone seals around edges prevent leaks and allow for movement.
Watch Video
Main Points
- Plan layout before cutting to minimize waste
- Waterproofing behind tiles is essential for longevity
- Follow manufacturer cure times for thinset and grout
- Seal perimeter joints to prevent water intrusion
