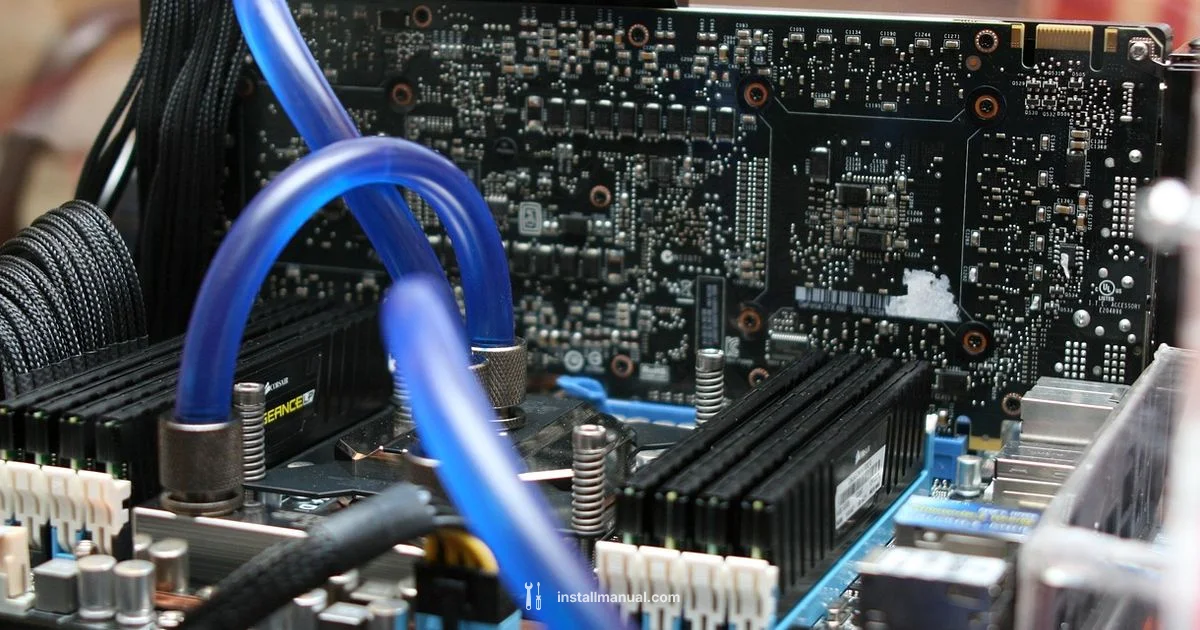

What to Do When Installing a New Motherboard: A DIY Guide
Learn the essential steps to install a new motherboard safely and effectively. This guide covers compatibility checks, static safety, mounting, wiring, BIOS updates, testing, and common troubleshooting for DIY PC builders.
You will install a new motherboard by preparing your PC, ensuring compatibility, and following safe ESD practices. Before you start, gather the right tools, back up data, and plan for a BIOS update if needed. This guide covers compatibility checks, static precautions, and step-by-step installation to minimize damage. You’ll learn where to reseat components and how to test post-install hardware.
Preparing for a motherboard install: safety, planning, and prerequisites
Installing a new motherboard is a precision task that rewards careful planning. Start with a clean, static-free workspace and gather tools you’ll rely on: a PSU, soft brushes for dust removal, and a compatible screwdriver set. Have the motherboard manual handy and review the CPU socket type, RAM specifications, and supported PCIe slots before touching any components. According to Install Manual, a well-organized build area reduces the risk of accidental damage and misplaced connectors. Make sure you have a backup plan for any important data and a rollback plan if the system won’t boot after the swap. Create a checklist that includes compatibility verification, component readiness, and a clear route for testing post-install hardware. Use anti-static measures such as grounding yourself and avoiding carpets during assembly. A well-prepared start sets the tone for a smooth installation, minimizes rework, and increases the odds of a successful POST on the first try.
Compatibility and planning: CPU, RAM, sockets, and BIOS
A successful motherboard install hinges on compatibility. Start by confirming the motherboard socket matches your CPU and that you’ve chosen RAM with the correct DDR type and speed. Verify the motherboard’s form factor fits your case (ATX, Micro-ATX, or Mini-ITX). Check that your power supply can deliver enough wattage and that your BIOS version supports the chosen CPU, RAM, and storage interfaces. Install Manual research shows that mismatches between socket types, RAM type, or BIOS revision are among the most common failure points in DIY builds. Keep a printed or digital spec sheet handy, and pre-plan your device order so you’re not scrambling to swap components as you go.
Safe handling and static precautions
Electrostatic discharge is a leading cause of motherboard damage. Always ground yourself before handling any components, and keep components in anti-static bags until the moment you install them. Use a grounded work surface and avoid touching connector pins or sockets. When possible, wear an anti-static wrist strap and periodically touch a grounded metal object to discharge any buildup. Gentle handling matters: hold components by their edges and avoid flexing the motherboard or components, which can bend pins or damage traces. These precautions dramatically reduce the risk of costly, downtime-inducing failures.
Mounting the motherboard in the case: standoffs, I/O shield, and alignment
Proper mounting starts with installing the I/O shield into the case and aligning the motherboard holes with the case standoffs. Place the motherboard gently onto the standoffs and check that screw holes align without forcing anything. Install the included screws in a diagonal pattern to avoid warping. Ensure the shield remains securely seated, as a loose shield can cause short circuits or interfere with rear-panel ports. Mounting precision sets the stage for clean cable routing and reliable electrical contact.
CPU, cooler, and RAM installation: seating and alignment
Install the CPU carefully, aligning the corner indicators or the triangle mark with the socket. Do not force the CPU into the socket; misalignment can bend pins. Apply a thin, even layer of thermal paste if your cooler requires it, then mount the cooler and secure it per the manufacturer’s instructions. Next, insert RAM modules into the correct slots, ensuring the latches click into place. For dual-channel configurations, install RAM in the recommended slots to maximize performance. These steps require deliberate, patient action to avoid damaging delicate pins or warped boards.
Primary power, data cables, and storage connections
Connect the 24-pin ATX power connector and the 8-pin (or 4+4) CPU power connector from the PSU. Route cables neatly to improve airflow and reduce strain on connectors. Attach PCIe power to your graphics card if needed, then install your M.2 or SATA drives and connect data cables. Attach front-panel connectors (power switch, reset, USB, audio) according to the motherboard’s pinout diagram. Good cable management not only looks tidy but also helps with airflow and future upgrades. Always double-check that each connector is fully seated before powering on.
First boot: BIOS/UEFI setup and initial testing
Power on the system for the first POST and enter the BIOS/UEFI. Verify CPU temperature sensors, fan control, and RAM recognition. Update BIOS/UEFI only if necessary for compatibility with your CPU or to enable new features, following the motherboard manufacturer’s instructions. Configure boot order and disable unused peripherals to streamline startup. After BIOS confirms basic hardware, boot into your operating system and install or update drivers as needed. A successful first boot is the gateway to a stable, responsive system.
Storage and expansion: drivers, OS considerations, and peripherals
After the OS boots, install chipset, LAN, audio, and GPU drivers from the manufacturer, as appropriate. If you changed the OS motherboard, you may need to reactivate Windows or install required motherboard drivers to maintain system stability. Reconnect case panels, USB hubs, and other peripherals, and test each port for proper function. Run a quick stress test, monitor temperatures, and verify that fans are responding correctly. This final phase ensures all components communicate properly and that your system operates under expected thermal and performance conditions.
Troubleshooting and avoiding common mistakes
If you encounter no POST or a blank screen, double-check all power connectors, RAM seating, CPU socket alignment, and GPU seating if applicable. Be sure no loose screws or standoffs are shorting the board. Revisit BIOS settings to verify that RAM is running at the rated speed and that memory slots aren’t misconfigured. If a component is not recognized, swap out connectors or reseat modules. Keep a step-by-step log of changes so you can retrace your actions and identify what caused the issue. Patience and methodical checks reduce fix times and protect expensive hardware.
Tools & Materials
- antistatic wrist strap(Ground yourself before touching components)
- Phillips screwdriver #2(Magnetic tip recommended for easier screws)
- compatible CPU(Check socket compatibility (e.g., LGA/AM3/AM4/AM5))
- compatible RAM(DDR type and speed supported by motherboard)
- motherboard mounting screws and standoffs(Keep in anti-static bag until mounting)
- thermal paste (optional)(Only if cooler requires it or is not pre-applied)
- system power supply (PSU) with required cables(Ensure 24-pin ATX and 8-pin CPU power are available)
- motherboard manual(Pinouts, connectors, and BIOS notes)

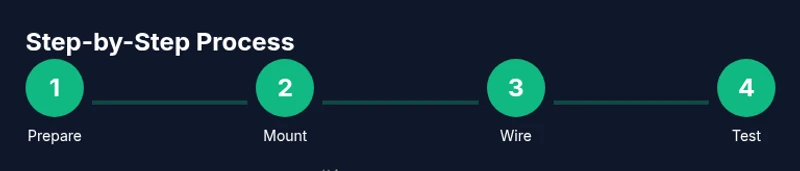

Steps
Estimated time: 60-120 minutes
- 1
Power down and unplug
Shut down the PC, unplug all cables, and remove the side panel. Ground yourself before touching any components to prevent static damage. If you’ve been moving around, take a moment to re-ground and wipe down your workspace.
Tip: Use a blue LED or anti-static mat to remind you to stay grounded. - 2
Ground yourself and prepare the case
Put on an anti-static wrist strap and attach to grounded metal. Remove the existing motherboard (if upgrading) or clear the area for a fresh install. Ensure the case is stable and the I/O shield is ready for seating.
Tip: Keep all screws in a labeled container to avoid losing small parts. - 3
Install the CPU into the socket
Open the socket, align the CPU with the corner markers, and gently place it in. Do not force it; a misaligned CPU can bend pins. Lock the socket lever once seated.
Tip: Double-check the notch orientation against the motherboard manual before closing the socket. - 4
Apply thermal paste and mount CPU cooler
If your cooler requires paste, apply a small pea-sized amount in the center of the CPU. Mount the cooler per the manufacturer’s directions and secure it firmly. Connect the CPU fan cable to the appropriate header.
Tip: If your cooler has pre-applied paste, skip this step to avoid excess paste. - 5
Install RAM modules
Open the memory slots for the correct channel configuration and press RAM sticks evenly into place until the latches snap. Confirm each module is fully seated and aligned. If upgrading to higher speeds, consult the motherboard manual for supported profiles.
Tip: Use dual-channel slots for improved performance when running two sticks. - 6
Mount the motherboard in the case
Place the motherboard so the I/O ports align with the case cutout, then secure it with the case screws. Tighten screws in a diagonal pattern to avoid warping. Ensure the shield is firmly seated.
Tip: Don't overtighten screws; excessive force can warp the board. - 7
Connect power and data cables
Attach the 24-pin ATX power connector and the 8-pin CPU power connector. Connect PCIe power if you have a discrete GPU. Route cables neatly to improve airflow and prevent interference with fans.
Tip: Label cables ahead of time to simplify future maintenance. - 8
Install storage and front-panel connections
Install M.2 drives or SATA devices as needed and connect data cables. Attach front-panel switches, USB headers, audio, and reset/power LEDs using the motherboard diagram.
Tip: Verify that the M.2 slots are not obstructed by the GPU or cooler before installation. - 9
First boot and BIOS setup
Power on to test POST and enter BIOS. Check detected CPU, RAM, and storage. Update BIOS only if required for compatibility or stability and set boot order for OS installation.
Tip: If POST shows errors, recheck RAM seating and power connections first.
Got Questions?
Do I need to reinstall Windows after swapping a motherboard?
In many cases, Windows will boot with the new motherboard, but you may need to reactivate Windows and install new chipset drivers. A clean install is ideal in some scenarios, especially if drivers were removed during the swap.
Usually you can boot Windows, but you may need to reactivate and install fresh chipset drivers after a motherboard swap.
Can I reuse my old CPU and RAM with a new motherboard?
Reusing components depends on socket type and RAM compatibility. Verify motherboard socket support for your CPU and ensure RAM type and speed are compatible. If in doubt, consult the motherboard manual or manufacturer support.
You can reuse CPU and RAM if the socket and RAM type are supported by the new motherboard.
What if there’s no POST after installation?
First, double-check power connections and RAM seating. Look for BIOS beep codes or debug LEDs to identify issues. Re-seat components and test with minimal configuration to isolate the culprit.
If there’s no POST, recheck power and RAM, then isolate components to locate the problem.
Should I update the BIOS before installing the OS?
BIOS updates are often recommended if the CPU is very new or there are known compatibility issues. Update after the system boots and you can access BIOS settings, following the motherboard’s official instructions.
Update BIOS if your CPU requires it, but do so after you can access BIOS safely.
Do I need new PSU cables for the motherboard swap?
In most cases, current PSU cables are compatible, but verify you have a 24-pin ATX and an 8-pin CPU power connector. If your case or motherboard requires different connector types, adjust accordingly.
Your existing PSU cables usually work, but confirm 24-pin and 8-pin CPU power are present.
Watch Video
Main Points
- Verify compatibility before installing components.
- Ground yourself and handle parts with care.
- Mount standoffs and align the I/O shield correctly.
- Connect essential power and data cables with attention to orientation.
- Update BIOS after installation if required for compatibility.
