What Happens When You Install a New Motherboard
Learn what happens when you install a new motherboard, from BIOS setup to driver reinstallation, and troubleshooting. A clear, step-by-step guide for homeowners and DIY enthusiasts tackling motherboard swaps.
Installing a new motherboard replaces the PC’s core platform, enabling updated CPUs, RAM, and expansion options. You’ll prepare for static-safe handling, carefully remove the old board, install the new board, reconnect components, and enter BIOS/UEFI to configure settings. This process affects boot behavior, drivers, and OS activation, so following a structured plan is essential.
What happens when you install a new motherboard
Installing a new motherboard is more than swapping parts; it redefines how every connected component communicates inside your PC. The motherboard is the central hub that routes data between the CPU, memory, storage, and peripherals. When you replace it, you’re not just changing a part—you’re potentially changing compatibility, boot behavior, and driver needs. The keyword here is integration: a new board must coordinate with your existing CPU, RAM, and GPU, and it will determine what BIOS or UEFI settings you can adjust. Understanding this helps you plan a smoother transition and reduces the risk of post-install boot issues. As you proceed, keep in mind that this process requires careful handling to protect sensitive circuitry, and that a well-documented plan makes the install safer and faster.
Preparing and planning before the swap
Before you touch any components, assemble a checklist that covers safety, compatibility, and recovery. Confirm your new motherboard has the correct socket for your CPU and the right RAM type and speed support. Make sure you have enough case clearance for larger boards and adequate power connections from the power supply. Gather tools and disposable components (thermal paste, extra screws, cable ties) and designate a static-safe workspace. A little planning goes a long way: it reduces surprises during the actual swap and helps preserve other working parts. The Install Manual team recommends mapping each connector you remove and labeling cables to simplify reassembly.
BIOS/UEFI: first boot and core settings
After the board is mounted and power connections are redone, the first POST (Power-On Self-Test) reveals whether the CPU, RAM, and GPU are recognized. Enter the BIOS/UEFI to verify key settings: boot order, memory profile (XMP or DOCP), and CPU power limits if your motherboard supports them. You may need to enable legacy USB support or adjust fan curves. If the system boots but hardware isn’t recognized, revisit the seating of the CPU and RAM, reseat the GPU, and re-check power connectors. BIOS is the baseline: incorrect settings can prevent boot or cause instability, so document any changes you make for future reference.
OS and drivers: post-install tasks
A new motherboard often requires driver updates and reactivation considerations for the operating system. Start with chipset drivers and any motherboard-specific utilities, then update storage controller, audio, and network drivers. Windows and other OSes may request activation if the hardware signature changes significantly; be prepared to re-enter license information. It’s also wise to run a hardware check to verify that the system recognizes all drives, peripherals, and accessory cards. Maintaining up-to-date firmware and drivers helps ensure stability and performance after a motherboard swap.
Troubleshooting during boot and post-install
Boot issues after a motherboard swap are common, but most problems have a logical cause. If the system won’t post, recheck the power connections, ensure the CPU is correctly seated, and confirm RAM modules are properly installed in supported slots. If you experience random reboots, inspect power supply stability, reseat components, and verify BIOS settings. Keep a process log: note which steps succeeded, what LED codes appeared, and any messages on the POST screen. A methodical approach makes it easier to pinpoint the root cause and avoids unnecessary replacements.
Authority sources and further reading
For grounded, research-backed guidance on motherboard installation and PC building best practices, consult official electronics standards and credible outlets. The National Institute of Standards and Technology (NIST) provides broad guidelines on antistatic handling and safe electronics practices. Academic and professional outlets, such as university tech resources, offer practical tips for hardware compatibility and firmware updates. Reputable tech publications also cover common pitfalls and troubleshooting workflows that help DIY builders complete the swap with confidence. Always cross-check guidance with reliable sources to ensure your procedure aligns with current best practices.
Authority sources
- https://www.nist.gov
- https://www.berkeley.edu
- https://www.tomshardware.com
- https://www.cnet.com
Tools & Materials
- Antistatic wrist strap(Ground yourself before touching any components)
- Screwdriver set (Phillips #2, possibly #1)(Magnetic tip helps with hard-to-reach screws)
- Torx driver (T8/T-10) optional(Some cases or components may use Torx screws)
- Screws and standoffs for motherboard mounting(Use the supplied standoffs to avoid short circuits)
- Thermal paste (if CPU cooler paste is not pre-applied)(Apply only if re-seating the CPU or replacing the cooler)
- Extra SATA data cables(Useful if you’re adding storage or re-routing cables)
- USB drive with BIOS/firmware update (optional)(Only if the motherboard requires a firmware update to boot)
- Magnetic parts tray or container(Keeps screws organized during the swap)
- Container of isopropyl alcohol and lint-free cloth(For cleaning contacts if needed)

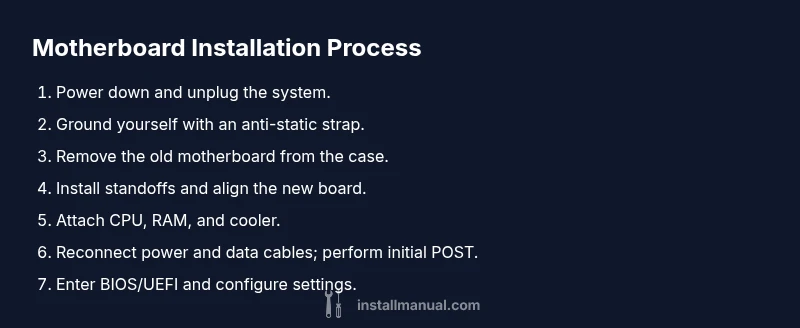

Steps
Estimated time: 60-120 minutes
- 1
Power down and unplug
Shut down the system, unplug the power cord, and unplug any peripherals. Press and hold the power button for several seconds to discharge residual power. This reduces the risk of shock and protects delicate components during disassembly.
Tip: Label the power connectors and take a photo of cable routing before removal. - 2
Ground yourself and prepare workspace
Wear an anti-static strap and work on a non-conductive surface. Remove any jewelry and avoid carpets that can generate static. A clean, controlled environment minimizes the chance of damaging sensitive ICs.
Tip: Work in a well-lit area so you can see small screws and connectors clearly. - 3
Remove the old motherboard
Disconnect all cables and remove expansion cards if present. Unfasten the motherboard screws and gently lift it from the case, supporting it to avoid bending the PCB. If a CPU cooler is mounted on the motherboard, remove it and set aside.
Tip: Keep track of which screws came from which standoff locations to simplify reassembly. - 4
Install standoffs and align the new board
Install the correct number of standoffs in the case, matching the new motherboard’s form factor. Carefully align the I/O shield with the back panel cutout, then place the motherboard so holes align with the standoffs. Hand-tighten screws before using a driver to avoid cross-threading.
Tip: Install the I/O shield first; it’s easier before the board sits in place. - 5
Attach CPU, RAM, and cooler
If you’re reusing your CPU, apply a fresh layer of thermal paste if needed and reseat the CPU, then install memory modules in recommended slots. Mount the CPU cooler securely, ensuring no gaps between the heatsink and CPU. Reconnect power to the CPU fan if applicable.
Tip: Double-check CPU alignment and socket pins before seating. - 6
Mount the motherboard and reconnect power/data
Lower the board into position and secure it with screws. Reconnect the 24-pin ATX power connector and the 8-pin (or 4+4) CPU power connector. Attach GPU power, SATA data/power cables, and any case fans or front-panel connectors according to the motherboard manual.
Tip: Refer to the motherboard manual for exact pin layouts to avoid miswiring. - 7
First boot and BIOS setup
Power on the system and enter BIOS/UEFI to verify hardware is detected. Set the boot order, enable XMP/DOCP for RAM if applicable, and configure fan curves. Save changes and reboot to start the operating system installation or login sequence.
Tip: If POST codes appear, consult the motherboard manual for troubleshooting steps. - 8
Install drivers and verify stability
Within the OS, install chipset, storage, audio, and LAN drivers from the motherboard manufacturer. Run memory and stress tests to ensure stability, and monitor temperatures under load. If issues arise, revisit BIOS settings or reseat components.
Tip: Keep a log of driver versions and BIOS revision for future maintenance.
Got Questions?
Do I need to reinstall Windows after changing the motherboard?
Often yes. Replacing the motherboard can change the hardware signature, triggering a reactivation or reactivation prompt. You may need to reinstall chipset drivers and re-activate the OS if prompted.
Yes, you’ll likely need to reactivate Windows after a motherboard swap because the hardware signature changes.
Can I reuse my existing OS without reactivation?
Activation behavior varies by license type. Some licenses tolerate hardware changes, while others require reactivation. Always prepare your license information and be ready to contact support if activation flags appear.
Activation can require validation with your license; keep your product key handy.
What is the first thing to do after installing a new motherboard?
Power on and enter BIOS/UEFI to verify hardware recognition. Set boot order and memory profiles, then save settings before booting into the OS.
Boot into BIOS first to confirm the hardware is detected and configured correctly.
Do I need thermal paste when reusing the same CPU cooler?
If you remove the cooler, a fresh layer of thermal paste is recommended to maintain optimal heat transfer. If the cooler remains mounted, you may skip reapplication but inspect the existing paste.
Reapply paste if you’ve removed the cooler; otherwise, inspect the current paste.
What are common boot problems after a motherboard swap?
Boot issues usually stem from power connections, mis-seated CPU or RAM, or incorrect BIOS settings. Recheck connections, reseat components, and verify BIOS configurations.
Common boot issues come from wiring or seating problems; double-check everything.
Can I perform a motherboard swap without a case?
Technically possible with an open bench setup, but extra care is needed to avoid shorts. Ensure the setup is static-safe and that power and data cables reach appropriately.
Yes, but an open bench setup requires extra caution to prevent shorts.
Watch Video
Main Points
- Plan and document before swap
- Ensure static-safe handling and proper grounding
- BIOS/UEFI setup is critical for boot and stability
- Drivers and OS activation may require attention after a motherboard install
