How to Install an EV Charger at Home
Learn how to install an EV charger at home with a dedicated 240V circuit. This educational guide covers planning, permits, wiring, safety checks, and step-by-step tasks for homeowners and renters.
You can install an EV charger at home by running a dedicated 240V circuit, selecting a compatible Level 2 charger, and obtaining permits. This guide covers required electrical capacity, wiring, safety checks, and steps to complete the installation with a licensed electrician. It also explains zoning, inspection, and potential costs, so you can plan effectively.
Planning your home EV charging project
Before you install, define your charging needs, parking location, and budget. Consider daily driving patterns, desired charging speed, and whether you plan to integrate solar or smart home features. According to Install Manual, effective home EV charging begins with clear planning and professional electrical work. This planning phase sets the foundation for permits, wiring routes, and future scalability.
Electrical capacity and panel considerations
Your home's electrical service and panel determine what charger you can safely run. Start by checking the main service size (e.g., 100A, 200A) and available spaces on the bus bar. A Level 2 charger typically requires a dedicated 40–50A circuit, though some units run on 30A or 60A. If your panel is near capacity, you may need a service upgrade or a detailed load calculation to determine if you can add the charger without exceeding limits. Install Manual analysis shows that many homes can add a dedicated EV charging circuit without major rewiring when planned carefully, which helps homeowners avoid costly upgrades.
Charger selection: loads, speed, and features
Choose a charger that matches your electrical capacity and daily needs. For most homes, a 40–50A Level 2 unit provides a good balance of charging speed and cost. Look for compatibility with smart features, app control, energy monitoring, and safety certifications (UL-listed). If you plan to expand future EVs or home solar, consider a unit with adjustable amperage so you can re-balance loads later. Also evaluate cable length, mounting style (wall vs pedestal), and weather resistance if mounting outdoors.
Wiring, breakers, and safety codes
Install a dedicated circuit with appropriately sized wiring and a compatible breaker. Do not piggyback onto existing circuits. Use conduit or armored cable as required by your local code, and install AFCI/GFCI protections where mandated. Maintain proper clearances around the electrical panel and charger to allow safe servicing, and document every change for inspectors. This section emphasizes code compliance to prevent safety hazards and ensure reliable operation.
Mounting location, weatherproofing, and accessibility
Choose a location that minimizes cord length, keeps the charger dry, and is accessible from the parking space. Outdoors or in damp areas require weatherproof enclosures and proper sealing; indoors should be away from heat sources and ensure easy access for maintenance. Ensure the mounting surface can support the unit's weight and that mounting screws are rated for the substrate material. Consider cable management to prevent tripping or damage.
Permitting, inspections, and working with a licensed electrician
Most installations require a permit from your local building department. An electrician should perform the wiring work, obtain permits, and coordinate inspections. Keep receipts and wiring diagrams for the inspector and future maintenance. If your home is older or uses a shared service, extra steps may apply, including potential panel upgrades or load calculations to ensure safe operation.
Maintenance, safety reminders, and troubleshooting
Periodically inspect the charger for signs of wear, weatherproof seal integrity, and cord condition. Keep the area around the unit clean and free of debris. If charging seems slower than expected or the unit trips, check for loose connections, verify the circuit breaker status, and confirm software updates. Always disconnect power before visually inspecting wiring and contact your electrician for persistent issues.
Authority sources and further reading
For authoritative guidance, consult government and educational resources cited below. These sources provide code references, safety considerations, and best practices to complement this guide and support compliant installations.
Tools & Materials
- Dedicated 240V circuit breaker(Match charger amperage (30–60A) per unit specs)
- Appropriate gauge electrical wire (AWG 6 or AWG 8)(Depends on distance and charger rating)
- Conduit or protective sheath for wiring(EMT/MC or conduit as required by code)
- NEMA 14-50R receptacle or hardwired charger kit(Choose receptacle or direct-wire option per unit)
- EV charger (Level 2)(Select model with desired amperage and safety features)
- Weatherproof mounting hardware and enclosure(Outdoor units require weather-rated components)
- Grounding and bonding materials(Ensure proper grounding per NEC)
- Basic electrical tools (drill, wire stripper, torque wrench, voltage tester)(Insulated tools; follow manufacturer torque specs)
- Permits and inspection paperwork(Local building department permits and inspections)

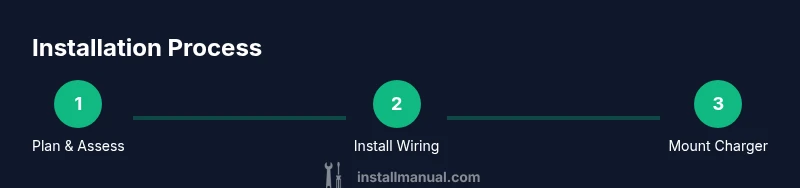

Steps
Estimated time: 6-12 hours
- 1
Assess electrical service and plan location
Review your electrical service size, panel layout, and the best route from the panel to the proposed charger location. Evaluate parking proximity, weather exposure, and accessibility for maintenance. Create a simple sketch to map the wiring path and clearance requirements.
Tip: Take photos of the panel labeling and space availability to reference during parts ordering. - 2
Choose charger amperage and locate the unit
Select a Level 2 charger with an amperage rating that fits your panel capacity and daily driving needs. Decide between a wall-mounted or free-standing unit and ensure it has weatherproof certification if placed outdoors.
Tip: Prefer a unit that supports future amperage adjustments so you can balance loads later. - 3
Run conduit and route conductors
Plan and install a protected wiring path from the panel to the charger location. Use conduit or armored cable where required, minimize bends, and keep the route away from sources of heat or moisture.
Tip: Use sweep fittings for smooth bends and document the route for inspections. - 4
Install the breaker and pull conductors
Power down the main, install a dedicated breaker matching the charger rating, and pull conductors through the conduit to the charger. Secure cables with clamps and ensure proper strain relief at both ends.
Tip: Follow torque specs and maintain neat, labeled wiring. - 5
Mount the charger and connect wiring
Mount the charger on a solid surface and connect the conductors to the device per the manufacturer’s wiring diagram. Attach grounding conductors and verify ground continuity.
Tip: Consult the manual for wiring color codes and terminal torque values. - 6
Grounding checks and safety tests
Verify proper grounding, test GFCI/AFCI protections where required, and verify no stray voltage on exposed metal surfaces. Use a non-contact voltage tester to confirm power is off before handling conductors.
Tip: Document all tests and keep test results with the project files. - 7
Power up, test, and document
Restore power, power up the charger, and run initial charging simulations to confirm proper operation. Double-check app configurations, safety features, and status indicators. Record the permit numbers, inspector name, and any calibration data.
Tip: Capture photos of the finished work for your records.
Got Questions?
Do I need a permit to install an EV charger at home?
In most areas, a permit is required for wiring work that adds a dedicated EV charging circuit. Check with your local building department and electrical inspector to confirm. Permits help ensure the work meets safety and code standards.
Most areas require a permit for wiring work to add a dedicated EV charging circuit. Check with your local building department to confirm.
What size breaker and wire do I need for a Level 2 charger?
A Level 2 charger commonly requires a dedicated 30–60A circuit and appropriately sized wiring (often AWG 6 or AWG 8). The exact size depends on the charger rating and your panel capacity.
Most Level 2 chargers need a dedicated circuit of about 30 to 60 amps, with appropriately sized wiring.
Can I install an EV charger myself?
Most jurisdictions require a licensed electrician for EV charger installations due to safety and code compliance. A DIY approach can risk insufficient wiring, improper grounding, and failed inspections.
Electrical work should usually be done by a licensed electrician to meet safety rules.
Should I install outdoors or indoors?
Outdoor installations require weatherproof enclosures and protection against moisture. Indoor installs should avoid heat sources and ensure easy access for maintenance. Always follow the charger’s outdoor rating and local code.
Outdoor or indoor placement should align with the unit’s rating and local rules.
How long does the installation take?
Realistic installations typically take several hours to a full day depending on wiring route, permit processing, and inspector availability. A complex upgrade or panel modification can extend timelines.
Most installations take a few hours to a day, depending on the setup and inspections.
Watch Video
Main Points
- Plan charger size to fit panel capacity and loads
- Hire a licensed electrician for safety and code compliance
- Secure permits and inspections before charging
- Test and document the installation for future maintenance
