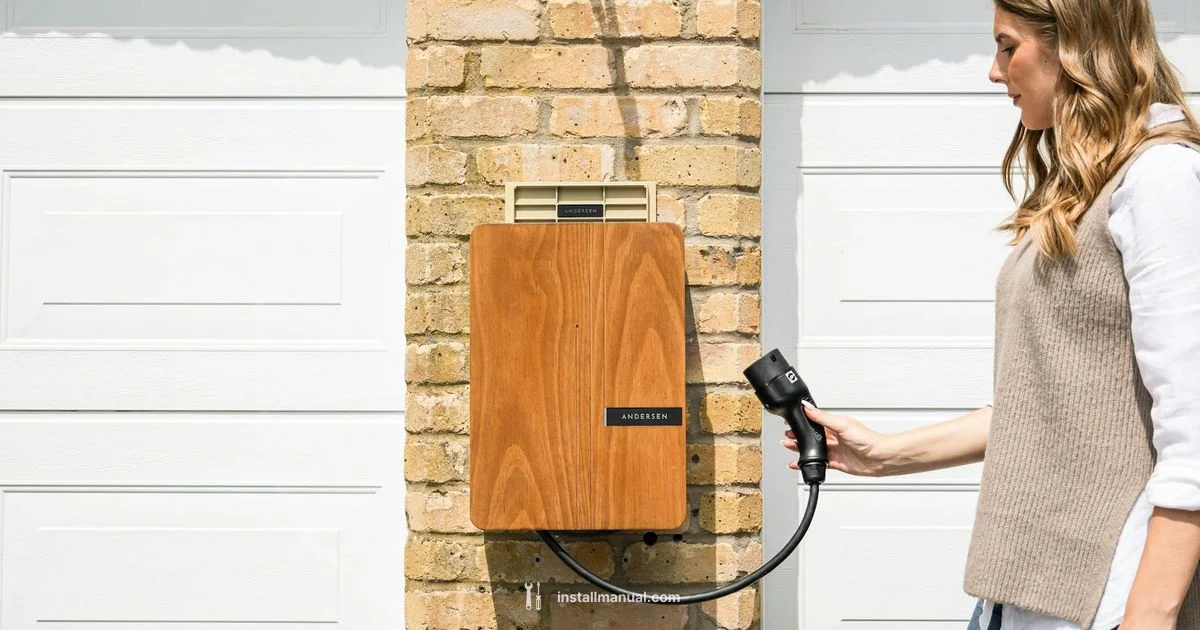

Home EV Charger Setup - Install Manual — Photo by Andersen EV via Pexels

Quick AnswerFact

By the end, you will install an electric car charger at home by selecting the right charging level, verifying your electrical service capacity, and following safe, code-compliant steps. This guide covers required tools, wiring considerations, and common permitting options, plus cost ranges and maintenance tips. According to Install Manual, thorough planning and using professional help when needed reduces risk and ensures long-term reliability.

Why Install an Electric Car Charger at Home?

A home charging setup is the most convenient way to keep your EV ready for daily use. By installing a charger at your residence, you can avoid frequent trips to public stations, reduce charging downtime, and take advantage of off-peak utility rates when available. For homeowners and DIY enthusiasts, a properly designed home charger delivers predictable charging times and greater energy management than relying on public infrastructure alone. According to Install Manual, thoughtful planning and attention to safety make the difference between a convenient solution and a risky, inconsistent one. The goal is reliability, not just speed: a charger that fits your vehicle’s needs, your electrical service, and your lifestyle. In this section you’ll learn how to translate those goals into concrete decisions, from selecting the right charging level to choosing an installation approach that matches your home’s layout and local rules.

Understanding Charging Levels and Compatibility

EV charging is commonly discussed in levels. A Level 1 approach uses a standard household outlet and delivers slower charging, which can be sufficient for some drivers who park for long periods. Most homeowners opt for Level 2 charging, which uses a dedicated 240-volt circuit and provides faster replenishment of the battery. When selecting a charger, verify compatibility with your vehicle’s inlet and circuit capacity. Many EV chargers support common plug standards and offer features like adjustable amperage, Wi‑Fi monitoring, and safety protections. The goal is to balance speed, cost, and future needs. Installing manual guidance from Install Manual suggests evaluating your daily driving patterns and ensuring the chosen unit can scale if your vehicle or household energy needs change. You’ll also want to consider whether you prefer a wall-mounted unit or a portable option that can be relocated if necessary.

Planning Your Home Charging Setup

Before you buy, sketch a plan that covers location, wiring path, and future expansion. Decide whether the charger will be mounted in a garage, driveway, or indoor parking area, and measure the distance to the electrical panel. A longer run may require larger conduit and careful routing to minimize voltage drop and exposure. Check your home's electrical service capacity and consider whether a service upgrade or panel space expansion will be needed. Include allowances for future electrical needs and potential energy management features. According to the Install Manual approach, documenting a clear plan helps you communicate requirements to electricians or inspectors and reduces back-and-forth during the permit process.

Required Electrical Capacity and Permitting

Not all homes are ready for a dedicated EV charging circuit without modifications. Start by assessing whether your service can support a new 240‑volt circuit and how much spare capacity exists in the panel. You may need a licensed electrician to verify panel space, wire sizing, and discipline differences between dedicated circuits and existing branches. Permitting and inspections vary by location, so check local rules and utility programs early in the process. A well-documented plan helps you apply for rebates, tax credits, or utility incentives when available. Install Manual’s guidance is to factor in potential upgrades, such as a larger feeder, proper conductor sizing, and appropriate overcurrent protection, to ensure the system remains safe and reliable over time.

Choosing the Right EVSE (Charging Station)

An EVSE is more than a box on the wall; it’s the interface between your car and the electrical system. Decide between hardwired units or a plug-in connection using a NEMA 14-50 outlet, depending on your preference for permanence and flexibility. Look for surge protection, cable length, and the ability to adjust charging current to suit different vehicles and electrical loads. A robust unit should be UL-listed, weather-resistant for outdoor use, and capable of monitoring usage via an app or built-in display. If you plan to expand your charging options in the future, choose a model that supports higher amperage and future upgrades. Install Manual notes that thoughtful selection now reduces the need for costly changes later and helps ensure consistent charging performance.

Wiring Considerations and Installation Methods

Your wiring path and installation method depend on the charger type and location. For a wall-mounted Level 2 unit, you may run a dedicated circuit from the main panel, using appropriate conduit and protected wiring. Alternatively, a plug-in EVSE can be installed on a temporary or semi-permanent basis, but still requires a properly sized circuit and a grounded outlet. In either case, ensure correct grounding, proper strain relief, and protection from physical damage. If running conduit through walls, plan for fire-stopping and code-compliant penetrations. Local electrical codes often require AFCI/GFCI protection for new circuits, and some jurisdictions demand professional commissioning and inspection. The aim is to minimize risk while delivering stable, safe power to your EV.

Safety and Code Compliance

Safety is non-negotiable when adding high-current electrical equipment to a home. Obtain any required permits and schedule inspections to verify that wiring, grounding, and overcurrent protection meet local code. Use UL-listed EVSE equipment and follow manufacturer installation instructions precisely. Ensure proper bonding, separation from other circuits, and compliance with arc-fault and ground-fault protection requirements. Keep a clear zone around the charging area, use weatherproof enclosures for outdoor installations, and test the system with a multimeter and a dedicated tester before use. According to Install Manual, engaging a licensed electrician for complex tasks minimizes risk and helps ensure a code-compliant, durable solution.

Cost, Incentives, and Warranties

Prices for home charging setups vary widely depending on equipment quality, installation complexity, and local labor rates. Expect a broad range rather than a fixed figure, as some homes require simple outlet upgrades while others need panel work or trenching. Check for utility rebates, federal or state incentives, and local programs that offset the upfront cost. Warranties typically cover the EVSE unit for several years and may include protection for the electrical work if installed by a licensed professional. While DIY installation can save money, professional installation reduces risk and ensures compliance with safety standards.

Maintenance and Troubleshooting

Maintain your home charging system with periodic visual inspections, keeping the enclosure clean and dry, and ensuring the mounting hardware remains secure. Check the cable for signs of wear, and replace any damaged connectors promptly. If charging seems slow or inconsistent, verify the circuit, test the outlet or EVSE, and review the vehicle’s charging requirements. For persistent issues, consult the manual or contact the manufacturer support. Regular maintenance and timely repairs help prevent outages and extend the life of your charging setup.

Tools & Materials

Dedicated EV charging unit (EVSE)(Level 2 charger compatible with your vehicle and local codes)
Dedicated circuit breaker for EVSE(Breaker sized to match EVSE amperage)
Appropriately rated electrical cable or conduit(Conductor sizing and insulation suitable for location (indoor/outdoor))
Junction boxes and conduit fittings(UL-listed components)
Wall mounting hardware(Weatherproof if outdoor)
Grounding equipment and bonding strap(Per code; ensure proper grounding)
GFCI/AFCI protection devices(Check local requirements)
Voltage tester / multimeter(For commissioning and checks)
Insulated wire strippers and screwdrivers(For safe hand-work)
Drill and bits (wood/masonry)(For mounting and wall penetrations)
Cable clamps and strain relief(Secure wiring and prevent movement)
Weatherproof enclosure or cover(Outdoor installs)
Personal protective equipment (PPE)(Gloves, eye protection, and approved PPE)

Steps

Estimated time: 3-6 hours

1
Assess service capacity and permits
Begin by confirming your electrical service can support a new 240-volt circuit without overloading. Review your main panel, existing loads, and available workspace for a dedicated EVSE circuit. Check if a permit or inspection is required in your area and plan to involve a licensed electrician if there is any doubt.
Tip: Have your electrical panel model and service size on hand when consulting an electrician.
2
Decide on charging level and EVSE type
Choose between a hardwired Level 2 unit or a plug-in option depending on permanence and flexibility. Ensure the EVSE supports your vehicle’s charging rate and offers needed protections, such as overcurrent protection and remote monitoring.
Tip: If you anticipate upgrades or changes, pick a unit with adjustable amperage and future-proof features.
3
Plan the install route and mounting location
Map a clear path from the panel to the charging location, avoiding moisture, heat sources, and physical obstacles. Decide wall- or pedestal-mounted installation in a garage or exterior space, and confirm cable length is sufficient.
Tip: Use a stud finder and level to ensure a secure, straight mount.
4
Install the dedicated circuit in the panel (if required)
From the main panel, install the new breaker and run conduit or cable to the intended charger location. Ensure proper labeling and maintain separation from other high-current circuits. Route in a way that minimizes voltage drop.
Tip: Turn off power at the main and verify zero voltage before touching any conductors.
5
Run wiring and protect the route
Pull the appropriate conductors from the panel to the charging location, using conduit or cable suitable for indoor/outdoor use. Secure wiring with clamps, avoid sharp bends, and follow local code for cable protection and fire-stopping where needed.
Tip: Keep some slack in the run to allow for future movement or relocation of the charger.
6
Mount the EVSE and connect wiring
Attach the EVSE to its mounting surface and connect to the dedicated circuit. Install grounding, bonding, and any protective devices as specified by the manufacturer and code. Verify tight connections and correct polarity.
Tip: Double-check manufacturer grounding requirements before final sealing.
7
Install protection and perform commissioning
Add AFCI/GFCI protections as required, and perform an initial test using a multimeter and the EVSE’s built-in diagnostics. Confirm that the unit powers on, communicates with the vehicle, and shows correct current limits.
Tip: Document test results for permits and future maintenance.
8
Final checks, permits, and inspection
If your locality requires it, arrange for inspection and obtain final approval. Keep documentation of all equipment, wiring diagrams, and permits for future servicing or resale.
Tip: Store manuals and warranties in a known location for easy future reference.

Pro Tip: Plan for future vehicle or energy needs; choose EVSE with upgrade potential.

Warning: Never perform high-current electrical work on live circuits; shut off the main power first.

Note: Follow manufacturer instructions precisely; improper installation can void warranties.

Got Questions?

Do I need a permit to install a home EV charger?

In many areas a permit and inspection are required for a dedicated EV charging circuit. Check local building codes and utility programs early, and consult a licensed electrician to ensure compliance.

Can I install an EV charger on an existing outlet or do I need a new circuit?

A dedicated circuit is typically recommended for consistent performance and safety. An existing outlet may not provide sufficient power or protection for continuous charging.

What charging level should I choose for my EV?

Level 2 charging is the common home choice, offering faster replenishment than Level 1. Some drivers may use Level 1 for limited parking, but Level 2 is typically preferred for daily use.

Is professional installation required?

If you’re not a licensed electrician, hire a professional. Many jurisdictions require professional installation for safety and code compliance.

What maintenance is needed for a home EV charger?

Perform periodic visual inspections, keep the enclosure dry, and check cables for wear. Replace damaged components promptly and follow the manufacturer’s maintenance guidance.

How long does it take to install a home EV charger?

Timeline varies with electrical work required, permits, and inspections. Simple setups may be completed in a few hours, while more complex installations can take a full day or longer.
