How to install can lights in vaulted ceilings
Learn how to safely install can lights in vaulted ceilings with a step-by-step plan, proper fixture selection, wiring safety, and maintenance tips. This guide from Install Manual covers layout, insulation, and code considerations for dramatic overhead lighting.
Installing can lights in vaulted ceiling spaces is achievable with careful planning, proper IC-rated LED housings, and safe wiring. Focus on even illumination, insulation compatibility, and code-compliant connections. Start by mapping a layout that avoids joists and ducts, choose dimmable trims, and confirm power is off before cutting. Test the circuit after installation and finish with airtight seals to maximize energy efficiency.
Understanding vaulted ceilings and lighting challenges
Vaulted ceilings create dramatic spaces but complicate lighting because the distance from ceiling to floor increases the spread and intensity of light. When you plan to install can lights in vaulted ceiling, you must consider beam angle, fixture brightness, and insulation interactions. The height affects how many fixtures you need and where to place them to avoid obvious dark spots or glare. Also plan for attic access for wiring and routes that bypass HVAC ducts, joists, and vents. Insulation and air sealing around recessed housing matter for energy efficiency and fire safety, so choose IC-rated LED housings that are designed to stay cool and seal well against attic air. If you’re aiming for even coverage in a vaulted room, you may need more fixtures or a combination of narrow- and wide-beam modules. Budget time for measuring, cutting, wiring, and testing to prevent costly rework. This approach helps homeowners map a practical, safe plan for installing can lights in vaulted ceilings.
Planning your can light layout for even coverage
A well-planned layout is the backbone of a successful vault ceiling lighting project. Start by mapping seating areas, focal points like artwork or architectural features, and any high-traffic sightlines that benefit from bright light. Use a grid approach that places fixtures away from joists and vents but spaced evenly for consistent illumination. In vaulted spaces, consider two tiers of lighting: one near the apex for ambient light and a second band lower down for task lighting. For 8- to 12-foot ceilings, 4-inch housings with 6–8 feet of center-to-center spacing can work; for higher ceilings, you may need to move toward 6-inch fixtures or add a strip light for balance. Always verify that the planned locations have unobstructed access, including attic clearance for wiring and future service. Finally, check local code requirements for the number of fixtures per room and ensure you’ll have a safe, accessible junction box layout.
Fixture selection and heat management for vaulted ceilings
Selecting the right fixtures is essential for energy efficiency and safety. Opt for IC-rated recessed housings that keep heat within the housing, reducing insulation compression and fire risk. LED modules are preferable because they run cooler and use less energy than incandescent or halogen bulbs. Choose dimmable trims and compatible drivers to achieve smooth transitions from bright to subtle ambient light. For vaulted ceilings, consider beam angle options; narrow beams resist glare in tall ceilings, while wider beams help fill the space when you’re close to the apex. If your room has sloped walls, aim for even horizontal light distribution at eye level rather than concentrating light toward the apex. Finally, plan for future upgrades by selecting fixtures with easy-to-replace LED modules and a driver that supports dimming without flicker.
Wiring, insulation, and access considerations
Electrical safety starts with turning off the breaker and verifying no voltage is present before touching wires. Route cables through joist bays and attic spaces, using appropriate staples and clips to avoid sagging or pinched conductors. When you install can lights in vaulted ceilings, maintain a clean air seal around each housing to prevent insulation from blocking airflow; this helps maintain energy efficiency and reduces moisture risk. Use correct gauge wire (as required by code) and secure all connections with electrical connectors. If you must cut holes in plaster or drywall, use a round hole cutter or drywall saw to ensure clean edges. Keep junction boxes accessible and avoid burying splices behind insulation. Finally, consult local electrical code for any permit requirements and inspection steps before you finish the ceiling.
DIY vs professional installation: when to hire help
For many homeowners, installing can lights in vaulted ceilings is a feasible weekend project with the right tools and safety discipline. However, vaulted or high ceilings increase risks around wiring and structural modifications. If you’re unfamiliar with electrical work, or if attic space is hard to reach, hiring a licensed electrician ensures code compliance, proper fixture selection, and safe wiring routes. A pro can also advise on insulation compatibility and sealant use to minimize energy loss. If you choose the DIY route, prepare for a thorough process that includes planning, measuring, cutting, wiring, and testing—plus a final inspection—often taking longer than expected. Weigh the cost and risk, and consider that an upfront professional assessment can prevent costly mistakes later.
Pre-installation checks and attic access
Before cutting a single hole, perform a pre-installation checklist: confirm the room’s dimensions and calculate the number of fixtures needed for even coverage; verify the attic has safe access and sufficient headroom to work on the ceiling; and pull the correct permits if required by your local jurisdiction. Inspect insulation around planned housing locations to determine whether you need to add barrier insulation or an air seal to maintain energy efficiency. Test the existing electrical circuit to ensure it can handle additional load and verify that there is an available circuit for lighting in that space. Prepare a clean, organized workspace in the attic with proper lighting and a pathway to the ceiling. Remember, precise planning now saves time and reduces rework later.
Authoritative sources and ongoing maintenance
To support your project, consult trusted sources on electrical safety and home improvement practices. The U.S. government provides general guidance on electrical safety and energy efficiency, while university extension programs offer practical how-to for homeowners. For fire safety and electrical codes, organizations like NFPA provide industry standards and updates. After installation, inspect the light fittings and insulation periodically for heat buildup, seal integrity, and weatherproofing. Replace LEDs before their brightness declines noticeably and check dimmers for compatibility. Maintaining the system will keep vaulted ceiling lighting bright, efficient, and safe in the long term. For reference, consider these sources:
- https://www.osha.gov
- https://www.energy.gov
- https://www.nfpa.org
Tools & Materials
- Non-contact voltage tester(For verifying power is off and identifying live circuits)
- Measuring tape(Minimum 25 ft preferred for vaulted layouts)
- Pencil and stud finder(To locate joists and avoid ducts/keys)
- 4-inch IC-rated recessed housing(LED-compatible, airtight if possible)
- 6-inch IC-rated recessed housing(Optional for larger vault zones)
- LED retrofit trims(Dimmable, compatible with driver)
- Hole cut-out tool or round hole saw(Clean round holes for housing)
- Wire nuts and electrical connectors(Appropriate gauge per circuit (14/2 or 12/2))
- Electrical wire (14/2 or 12/2)(As required by code and fixture specs)
- Drywall saw or rotary tool(For precise hole sizing)
- Ladder or scaffold(Secure access to vaulted ceiling areas)
- Safety gear (gloves, goggles)(Protection during cuts and wiring)
- Insulation (optional)(For maintaining insulation integrity around housings)
- Caulk or foam sealant(Seal around fixtures to maintain energy efficiency)
- Caulking gun(For foam sealant application)

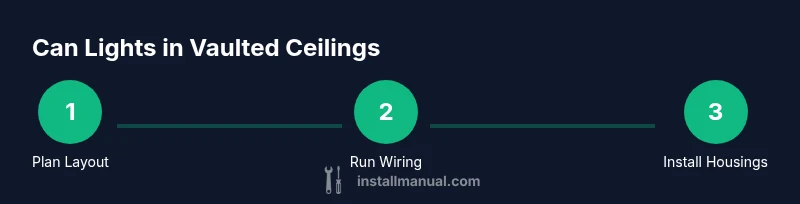

Steps
Estimated time: 2-3 hours
- 1
Power down and plan layout
Turn off the breaker serving the circuit and verify no voltage with a tester. Sketch the proposed fixture locations on paper, and mark the exact center points for each can light to avoid joists, vents, and electrical runs. This planning reduces rework and ensures even light distribution.
Tip: Double-check clearances around ductwork and skylight impediments before cutting. - 2
Identify joists and prepare routing
Use a stud finder to locate joists and determine path for wires. Plan to route cables through joist bays with minimal bending, keeping bends gentle to preserve conductor integrity. Clear enough attic space to work safely and comfortably.
Tip: Keep a second person handy in the attic for handing tools and guiding wires. - 3
Mark holes and cut
Mark the hole centers you planned, then cut with a round hole saw or drywall cutter. Deburr edges to prevent touching insulation, and ensure hole size matches your housing’s flange. Dry-fit the fixture before wiring to confirm alignment.
Tip: Use a template if your housing kit came with one to ensure accuracy. - 4
Run wiring and install housings
Feed wire from the power source to the first location, making secure splices with wire nuts and leaving enough slack for movement. Install IC-rated housings in the cut holes, sealing where appropriate to maintain insulation integrity. Attach housings to joists or ceiling structure as directed by the manufacturer.
Tip: Keep wiring tidy with cable organizers to prevent snagging on future insulation. - 5
Install trims and test lighting
Insert LED modules or retrofit kits into housings and attach adjustable trims. Restore power and test each fixture for brightness, dimming range, and flicker. If any fixture hums or flickers, recheck connections and dimmer compatibility.
Tip: Test at full brightness and at minimum dim level to confirm stable performance. - 6
Seal, finish, and inspect
Seal edges around fixtures with foam or caulk as needed to maintain insulation integrity. Finish any ceiling patchwork, clean up debris, and do a final safety check. Verify that ventilation or attic access remains unobstructed and that all junction boxes remain accessible.
Tip: Document the installation in case you need to service fixtures later.
Got Questions?
Do vaulted ceilings require different can light sizes?
In many cases, higher vaulted ceilings benefit from larger or more fixtures and sometimes wider beam angles. Choose sizes and spacing to ensure even coverage without glare. Always verify with layout measurements before cutting.
Vaulted ceilings can benefit from larger fixtures or adjusted spacing, depending on height and room size. Verify your plan with measurements first.
What if attic access is restricted?
Restrictive attic access may require using shorter ladders, flexible cables, or professional equipment. In some cases, you may need surface-mounted wiring or alternative routes that minimize attic disruption. Prioritize safety and compliance when access is limited.
If attic access is tight, consider professional help to ensure safe routing and code compliance.
Is this a DIY-friendly project or should I hire a pro?
Basic wiring and fixture installation can be DIY for skilled homeowners with proper tools and safety training. Vaulted ceilings increase risk, so evaluate your comfort level and local codes. When in doubt, hire a licensed electrician to handle wiring and permits.
If you’re unsure about wiring or codes, hire a pro for safety and peace of mind.
How many fixtures do I need for even lighting?
Fixture count depends on ceiling height, room size, and desired light level. Start with a layout plan showing 1 fixture every 4–8 feet, then adjust based on lumens and shadows observed in your space.
Plan fixtures with even spacing, then tweak based on how the room looks once installed.
Do insulated can lights affect insulation requirements?
Yes. Insulation around can lights must maintain air sealing and avoid compressing materials around the housing. Use IC-rated fixtures and seal appropriately to avoid heat buildup and energy loss.
Ensure insulation stays in place and doesn’t cover the housing to keep things safe and energy-efficient.
Watch Video
Main Points
- Plan layout before cutting
- Choose IC-rated LED housings
- Turn off power and test circuits
- Test all fixtures after installation
- Maintain insulation integrity around housings
