Install Can Lights in Existing Ceiling: Step-by-Step Guide
Learn how to safely install can lights in an existing ceiling with this comprehensive, step-by-step guide from Install Manual. Plan wiring, choose IC-rated housings, and complete the project with confidence. Full instructions, safety tips, and professional insights.
Install can lights in an existing ceiling by planning around wiring safety, choosing IC-rated housings, and cutting precise holes. This quick guide shows you how to map the circuit, gather tools, and follow a safe, step-by-step process to complete the installation with solid results. It covers planning, required safety precautions, and expectations for time.
Assessing Feasibility and Planning
If you’re planning to install can lights in an existing ceiling, start with precise planning. Identify a safe wiring path from a power source to each fixture, check attic access, and confirm there’s space to accommodate recessed housings without hitting pipes or ductwork. Decide between 4-inch or 6-inch housings based on the room size and desired light output, and choose insulation-contact (IC) rated housings if the installation will sit near insulation. Draft a simple wiring diagram and mark hole locations on the ceiling. According to Install Manual, the most reliable installs begin with a clear plan and verified measurements. Take photos of the ceiling and attic before cutting to stay aligned with your plan, and assemble a toolkit that includes the essentials so you’re prepared to work efficiently in the attic or ceiling space.
Safety, Codes, and Approvals
Electrical work requires respect for safety and code compliance. Always turn off the circuit at the main panel and verify there is no voltage with a non-contact tester before touching wires. Use UL-listed recessed housings designed for insulation contact (IC-rated) when insulation is present, and follow local electrical code guidance for box fill, accessibility, and proper wire connections. Keep your workspace clear of clutter, wear protective eyewear and a dust mask, and never bypass safety steps. If you’re unsure about a connection or wire routing, hiring a licensed electrician is the safest route. This approach minimizes risk of shock, fire, or code violations and supports reliable, long-lasting results.
Choosing Housings and Lighting Specs
Selecting the right housing and LED module is critical for performance and longevity. Consider whether your room benefits from a smaller 4-inch can or a larger 6-inch option, and ensure the housing is compatible with your insulation strategy. LED modules offer long life and cool operation, especially when paired with dimmers rated for LED loads. Opt for dimmable LED trim and bulbs when you want adjustable ambiance. Prefer IC-rated housings for attic installations to prevent overheating and to maintain energy efficiency. Color temperature options between warm and neutral tones help tailor the space to the room’s purpose, whether it’s a kitchen, living area, or hallway.
Planning the Wiring Path
Map a clean wiring path from the existing circuit to each new fixture. If you’re replacing a ceiling light, you may reuse the existing box but ensure it has enough capacity for the new can housing and wire count. In attics, run cable neatly along joists, avoid sharp edges, and secure cables with proper staples. When crossing from one room to another, keep the run as short and direct as possible to minimize voltage drop and limit attic heat exposure. If you must pass through joists, use a protective grommet or conduit where required by local code. Maintain clearances from plumbing and HVAC runs to minimize interference and heat buildup.
Cutting Holes and Mounting (Overview)
Hole-cutting is the moment of truth. Mark precise centerpoints for each can and verify your marks on multiple angles to avoid misalignment. Use an appropriate hole saw or drywall saw sized for your housing. Once holes are cut, dry-fit the can housings to ensure a snug fit and clean trim lines before wiring. The final mounting should hold the fixture securely without stressing the ceiling or wires. Remember to keep dust under control by using a shop vacuum during and after cutting.
Wiring and Finishing (Overview)
With the holes ready, bring cables through the housing’s junction box and prepare for terminations. Connect hot to hot, neutral to neutral, and ground to ground, using the correct wire connectors and ensuring solid, twist-on connections. Mount the housings firmly and install the trims, ensuring they sit flush with the ceiling surface. Reinstall insulation around the housing carefully to maintain energy efficiency, then test the system by restoring power and cycling through dimming and brightness levels to verify even illumination and safe operation.
Tools & Materials
- Cordless drill(Battery-powered for mobility)
- Hole saw set (matching can size)(Typically 4" or 6" for residential cans)
- Drywall saw or oscillating tool(For clean hole edges)
- Stud/joist finder(Locates joists and avoids obstructions)
- Non-contact voltage tester(Verify circuit is dead before work)
- Wire stripper and cutter(Prepare and trim conductors)
- Wire nuts / connectors(Secure electrical connections; use appropriate size)
- Electrical tape(Seal and insulate connections as needed)
- J-box or old-work housing(Provide proper electrical box for recessed can)
- Cable staples or clamps(Keep wiring secured to junction boxes/joists)
- Ladder or sturdy step stool(Access ceiling safely)
- Safety glasses and dust mask(Personal protection during cutting and wiring)
- Insulation material and protective foil/air sealant(Install around housing if needed for energy efficiency)
- Drywall patch materials(For patching if you remove any ceiling texture)

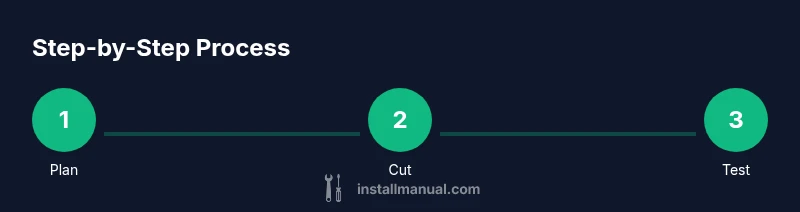

Steps
Estimated time: 2-4 hours
- 1
Plan and map the circuit
Identify a circuit with available capacity and map a direct path from power source to each fixture. Confirm where joists and attic access will allow you to route cables without crossing plumbing or HVAC ducts. Create a simple diagram and mark location for each hole.
Tip: Use a printed or drawn map to avoid mistakes during mark-and-cut steps. - 2
Shut off power at the panel
Turn off the circuit feeding the ceiling and verify dead wires with a tester. If you’re unsure which breaker controls the ceiling lights, switch off the main and re-test after wiring. This prevents shocks during cutting and wiring.
Tip: Always double-check with a tester after turning off the breaker. - 3
Measure and mark hole locations
Measure from boundaries and other fixtures to center the holes. Use a level and a pencil to mark clean, evenly spaced centers on the ceiling. Double-check measurements from below to prevent misalignment after cutting.
Tip: Mark one solid reference line so holes align across multiple fixtures. - 4
Cut the holes
Carefully cut along your marks using the hole saw or drywall saw. Start with a pilot hole if needed and work slowly to keep edges clean. Vacuum dust as you cut to minimize mess.
Tip: Keep a steady hand and stop if you hit any obstruction. - 5
Install electrical box and run cable
Install an old-work or ceiling box where the housing will sit. Run cable from the existing circuit along joists, securing with staples. Leave enough slack at the box to make connections safely.
Tip: Avoid sharp bends and protect wires from nails or screws. - 6
Terminate conductors and mount housing
Strip insulation, connect hot to hot, neutral to neutral, and ground to ground with appropriate connectors. Mount the housing securely so it sits flush with the ceiling and trim lines will be clean.
Tip: Secure ground connections and double-check wire nuts for tightness. - 7
Install trim and insulation and seal
Attach the trim ring and LED module, then tuck insulation around the housing without blocking airflow. Air-seal around the opening if required to improve energy efficiency and prevent air leakage.
Tip: Leave enough clearance for heat dissipation and avoid over-compressing insulation. - 8
Restore power and test
Turn the circuit back on and test each light. Check for flicker, uneven brightness, or buzzing. If any issue arises, re-check connections and ensure the dimmer (if used) is compatible with LED loads.
Tip: Test with the dimmer at multiple levels to confirm smooth operation. - 9
Finish and document the install
Patch any ceiling texture, repaint if needed, and note the circuit in your home wiring map. Take a final set of photos for future maintenance and upgrades.
Tip: Keep photos with your home improvement records. - 10
Inspect once more for safety
Do a final safety check identifying any loose wires, exposed conductors, or heat around housings. Ensure all tools are removed from attic space and any doors or panels are securely closed.
Tip: A quick post-install safety scan reduces future problems.
Got Questions?
Do I need an electrician to install can lights in an existing ceiling?
If you’re comfortable with household wiring and have access to an attic or ceiling cavity, you can DIY. However, work should be avoided if you’re unsure about electrical connections or building codes. Consider a licensed electrician for complex routing or structural concerns.
If you’re comfortable with wiring and have space to work safely, you can DIY. Otherwise, hire a licensed electrician for complex routing or code questions.
What’s the difference between IC-rated and non-IC-rated housings?
IC-rated housings are designed to operate safely when in contact with insulation, reducing the risk of overheating. Non-IC housings require clearance from insulation to prevent heat buildup. In most ceilings with insulation, choose IC-rated for safety and efficiency.
IC-rated housings are safer around insulation because they prevent overheating.
Are can lights safe to install in ceilings with insulation?
Yes, when you use IC-rated housings and install per manufacturer instructions. Ensure proper ventilation and maintain required clearances around the housing. Follow local codes for insulation and electrical installations.
Yes, with IC-rated housings and proper installation per code.
Can I install can lights where a ceiling fan used to be?
Yes, provided there’s a suitable electrical box and structural clearance. You’ll need to remove the ceiling fan box, install a dedicated recessed housing, and ensure wiring does not conflict with existing fan wiring. Follow safe wiring practices.
Yes, but you’ll need to switch to recessed housing and rewire correctly.
What if attic access is limited or blocked by insulation?
Limited access can make routing and wiring more challenging. In tight spaces, consider alternative routes, such as from a nearby ceiling fixture, or consult an electrician for safe options. Insulation protection and proper housing choice remain essential.
If the attic is tight, consider alternatives and get professional advice if needed.
How do I ensure even lighting across multiple fixtures?
Plan lumen output and beam angles for each location. Use LED fixtures with compatible dimmers, and maintain consistent color temperature across all fixtures to avoid hotspots. Test brightness and adjust trim angles as needed.
Plan for consistent brightness and color temperature across all lights.
Watch Video
Main Points
- Plan first to avoid rework
- Choose IC-rated housings for insulation safety
- Turn off power and test before wiring
- Label circuits and wires for future maintenance
- Test the finished install thoroughly for safety and performance
