Install a 4-Prong Range Cord: A Safe Step-by-Step Guide
Learn how to install a four-prong range cord safely with a clear, professional guide. Follow step-by-step instructions, tools, tips, and safety practices from Install Manual.
Goal: safely install a four-prong range cord to replace an old three-prong setup. Turn off power at the breaker, unplug the range, and verify the terminal block. The Install Manual team notes that following manufacturer instructions and local electrical codes reduces shock risk and ensures a compliant, four-wire connection.
Understanding four-prong cords and why upgrading matters
A four-prong range cord provides a separate ground path for safety and isolates neutral from chassis, reducing shock risk and electrical interference. Upgrading to a 4-wire connection aligns with current electrical codes and most manufacturer recommendations. In this guide you’ll learn what the four-conductor cord is, how it differs from older three-prong setups, and why many homeowners upgrade during renovations or appliance service. A properly grounded range improves equipment performance and kitchen safety. The Install Manual team emphasizes following the manufacturer’s directions and local codes for every installation to avoid safety hazards or code violations. This knowledge helps you complete the task confidently and correctly.
Safety prerequisites and local electrical codes
Electrical work in kitchens carries risk of shock and fire if done improperly. Before you touch any wires, switch off power to the circuit at the main breaker and unplug the range if it has a plug. Use a non-contact voltage tester to confirm the receptacle is de-energized and verify there’s no power on the terminal block. Keep hair, clothing, and gloves away from live terminals. If you are unsure about your local codes or how to convert a three-wire supply to a four-wire configuration, consult a licensed electrician. Always follow the National Electrical Code (NEC) guidelines and your local AHJ. The Install Manual team recommends following the manual’s instructions to ensure a compliant installation and to avoid hazardous conditions.
Choosing the right cord and components
Choose a cord that is clearly rated for your appliance’s amperage and length. Buy a UL-listed four-conductor range cord with a strain-relief connector compatible with your range model. Confirm the cord ends match the range’s terminal block layout (L1, L2, N, and ground) and that the wall outlet accepts a four-prong plug. Do not swap neutral and ground; ensure the bonding strap (if present) is configured per four-wire installation instructions. If you have a range with a removable rear cover, consult the manual to locate the terminal screws and the ground connection. Using an older, damaged cord can lead to overheating and failures.
Preparing the range and workspace
Move the range away from the wall to access the rear connection area. Clear the area of dust and clutter, unplug nearby devices, and lay a non-conductive mat for kneeling. Remove the rear access panel or terminal cover as instructed by the manufacturer. Inspect the existing cord for damage, and remove it carefully by loosening the strain-relief clamp. Keep track of the order of disconnected wires or terminals so you can reconnect them correctly with the new cord. Ensure the workspace is dry and well-lit to avoid mistakes.
Wiring the four-prong cord: L1, L2, neutral, and ground
Begin by loosening the terminal screws and wiring block. Attach the two hot conductors to the two hot terminals (L1 and L2) and tighten the screws securely. Connect the neutral conductor to the neutral terminal, and connect the ground conductor to the chassis ground screw or grounding terminal. If the range uses a bonding strap, remove it for four-wire operation as required by the manual. Recheck all connections for a snug fit and correct routing, avoiding pinch points. Reinstall the strain-relief clamp and the rear cover. Take care to route wires away from sharp edges and moving parts.
Testing and verification after installation
With the panel in place and power restored, test the outlet with a multimeter to confirm continuity between ground and the chassis, and ensure no neutral-ground bond exists. Plug the range into the outlet and power on; verify that the range lights up and heats as expected without signs of buzzing or overheating. If you notice any burning smells, loose connections, or arcing, power off immediately and recheck the connections or call a professional. Finally, run the self-test programs if your model supports them. The goal is a safe, fully grounded installation that passes basic electrical checks.
Tools & Materials
- Four-conductor range cord (UL-listed) with ground(Ensure it matches your range model and includes a strain-relief connector.)
- Strain-relief clamp(Secures the cord where it enters the back panel.)
- Non-contact voltage tester(Used to verify the circuit is de-energized before touching wiring.)
- Voltage tester or multimeter(For continuity checks and grounding verification.)
- Screwdriver set (Phillips and flathead)(For terminal screws and access panel screws.)
- Needle-nose pliers(Helpful for maneuvering conductors and stripping insulation if needed.)
- Wire stripper/crimper(Prepare conductors and ensure clean, square cuts.)
- Safety goggles(Eye protection in case of sparks or loose components.)
- Work mat or kneeling pad(Improves comfort and reduces back strain.)

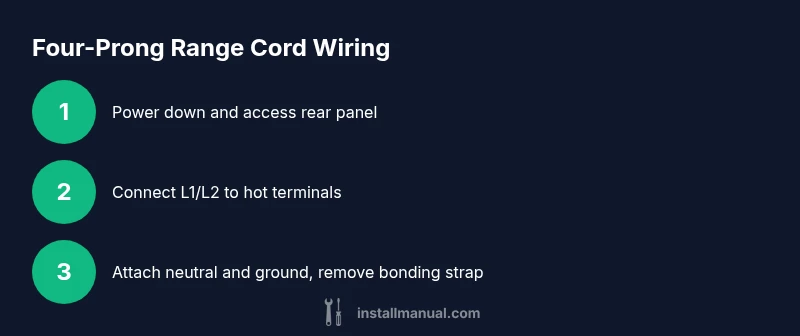

Steps
Estimated time: 30-60 minutes
- 1
Power down and prepare workspace
Turn off the circuit at the main breaker and unplug the range if it has a plug. Verify the area is dry, clear, and well-lit, and remove the rear access panel. This step prevents shock and helps you see the terminal block clearly.
Tip: Always verify there is no voltage with a tester before touching any wiring. - 2
Remove old cord and inspect terminal block
Loosen the strain-relief clamp and disconnect the existing cord. Inspect the terminal screws and wiring block for corrosion or damage; replace any worn components before proceeding.
Tip: Document wire positions or take a photo to guide reassembly. - 3
Prepare the new cord and wiring plan
Lay out the four conductors and identify the hot, neutral, and ground leads. Confirm the bonding strap is configured for four-wire operation or removed as directed by the manual.
Tip: Ensure the cord’s strain-relief connector is compatible with the range housing. - 4
Attach hot conductors to L1 and L2
Connect the two hot conductors to the two hot terminals, tightening each screw securely. Route wires cleanly and avoid crossing or pinching.
Tip: Do not mix up L1 and L2; either order is acceptable but keep them consistent. - 5
Connect neutral and ground
Attach the neutral conductor to the neutral terminal and the ground conductor to the chassis ground. If applicable, remove the bonding strap for four-wire operation and confirm there is no neutral-ground bond.
Tip: Securing a proper ground is essential for safety and appliance performance. - 6
Reassemble, test, and verify
Reinstall the rear cover and strain-relief, restore power, and perform continuity and grounding tests. Plug in the range and run a basic heat test to confirm proper operation without unusual noises.
Tip: If anything seems off, power down and re-check all connections or call a professional.
Got Questions?
Is it safe to install a four-prong range cord myself?
Installing a four-prong cord can be safe if you have basic electrical knowledge and follow the manufacturer’s instructions and local codes. If you are unsure about wiring or grounding, hire a licensed electrician.
Yes, but only if you’re comfortable with electrical work and you follow safety steps and local codes.
Do I need to remove the bonding strap for a four-wire connection?
Yes, in most four-wire installations the bonding strap must be removed to isolate neutral from ground per the manual.
Yes, remove the bonding strap for a four-wire setup.
What should I do if the old outlet is a three-prong configuration?
Three-prong outlets typically require upgrading to a four-wire outlet or changing the receptacle. Follow the manual and local codes, or consult a professional.
Three-prong outlets usually need upgrading to four-wire with a compatible outlet.
How can I test that the new cord is wired correctly?
Use a multimeter to verify continuity and grounding, and ensure no neutral-ground bond exists. Follow the model’s test procedure.
Test with a meter and follow the manual’s procedure.
Can I reuse the old kit connectors or terminals?
Replace worn or damaged terminal screws and connectors with new parts. Reusing damaged components can lead to failure.
Avoid reusing damaged connectors; use new components if needed.
What if I smell burning after installation?
Power off immediately, unplug, and re-check connections. If uncertain, contact a licensed electrician for a safety check.
If you smell burning, shut power off and call a pro.
Watch Video
Main Points
- Verify power is off before starting any wiring work
- Isolate neutral from chassis for four-wire installations
- Match conductors to L1, L2, N, and ground accurately
- Test grounding and continuity after installation
