How to Install a Light Switch: Step-by-Step Guide
Learn how to install a light switch safely with a clear, step-by-step approach. This home DIY guide covers essential tools, wiring basics, safety considerations, and testing to ensure a reliable connection.
By following this guide, you will learn how to install a light switch safely and efficiently. Before you start, shut off power at the breaker, gather essential tools, and understand basic wiring. You will remove the old switch, connect the new one, mount it securely, and test the circuit to ensure a safe, reliable connection that meets common electrical codes.
Safety First: Power Off, PPE, and Planning
According to Install Manual, the safest way to begin any electrical task is to ensure the circuit is dead and your body is protected. Start by switching off the appropriate breaker and using a voltage tester to confirm no current is present at the switch location. Wear eye protection and avoid working in damp environments. Document the wiring layout before you touch anything, as this will make reassembly faster. This project assumes a basic, single-pole switch and standard metal or plastic boxes. Through careful preparation, you can prevent shocks or arc faults and reduce the chance of miswiring. The Install Manual team emphasizes patience and double-checking connections to avoid costly mistakes at 2026 standards.
Tools, Materials, and Safety Equipment
Collect everything you will need: a new single-pole light switch, a standard electrical wall box, a blank wall plate or decorative faceplate, a flathead and a Phillips screwdriver, a small slot screwdriver, wire strippers, electrical tape or wirenuts, a voltage tester, and a flashlight. If your box is tight or you see damaged insulation, you may need a new box or more robust connectors. Having a magnetic parts tray helps keep tiny screws organized. Ensure you have a digital multimeter if you want a more precise reading, though a tester is usually enough for basic tasks. The goal is to work cleanly and methodically to minimize noise or loose connections.
Wiring Basics: Single-Pole vs. 3-Way
Most household lighting uses a single-pole switch, which has two terminals plus a ground. A three-way switch, used for controlling a light from two locations, has three terminals plus a ground and may require different wiring. Before you buy, inspect the existing switch to determine whether it is single-pole or 3-way, and identify the live (hot), load (to light), and ground wires. Knowing this helps you select the right switch and avoid rewiring the entire circuit. If you encounter a red wire or multiple black wires, treat them with caution and verify with a tester.
Planning the Layout: Box Depth and Location
Assess the wall box depth to ensure it can accommodate wires, the switch, and any ground connections. A shallow box can pinch conductors or cause a loose fit, while an overly deep box may require longer screws or a different faceplate. Consider accessibility: place the switch within easy reach but away from water sources and high-traffic zones where it could be bumped. If the existing box is damaged or cramped, replace it with a deeper version that meets the switch’s back wire or screw terminal layout. Proper planning reduces the risk of heat buildup and ensures a clean, secure installation.
Step Preparation: Identify Wires and Expose Ends
With power confirmed off, remove the faceplate and the old switch to observe how wires are connected. Use a voltage tester to verify no live voltage on the conductors, then document which wire ran to which terminal. If any wires are backstabbed or twisted together, untwist and trim insulation back to about 3/4 inch. Prepare ends by straightening the copper and ensuring they are clean and corrosion-free. This preparation minimizes the chance of a loose connection once the new switch is in place.
Attaching Wires to the New Switch: Ground, Line, and Load
Connect the ground wire to the green screw first, then attach the line (hot) wire to one brass screw and the load wire to the other brass screw. If your switch supports back-wiring, insert the wire straight into the terminal and tighten with the screwdriver. Ensure there are no stray strands that could contact other conductors. After securing, gently tug on each wire to confirm a solid grip. A firm, clean connection prevents arcing and intermittent operation.
Mounting the Switch and Replacing the Plate
Carefully tuck the wires back into the box and mount the switch with its screws so the device sits flush against the wall. Attach the faceplate, aligning it with the wall and ensuring screws are snug but not overtight. Before re-energizing, double-check that the plate is level and the switch moves smoothly. A neat finish not only looks professional but also helps prevent strain on the wiring over time.
Power On, Test, and Troubleshoot
Restore power at the breaker and flip the switch to test the light. If the light does not respond, re-check the wire positions and ground connection, and ensure the screws are tight. If you notice any warm components or buzzing, power off immediately and re-inspect for loose wires or short circuits. When in doubt, disconnect power and consult a professional. This final check helps confirm a safe, compliant installation.
Tools & Materials
- New single-pole light switch(15A, 120V, with two terminals and ground)
- Electrical wall box(Deep enough for wires + switch; replace if damaged)
- Faceplate(1-gang plate matching switch size)
- Flathead screwdriver(For mounting screws)
- Phillips screwdriver(For terminal screws)
- Slot screwdriver(Helpful for stubborn screws)
- Wire strippers(Expose 3/4 inch copper ends)
- Voltage tester(Non-contact preferred for safety)
- Electrical tape or wirenuts(Insulate and secure connections)
- Flashlight(Illumination in dark corners)
- Digital multimeter (optional)(For precise voltage checks)
- Pliers (needle-nose)(Grip wires, trim insulation)

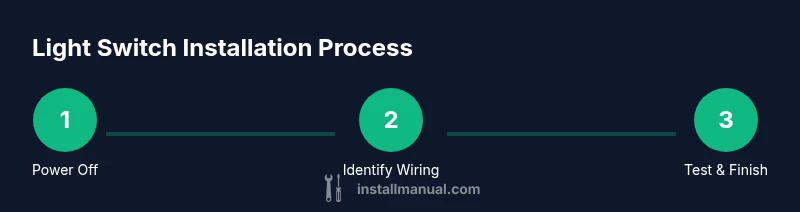

Steps
Estimated time: 30-60 minutes
- 1
Power off at the breaker
Locate the home’s main electrical panel and switch the circuit controlling the light. Confirm the power is off at the switch using a voltage tester before touching any wires.
Tip: Always test both terminals and ground before proceeding. - 2
Remove faceplate and old switch
Use the screwdriver to unscrew the faceplate, then remove the switch from the box. Keep all screws and note how the wires are connected.
Tip: Take a photo of the wiring layout for reference. - 3
Identify wires and confirm wiring type
Determine which wire is line (hot) and which is load to the light; verify if the circuit is single-pole or 3-way.
Tip: If you see a red wire or extra conductors, consult a guide or an electrician. - 4
Disconnect wires and prep ends
Loosen terminal screws and remove wires. Use wire strippers to trim insulation if needed, exposing clean copper ends about 3/4 inch long.
Tip: Do not nick copper, and keep conductors straight. - 5
Attach wires to the new switch
Connect ground to green screw, then line and load to the two brass screws. Tighten screws firmly, but avoid overtightening.
Tip: If two wires share a screw, trim and insert one per terminal. - 6
Mount the switch and fit the faceplate
Push the switch back into the box and fasten with screws. Align and attach the faceplate securely.
Tip: Ensure the switch sits flush and decorative plate sits evenly. - 7
Power on and test the new switch
Turn the breaker back on and test the switch by operating the light several times.
Tip: If the light does not respond, re-check connections.
Got Questions?
Do I need an electrician to install a light switch?
Most standard single-pole switches can be installed by a competent DIYer, but complex wiring, multiple switches, or unfamiliar wiring may require a licensed electrician.
For common single-pole switches, DIY is usually fine, but if you have three-way wiring or uncertain wiring, consider a pro.
What tools are essential for installing a light switch?
At minimum, you need a screwdriver, voltage tester, wire strippers, and a new switch with a proper wall box. Safety gear like gloves helps, and having a flashlight improves visibility.
Screwdrivers, tester, wire strippers, and a new switch are the basics; add a flashlight for dark corners.
What if the existing wiring is 3-way?
Three-way switches require different wiring and a switch with three terminals. If you're unsure, consult a guide or hire a pro.
Three-way wiring is more complex; if unsure, get professional help.
How do I test the switch after installation?
Turn the breaker on, flip the switch, and observe the light. If it doesn't work, re-check connections and ground.
Power it on and test the light; re-check wiring if it fails to operate.
What safety precautions should I follow?
Wear eye protection, work dry, and ensure the panel cover is on when testing. Use a tester to confirm no live voltage before touching wires.
Always test for voltage and stay dry; safety first.
Can I reuse the old faceplate?
If the new switch fits, you can reuse the old plate as long as it matches screw pattern and looks safe.
You can reuse the plate if it matches and is safe.
Watch Video
Main Points
- Power off, test, and verify wiring before touching wires
- Ground connections are essential for safety
- Secure mounting and test thoroughly after installation
- When in doubt, consult a professional
