EV Charging Install: A Comprehensive Home Setup Guide
Learn how to plan, safely install, and maintain an ev charging install at home. This guide covers permits, panel capacity, wiring, and safety for a solid setup
Goal: Install a dedicated EV charging outlet or wall-mounted charger at home, verify panel capacity, run correct wiring, and secure any required permits. According to Install Manual, this quick answer outlines essential steps, safety checks, and code considerations you’ll encounter during a typical ev charging install, so you can plan confidently and avoid common pitfalls.
Overview of at-home EV charging installs
In this section we introduce the landscape of at-home EV charging install options, from basic 120-volt Level 1 charging to faster Level 2 setups that use 240-volt circuits. Understanding charger types, electrical demand, and space requirements helps you choose a configuration that fits your vehicle, daily driving habits, and home layout. A well-planned install minimizes charging downtime and keeps your electrical system safe. Throughout this guide, you’ll learn practical steps homeowners, DIY enthusiasts, and renters can take to plan efficiently, check local codes, and coordinate with professionals when needed. The EV charging install process is a mix of electrical work, project planning, and safety awareness, so take time to map out your route and verify compatibility with your home’s service panel. According to Install Manual, starting with a clear plan reduces surprises and helps keep neighbors and inspectors aligned with your timetable.
Assessing electrical capacity and local codes
A safe ev charging install begins with a realistic assessment of your electrical capacity. Identify your service amperage, existing loads, and whether your panel has space for a dedicated EV circuit. Many jurisdictions require a permit and final inspection for dedicated charging outlets or wall-mounted chargers. You’ll also want to verify that the charger you choose is rated for outdoor use if you plan to install outside, and that it supports the appropriate protection (GFCI/AFCI) for your locale.
Planning circuit routing and mounting strategy
Plan the circuit route from the panel to the charger location with ease of access, minimal bending, and weather protection in mind. Consider conduit or armored cable in exposed spaces and avoid running wiring through damp areas without proper protection. Mounting height should align with typical plug-in heights or wall-mount clearances your charger requires, and ensure there’s a future-proof chance to upgrade to a higher-capacity charger if your needs change.
Choosing a charger and outlet configuration
Chose between a plug-in Level 2 charger fixture or a hardwired charger that attaches directly to a 240-volt circuit. A dedicated NEMA 14-50 receptacle is common for flexible options, while hardwired units are neater and can be more weatherproof for outdoor installations. The charger’s amperage should match your panel capacity and the cable gauge you plan to install, and many homeowners opt for a model with smart features like Wi‑Fi connectivity, app controls, and safety diagnostics.
Installation steps for a typical Level 2 charger
This section outlines a high-level workflow for installing a Level 2 EV charger. You’ll establish a dedicated circuit, mount the outlet or charger, route wiring, connect to the breaker, and finalize a safety check list before testing. While some steps can be DIY, many jurisdictions require a licensed electrician for final connections, grounding, and inspections. Always follow the charger manufacturer’s installation manual and local electrical codes.
Safety checks, testing, and maintenance
Safety is non-negotiable in EV charging install projects. After wiring, test for proper grounding, verify no stray voltage, and check that GFCI/AFCI protections are functional. Use a professional-grade voltmeter to confirm correct voltage and resistance values, and inspect weatherproof seals if the installation is outdoors. Schedule periodic inspections or self-tests to ensure ongoing performance and safety.
Permits and inspections process
Permits and inspections vary by locality but are a common part of the ev charging install journey. Start by applying for an electrical permit and arranging an inspection with your city or county building department. Retain documentation for warranty and future upgrades, and be prepared for possible adjustments requested by inspectors. A well-documented permit trail helps protect you and improves resale value.
Tools & Materials
- Electrical multimeter(For voltage, continuity, and resistance checks.)
- Non-contact voltage tester(Quickly verify circuits are de-energized.)
- Conduit, fittings, and clamps(Protect wiring in exposed or outdoor areas.)
- Electrical wire (appropriate gauge)(Typically 6 AWG for 50A circuits or as required by your charger.)
- Dedicated EV charger or NEMA 14-50R receptacle(Choose based on charger type and future upgrades.)
- Electrical box and mounting hardware(Weatherproof if outdoors.)
- Grounding electrode and bonding equipment(Maintain proper grounding per code.)
- Weatherproof enclosure or outdoor-rated charger(Protects equipment from the elements.)
- Drill and driver with assorted bits(For mounting and box installation.)
- Wire stripper/crimper, torque wrench(Make secure connections and proper terminations.)
- Tape, cable ties, and labeling materials(Label circuits and keep wiring neat.)

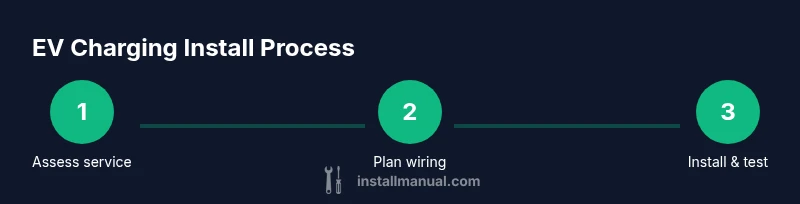

Steps
Estimated time: 4-8 hours
- 1
Assess service and loads
Review your main panel rating and current loads. Identify if there’s spare capacity or if service upgrade is necessary before adding a dedicated EV circuit.
Tip: Document existing breakers and ensure you have room for a new 20–60A breaker. - 2
Plan circuit size and charger type
Choose a charger that matches your panel capacity and future goals. Level 2 chargers commonly use 30–50A circuits with appropriate gauge conductors.
Tip: Aim for a circuit size that leaves room for future upgrades. - 3
Route wiring path
Map the shortest safe path from panel to charger, accounting for walls, studs, and potential moisture exposure. Use conduit in outdoor or damp locations.
Tip: Avoid sharp bends; use sweep elbows where needed. - 4
Shut off power and prepare workspace
Turn off the main breaker and tag the panel to prevent accidental energizing. Clear the area and inspect for hidden hazards before work begins.
Tip: Use lockout/tagout practices if available. - 5
Install dedicated circuit and protection
Install a new breaker sized to your charger and pull conductors from panel to the installation point. Include overcurrent protection and, if required, GFCI/AFCI according to local code.
Tip: Ensure the breaker type matches panel manufacturer specifications. - 6
Mount outlet/charger in location
Securely mount the outlet or charger receptacle on a solid surface at the planned height. Ensure weatherproofing and strain relief for outdoor installs.
Tip: Leave slack in wiring to accommodate future adjustments. - 7
Connect and terminate wiring
Attach conductors to the outlet/charger and to the breaker, following the manufacturer’s wiring diagrams. Tighten terminals to recommended torque values.
Tip: Double-check grounding connections and bonding. - 8
Test function and safety devices
Restore power and test voltage, continuity, and safety devices. Use a specialized EV charger diagnostic tool if available.
Tip: Perform a ground fault and insulation test before first use. - 9
Document, label, and plan for upgrades
Label the circuit clearly in the panel, update home plans, and save manuals for future service or upgrades. This makes future maintenance easier.
Tip: Keep receipts and permits for warranty and resale.
Got Questions?
What is required to install a home EV charging station?
A dedicated circuit, appropriate wiring, and a suitable charger or outlet. Check panel capacity and local codes before starting.
You’ll need a dedicated circuit, proper wiring, and a compliant charger. Check local codes before you start.
Do I need a permit to install an EV charging station?
Most areas require an electrical permit and inspection. The permitting process documents the work and helps ensure safety.
Most areas require an electrical permit and inspection for safety.
Can I install an EV charger myself, or should I hire a professional?
DIY is possible for simple, non-critical tasks, but many jurisdictions require a licensed electrician for final connections and inspections.
Often a licensed electrician is required for final connections and inspections.
What charger options exist for home use?
Home use typically involves Level 2 chargers either plug-in or hardwired. Choose based on your vehicle, space, and panel capacity.
Most homes use Level 2 chargers, either plug-in or hardwired.
Is outdoor installation different from indoor?
Outdoor installs require weatherproof enclosures and devices rated for moisture exposure; ensure proper mounting and protective covers.
Outdoors, use weatherproof equipment and seals.
What are common mistakes to avoid?
Avoid overloading the panel, skipping permits, and poor grounding. Always follow manufacturer instructions and local codes.
Avoid panel overload and skipped permits; follow code and manuals.
Watch Video
Main Points
- Assess service capacity before wiring.
- Follow local permits and inspections.
- Use a dedicated circuit and proper protection.
- Test, label, and plan for upgrades.
