Where to Install Internal SSD: A Step-by-Step Guide
Learn where to install an internal SSD in desktops and laptops, including interfaces, mounting options, and best practices for a safe upgrade. This Install Manual guide covers planning, backup, BIOS checks, and post-install optimization to improve performance without risking data loss.
Learn where to install an internal SSD in desktops and laptops, plus essential tools and steps for a safe upgrade. This guide covers compatibility, mounting options, and basic BIOS checks. According to Install Manual, planning the correct slot and confirming interface types is the essential first step. We cover NVMe and SATA form factors, space constraints, and how to protect data during the swap.
Why upgrading to an internal SSD improves everyday performance
Upgrading from a traditional hard drive to an internal solid-state drive can noticeably improve boot times, application launch, and overall system responsiveness. In a mid-range home computer, the difference is particularly evident when opening large files, launching creative software, or gaming where load times matter. The choice between NVMe and SATA drives affects both speed and price; NVMe drives use the PCIe bus and are typically faster, while SATA drives are more widely compatible and affordable. When planning where to install, consider your motherboard layout, the number of available slots or bays, and the physical space inside your case or laptop. The Install Manual team emphasizes mapping your upgrade to the system's goals and constraints. Also, ensure you back up data before initiating any hardware change; a small mistake can lead to data loss. Throughout the process, lessons from real-world DIY projects show that systematic planning reduces downtime and preserves warranty conditions while enabling future upgrades.
Understanding SSD types and interfaces
SSD form factors include 2.5-inch SATA drives and M.2 cards (NVMe or SATA). NVMe drives use PCIe lanes for significantly higher speeds, while SATA is compatible with many older systems and remains a cost-effective option. An M.2 drive can be very compact, but you must verify the motherboard supports NVMe or SATA in the same slot. The choice affects performance, boot times, and even thermals inside the chassis. Before buying, check your motherboard or laptop documentation for supported sizes, keys, and whether a heatsink is required. Planning the right interface ensures you get the best balance of speed and reliability. The Install Manual guidance emphasizes confirming the slot type and installation space before purchase to avoid rework.

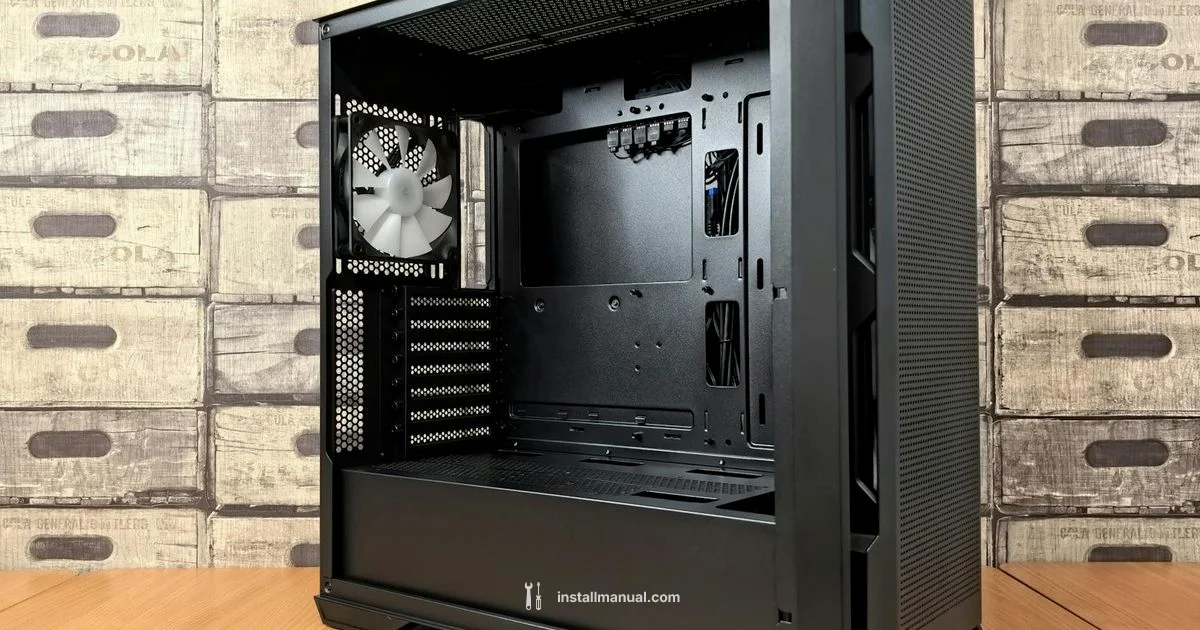

Desktop installation spots: where to mount an SSD
Desktops typically offer multiple mounting options: 2.5-inch drive bays with standard screws, or M.2 slots on the motherboard. If you’re retrofitting, a 2.5-inch drive is straightforward: slide the drive into a bay, align the mounting holes, and secure with screws. For M.2, align the notch on the card with the slot, insert at a slight angle, and rotate to a flat position, then secure with a screw. Ensure you leave space for airflow around the drive to prevent thermals from throttling performance. Double-check cable routing to avoid pinching power or data cables during reassembly.
Laptop installation considerations: what fits where
Laptops vary widely. Some models include only a single M.2 slot; others offer a 2.5-inch bay in addition to M.2. Always consult the service manual for your exact model to locate the correct slot and the required mounting points. In ultrabooks, space is tight, so M.2 is usually the best option. You may need a small screwdriver and a static-safe workspace to perform upgrades. If your laptop uses a dedicated SSD bay, you’ll typically remove the bottom panel, locate the drive, and replace or upgrade, ensuring you reinstall any thermal pads or heatsinks as needed.
Safety and static precautions you must follow
Static electricity is a common cause of component damage. Always ground yourself before touching any internal parts. Use an anti-static wrist strap connected to a non-painted metal surface or Earth ground. Work on a clean, non-conductive mat and avoid placing screws or tools on your motherboard. Disconnect all cables and peripherals and handle drives by the edges. If you’re unsure about grounding, take a moment to re-check your setup or pause until you’re sure you won’t transfer static to sensitive components.
Pre-install planning: compatibility, backups, and cloning
Start by verifying that your motherboard supports the specific SSD form factor you choose (NVMe or SATA) and that there’s a spare slot or bay available. Back up important data to an external drive or cloud storage to prevent data loss during the upgrade. If you’re cloning your OS drive, prepare cloning software and ensure you have enough free space on the destination drive. Check for firmware updates for the SSD and BIOS updates for your motherboard to maximize compatibility. The planning phase reduces rework and ensures a smoother experience.

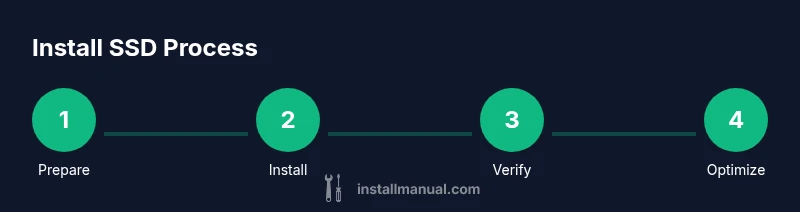

The core install steps at a glance
This block provides a concise overview of the main actions: identify the right slot, prepare the SSD, install the drive with correct orientation, secure the connector, reconnect cables, boot to BIOS, verify the drive appears, and format or clone as needed. Each action is a discrete step you’ll perform in sequence, minimizing confusion and mistakes. Remember to consult your motherboard manual for specific screw sizes and torque requirements.
Post-install configuration: BIOS, OS setup, and performance tweaks
Once the SSD is installed and detected, enter the BIOS to confirm the drive is set as a primary or secondary boot option, depending on your plan. In your operating system, initialize the drive, format it using a suitable file system, and enable features like TRIM for sustained performance. For NVMe drives, you may need to install drivers or firmware updates. Finally, run a quick benchmark or file-transfer test to confirm the upgrade is delivering the expected speed improvements.
Common pitfalls and quick troubleshooting tips
Even with careful planning, you may encounter issues if components are not properly seated or if BIOS/OS settings are misconfigured. Start by reseating the SSD and cables, then verify BIOS recognizes the device. If the drive isn’t appearing, check for disabled PCIe/NVMe slots, update firmware, and verify that power cables are connected. Keep the drive firmware up to date and back up data regularly to guard against future problems.
Tools & Materials
- Anti-static wrist strap(Ground yourself before touching components)
- Small Phillips head screwdriver(PH0–PH2 depending on case screws)
- Torx screwdriver (optional)(May be needed for some laptops)
- M.2 mounting screw(If not pre-installed on motherboard)
- M.2 heatsink or thermal pad (optional)(For high-heat NVMe drives)
- SATA data cable (optional for 2.5" SSD)(If mounting in a desktop without existing cable)
- SATA power cable (optional for 2.5" SSD)(From power supply or modular cable kit)
Steps
Estimated time: 45-90 minutes
- 1
Power down and unplug
Shut down the computer and unplug all cables. If possible, press and hold the power button for a few seconds to discharge residual power. This reduces the risk of short circuits while you work.
Tip: Keep the device on a non-static surface and ground yourself. - 2
Open the case or back panel
Remove the side panel using the correct screwdriver to access the drive bays or motherboard slots. Keep screws in a labeled container to avoid loss.
Tip: Take a photo of cable routing before removal to aid reassembly. - 3
Identify the correct SSD slot or bay
Check whether you have an M.2 slot or a 2.5" drive bay and verify compatibility with your SSD type. Review the motherboard manual for slot type and size.
Tip: Confirm notch/key alignment before insertion. - 4
Install the M.2 SSD into the slot
Insert the M.2 card at about a 30-degree angle into the slot until it sits flush, then rotate to a stable position. Do not force the card.
Tip: Ensure the notch aligns with the slot prior to seating. - 5
Secure the M.2 screw
Secure the M.2 card with the mounting screw and ensure there is no wobble. If a screw isn't included, use a spare from the motherboard packaging.
Tip: Only tighten modestly to avoid thread damage. - 6
Install a 2.5" SATA SSD (if applicable)
Slide the drive into the 2.5" bay, align screw holes, and secure with screws. Make sure the drive is fully seated to avoid contact with the metal edges.
Tip: Use a spacer if your case requires one to prevent vibration. - 7
Connect data and power cables
Connect the SATA data cable to the drive and motherboard, then attach the power cable. Route cables neatly to avoid obstructing fans or airflow.
Tip: Avoid bending cables sharply to prevent data transfer issues. - 8
Close the case and power on to verify
Replace the side panel, reconnect power, and boot. Enter BIOS to confirm the drive shows up. If not detected, reseat connectors or try a different port.
Tip: If the drive isn’t recognized, check BIOS for AHCI/NVMe settings. - 9
Initialize and format in OS
In your OS, initialize the SSD, create a new volume, and format with an appropriate filesystem. Confirm the drive shows up in disk management or disk utility.
Tip: Review alignment settings for best performance.
Got Questions?
Do I need to clone my drive before installing an SSD?
Cloning preserves your current OS and files, reducing setup time. If you’re comfortable starting fresh, you can format the new drive and install Windows or macOS again.
Cloning preserves your OS and files, saving setup time. If starting fresh, you can format the new drive and install the OS later.
Can I install an SSD in a laptop that has only one slot?
Many laptops offer one M.2 slot or one 2.5" bay. If you already use that slot, you may need to replace the existing drive or use an external solution for extra storage.
Most laptops with one slot let you upgrade that slot; you may have to replace the existing drive or add external storage.
Will adding an SSD speed up boot times?
Yes. Replacing or adding an SSD typically reduces boot times and increases responsiveness, especially when your operating system and apps live on the SSD.
Yes, an SSD usually makes boot times faster and improves responsiveness.
What if the BIOS doesn’t recognize the SSD?
First, reseat the SSD and cables, then check BIOS settings for PCIe/NVMe enablement or AHCI mode. If needed, update firmware and BIOS to ensure compatibility.
If BIOS doesn’t recognize the drive, reseat it, check settings, and update firmware if necessary.
Should I enable AHCI for SSDs?
AHCI mode enables advanced features for SSDs and is generally recommended. For NVMe drives, ensure the NVMe driver is installed and recognized by the BIOS.
Yes, AHCI is recommended for SATA SSDs; for NVMe, ensure proper driver support.
Is NVMe significantly faster than SATA for everyday tasks?
NVMe offers higher theoretical speeds, but real-world gains depend on your workload. For everyday tasks, SATA SSDs still provide noticeable improvements over HDDs.
NVMe is faster in theory and in benchmarks, but real-world gains vary by application.
Watch Video
Main Points
- Identify the correct SSD type and slot before buying.
- Back up data and follow static precautions.
- Confirm BIOS sees the new drive before OS setup.
- Secure mounting to prevent vibration and read/write issues.
