What to Do When Installing a New SSD: A Step-by-Step Guide
A practical, homeowner-friendly guide detailing what to do when installing a new SSD, from backups and cloning to physical installation, BIOS setup, OS installation, and post-install testing. Learn best practices for speed, reliability, and data safety in 2026.
Goal: You will successfully install a new SSD and boot from it with minimal downtime. Before you start, confirm drive type and interface, back up essential data, and decide between cloning your current system or performing a fresh OS install. Then follow the step-by-step process to install the drive, format it correctly, install the operating system, and verify performance.
Planning the upgrade: what to decide before you begin
When you start planning what to do when installing a new SSD, you need to decide a few core factors that shape every later step. First, identify the exact SSD type and interface your system supports (SATA, NVMe, PCIe). This choice determines performance, price, and compatibility. The Install Manual team emphasizes thorough prep as the foundation of a smooth upgrade. Next, set goals for what you want to improve: faster boot times, snappier app launches, or more storage for media. Finally, decide between cloning your current drive to preserve the exact environment or performing a fresh OS install to start clean. This choice affects data migration, driver setup, and post-install updates. Plan for a potential downtime window and communicate it to other users on shared devices. By mapping out these decisions, you reduce surprises during the install and ensure a reliable result.
In this block we establish the scope and mindset for the SSD upgrade, with practical questions to answer before touching hardware.
Tools & Materials
- SSD (1TB or larger, NVMe or SATA depending on your PC)(Confirm form factor and interface with your motherboard or laptop specs)
- Screwdriver set (Phillips #1 and #2)(Essential for securing mounting brackets or drive caddies)
- SATA data cable (for 2.5" SATA SSDs)(Needed if your system uses a mechanicals-style bay without existing cable)
- M.2 screwdriver (for NVMe install)(Only if you’re installing an M.2 drive in a desktop or laptop that requires a dedicated screw)
- External backup drive or cloud backup plan(Critical if performing a clone or a fresh OS install to avoid data loss)
- USB-to-SATA adapter or USB drive with cloning software(Optional but helpful for cloning from old to new drive)
- ESD-safe wrist strap or grounded mat(Reduces risk of static electricity damage)
- Operating system installation media or ISO(Needed if performing a clean OS install)
- Thermal pad or spacer (if required by your laptop)(Check manufacturer guidelines for M.2 NVMe drives)

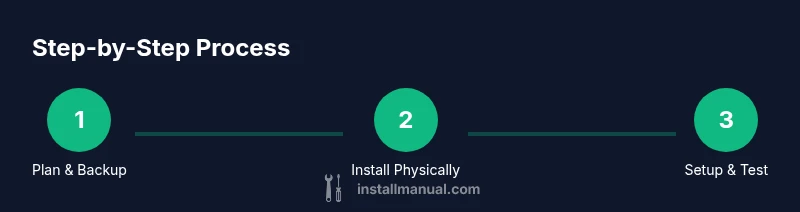

Steps
Estimated time: 60-120 minutes
- 1
Back up and document current setup
Create a complete backup of all important data and take note of the current partition layout. This protects you if cloning fails and helps you restore settings after a clean install. If you plan to clone, verify the backup includes the OS, programs, and user data.
Tip: Verify the backup integrity by attempting a file restore on a test file. - 2
Decide cloning vs. fresh install
If speed and convenience are priorities, cloning preserves your existing environment. If you want a clean start or are upgrading OS versions, opt for a fresh install. The choice will guide tools and steps for the next stages.
Tip: Clone only if you know your current system is stable and free of malware. - 3
Prepare the SSD and workspace
Unbox and inspect the SSD, connect it using the appropriate interface cable or M.2 slot, and power down the system. Ground yourself to reduce static risk and clear workspace to avoid dropped parts.
Tip: Keep small screws in labeled containers to prevent loss. - 4
Install the physical drive
Open the chassis or laptop bottom panel, insert the SSD into the slot or bay, and secure with screws. If you’re using NVMe, insert at an angle, then press down to align the notch and fasten with the screw.
Tip: Do not overtighten screws to avoid stripping threads. - 5
Power up and enter BIOS/UEFI
Power on and enter the BIOS/UEFI settings. Ensure the new SSD is detected and set as the first boot device if you’re performing a clean OS install. Save changes and exit to boot loader.
Tip: If you don’t see the drive, reseat the SSD and double-check cables. - 6
Clone or install the OS
If cloning, run the cloning software and direct it to copy the existing system to the new SSD. If installing fresh, load the OS installer and perform a standard installation, selecting the new SSD as destination.
Tip: Disable hibernation and page files temporarily to speed up cloning and avoid large temporary files. - 7
Format and partition the SSD
After the OS install or clone completes, verify partitions align with best practices for SSDs. Create a single C: partition on Windows or the main mount point on other systems, and ensure the correct file system (NTFS/exFAT for Windows, APFS/EXT4 for others).
Tip: Align partitions to 1 MiB boundaries to maximize performance. - 8
Install drivers and updates
Install chipset, storage controller, and GPU drivers as needed. Run Windows Update or your OS updater to fetch the latest security patches and firmware updates for the SSD.
Tip: Check the SSD’s firmware page for any recommended updates. - 9
Run initial benchmarks and enable TRIM
Perform basic speed tests to confirm the drive is performing as expected. Enable TRIM if your OS isn’t enabling it automatically, and verify that trim commands are being issued.
Tip: TRIM helps maintain long-term SSD performance and longevity. - 10
Verify data integrity and set up backups
Boot into the OS, confirm user accounts and apps work, and run a short data integrity check. Reconfigure scheduled backups and enable system restore points as needed.
Tip: Keep at least one fresh backup after initial setup.
Got Questions?
Do I need to back up before installing a new SSD?
Yes. Backing up protects your data if cloning fails or if you decide on a clean OS install. It is the first safety step before touching hardware.
Back up your data before starting; it protects you if something goes wrong during the SSD upgrade.
What is the difference between SATA and NVMe SSDs?
SATA SSDs connect with standard SATA interfaces and offer solid speeds but are slower than NVMe drives, which use the PCIe bus for higher throughput. NVMe is ideal for newer systems with M.2 slots.
SATA is reliable and affordable; NVMe is faster but requires compatible hardware.
Can I boot from a cloned SSD or a fresh OS install?
Yes. If you clone, your OS can boot from the new SSD. If you install fresh, you’ll boot from the new drive after the initial setup and activation.
You can boot from a cloned SSD, or from a fresh install after setup.
How long does cloning or OS installation typically take?
Time varies with drive size and system performance. Larger data sets take longer to clone; an OS install is usually shorter but depends on download times and updates.
Timing depends on data size and network speed if updates are installed during setup.
Should I enable TRIM right away?
Yes. TRIM helps maintain SSD performance over time and is typically enabled by default on modern OSs. If not, enable it after installation.
TRIM helps your SSD stay fast and healthy; enable it if it isn’t on by default.
What if the new SSD is not detected in BIOS?
Re-seat the drive, check cables or slot compatibility, and verify BIOS recognizes the interface. If necessary, update BIOS firmware or consult the device manual.
If the SSD isn’t detected, re-seat it and check connections; you may need a BIOS update.
Watch Video
Main Points
- Plan compatibility and backup before starting
- Choose clone or clean install based on goals
- Physically install securely and verify BIOS
- Format and set up OS with correct partitions
- Verify performance and maintain backups
