Installing KitchenAid Dishwasher: Step-by-Step Guide
Step-by-step guide to install a KitchenAid dishwasher safely and efficiently. Learn site prep, rough-in, plumbing, electrical, leveling, and final testing for a leak-free install.

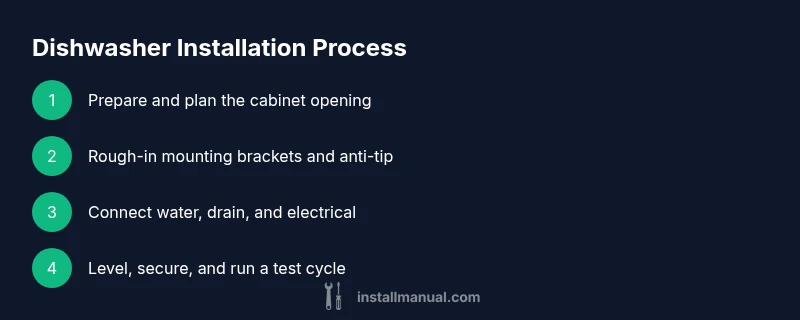

You will install a KitchenAid dishwasher by planning the site, preparing the cabinet opening, connecting water, drain, and power, leveling the unit, and running a test cycle to verify leaks and fit. Requirements include a dedicated 120V GFCI circuit, proper water supply, a secure drain, and careful leveling.
Planning your KitchenAid dishwasher installation
Before you begin the install, map out the location and confirm your KitchenAid dishwasher model is compatible with your kitchen space. Check the cabinet rough opening width, height, and the space behind the unit to accommodate hoses and wiring. According to Install Manual, thorough planning helps prevent rework, ensures proper drainage, and minimizes noise once the unit is in place.
Review your electrical, water, and drain arrangements in advance. Identify where the dedicated circuit will come from, and verify the availability of a GFCI-protected outlet if required by code. Gather all model-specific instructions and notes from the user manual so you know the exact connector types, mounting brackets, and accessory parts that come with your dishwasher. This upfront checklist sets the stage for a smooth, safe installation and a warranty-friendly result.
Site preparation and rough opening checks
A precise rough opening is essential for a snug fit and quiet operation. Recheck the cabinet width, height, and depth, and measure the knee space under the countertop to ensure clearance for hinges and door swing. If your kitchen has a toe-kick panel, verify there is room to install the panel and access the mounting brackets.
Confirm that the wall behind the dishwasher has a stable surface for anchoring. If studs are present, locate them and plan bracket placement accordingly. Prepare the electrical box or outlet area so the cord and strain relief can reach without bending wires. Finally, run a dry fit test by placing the unconnected dishwasher into the opening to confirm alignment with the cabinet sides and countertop.
Rough-in, mounting brackets, and anti-tip preparation
Attach the mounting brackets or anti-tip devices to the dishwasher frame as specified in the KitchenAid installation guide. These supports help prevent tipping when the door is opened and closed and are typically anchored to the underside of the countertop or to the cabinet frame. Ensure brackets are level and positioned to align with the cabinet sides for a clean, flush appearance.
If your model uses a toe-kick or kick panel, remove the panel during installation to access fasteners. Check that the dishwasher will sit plumb and level from front to back and side to side. Have helper assistance ready for the next phase, as positioning the unit correctly is easier with two sets of hands.
Water supply connections, drain routing, and electrical safety
Shut off the home water supply and the electrical circuit you’ll use for the dishwasher. Attach the water supply line with the appropriate compression fitting, ensuring no kinks and a secure seal. Route the drain hose to the sink or disposal with a proper air gap or high loop to prevent backflow.
For electrical, verify there is a grounded receptacle or a dedicated circuit per local code. If you’re wiring directly to a junction box, follow the appliance’s wiring diagram, using a strain relief and proper wire connectors. Never work on live wires; use a voltage tester to confirm de-energized circuits before touching any conductors.
Insertion, leveling, and securement
With an extra pair of hands, slide the unit into the cabinet opening carefully, ensuring the water inlet, drain, and power cords are not kinked. Use a level to adjust the feet so the dishwasher sits perfectly plumb and level front-to-back and side-to-side; small height adjustments can prevent leaks and sagging doors. Once the dishwasher is level, anchor it to the cabinet or countertop as required by the model and local codes.
Install the toe-kick panel and any trim pieces, then reconnect the supply lines and wiring as per the manual. Confirm all connections are tight and that there’s no pinching on hoses or cables. This step ensures long-term reliability and a clean, integrated look in your kitchen.
Final checks, test cycles, and adjustment
Before you call it done, run a short test cycle with the dishwasher empty to check for leaks around water fittings and drain connections. Observe the door seal and spray arms for proper operation and listen for unusual noises that might indicate misalignment. If leaks appear, tighten fittings gradually and recheck the seals; if necessary, reseat the unit and relevel.
Safety, warranty, and maintenance reminders
Keep a record of all installation steps, part numbers, and the dates of any adjustments for warranty purposes. Regularly inspect the hoses and fittings for wear and replace them if you notice any cracks or corrosion. Following the manufacturer’s maintenance schedule helps preserve performance and can prevent costly failures down the line.
Tools & Materials
- KitchenAid dishwasher installation kit(Includes mounting brackets, water connector, and hardware; verify compatibility with your model)
- Voltage tester or multimeter(Verify circuit is de-energized before touching wiring)
- Adjustable wrench(For water fittings and drain connections)
- Phillips and flathead screwdrivers(Magnetized tips help with small screws)
- Level and tape measure(Ensure unit sits plumb and is evenly supported)
- Utility knife(Open packaging and trim insulation carefully)
- Silicone sealant or plumber's putty(Optional sealing material around gaps)
- Bucket, towels, rags(Contain drips and protect cabinet finish)
- Drain hose extension (if needed)(Maintain proper length and slope to drain)
- Safety gear (goggles, gloves)(Personal protection during installation)
Steps
Estimated time: 60-120 minutes
- 1
Shut off power and water
Begin by turning off the circuit at the breaker panel and closing the local water valve to prevent leaks. Verify there is no electrical current in the area using a tester. This step is essential to avoid shock or flooding during the install.
Tip: Double-check the breaker and valve are fully off before touching any wires or pipes. - 2
Disconnect and remove old unit
Carefully disconnect the old dishwasher’s water supply and drain lines. If removing from a hard-wired setup, detach the power lead following the wiring diagram. Have a bucket ready to catch residual water and protect the cabinet floor.
Tip: Label hoses and wires to simplify reinstallation. - 3
Prepare cabinet opening and mounting points
Inspect the rough opening and clean the area. Mark stud locations for mounting brackets, and confirm there is solid backing for anchoring. This ensures a secure, level installation and reduces future movement.
Tip: Dry-fit the unit to confirm alignment before final connections. - 4
Install mounting brackets and anti-tip devices
Attach mounting brackets to the dishwasher and anchor them to the cabinet frame or studs as instructed by the manual. Check that anti-tip devices are securely fastened to prevent tipping when the door opens.
Tip: Use a level to ensure brackets are perfectly horizontal. - 5
Connect water supply
Screw the water supply line into the shutoff valve with a compression fitting, ensuring a snug seal. Run the line to the dishwasher inlet without kinks or sharp bends.
Tip: Keep the supply line accessible for future service. - 6
Route and secure the drain
Connect the drain hose to the sink drain or disposal with a proper air gap or high loop per code. Secure the hose to the cabinet to prevent it from moving during cycles.
Tip: Avoid squeezing the hose; ensure a clear bend-free path. - 7
Reconnect electrical supply
If using a plug, plug into a dedicated, grounded GFCI outlet. If wiring directly, follow the model diagram and use correct strain relief and wire caps. Do not use damaged cords or adapters.
Tip: If uncertain about wiring, consult a licensed electrician. - 8
Slide into place and level
Carefully slide the dishwasher into the cabinet opening. Use a level on the top edge and adjust feet to achieve a level front-to-back and side-to-side. Secure the unit as required by the model.
Tip: Have a helper hold the unit while you level and tighten. - 9
Attach toe-kick and trim pieces
Reinstall the toe-kick panel and any trim or trim kit supplied with your KitchenAid model. Check that the panel sits flush against the cabinet and doesn’t interfere with door operation.
Tip: Keep screws organized to avoid misplacing pieces. - 10
Test run and check for leaks
Power on the circuit and run a short cycle with the unit empty. Look for any leaks around fittings and seals. If leaks appear, tighten connections gradually and re-check.
Tip: Have towels ready and be prepared to shut off power quickly if needed.
Got Questions?
What is the first safety step when installing a KitchenAid dishwasher?
Power off at the breaker and shut off the water supply before touching any electrical or plumbing components. Use a voltage tester to confirm there’s no live current. Wear protective gear and keep the work area dry.
First, switch off the breaker and water supply, and verify no electricity is present. Then wear gloves and work carefully to avoid shocks.
Can I install a KitchenAid dishwasher by myself or do I need a professional?
Many homeowners can complete a standard installation with basic tools and careful adherence to the manual. If you’re uncomfortable with electrical work, gas or complex plumbing, or if your home has nonstandard wiring, hire a licensed professional.
You can usually install it yourself if you follow the manual, but get a pro for complex electrical or plumbing setups.
Do I need to remove the old dishwasher before installing a new one?
Yes. Disconnect the old unit's water and drain lines, then remove it from the cabinet opening. Cap the supply line and secure loose wiring to prevent splashes or shorts during the new install.
Yes, remove the old unit first, disconnect lines, and prepare the space for the new dishwasher.
Is a dedicated circuit required for KitchenAid dishwashers?
In most cases, a dedicated 120V circuit with GFCI protection is recommended. Check local codes and the model’s manual for exact requirements and clearances.
Typically yes, use a dedicated 120V circuit with GFCI, per local codes and the manual.
How long does installation typically take?
A standard installation usually takes about one to two hours, depending on cabinet configuration and access to plumbing and electrical. If you encounter unexpected wiring or space issues, it may take longer.
Most installs take about one to two hours, depending on the setup.
What are common leak sources after installation?
Common leaks come from loose water fittings, improper drain connections, or a gasket seal that isn’t seated correctly. Recheck all hose clamps and seals after the first test run.
Leaks usually come from loose fittings or improper seals; recheck connections after testing.
Watch Video
Main Points
- Plan space and clearance before starting.
- Secure all water, drain, and electrical connections properly.
- Level the unit to avoid leaks and inefficient operation.
- Test thoroughly and document the installation for warranty purposes.
