Dishwasher Install: A Step-by-Step Home Guide
Learn how to confidently install a dishwasher with safe plumbing, electrical connections, leveling, and testing. This homeowner-friendly guide covers prep, proper fittings, code considerations, and common pitfalls—so your dishwasher runs quietly and efficiently from day one.
This guide walks you through a complete dishwasher install, from prep to test run. You’ll verify space and power, connect water supply and drain, handle electrical wiring safely, level the unit, and run a thorough test. By following these steps, you’ll achieve a code-compliant, leak-free installation with minimal frustration.
Overview and Preparation
A dishwasher install is a practical upgrade for many homes, whether you’re replacing an old unit or installing for the first time. The process involves three core areas: plumbing (water supply and drainage), electrical (outlet, cord, and safety), and physical fit (space, leveling, and cabinetry). Before you begin, confirm you have a dedicated 15- or 20-amp circuit that supports a 120-volt appliance, a working shutoff valve for the water line, and an accessible drainage path. The Install Manual team notes that most installs succeed when you start with a precise measurement of the cabinet opening, verify clearance for hoses and doors, and review the dishwasher’s installation kit contents. A calm, organized workspace helps prevent surprises once you start connecting lines and wiring.
- Measure the opening: length, width, and height to ensure the new unit will fit without forcing the door or blocking cabinet doors.
- Check the wall and floor: ensure the subfloor is level and the cabinet face is plumb so the unit sits square.
- Gather the right tools: you’ll need basic hand tools, a level, a hose rack, and fittings compatible with your home’s supply lines. Having everything on hand reduces mid-install trips to the hardware store.
Brand guidance: According to Install Manual, precise preparation lowers rework risk and improves overall reliability of the dishwasher install.
Assessing Space and Compliance: Clearance, Plumb, and Power
Clearance around the appliance matters for both operation and service access. Leave at least 2 inches of space on each side for venting and for door clearance, and ensure a minimum of 1 inch above the unit to accommodate hoses. The unit should sit level front-to-back and side-to-side; a tilted dishwasher can leak, wear seals, and vibrate loudly.
Electrical compliance is critical. Most homes require a grounded 120V circuit with a dedicated outlet or hardwired connection, protected by a GFCI if installed in a kitchen with water sources nearby. Some older homes may require conduit or updated wiring; check local code requirements before proceeding. If you’re not comfortable with electrical work, hire a licensed electrician. The goal is a code-compliant, safe connection so you don’t risk shocks or fires.
Plumbing compliance includes proper hose routing, secure connections, and a functional trap. Verify you have a 5/8
Plumbing Considerations: Water Supply and Drainage
Water supply connections require a clean, secure hose with a compatible compression fitting. Most dishwashers use a 3/8
,
Tools & Materials
- Measuring tape(Measure cabinet opening and clearance.)
- Adjustable wrench(For hose fittings and water valve nuts.)
- Phillips and flathead screwdrivers(General fasteners and mounting screws.)
- Level(Ensure the appliance sits perfectly flat.)
- Pliers(Grip hoses and clamps securely.)
- Teflon tape (plumber's tape)(Seal threaded water connections.)
- Dishwasher installation kit (may include brackets, hoses, and adapters)(Check if the kit is included with your unit.)
- Bucket and towels(Contain minor leaks during connections.)

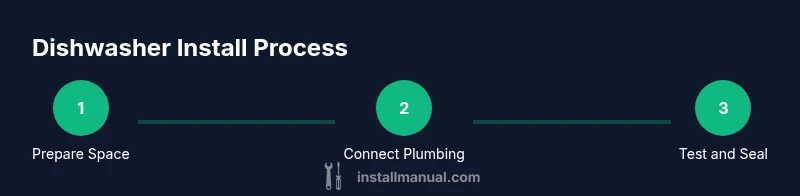

Steps
Estimated time: 2-4 hours
- 1
Shut off power and water
Turn off the kitchen circuit at the breaker panel and shut off the water supply valve to the dishwasher line. Disconnect any power to the old unit if you’re replacing, and confirm there’s no voltage at the outlet with a tester. This initial safety step prevents shocks and plumbing backflow.
Tip: Double-check that the dishwasher’s power cord is accessible and not trapped behind cabinetry. - 2
Remove the old dishwasher (if replacing)
Carefully slide the old unit out from the cabinet opening, disconnecting water inlet, drain hose, and power cord. Have a towel ready for any residual water. If you encounter stuck mounting brackets, use a screwdriver to release them from inside the cabinet.
Tip: Label hoses and cords to avoid mismatches when reconnecting the new unit. - 3
Prepare the cabinet opening
Clean the opening and inspect the cabinet’s underside for any signs of water damage. If you see exposed plywood or mold, address these issues before installing the new dishwasher. Place leveling shims under the front feet if the floor isn’t perfectly flat.
Tip: Use a level to verify the front edge sits flush with adjacent cabinetry for a clean install look. - 4
Connect water supply line
Attach the dishwasher’s water supply hose to the shut-off valve using a compression fitting. Apply Teflon tape to male threads if present, then tighten with a wrench without overtightening. Run water briefly to check for leaks before proceeding.
Tip: Attach a temporary hose lock during the test to avoid sudden water spills. - 5
Connect the drain line
Secure the dishwasher drain hose to the sink drain or disposal inlet, ensuring a high loop or air gap as required by local code. Use a hose clamp to prevent leaks and confirm the drain line isn’t kinked.
Tip: If your disposal has a knockout plug, knock it out only after confirming discharge compatibility with your unit. - 6
Electrical connection
Plug the dishwasher into a properly grounded outlet or connect it to a hardwired circuit per the manufacturer’s instructions. If wiring, use appropriate conduit and strain relief. Avoid shared outlets on the same circuit as other high-draw appliances.
Tip: If you’re unsure about the electrical approach, consult a licensed electrician to meet code requirements. - 7
Seat and level the dishwasher
Slide the unit into place and lower onto the mounting brackets. Use a level on the front rail and adjust the leveling feet until the door sits evenly and closes without gaps. Confirm the unit is plumb and square with the cabinet faces.
Tip: Slight back tilt can help with door alignment; recheck after tightening mounting screws. - 8
Run a test cycle
Connect the water and power, then run a short cycle with the unit empty to check for leaks and ensure proper drainage. Listen for unusual noises and inspect for dampness around hoses and connections. If leaks appear, tighten fittings and re-check.
Tip: Keep towels handy and be prepared to pause the test if you notice any significant leaks.
Got Questions?
Do I need a professional to install my dishwasher?
If you’re comfortable with basic plumbing and electrical work and have the correct tools, you can install a dishwasher yourself. However, for complicated plumbing, older homes, or if local codes require licensed installers, hiring a pro ensures compliance and safety.
You can DIY if you’re comfortable with plumbing and electrical basics, but for complex setups or code compliance, a professional is recommended.
What power supply does a dishwasher need?
Most dishwashers require a dedicated 120-volt circuit. Use a grounded outlet or direct wiring with appropriate conduit and strain relief as per manufacturer instructions and local codes.
Most dishwashers need a dedicated 120-volt circuit with proper grounding.
Can I install a dishwasher without a disposer line?
Yes, you can connect to a drain directly or use an air gap depending on your local codes. Ensure the drain line has a proper high loop to prevent backflow and leaks.
Yes, you can connect to a direct drain with an air gap if required by code.
What’s the typical total time for a DIY install?
A typical install ranges from 2 to 4 hours for a standard replacement with basic configurations. More complex cabinet work or wiring can take longer.
Expect about 2 to 4 hours for a straightforward install.
What should I do if there’s a leak after the test run?
Shut off power and water, then re-check all connections. Tighten fittings gradually, inspect gaskets, and verify the drain loop. If leaks persist, consult a professional.
Shut off power and water, check fittings and gaskets, and re-test. If leaks stay, get a pro.
Is a dishwasher installation kit always required?
Many installations use a standard kit that includes hoses and adapters; some units include these parts. Check your model’s manual to see what’s included and what you’ll need to buy separately.
Check the model manual to see what’s included; you may need to buy hoses or adapters.
Watch Video
Main Points
- Prepare and measure opening accurately before installation.
- Use proper fittings and verify all connections for leaks.
- Ensure a dedicated circuit and proper grounding for safety.
- Level the unit to prevent door misalignment and leaks.
- Test thoroughly and address any issues before regular use.
