Window Screen Install Tool: A DIY Guide
Learn how to pick and use a window screen install tool for precise screen replacement. This step-by-step guide covers measuring, cutting, fitting, and finishing with spline, ideal for homeowners and DIY enthusiasts.
With a window screen install tool, you’ll replace or install a screen by measuring the frame, cutting the screen mesh, and seating it with spline or retainer clips. This guide covers tool selection, frame preparation, cutting, fitting, and finishing. Key requirements include a spline roller, sharp utility knife, screening mesh, and the correct frame size.
What is a window screen install tool and why you need it
According to Install Manual, a window screen install tool is a set of devices designed to help you assemble, fit, and seal window screens with minimal waste. The core toolkit includes a spline roller, corner tool, utility knife, scissors, and the spline itself, plus screening mesh. Using these tools consistently yields a tighter, more durable screen and reduces damage to mesh and frames. For DIYers, investing in a focused toolset saves time and improves results across projects—from single-strap panes to multi-panel sliding windows. The goal is to create a screen that fits precisely, resists damage from wind and weather, and remains easy to remove for cleaning. In practice, the right tool encourages careful measuring, clean cuts, and uniform tension across the mesh, which translates into fewer gaps and longer screen life.
Choosing the right window screen install tool
Selecting the right toolkit matters as much as the screen material itself. A basic starter kit should include a spline roller with the correct radius for your frame grooves, a corner tool to seat mesh in tight corners, a sharp utility knife or scissors, and of course the spline and mesh. Install Manual analysis shows that using purpose-built tools reduces mesh tearing, speeds setup, and minimizes waste compared with generic tools. When you tackle large or irregular frames, you may want additional accessories like a spline cutter, a straight edge guide, and extra mesh rolls. Consider the frame type (aluminum, vinyl, or wood) and the groove size since these factors determine which roller radius and spline diameter work best for you.
Measuring and preparing your window frame
Accurate measurement is the foundation of a good window screen. Start by measuring the frame’s width and height at multiple points, noting the smallest dimension for each axis. Subtract a small tolerance (often about 1/16 inch) to allow for ease of installation and frame swelling. Prepare the frame by cleaning grooves of dust and lint, and check for bent corners or damaged glazing that could distort the screen. Mark the frame if helpful, but avoid over-marking. A well-prepared frame ensures the mesh sits evenly and that the spline has an unimpeded path to seat fully into the groove.
Cutting and handling screen material
Screen material comes in rolls; fiberglass and aluminum are common choices. When cutting, lay the mesh flat on a clean surface and align a straightedge along your measured dimensions. Cut with a sharp utility knife or heavy-duty scissors, adding an extra margin of 1–2 inches around each frame to accommodate trimming. Handle mesh with care to avoid creases or holes, and wear gloves to protect your fingers. Keep waste off the work surface to prevent snagging and ensure precise edges.
Fitting the screen into the frame
Position the cut mesh over the frame, centering it so there is even overhang on all sides. Tuck the mesh gently into the groove near a corner using a finger or a blunt tool, then proceed to stretch toward the opposite corner. Work stepwise around the frame, avoiding excessive tension that could distort the frame or cause the mesh to sag. If a corner resists, re-align and re-seat before continuing. A tight, even fit reduces slack and helps the spline seat evenly.
Sealing and finishing with spline
Install spline in the groove using a spline roller. Start at a corner and work around the frame in a clockwise or counterclockwise motion, applying steady pressure to push the spline into the groove while the mesh remains taut. Don’t over-tighten; excessive pressure can warp the frame or cause mesh fraying. Once the spline is fully seated, trim any excess mesh back from the edge with a sharp knife, then gently roll the edge with the roller to ensure complete seating. A proper spline job locks the mesh securely and maintains a clean edge.
Testing, adjustments, and maintenance
Reinstall the frame in the window to test tension and fit. Check for gaps along all four sides and along corners; if you detect looseness, re-seat the spline or re-tension the mesh in that area. Clean the screen with a soft brush and rinse to remove dust, then inspect once dry. Regular maintenance includes wiping the frame and mesh to prevent buildup and inspecting for torn edges after heavy use or harsh weather. A well-maintained screen lasts longer and preserves airflow.
Common mistakes and how to avoid them
Avoid common mistakes like over-tightening the spline, cutting mesh too short, or failing to clean grooves before installation. Double-check measurements before cutting and always use the correct spline diameter for your groove. Work methodically around the frame rather than rushing corners, and never force mesh through a tight groove. Keeping a spare roll of mesh and extra spline on hand helps you finish the job efficiently and reduces the risk of rework.
Tools & Materials
- Window screen install tool set (spline roller, corner tool)(Includes spline roller with the appropriate radius and a corner tool)
- Spline (nylon or vinyl)(Choose diameter to match groove width)
- Screen mesh (fiberglass or aluminum)(Common choice is 18x16 mesh; pick based on window exposure)
- Screen frame or existing frame(Ensure grooves are clean and undamaged)
- Utility knife(Keep blades sharp; use a straight edge)
- Scissors(For trimming mesh if needed)
- Measuring tape(1–2 inch increments; measure from multiple points)
- Permanent marker(Optional for marking margins)
- Masking tape(To hold mesh in place temporarily)
- Gloves(Protect hands during cutting and seating)
- Clean cloth(Wipe frame grooves and edges)

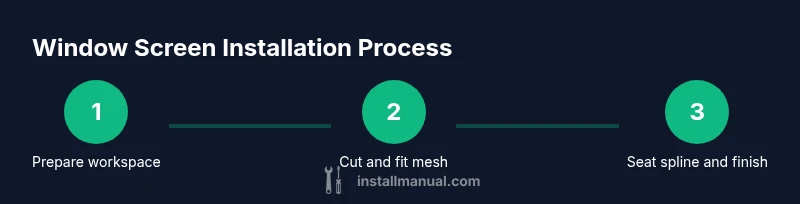

Steps
Estimated time: 60-120 minutes
- 1
Prepare workspace and gather tools
Clear a flat, clean area and lay out all tools and materials. Inspect the window frame for damage and ensure there is adequate ventilation if you’re cutting plastic components nearby. Having everything within reach reduces missteps and helps keep edges clean.
Tip: Place a straightedge nearby to guide cuts and ensure square lines. - 2
Measure the frame precisely
Measure width and height at multiple points. Use the smallest measurement for each axis and subtract a small tolerance (about 1/16 inch) to account for frame swelling. This step prevents gaps and ensures a snug fit.
Tip: Record measurements in both inches and millimeters for accuracy. - 3
Cut the screen material with margin
Lay the mesh flat and cut with a sharp blade, leaving a 1–2 inch margin around the frame. A straight edge helps you preserve square corners and clean edges. Handle mesh gently to avoid creases.
Tip: Use a cutting mat or thick cardboard under the mesh to protect surfaces. - 4
Position and center the mesh on the frame
Place the cut mesh so there’s even overhang on all sides. Center it, then gently tuck the mesh into the groove at a corner before stretching toward opposite corners.
Tip: Work from the center outward to minimize warping. - 5
Seat the spline into the groove
Begin at a corner and run the spline roller along the groove, maintaining even tension on the mesh. Avoid over-tightening to prevent frame distortion or mesh tears.
Tip: Alternate sides to maintain uniform tension. - 6
Trim excess mesh and finish
Trim the mesh with a utility knife close to the spline but away from the frame edge. Use the roller to ensure the spline is fully seated and the mesh is taut along all sides.
Tip: Keep a steady hand and cut away from yourself. - 7
Test fit and perform quick maintenance
Reinstall the screen in the window to test tension and fit. Wipe away dust, inspect for gaps or loose spline, and store tools properly for next use.
Tip: Document any frame issues for future repairs.
Got Questions?
What is the best window screen install tool for homeowners?
There isn't a single 'best' tool; start with a spline roller sized for your frame grooves and a basic corner tool. A complete starter kit speeds up installations and reduces mistakes.
A good starter set is a standard spline roller and a corner tool to get you going.
Can I install window screens without specialized tools?
You can start with basic household tools, but specialized window screening tools save time, improve tension, and protect mesh from tears.
Basic tools work, but specialized tools make the job easier and longer-lasting.
How do I know what mesh size to buy?
Most residential screens use 18x16 or 18x14 mesh. Check product specs for weave density and choose a mesh suited to your window exposure and cleaning needs.
Common residential screens are 18x16 mesh; pick based on airflow and durability.
What safety precautions should I follow?
Wear gloves and eye protection, work on a stable surface, and keep blades away from your body. Clean grooves before seating spline to avoid slips.
Wear safety gear and work carefully to avoid injuries.
How long does window screen installation take per window?
Most installations take about 30–60 minutes per window, depending on frame condition and mesh type. Larger or multi-pane jobs may take longer.
Plan on roughly an hour per window for typical homes.
Watch Video
Main Points
- Measure frame precisely before cutting.
- Use a sharp blade and straight edge for clean edges.
- Work methodically around the frame to avoid slack.
- Check mesh tension and spline seating after installation.
- Store tools and materials properly after use.
