What Size Screws to Install Exterior Door

What size screws to install exterior door

Choosing the right fasteners is the foundation of a durable, weather‑tight exterior door installation. The question what size screws to install exterior door is answered by considering hinge mounting, jamb anchors, and strike plates. In most residential projects, hinge screws are driven into the door jamb and studs with length that reaches beyond the cured frame material. This ensures the hinge remains rigid under daily use and wind loads. For standard doors with average thickness, 3-inch exterior‑grade wood screws are the default choice for top and bottom hinges. If the door is unusually thick or the frame is heavy duty, upgrading to 3.5 inches can improve load transfer and reduce movement over time. When mounting strike plates and lock hardware, 3 to 3.5 inches is commonly recommended, especially when there is a full stud behind the jamb. In reinforced frames or deeper openings, you may need longer fasteners up to 4 inches. Always verify the door type, frame material, and stud depth before selecting screw length, and maintain a consistent depth so the screw head sits flush with the hinge or plate.

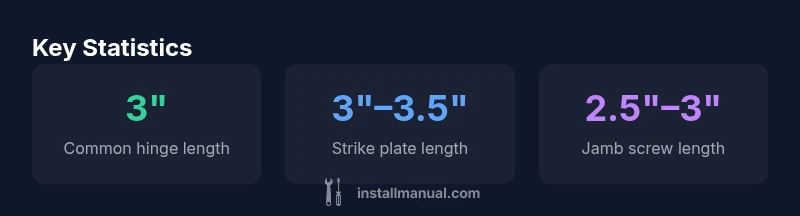

Takeaway: Start with 3" hinge screws and 3"–3.5" strike/lock screws, adjust for door thickness and framing, and consider 4" if you are anchoring into reinforced or deeper frames.

Hinge screws: sizes and placement

Hinge screws carry the bulk of door weight and wind loads. The standard practice is to use three screws per hinge: two on the jamb leaf and one into the stud tail, though some installations may require four screws (two on each leaf) for extra rigidity. Use exterior‑grade wood screws with a corrosion‑resistant coating to withstand weather. Predrilling is recommended to prevent wood splitting and to align screws precisely with hinge placement. If you are replacing an old hinge, reuse or match screw location to avoid misalignment of the door, which can cause binding or improper latching. When choosing screw size, always consider the door weight, the frame material, and whether you are attaching to a solid stud or a hollow core frame. A common starting point is 3-inch screws; length can be extended to 3.5 inches when the framing demands deeper engagement.

Pro tip: For exterior doors on solid 2x4 or 2x6 framing, lean toward 3-inch self‑drilling or self‑tapping options if you are working with metal plates or reinforced jambs.

Frame mounting: jamb screws by stud depth

The depth of the wall studs behind the jamb dictates screw length for frame mounting. In 2x4 walls, 2.5 to 3 inches often suffices, while 2x6 framing supports 3 to 3.5 inches. The goal is to achieve good thread engagement without poking through the back side of the stud or into the interior cavity. For metal frames, use self‑tapping screws designed for metal as specified by the frame manufacturer. In any case, pilot holes reduce splitting and help maintain hinge alignment during installation. If you anticipate heavy door operation or high wind exposure, consider longer screws or through‑bolts that pass through the jamb and into the stud, providing superior resistance to uplift.

Best practice: Match screw length to stud depth and door weight, preferring 3" to 3.5" screws for typical wooden frames and 3" for lighter installations.

Strike plate, latch, and lockset screws

Strike plates and locksets require screws that anchor into the jamb and, when possible, into studs behind the jamb. A 3" to 3.5" screw length is common for strike plates in most residential doors, with longer screws used when the jamb has solid backing or a reinforced frame. Use corrosion‑resistant screws, such as stainless or coated options, especially in high‑humidity or coastal locations. For metal frames and some high‑security hardware, you might need machine screws with appropriate anchors. Always check the hardware manufacturer’s instructions for the correct screw size and thread type, as mismatched screws can impair latch alignment and weather sealing.

Practical tip: If the strike plate sits in a hollow jamb, consider adding a longer screw into the adjacent stud for added reinforcement.

Pilot holes, weather considerations, and corrosion resistance

Pilot holes matter when installing exterior doors because they guide fasteners and reduce material splitting. Drill pilot holes slightly smaller than the screw’s core diameter when working with softwood frames, and use pilot holes that accommodate the screw thread without binding. In damp or coastal environments, select corrosion‑resistant screws (stainless or ceramic coated) to resist rust. Weatherproofing compound around screw heads helps seal gaps that could admit water. For doors with metal frames, ensure that screw type and length match the frame design and that any through‑bolting aligns with the frame’s internal structure. Finally, always recheck alignment after initial tightening and adjust if the door binds or misaligns.

Weather check: In exposed locations, opt for stainless or coated screws and consider longer screws to enhance pull‑out resistance.

Step‑by‑step installation checklist

• Confirm door type, frame material, and stud depth. Plan screw lengths accordingly. Use 3" hinge screws and 3"–3.5" strike screws as starting points.
• Pre‑drill pilot holes to prevent splitting and ensure proper alignment.
• Attach hinges first, verifying level and plumb before tightening screws fully.
• Install strike plate and latch hardware, using longer screws into studs where possible.
• Check weatherproofing around the door frame; apply sealant or weatherstripping as needed.
• Perform a test swing, observe gaps, and adjust hinge or strike alignment if the door binds or doesn’t latch cleanly.
• If the frame feels loose or you see movement, re‑anchor with longer screws or through‑bolts and confirm stud backing behind the jamb.
