Install Overhead Door: A Step-by-Step Guide
Comprehensive, step-by-step guidance to install an overhead door safely, covering planning, tools, track alignment, spring safety, weatherproofing, and opener wiring.
This guide walks you through installing an overhead door from planning to final testing. You’ll measure the opening, choose a compatible sectional door and opener, assemble tracks and springs safely, and wire the opener with proper safety sensors. Gather essential tools and a helper, follow manufacturer instructions, and test operation before use.
Preparation and planning for overhead door installation
According to Install Manual, successful overhead door installation begins with thorough planning. Start by confirming you have the right door size for your rough opening, the proper track and spring system for your chosen door type, and a compatible opener. Take accurate measurements: width of the opening at multiple points, height, and the headroom above the door. Document the results and compare with the door kit specifications. Also plan for electrical supply, a stable work surface, and a helper. Weather conditions should favor safe outdoor work, and you should consult local building codes for any restrictions. Establish a safe workflow and a plan for coordinating two people during heavy lifting and alignment tasks.
Brand context note: The Install Manual team emphasizes safety and precise measurement as the foundation of a successful installation. This early planning reduces rework and ensures proper integration with the home’s electrical and structural systems.
Tools, materials, and safety considerations
Before you begin, assemble essential tools and safety gear. Key items include a tape measure, level, carpenter’s square, drill/driver with the correct bits, socket set, pliers, C-clamps, a sturdy ladder, and a clean work surface. You will also need the overhead door kit (sections, tracks, rollers, hinges, springs, weather seal) and a compatible opener with power supply. Have weatherproof silicone sealant and shims on hand. Personal protective equipment is a must: safety glasses, gloves, and protective footwear. If you lack experience handling high-tension hardware, plan for professional help. The plan should always include a second person to assist with lifting and alignment to prevent injuries.
Removing old door and inspecting the opening
If there is an existing door, carefully remove the panels, tracks, and hardware. Keep fasteners organized and labeled to ease reassembly. Clean the rough opening and inspect for damage, rot, or moisture intrusion in the framing. Check for plumb and level across the opening with a long spirit level; address any deviations with shims or structural repairs before proceeding. Ensure the sill or threshold is intact and that there is a solid backing for mounting brackets. The goal is a clean, square opening that can reliably support the new door and tracks.
Installing the track system and springs
Begin by mounting the vertical tracks, ensuring they are perfectly plumb. Use level and shims to maintain alignment, then attach the horizontal tracks and curved sections, again verifying plumb and square. The spring system (torsion or extension) must be installed following the manufacturer’s instructions; note that springs are under high tension and pose serious risk if mishandled. If you are unsure or uncomfortable, hire a qualified technician for the spring installation. Use temporary supports to hold assemblies as you tighten fasteners and verify alignment across the entire door height.
Mounting panels, hardware, and wiring the opener
Attach door panels with appropriate hinges and rollers, guiding them along the tracks as you proceed. Install weather seals along the bottom edge and sides to improve energy efficiency. Mount the opener on the ceiling, connect the door arm to the trolley, and align the linkage with the track system. Install safety sensors near the floor on both sides of the opening, following the code requirements. Ensure power is available and the electrical connections are properly grounded and protected from moisture. As you work, double-check that each fastener is tight and that the door moves smoothly without binding.
Final testing and adjustments
With the door disconnected from power, perform a dry run to confirm track alignment and smooth travel. Reconnect power and test the operator at low speed, observing travel limits and travel force. Adjust the limits so the door closes fully and opens completely without binding. Test the auto-reverse function by lightly contacting the door with a flat object; it should reverse immediately. Check weatherstripping, ensure no gaps along the sides, and verify all safety features are functioning. Finally, clean up tools, lubricate moving parts per manufacturer guidance, and secure any loose wiring.
Safety maintenance and code compliance considerations
After installation, schedule a periodic safety review of springs, cables, and hardware—especially if the door is used frequently or in a harsh climate. Lubricate moving components with manufacturer-approved products and replace weather seals as needed. Keep up-to-date with local codes for garage door opener requirements, including sensor placement and emergency egress. Maintain a record of the installation date and any professional service events for warranty purposes and future maintenance planning.
Tools & Materials
- Tape measure(For accurate opening measurements (width and height).)
- Level(Ensure tracks and mounting plates are plumb.)
- Carpenter’s square(Verify right angles in the opening.)
- Cordless drill/driver(Use appropriate bits and torque settings.)
- Socket wrench set(Tighten track brackets and drums.)
- Pliers and adjustable wrench(Grip and adjust small hardware and cables.)
- C-clamps(Hold components in place during assembly.)
- Ladder or scaffold(Work at height safely.)
- Safety glasses, gloves, hard hat(Personal protection while handling hardware.)
- Overhead door kit (sections, tracks, rollers, hinges, springs, weather seal)(Use manufacturer-approved kit compatible with your door.)
- Opener with proper electrical supply(If wiring is needed, plan a safe, compliant connection.)
- Silicone sealant(Weatherproofing along the edges.)
- Shims(Fine-tune track alignment and plumb.)

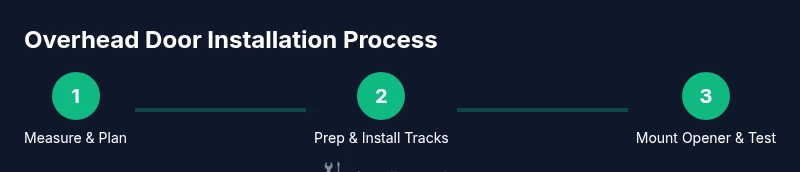

Steps
Estimated time: varies; typically several hours depending on model, site conditions, and helper availability
- 1
Measure the opening
Use a tape measure at multiple points to determine width and height. Record the smallest width and height, as the door kit will fit within these dimensions. Compare with the door product specifications to ensure compatibility.
Tip: Double-check headroom for installed tracks and the door height; miscalculations cause binding. - 2
Prepare the workspace
Clear the area, protect floors, and lay out all parts in logical order. Set up ladders or scaffolding and ensure a second person is available to assist with lifting components.
Tip: Assign a spotter to help manage heavy panels and prevent pinch points. - 3
Remove existing door and hardware
Disconnect any power to existing openers, remove panels, tracks, and springs if present, and store fasteners for reassembly. Clean the opening and check for damage.
Tip: Keep hardware in labeled bins to avoid confusion during reassembly. - 4
Check rough opening for square and strength
Verify that the opening is plumb and square using a level and carpenter’s square. Address any rot or damage in framing before proceeding.
Tip: Use shims to correct minor deviations; do not force components into misalignment. - 5
Install vertical tracks
Mount vertical tracks first, ensuring they are perfectly plumb. Use clamps and supports while drilling and fastening.
Tip: Check alignment with a straight edge to prevent binding later. - 6
Install horizontal tracks and curves
Attach horizontal sections and curved tracks; confirm level along the entire length. Secure with fasteners and verify smooth movement.
Tip: Keep track joints tight and aligned to avoid noisy operation. - 7
Install springs and balance hardware
Install torsion or extension springs following manufacturer instructions. Ensure anchor points are solid and components are clear of pinch points.
Tip: Springs are dangerous; if uncertain, postpone this step to a professional. - 8
Hang door panels and install rollers
With assistance, position door panels onto tracks, attach rollers and hinges, and verify smooth glide along the tracks.
Tip: Lubricate moving parts with manufacturer-approved lubricant during assembly. - 9
Mount the opener and connect linkage
Install the ceiling-mounted opener, connect the arm to the door trolley, and ensure the linkage is correctly aligned with the door track.
Tip: Align the opener with the door in the full-open position to avoid binding. - 10
Wire safety sensors and power
Install safety sensors on both sides of the door opening and run wiring to the opener. Connect the opener to a grounded power source per code.
Tip: Keep sensor wiring protected from moisture and potential damage. - 11
Program limits and test operation
Set the travel limits and force according to the door weight and spring system. Test the opener thoroughly, including auto-reverse functionality.
Tip: Test with multiple objects at different heights to verify safety. - 12
Final inspection and cleanup
Tighten all fasteners, check weather seals, and ensure there are no gaps or misalignments. Clean up work area and store tools properly.
Tip: Document installation details for warranty and future maintenance.
Got Questions?
Do I need to hire a professional to install an overhead door?
Spring installation and high-tension components can be dangerous. If you lack experience, hire a pro for those steps and for any wiring or motor installation.
Spring installation can be dangerous. Consider professional help for springs, wiring, and heavy lifting if you’re unsure.
What safety precautions should I follow during installation?
Wear eye protection and gloves, disconnect power when working near the opener, and never adjust springs without proper training. Keep bystanders clear during heavy lifting.
Wear protection, disconnect power, and keep others away when handling springs and moving parts.
How long does overhead door installation typically take?
Time varies with door type, opening condition, and helper availability. Plan for several hours and allow extra time for difficult openings.
Plan for several hours, as installation depends on opening condition and whether you have help.
Can I reuse existing tracks and hardware?
Only if they are in excellent condition, properly aligned, and compatible with the new door. Misaligned or worn tracks can cause binding and wear.
Only reuse tracks if they’re in perfect condition and compatible; otherwise replace.
What maintenance is needed after installation?
Lubricate moving parts per the manufacturer’s guidelines, inspect weather seals, and test safety features annually or after heavy use.
Lubricate parts and test safety features annually.
Do I need a special opener for an overhead door?
Most standard garage door openers are compatible with overhead doors; ensure the opener is rated for the door weight and height.
Choose an opener rated for your door’s weight and height.
What should I do if the door binds or stops midway?
Stop using the door, power down the system, and inspect alignment, track gaps, and spring tension. If unresolved, contact a pro.
If it binds, stop and check alignment; contact a pro if needed.
Watch Video
Main Points
- Measure opening precisely before ordering parts.
- Follow safety rules when handling springs and motors.
- Align tracks carefully for smooth door operation.
- Test safety features and limit settings after installation.
- Document installation for future maintenance and warranties.
