Install Door Sweep: A Step-by-Step DIY Guide
Learn how to install a door sweep to seal drafts, reduce noise, and improve energy efficiency. This step-by-step guide covers measuring, choosing the right sweep, preparation, installation, maintenance, and tips for a professional finish.
This guide teaches you how to install a door sweep to seal gaps under interior and exterior doors, improving comfort and energy efficiency. You’ll measure the door, pick the right sweep, prepare the frame, and secure the sweep with screws or adhesive. It’s a doable project for most homeowners and renters with common hand tools.
What a Door Sweep Does and Why It Matters
A door sweep sits along the bottom edge of a door to seal the gap between the door and the threshold. By blocking drafts, dust, insects, and light, a properly installed door sweep can noticeably improve comfort and energy efficiency in any living space. According to Install Manual, a well-fitted sweep is one of the simplest energy-saving upgrades homeowners can implement. It also helps with sound dampening and reduces wear on door hardware from wind gusts or frequent opening and closing. When you start this project, you’ll gain a clearer understanding of the different sweep styles and how they interact with door types. This guide is designed for homeowners, renters, and DIY enthusiasts who want a neat, long-lasting result without costly renovation. In short, a door sweep is a small component with a big impact on daily life, especially in rooms with heavy drafts or noisy exteriors.
Types of Door Sweeps: Which One Is Best for Your Door?
Door sweeps come in several profiles and mounting styles. The most common are rigid metal or plastic strips that mount to the door bottom, flexible rubber or vinyl blades that compress to seal, and telescoping or adjustable sweeps for doors with uneven gaps. Some sweeps install from the inside edge, while others bolt to the exterior face of the door, and a few models integrate a seal that wraps around the door edge itself. When choosing, consider the door material (wood, metal, hollow-core), the gap height, whether you need a full-length sweep or a partial strip, and whether you want a sweep that covers the gap at both the bottom and sides. For exterior doors, a weatherstripping sweep with a weather seal tends to perform best in cold or wet climates. The Install Manual team recommends selecting a sweep that matches the door’s width and thickness while leaving enough room for smooth operation without rubbing the floor.
Measuring Your Door for the Right Sweep Size
Accurate measurement is crucial for a good seal. Start by measuring the door width at the bottom edge, just above the threshold, and note any bevels or curvature. If your door is slightly wider than the sweep, you can trim the sweep’s bottom blade or use an adjustable model. Don’t forget to check the gap height when the door is closed—typical gaps range from a fraction of an inch to a few tenths of an inch in many homes. For tall or unusually shaped doors, you may need a sweep with extra length or an adjustable clip system. When in doubt, measure twice and cut once, or choose an adjustable model that accommodates a range of widths. This careful sizing helps ensure a tight seal without hindering door movement.
Preparation: Cleaning, Aligning, and Planning
Before you install, clean the door edge and bottom with a mild degreaser to remove paint chips, dust, or grease. A clean surface helps the adhesive or screws grip securely. If you’re using a screw-in sweep, have a sharp punch or drill ready to create pilot holes. For adhesive-mounted sweeps, ensure the door edge is dry and free of loose debris so the tape or glue can form a strong bond. Plan the alignment by closing the door gently and checking the seal along the full length. Mark where you’ll position any mounting brackets or screws, and verify you won’t interfere with the door stop or strike plate.

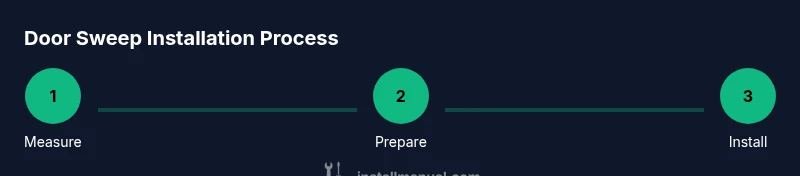

Step-by-Step Overview: How the Installation Unfolds
There are several valid installation paths depending on your sweep type. In general, you’ll (1) align the sweep with the door edge, (2) mark mounting points, (3) attach the sweep with screws or adhesive, (4) trim excess material if needed, and (5) test the door to ensure it opens and closes smoothly. You may also need to adjust the seal tension or replace the bottom blade after a short testing period. By following the steps carefully, you’ll achieve a tight seal that doesn’t bind the door.
Common Pitfalls and How to Avoid Them
Rushing the alignment is a frequent mistake. If the sweep is installed too high, it won’t seal properly and can rub the floor. If it’s too low, drafts will still enter. Ensure screws are snug but not over-tightened, which can warp the door edge or strip the mounting holes. For adhesive sweeps, verify that the door edge is completely dry and free of oils; otherwise, the tape may peel off in a few days. Hollow-core doors can also pose challenges because they may flex under pressure. If you observe binding, stop and recheck the alignment. With attention to detail, you can prevent common issues and extend the life of your door sweep.
Maintenance, Replacement, and Upkeep
A door sweep doesn’t last forever. Over time, the seal material can wear, crack, or accumulate grime. Periodically inspect the seal for cracks, loose mounting screws, or uneven gaps. Clean the surface with mild soap and water—avoid harsh chemicals that could degrade the seal. If you notice persistent drafts after replacement, consider a thicker or heavier-duty sweep, or pair the sweep with door sweeps on the frame rail. Regular maintenance helps preserve energy savings and keep your home comfortable year-round.
DIY vs Professional Help: When to Call a Pro
For most standard interior doors, a DIY installation is straightforward and yields solid results. In cases of unusual door configurations, warped frames, or doors with metal reinforcements, a professional installer can ensure precise alignment and long-lasting seals. If you’re unsure about your door’s material or the correct sweep type, consult the product instructions or a local hardware expert. In some jurisdictions, a pro installation may be required for certain exterior doors to meet building codes. The decision to hire a pro should weigh your comfort with tools, the door type, and the expected climate performance of the sweep.
Costing, Time, and Readiness: Quick Takeaways
The cost of door sweeps varies by material and features, but a standard kit typically falls within a moderate price range. When planning the project, consider both the sweep’s upfront cost and your time. Most DIY installations can be completed in a few focused sessions, depending on door complexity and your familiarity with tools. Budget a little extra for error correction or trimming, especially if you’re working with adjustable models. The key is to choose a sweep that matches your door’s dimensions and climate needs, then follow the installation steps carefully to achieve a secure, durable seal.
Tools & Materials
- Door sweep kit (width-matched to door)(Choose a sweep sized to cover the bottom edge plus any bevels)
- Screwdriver set (Phillips #2)(For screw-in sweeps; include a small bit for pilot holes)
- Measuring tape (at least 6 ft)(Use for width and gap measurements)
- Pencil or marker(Mark mounting holes and trim lines)
- Utility knife(Trim blade or seal as needed)
- Rubbing alcohol or degreaser(Clean door edge and bottom surface)
- Clean cloth or rag(Wipe surfaces dry after cleaning)
- Step ladder (optional)(Use if door bottom is hard to reach)
- Masking tape (optional)(Hold the sweep temporarily during alignment)
Steps
Estimated time: approximately thirty to forty-five minutes
- 1
Align the sweep with the door edge
Hold the sweep against the door bottom, ensuring the seal strip sits flat on the threshold and covers the gap evenly. If the sweep is adjustable, set it to a neutral position so it can be fine-tuned after first mounting. This alignment prevents binding when the door moves and ensures a solid seal.
Tip: Use masking tape to hold the sweep in place while you check alignment. - 2
Mark mounting positions
With the sweep in place, use a pencil to mark where screws or adhesive points will go. Ensure marks are level and parallel to the door edge. For wooden doors, pilot holes improve screw grip and reduce the risk of splitting the edge.
Tip: Double-check that marks align with the sweep’s mounting holes before proceeding. - 3
Prepare the door surface
Wipe the door edge with rubbing alcohol to remove dust, oils, and residue. Allow it to dry completely before attaching the sweep. A clean surface helps adhesive bonds and screw anchors hold longer.
Tip: If the door edge is painted or coated, avoid scraping the surface; use a light wipe instead. - 4
Attach the sweep (screws or adhesive)
For screw-in sweeps, insert pilot holes at your marks and drive screws snugly without overtightening. For adhesive models, peel off the backing and press the sweep firmly along the marks, maintaining an even seal; hold for the recommended cure time.
Tip: If screws fail to seat evenly, re-drill pilot holes slightly larger. - 5
Trim excess material if needed
If your sweep extends beyond the door edge, trim with a utility knife to create a clean, straight line. Ensure the cut remains perpendicular to the edge to avoid skewing the seal.
Tip: Make small, incremental cuts and test fit after each trim. - 6
Test the door operation
Close and open the door several times to check for binding or rubbing. If the seal touches the floor, raise the sweep slightly by loosening screws and rechecking alignment. A good seal should be near contact with the threshold but not impede movement.
Tip: Test during a normal door cycle in both directions to ensure even sealing. - 7
Fine-tune for a perfect seal
If needed, adjust the sweep height and tension so the seal makes light contact with the floor when closed but clears the threshold when opened. For adjustable models, rotate or slide the clip to achieve the best fit.
Tip: Keep a consistent gap along the entire length to prevent drafts. - 8
Final checks and cleanup
Wipe away any debris, re-check alignment, and ensure hardware is secure. Record the model and install date for future maintenance. A well-sealed door contributes to ongoing comfort and energy savings.
Tip: Take a quick photo for future reference if you replace the sweep later.
Got Questions?
What is the benefit of installing a door sweep?
A door sweep reduces drafts, noise, and dust infiltration by sealing the gap at the door bottom. It can also improve energy efficiency and comfort in rooms with exterior exposure. Proper installation ensures a long-lasting seal and smooth door operation.
A door sweep helps keep drafts out and makes rooms quieter and more comfortable. Proper installation matters for a tight seal and smooth door movement.
Can I install a door sweep on any door?
Most interior and exterior doors can accommodate a sweep, but very old or warped doors may require professional assessment. Hollow-core doors can be trickier and might need a thinner or adjustable sweep.
Most doors work, but very warped doors or special materials may need expert help.
What maintenance is required after installation?
Inspect the seal periodically for cracks or wear and clean the edge to prevent buildup. Replace the sweep when the seal no longer makes good contact with the floor.
Check the seal yearly and clean the edge; replace when the seal wears out.
Should I use screws or adhesive to mount the sweep?
Screws provide the strongest hold on solid doors, while adhesive options work well for temporary or rental-friendly setups. Follow the manufacturer’s installation notes for best results.
Use screws for durability, or adhesive if you’re renting—just follow the product instructions.
How long does installation typically take?
Most installations take about 30 to 45 minutes for a standard door, depending on door type and tool familiarity. Plan extra time for measuring and trimming.
Most installs take around half an hour to an hour, depending on the door and your setup.
If I have a draft after installation, what should I do?
Double-check alignment and seal compression along the full length. If gaps persist, consider a thicker seal or an adjustable model to improve coverage.
Check the seal all around and adjust or replace if drafts remain.
Watch Video
Main Points
- Identify the right sweep type for your door
- Measure accurately to ensure a tight seal
- Prepare the surface for maximum adhesion or screw grip
- Follow the steps carefully to avoid binding
- Inspect and maintain the seal over time
