How to Install a Sliding Glass Door
Learn how to install a sliding glass door with clear, homeowner-friendly steps. This guide covers planning, measurement, framing, weatherproofing, and finishing touches to make your home brighter and more accessible.
You will install a sliding glass door in a prepared opening by verifying rough opening sizes, selecting the correct door type, and following safety and weatherproofing steps. Before you begin, ensure the space is square, remove any existing units, and read manufacturer instructions. The Install Manual team recommends having a helper and a level to keep the project on track.
Why a Sliding Glass Door Improves Light and Access
A sliding glass door is a powerful way to brighten a space, improve indoor-outdoor flow, and expand usable living area. When installed correctly, it provides a wide, unobstructed view, enhances natural ventilation, and can boost curb appeal. According to Install Manual, choosing the right model—single or dual panel, tempered glass, and energy-rated glazing—will affect comfort and efficiency. This section explains why homeowners should consider this upgrade and what it can mean for daily living, from easier access to a light-filled living room to better exterior integration for entertaining.
Planning and Measurement Fundamentals
Success starts with careful planning. Measure the existing rough opening precisely, account for track depth, door thickness, and the sill height. Check that the framing is square in both directions and confirm the header is adequate for the door size. If you’re replacing an old unit, verify that removing trim won't compromise surrounding structure. Decide on frame material (vinyl, aluminum, or fiberglass) and glass options (low-e coatings, tint, or double-pane for insulation). These decisions influence cost, installation complexity, and long-term performance.
Preparing the Opening and Removing the Old Door
Safety first: wear eye protection and gloves. Remove the interior trim, depress the old door’s panels if needed, and detach any hardware. Clean the opening of debris and inspect studs for damage or rot. If studs are uneven or gaps exist between the framing and the new door, plan for shims and a compatible sub-frame. This step creates a clean, stable base for the new door and reduces the chance of binding or misalignment later.
Installing the New Frame and Leveling
Set the new door frame into the opening and loosely secure it with screws. Use a level to verify vertical plumb and a carpenter’s square to confirm the opening is square. Shim as needed at corners and along the sides to eliminate gaps. Re-check level and plumb after any adjustments. Proper framing ensures smooth operation of the sliding panels and prevents air leaks.
Hanging, Aligning, and Adjusting the Sliding Panels
Attach the rollers to the bottom of the door panels and slide them onto the track. Verify that the door moves smoothly with minimal resistance and that gaps are even along the vertical edges. Adjust the rollers or track hardware per the manufacturer’s instructions. Misaligned panels can cause binding, improper sealing, and water intrusion.
Sealing, Insulation, and Weatherproofing
Seal the exterior with flashing, then apply high-quality caulk around the frame to prevent water intrusion. Install exterior weatherstripping and use low-expansion spray foam or backer rod in larger gaps to insulate without warping the frame. Interior caulk or trim can help conceal gaps and improve the finished appearance. Proper weatherproofing is essential for energy efficiency and long-term durability.
Finishing Touches and Function Testing
Reinstall interior trim if removed, install any bottom sweeps or threshold covers, and re-check operation. Open and close the door slowly to listen for rubbing or binding. Ensure the lock operates smoothly and the door seals fully when closed. Test from both sides to verify consistent operation and weather performance, and adjust as needed.
Common Pitfalls and Troubleshooting
Common issues include frame not plumb, uneven gaps, or panels dragging on the track. Avoid over-tightening screws, which can bow the frame, and never force a misaligned door. If you encounter water leakage, inspect flashing and shims, then reseal as needed. When in doubt, consult the manufacturer’s installation guide or a professional.
Maintenance and Long-Term Care
Regularly lubricate the rollers with a silicone-based lubricant and wipe down tracks to prevent dirt buildup. Clean glass with a non-abrasive cleaner, inspect seals annually, and replace worn weatherstripping as needed. A routine check helps prevent drafty gaps and extends the life of your sliding glass door.
Tools & Materials
- Measuring tape(Minimum 25 ft; accurate to 1/8 inch)
- Level(2-foot or longer for accuracy)
- Pencil and square(Mark straight lines and corners)
- Hammer and pry bar(For removing trim and adjusting framing)
- Screwdriver set(Philips and flathead as needed)
- Power drill with bits(For frame screws and fasteners)
- Leveling shims(Plastic or wood shims, varying thickness)
- Caulk gun and exterior sealant(Waterproof exterior caulk)
- Silicone-based lubricant(For door rollers and tracks)
- Utility knife(Trim material and foam adjustments)
- Safety gear(Gloves and eye protection)
- Caulk backer rod or foam(Backer rod for gaps >1/4 inch)
- Exterior sealants and flashing tape(Optional for enhanced weatherproofing)
- Helper(Assists with lifting and aligning heavy door)

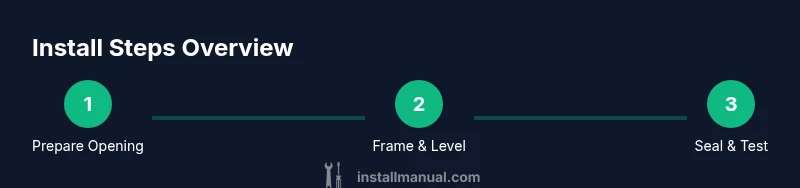

Steps
Estimated time: 4-8 hours total
- 1
Prepare opening and plan layout
Measure and verify rough opening dimensions. Ensure the doorway is square and the framing can accommodate the door thickness and track depth. Plan for shims and clearance around the door for operation.
Tip: Double-check both width and height in multiple spots to avoid a binding fit. - 2
Remove old door and debris
Carefully detach the old unit and trim, clearing debris from the opening. Inspect studs for rot or damage and address as needed before proceeding.
Tip: Keep fasteners labeled and organized to simplify reassembly. - 3
Dry-fit the new door frame
Set the frame into the opening to check fit. Use shims at corners to achieve plumb and square. Do not tighten yet; adjust as needed for even gaps.
Tip: Only snug the screws after you confirm perfect alignment. - 4
Secure frame and check alignment
Install temporary fasteners to hold the frame. Re-check plumb and level, then install final screws. Ensure the frame is rigid before proceeding to panel installation.
Tip: A misaligned frame will cause future seal failures. - 5
Install threshold and exterior sill
Place the threshold, align with the frame, and secure. Check for proper slope away from the interior to shed water.
Tip: Test water drip line at the sill after sealing. - 6
Hang sliding panels and adjust rollers
Install rollers on the panels and mount them on the track. Slide panels to verify smooth operation and adjust rollers for even contact.
Tip: Do not force panels; loosen and re-seat if binding occurs. - 7
Seal and insulate around frame
Apply exterior flashing, caulk, and backer rod where needed. Use foam in larger gaps, ensuring no bowing of the frame.
Tip: Allow foam to cure before final trims. - 8
Finish interior and test() operation
Install interior trim, sweep, and hardware. Test locking mechanism and verify a secure seal when closed. Run the door both ways to confirm reliability.
Tip: Lubricate rollers after initial use to prolong life.
Got Questions?
Do I need a permit to install a sliding glass door?
Permit requirements vary by location. Check your city or county building code to determine if a permit is required for structural changes or replacement. In many cases, replacing an exterior door may not require a permit if no structural work is involved, but local rules can differ.
Permit requirements vary by location. Check local codes to know if you need one for door replacement.
Can I install a sliding glass door myself, or should I hire a pro?
A confident DIYer with basic carpentry and dry-fit skills can install a sliding glass door. Complex openings, structural alterations, or large units may warrant a professional installation to ensure safety and warranty validity.
If you’re comfortable with carpentry and reading instructions, you can do it yourself; otherwise hire a pro.
What opening size do I need for a standard sliding door?
Standard openings vary, but most sliding doors require a roughly 80–96 inch height and 60–72 inch width, depending on the model. Always verify the door’s final dimensions with the manufacturer and account for track depth and insulation.
Most sliding doors fit an 80 to 96 inch tall opening and 60 to 72 inch wide opening, depending on the unit.
What are common mistakes to avoid during installation?
Avoid installing in a non-square opening, neglecting proper flashing, over-tightening screws, or skipping weatherproofing. These mistakes can cause leaks, drafts, and panel misalignment over time.
Common mistakes include squaring errors, skipping flashing, and poor weather sealing.
How do I maintain a sliding glass door after installation?
Regularly clean tracks, lubricate rollers, inspect seals, and reseal when needed. Periodic checks help prevent sticking and drafts and extend the door’s life.
Keep the tracks clean, lubricate the rollers, and check seals every year.
Watch Video
Main Points
- Measure accurately before buying the door.
- Keep framing square and plumb for a smooth operation.
- Seal exterior and insulate interior gaps to prevent drafts.
- Test operation from both sides and adjust as needed.
- Maintain the sliding door regularly for long-term performance.
