How to Install a Handrail on a Staircase: Step-by-Step Guide
A complete, step-by-step guide to install a handrail on stairs with brackets, anchors, and proper measurements for safety and code compliance. Learn planning, sizing, mounting, and finishing for a durable, compliant staircase handrail.
By following this how to install handrail on staircase guide, you will lay out brackets, choose rail length, and install a code-compliant handrail. According to Install Manual, start by measuring the stairs, confirming height (typical range 34–38 inches), and selecting sturdy fasteners. This quick plan sets the foundation for a safe, durable handrail installation.
Assess the Staircase and Plan
Before you touch a drill, take a careful look at the entire staircase. Note any creaks, loose treads, or irregularities in the wall orientation. A solid plan reduces rework and improves safety. According to Install Manual, begin with a clear map: measure the total rise and run, identify any turns or landings, and decide whether you will run a continuous rail or join at a landing. This prep stage also guides bracket spacing, rail length, and backing requirements. If you’re renting or moving into a home with plaster, consider how that material will affect anchors and the effort needed to achieve a secure hold. A thorough assessment saves time, minimizes surprises, and sets you up for a compliant installation.
Measurements and Rail Sizing
A comfortable handrail grip typically falls in the range of about 1¼ to 1½ inches in diameter, though local codes can vary. Plan the rail length to cover the entire run plus a small overhang at both ends for a secure grasp. For straight sections, brackets are usually spaced every 4 feet, with closer spacing near landings or turns to maintain level continuity. Measure from the nosing of each tread to the opposite Wall/air boundary along a consistent reference line, then add approximately 3–4 inches for end overhang. If your stairs curve or turn, you may need to splice the rail or bend it with specialized fittings. The goal is a continuous, smooth grasp surface with no gaps that could snag clothing or fingers.
Brackets, Anchors, and Layout
Select brackets rated for the anticipated load and the wall or stringer backing you have. Use a level to mark each bracket location so the rail remains true from bottom to top. When mounting on drywall, you’ll often need blocking behind the wall to provide solid anchors; on wood studs, longer screws into studs deliver the strongest hold. If the stairs sit flush against a wall, one-wall brackets may be sufficient, but consider double-sided brackets for longer runs or stair landings to maintain stability. Center-punch drill holes to prevent bit wandering, and start with pilot holes to avoid splitting wood or masonry. Plan bracket spacing so the rail sits level along the entire path, even around corners.
Prep Safety and Clearance
Safety comes first. Wear eye protection, gloves, and a dust mask as you cut or drill. Never drill where hidden utilities may exist—always scan for electrical cables and pipes behind walls. If the staircase is carpeted, you may want to temporarily lift sections or place protective patches to avoid accidental gouges. Verify local building codes for handrail height and grasp diameter, and ensure there’s adequate clearance around the rail for hands and clothing. If you’re renting, a code-compliant installation can be a selling point and a liability safeguard.
Install the Brackets and Rail
With bracket positions confirmed, pre-drill pilot holes, then install the anchors and brackets to the backing. Start at the bottom and work upward, using a level to confirm plumb on every bracket. Attach the top brackets after you’ve set the rail length so the rail sits evenly in all sockets. If you must cut the rail to fit turns, use a miter saw for clean corners and test-fit before final drilling. Recheck all brackets after you’ve seated the rail to catch any misalignment early.
Finishing and Inspection
Dry-fit the entire handrail to confirm alignment. Tighten all screws progressively, checking for wobble as you go. Finish with any protective coating required by your rail material, or leave as-supplied if it’s a natural wood or metal finish. Inspect the rail for straightness across the span and test with steady finger pressure along several points to ensure there are no soft spots. Verify that all ends are flush and smooth and that there are no sharp edges or protruding screws. Finally, re-measure to confirm consistent height and grip along the entire staircase, adjusting as needed to satisfy your local code requirements.
Authority Sources
For reference, consult these authoritative resources on handrail safety and installation practices:
- OSHA: https://www.osha.gov
- CDC/NIOSH Handrails: https://www.cdc.gov/niosh/topics/handrails/
- NIST Safety and Building Codes: https://www.nist.gov/
Tools & Materials
- Measuring tape(at least 25 ft for long runs)
- Pencil(for marking brackets and rail lines)
- Stud finder(locates wall studs or structural backing)
- Level (preferably 2 ft or longer)(to keep brackets and rail level across the run)
- Cordless drill(with wood and masonry bits as needed)
- Drill bits (wood & masonry)(assorted sizes; 3/32 in, 1/8 in common)
- Handrail(length with extra 6–12 in for end overhang)
- Brackets and mounting screws(select screws long enough to reach studs or solid backing)
- Safety gear (gloves, goggles, mask)(protective equipment during drilling)
- Miter saw or hand saw(for cutting handrail to fit turns)

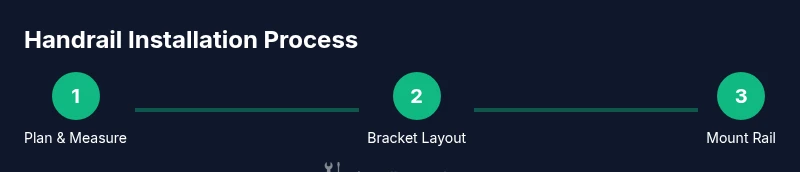

Steps
Estimated time: 2-4 hours
- 1
Survey stairs and set a reference line
Begin with a thorough inspection of the staircase. Check for loose treads, wobble, and any obstruction that could hinder rail installation. Establish a reference line at the desired handrail height to maintain consistency from bottom to top. This line will guide bracket placement and rail alignment throughout the run.
Tip: Take photos of each area as you go to verify alignment later. - 2
Measure rail height and length
Measure vertically from the tread nosing to a comfortable grasp height (commonly around 34–38 inches). Determine total rail length by measuring the entire run and adding extra for end overhang. If you encounter landings or turns, plan for gradual transitions rather than abrupt joints.
Tip: Record measurements in a dedicated notebook or app for quick reference. - 3
Mark bracket locations with a level
Using the reference line, mark where brackets will sit along the stair path. Ensure marks stay level when traced across uneven steps. For turns, place brackets to keep the rail profile smooth and continuous without kinks.
Tip: Double-check marks with a second level check from opposite ends. - 4
Locate studs or stringers behind the wall
Use a stud finder to locate solid backing for brackets. If mounting on drywall, plan for blocking or use longer fasteners to reach studs. For mixed surfaces, consider a combination of screws into studs and wall anchors as needed.
Tip: If you can’t locate a solid backing, don’t install brackets—unsafe anchors lead to failure. - 5
Pre-drill pilot holes for brackets
Drill pilot holes at each bracket location to prevent wood splitting and to guide screws. Use appropriate bit size for your bracket screws. If you’re drilling into masonry, switch to masonry bits and use anchors.
Tip: Securely mark pilot holes with a center punch to avoid wandering. - 6
Install bottom brackets
Attach bottom brackets to the marked locations, ensuring they are square and firmly anchored. Use level checks to confirm straight mounting as you go. Tighten screws gradually to distribute load evenly across the backing.
Tip: Start with two brackets near the start to anchor the rail end reliably. - 7
Attach top brackets and align the rail
Position the top brackets so the rail will sit in a straight line from bottom to top. Insert the rail into bracket sockets and confirm alignment with a level across several points. If needed, trim the rail ends for a clean fit at the top and bottom.
Tip: Avoid forcing the rail; slight adjustments are better than forcing it into misalignment. - 8
Dry-fit, trim, and finalize
Do a dry run with the rail in place to confirm fit and smooth transitions at turns. Trim as needed, recheck all fasteners, and install final screws. Polish edges and ensure there are no burrs that could snag clothing.
Tip: Keep a spare handrail section on hand for on-site adjustments. - 9
Secure, test, and inspect
Tighten all fasteners to their final torque, then test the handrail by applying steady pressure along its length. Check for wobble at every bracket. Ensure the rail is consistent in height and free of sharp edges before use.
Tip: Have a second person assist during final test for safety.
Got Questions?
What height should a residential handrail be installed at?
Most codes guide a height range of about 34-38 inches from the nosing. Always verify local code requirements for your area.
Typically, install between 34 and 38 inches from the stair nosing, but check your local codes.
Can I install a handrail on curved stairs?
Yes. Use brackets that accommodate curves and maintain a continuous rail where possible. You may need special fittings or a continuous rail across the curve.
Yes, curved stairs can have a handrail with curved fittings to keep it continuous.
What tools do I need for this project?
A measuring tape, level, pencil, stud finder, drill and bits, screws and brackets, and a saw for rail length adjustments.
You’ll need basic measuring and drilling tools plus brackets and a handrail.
Is a permit required for home handrail installation?
Permit requirements vary by location and scope. Check with your local building department to confirm whether a permit is needed for interior handrail installations.
Check with your local building department to confirm permit requirements.
What if the stairs have no wall backing on one side?
Use brackets designed for drywall with adequate anchors, or install lightweight blocking behind the wall to secure brackets safely.
If backing is lacking, add blocking or use brackets that anchor into studs for safety.
Watch Video
Main Points
- Measure accurately before mounting
- Choose brackets rated for load and backing
- Anchor into solid backing for safety
- Keep the rail level across the entire run
- Test rigidity and finish with proper detailing
