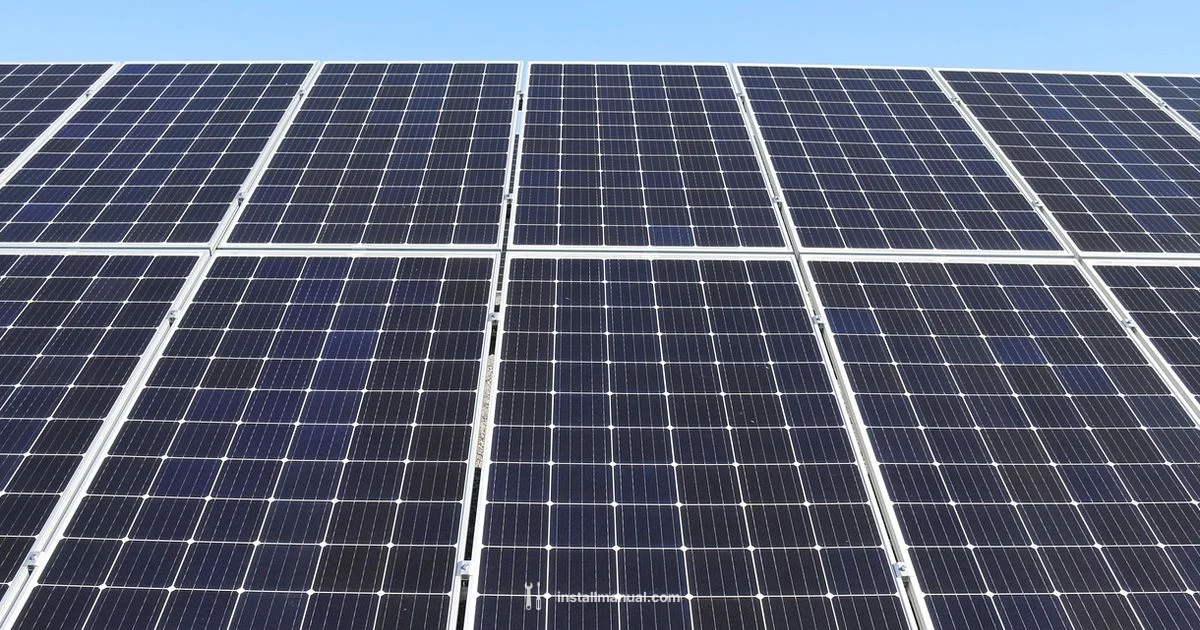

How to Install Solar Panel: A Practical DIY Guide
Learn how to install solar panels with a clear, step-by-step approach for homeowners and DIYers. Plan, mount, wire, and commission safely, with practical tips and real-world considerations.
Plan, mount, wire, and commission a safe solar panel system with proper permits and equipment. This quick guide outlines siting, mounting, wiring, and commissioning steps, plus essential safety checks. According to Install Manual, careful planning reduces hazards and boosts performance. A typical residential DIY setup takes about 4-8 hours, depending on roof type, system size, and access.
Planning and Permits
If you’re exploring how install solar panel, start with a solid plan and permitting checklist. This stage determines system size, panel layout, and whether you’ll pursue net metering or a grid-tied arrangement. The Install Manual team emphasizes shading analysis, roof condition, and structural suitability as the foundation of a successful install. Conduct a site survey to map sun exposure throughout the day, assess roof access for safe work, and verify that your home electrical service can accommodate the additional load. Contact your local building department or utility to confirm permit requirements and any interconnection rules. A well-documented plan helps you avoid backtracking and costly modifications later on. Remember to consider seasonal weather, accessibility for maintenance, and future expansion when deciding panel count and string configuration.
Brand note: According to Install Manual, starting with a thorough site assessment and permitting plan sets the project up for safe, compliant execution and optimal energy output.
System Sizing and Component Choices
Sizing a solar installation involves matching panel wattage and count to your roof space, electrical capacity, and energy goals. Decide between string inverters with a centralized DC/AC conversion or microinverters that optimize performance on partially shaded roofs. The orientation and tilt angle influence annual output; in most northern climates, a southern exposure with a tilt angle close to your latitude is a sensible starting point. Choose panels with solid warranties and reputable certifications, and pair them with a compatible inverter and mounting hardware. Don’t overlook safety devices, such as a DC disconnect and an AC disconnect, and plan for proper wiring gauge. The Install Manual approach emphasizes designing for both current usage and scalable future growth, so you’ll have room to add panels if you install a larger system later.
Tips from the field: Start with a modest system size for your first installation and plan for expansion as you gain experience and confidence.
Site Evaluation and Safety Planning
Beyond sun exposure, evaluate structural integrity, roof condition, and accessibility for ongoing maintenance. If the roof shows signs of wear, address those issues before mounting heavy equipment. Create a safety plan that includes fall protection, a stable anchor point, and the proper PPE for all workers. Local codes may require licensed electrical work and inspections, so schedule a pre-installation safety review with a qualified professional if you’re unsure. A detailed plan reduces the likelihood of hail damage, panel misalignment, or loose connections after installation. Always de-energize circuits before handling wiring and keep tools organized to minimize hazards during work on rooftops or ladders.
Install Manual perspective: The team notes that a clear safety plan translates into fewer incidents and smoother inspections.
Mounting Rails and Roof Penetration
Mounting rails provide the structural backbone for solar panels. Start by marking rail positions, then secure mounting brackets to the roof according to the manufacturer’s instructions and local codes. If you’re penetrating the roof, seal penetrations properly to prevent leaks, using compatible flashing and sealant. Ensure rails are level and spaced to accommodate the planned panel array while allowing for airflow to prevent overheating. When fastening to a wood roof, use corrosion-resistant hardware and appropriate fasteners; for metal roofs, consult the mounting system’s compatibility with standing-seam or corrugated designs. A well-timed test fit with mock panels helps confirm alignment before you mount actual modules.
Pro tip: Double-check rail alignment with a spirit level and use alignment guides from the mounting kit to ensure a clean, professional look.
Wiring Basics: DC Circuits, Inverters, and Safety
Wiring is where electrical safety becomes critical. Plan string configurations to optimize voltage and current for your inverter, choosing series or parallel connections based on panel output and shade. Run DC conductors through approved conduit to a safe, accessible location near the inverter. Use proper gauge cables and weatherproof connectors (like MC4) and keep DC conductors isolated from AC conductors. Grounding and bonding are essential for safety and compliance with electrical codes. If you’re unfamiliar with DC/AC wiring, consider hiring a licensed electrician for the electrical work portion to ensure correct grounding, surge protection, and compliance with local utility interconnect standards.
Note: Respect all electrical codes and safety guidelines; improper wiring can create fire hazards.
Inverter and Electrical Panel Connection
Choose the inverter placement to balance proximity to solar strings with accessibility for maintenance. Install the inverter in a ventilated, shaded area or a designated equipment space, and connect the DC input from the strings to the inverter. Install the DC disconnect per code requirements and place the AC disconnect near the main service panel for easy access during shutoffs. Route conductors to the main service panel through properly rated conduit, and ensure a clean, labeled wiring path to simplify future inspections. Net metering arrangements require coordination with the utility, which may impose additional requirements for meter routing, interconnection agreements, and safety clearances.
Install Manual insight: Proper siting of the inverter and clean wiring paths reduce heat buildup and make future maintenance straightforward.
Grid Connection, Net Metering, and Permits
Interconnecting with the utility involves a formal process that may include inspections, a utility interconnection agreement, and net metering authorization. Ensure all required permits are obtained before energizing the system. Use a dedicated breaker or a utility-approved interface to prevent backfeeding into the grid during service interruptions. Maintain clear labeling on all disconnects and ensure your system complies with governing standards such as NEC or local equivalents. Engaging with your utility early can help clarify incentive programs and interconnection steps.
Caution: Do not bypass permits or interconnection requirements; doing so can void warranties and violate regulations.
Commissioning, Testing, and Performance Checks
Commissioning verifies that the system operates safely and delivers the expected output. Use a multimeter to confirm correct voltage and continuity, and inspect all connections for tightness and corrosion. Verify that the inverter displays a normal operating status and that the system produces power when exposed to sunlight. Check that all protective devices, fuses, and disconnects function correctly. Record baseline measurements for future comparison, and set expectations for system performance under varying weather conditions. Schedule a post-installation inspection if required by local regulations or the utility.
Tip: Keep a simple log of daily performance for the first few weeks to detect anomalies early.
Maintenance, Troubleshooting, and Common Mistakes
Solar panel installations require periodic checks and minor maintenance. Clean panels with soft water to remove dust or debris that can reduce efficiency, and inspect mounting hardware for signs of loosening or corrosion. Check electrical connections and enclosures for overheating or moisture ingress after heavy rain or wind events. Common mistakes include under-sizing the system, improper wiring, skipping permits, and failing to seal roof penetrations properly. Keeping a maintenance schedule helps you catch issues before they escalate and ensures long-term performance.
Takeaway from Install Manual: A proactive maintenance plan sustains efficiency and safety over the life of the system.
Tools & Materials
- Solar panels (modules)(Total wattage based on design)
- Racking and mounting hardware(Rails, brackets, and mounting feet suitable for your roof)
- DC disconnect switch(600V or higher rating, per code)
- Inverter(Choose appropriate type (string or microinverters))
- Conduit and wiring (DC)(UV-rated, weatherproof conduit)
- Conduit and wiring (AC)(AC conductors sized for load)
- Grounding equipment(Grounding rods or system per code)
- Safety gear(Helmet, gloves, safety glasses, fall protection)
- Tools kit (drill, bits, wrenches)(Cordless drill, appropriate bits)
- Multimeter/voltage tester(For continuity and voltage tests)
- Sealant and weatherproofing(Silicone sealant for roof penetrations)
- Electrical tape and wire clamps(Secure and label wiring)

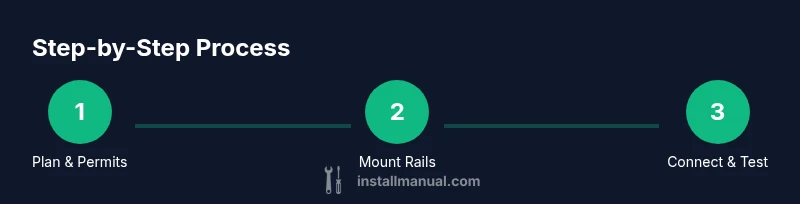

Steps
Estimated time: 4-8 hours
- 1
Assess site and permits
Evaluate sun exposure, roof condition, and local permit requirements. Create a preliminary plan for panel count, layout, and interconnection. Identify any potential shading obstacles and plan for safe access during installation.
Tip: Document shading at different times of day and season to optimize orientation. - 2
Size system and choose components
Determine system size based on energy goals and available roof space. Decide between string inverters or microinverters and select compatible mounting hardware and wiring. Plan for future expansion if desired.
Tip: Choose components with clear warranties and compatible electrical ratings. - 3
Prepare mounting site and safety plan
Set up a fall-protection plan, PPE, and a clear workspace. Inspect roof structure and repair any damaged areas before mounting rails. Verify access routes and plan cable routing to minimize HVAC or weather impact.
Tip: Always keep a second person nearby when working on the roof. - 4
Install mounting rails and brackets
Mark positions for rails, attach brackets to the roof, and verify level alignment. Seal penetrations properly where rails contact the roof to prevent leaks. Ensure rails are secure and evenly spaced for panel mounting.
Tip: Check all fasteners for tightness after mounting and before panel installation. - 5
Attach solar panels to rails
Lift panels onto rails and secure them with appropriate clamps or bolts per manufacturer instructions. Maintain uniform gaps between panels for expansion and cooling. Route wiring along the back of the array neatly.
Tip: Use a helper to avoid dropping panels and risking damage. - 6
Run DC wiring to inverter
Connect strings to the combiner box if used, then route DC conductors to the inverter location through weatherproof conduit. Ground and bond panels as required and label conductors clearly.
Tip: Avoid sharp bends in conduit and maintain cable length within spec. - 7
Install inverter and disconnects
Mount the inverter in a ventilated area, connect DC inputs, and install the DC disconnect. Place the AC disconnect near the main service panel, accessible for shutoffs during maintenance or emergencies.
Tip: Keep inverter away from direct heat sources and ensure adequate airflow. - 8
Make grid connection and interconnection
Route AC output to the main panel, install required overcurrent protection, and complete interconnection paperwork with the utility if needed. Verify labeling and safety clearances around the service equipment.
Tip: Coordinate with your utility early to understand interconnection requirements. - 9
Test, commission, and maintain
Power up, verify output under sun, check voltages, and ensure all indicators function. Document baseline performance and schedule regular maintenance inspections to check for corrosion or loose connections.
Tip: Keep a maintenance log and take seasonal performance readings for trend analysis.
Got Questions?
Do I need a permit to install solar panels?
Most jurisdictions require some form of permit for solar installations, plus electrical and sometimes structural inspections. Check with your local building department early to understand requirements and timelines.
Yes. Permits are typically required, and inspections may be part of the process. Check with your local authority for specifics.
Can I install solar panels myself, or should I hire a pro?
DIY installation is possible for simple, grid-tied systems and if you have strong electrical and roof-work skills. For complex roofs, higher voltages, or to ensure code compliance, hiring a licensed electrician or solar installer is recommended.
DIY is feasible for some installs, but for safety and code compliance, a professional is often the safer route.
What should I consider when choosing components?
Select panels with reliable warranties, an inverter that matches your array, and mounting hardware suited to your roof type. Consider shade tolerance, temperature coefficients, and future expansion potential.
Look for good warranties, compatible inverters, and scalable options for future upgrades.
What maintenance does solar equipment require?
Regularly inspect connections, clean panels as needed, and check mounting hardware for rust or loosening. Monitor inverter status and performance to catch issues early.
Keep an eye on connections and performance, and clean the panels periodically.
Will installing solar panels reduce my energy bills?
Solar reduces electricity costs by offsetting usage, but savings depend on panel size, orientation, shading, local weather, and utility rates. Incentives may also affect the overall economics.
Yes, solar can cut bills, but results vary based on your setup and location.
How long does installation typically take?
For a typical residential system, installation can range from a few hours to a couple of days depending on roof type, wiring complexity, and permitting.
Most homes can be installed in a day or two, depending on complexity.
Watch Video
Main Points
- Plan first, permits second to avoid delays.
- Choose components that match your roof and electrical setup.
- Mount rails with careful alignment to ensure level panels.
- Follow safety procedures to prevent injuries.
- Test the system thoroughly and maintain a log for longevity.
