Install lidar scanner at top of control tower: A complete how-to
Step-by-step guide to install a lidar scanner at the top of a control tower, covering planning, mounting, power and data routing, calibration, safety, and maintenance for DIY enthusiasts and professionals.
Installing a lidar scanner at the top of a control tower requires careful planning, secure mounting, proper power and data routing, calibration, and safety checks. This guide outlines a practical, step-by-step approach to mounting, protecting cabling, and validating performance in challenging, high-altitude environments. By following these steps, you ensure reliable data and a safer worksite while meeting site regulations. According to Install Manual, proper placement and robust mounting are fundamental to data quality and system reliability.
Why install lidar scanner at top of control tower matters
Mounting a lidar scanner at the top of a control tower provides a wide field of regard and reduces blind spots for operators in the cab. The Install Manual team emphasizes that sensor placement affects data quality, latency, and resilience to wind, rain, and vibration. A well-chosen top-mount location improves detection range consistency and reduces data gaps during adverse weather. Before you begin, define clear objectives: target detection range, field of view, sampling rate, and integration with existing control-room dashboards. Align the project with site safety rules and regulatory requirements, since height work requires fall protection, permits, and coordinated access with facility management. Consider line-of-sight to entry points, power and network access, and exposure to temperature extremes to avoid rework or downtime. According to Install Manual, thoughtful planning is the backbone of a successful top-mount deployment.
Site assessment and planning prerequisites
Effective installation starts with a thorough site assessment. Evaluate access routes to the tower top, available mounting surfaces, anticipated wind loads, and vibration characteristics of the tower structure. Create a preliminary mounting plan that identifies the best surface, the preferred orientation, and how to avoid interference with radios, antennas, or other sensors. Schedule the work during weather windows that minimize wind gusts and lightning risk, and ensure fall-arrest equipment is on standby. Document electrical supply availability, backhaul capacity, and secure encryption for data transmission. Keep stakeholders informed, including facility management, safety officers, and the control-room liaison. This upfront planning reduces the chance of mid-project changes and unplanned downtime. Based on Install Manual analysis, thorough planning improves safety and reliability for high-altitude sensor installations.
Mounting considerations and hardware selection
Select a mounting solution that can withstand wind loads, minimize vibration, and support the lidar scanner's weight and center of gravity. Choose a weather-rated mounting bracket made from corrosion-resistant material and consider vibration isolation elements to reduce measurement jitter. Verify that mounting holes align with the tower surface and that fasteners are compatible with the tower's material (steel, concrete, or composite). Plan cable routes that avoid moving parts and reduce snag hazards. Use anti-corrosion hardware, torque to manufacturer specs, and ensure quick-release mechanisms are accessible for maintenance. This stage sets the foundation for long-term reliability and simplifies future upgrades. As Install Manual notes, the right hardware choice is as critical as the sensor itself.
Power, data, and environmental protection routing
Power and data cabling should be routed through weatherproof conduits with secure glands at entry points. Choose a power supply that matches the lidar's voltage and current requirements and add surge protection and grounding. If using PoE, ensure the network path provides sufficient power without overheating. Label cables clearly and route them along fixed supports to avoid movement from wind. Implement cable management that prevents tension and reduces wear at bending points. Protect exposed connectors with weatherproof covers and use grommets to prevent water ingress. Environmental protection should include moisture seals, UV-resistant housings, and consideration for snow or ice buildup at the top of the tower. Good routing reduces maintenance calls and extends sensor life.
Calibration, validation, and ongoing maintenance
Calibration should be performed after installation and after any major environmental event that could affect alignment. Run a baseline calibration using the manufacturer’s procedure, then validate data against known references or reference objects in the field of view. Establish a routine data-quality check in the control room to catch drift or sensor degradation early. Keep an audit trail of calibration dates, software versions, and any adjustments made. Schedule periodic maintenance to inspect seals, re-torque fasteners, clean the sensor window, and verify that cabling remains intact under wind loading. The long-term reliability of the lidar system depends on consistent calibration and proactive maintenance.
Safety, compliance, and documentation
Height work requires formal risk assessments, fall-protection plans, and adherence to site-specific safety rules. Ensure all personnel receive training on tower work best practices and electrical safety. Obtain any required permits before lifting operations or climbing tasks. Document the installation with as-built drawings, sensor model numbers, mounting torque values, and a maintenance plan. Store this information in the asset-management system and make it accessible to the control-room team. Regular safety reviews and documentation updates help mitigate liability and support future upgrades. The Install Manual approach emphasizes safety-equity considerations and traceability for every top-mounted lidar installation.
Final verification and handover checklist
Before handing over the installation to operations, perform a final verification: confirm physical security of the mount, verify power and data connectivity, run a full data flow test, and confirm that the sensor’s field of view covers the intended area. Produce a concise handover packet that includes: installation date, responsible technicians, calibration results, and maintenance schedule. Ensure the control-room operator can access live status and alerts from the lidar system. A clean handover reduces post-install questions and accelerates operational use. The Install Manual methodology emphasizes a thorough, documented transition from install to operation.
Tools & Materials
- Lidar scanner unit(Model should support external mounting and weather rating (IP66+).)
- Weatherproof mounting bracket(Sturdy steel or aluminum; consider vibration isolation.)
- Anchoring hardware (bolts, nuts, washers)(Use corrosion-resistant stainless steel; align with tower structure.)
- Cable glands and weatherproof conduit(Seals to protect power/data cabling from moisture.)
- Power supply or PoE injector(Match voltage/current; include surge protection.)
- Network switch or PoE-capable switch(If ethernet backhaul is needed; consider remote management.)
- Cable management tools (ties, clips)(Organize cables to minimize sway and snag hazards.)
- Multimeter and basic tools(Verify continuity and ensure power is off before wiring.)
- Fall protection gear and ladder(Follow site safety protocol when accessing tower top.)
- Environmental protection covers(Optional covers for extreme weather; helps prevent ice buildup.)

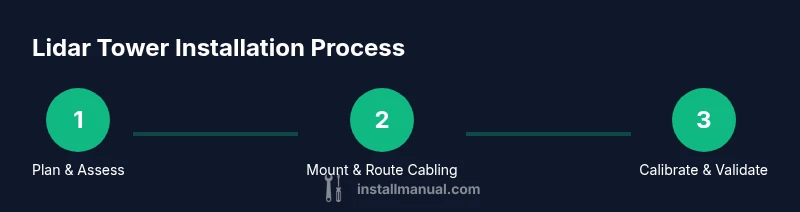

Steps
Estimated time: 2-3 hours
- 1
Assess tower access and safety
Survey the top landing, confirm access routes, and review fall-protection requirements. Coordinate with the site supervisor for weather windows and restricted zones. Confirm that all personnel have proper PPE and that emergency procedures are in place.
Tip: Always lockout/tagout electrical circuits before touching wiring. - 2
Select mounting location and confirm load path
Choose a flat, vibration-resistant surface with clear line-of-sight to the intended sensor area. Verify that the surface can support the lidar’s weight and that wiring routes won’t interfere with antennas or maintenance access.
Tip: Measure the center of gravity and use a level during mounting. - 3
Attach mounting bracket to the tower
Secure the bracket with appropriate anchors, using anti-corrosion hardware. Torque fasteners per manufacturer specifications and check alignment with the lidar’s mounting holes. Use a backup support if required for high-wind scenarios.
Tip: Apply thread-locking compound and recheck torque after 24 hours. - 4
Mount the lidar scanner
Attach the lidar to the bracket using the supplied hardware. Ensure the sensor window faces the designated sector and that orientation is locked. Do not overtighten to avoid misalignment.
Tip: Keep the sensor window clean; a dirty window distorts readings. - 5
Route power and data cables
Run cables through weatherproof conduit or glands, avoiding sharp edges and pinch points. Label both ends and secure cables to fixed supports to minimize sway. Ensure the cables have slack to accommodate tower movement without stressing connectors.
Tip: Test cable movement under wind conditions to confirm no binding. - 6
Establish grounding and protection
Ground the mounting structure and install a surge protector at the power entry. Verify a continuous ground path and proper bonding to the tower. Check all electrical connections for corrosion resistance.
Tip: Document the grounding path with a simple schematic for future maintenance. - 7
Power up and perform initial alignment
Power the system and verify basic functionality. Align the sensor to the target area using the manufacturer’s alignment procedure and verify that data begins streaming to the control room.
Tip: Do not touch the sensor window during calibration; fingerprints degrade performance. - 8
Calibration and data validation
Run the built-in calibration routine, record baseline data, and compare to reference measurements. Validate that the data stream arrives without gaps and that timestamps are synchronized with the control system.
Tip: Capture calibration data with a timestamp and keep a copy for audits. - 9
Handover and documentation
Create installation notes, as-built drawings, and a maintenance plan with inspection intervals. Provide access credentials and a troubleshooting guide to the operations team. Archive all documents in the asset-management system.
Tip: Share a short handover video highlighting the key installation points.
Got Questions?
What safety precautions are mandatory when installing a lidar scanner on a control tower?
Height work requires a formal risk assessment, fall protection, and coordination with facility management. Ensure all personnel have proper PPE and that emergency procedures are in place. Obtain any required site permits before starting.
Height work requires a formal risk assessment and fall protection. Make sure everyone has PPE and the site permits are in place before you start.
What mounting hardware is essential for top-of-tower lidar installation?
Use a weather-rated mounting bracket, corrosion-resistant anchors, and correctly torqued fasteners. Ensure alignment with the lidar’s mounting holes and include vibration isolation if wind is a concern.
A weather-rated bracket, corrosion-resistant anchors, and properly torqued fasteners are essential, with vibration isolation if needed.
How do I verify lidar data quality after installation?
Run the manufacturer’s calibration routine, compare results with known references, and verify data streams reach the control room with proper timestamps. Set up a routine for ongoing checks.
Run calibration, compare with references, and confirm data arrives in the control room with timestamps.
Is professional rigging required for initial installation?
Yes. Height work and electrical connections at the tower top typically require trained personnel, safety protocols, and adherence to local regulations. Coordinate with facility management and, if needed, hire qualified rigging professionals.
Typically, you should use trained personnel for height work and electrical connections at the tower top.
What maintenance is recommended after installation?
Schedule periodic inspections for seals, fasteners, and cables. Clean the sensor window, re-torque fasteners as needed, and verify calibration data at defined intervals. Record maintenance in the asset system.
Inspect seals and cables, clean the sensor window, and recalibrate on schedule.
What should be included in the handover documentation?
Include installation date, sensor model, mounting torque values, calibration results, maintenance plan, and access details for the control room team. Store copies in the asset-management system.
Include model, torque values, calibration results, and a maintenance plan in the handover docs.
Watch Video
Main Points
- Plan thoroughly before climbing the tower.
- Mount on a stable, vibration-free surface.
- Protect power and data cables from moisture and wind.
- Validate calibration and log results for audits.
- Document everything for safe handover and future upgrades.
