Where Are P-Traps Installed? A DIY Homeowner Guide
Learn where P-traps are installed, how to identify their locations, and step-by-step guidance for safe, code-compliant installation and maintenance in household plumbing.
P-traps are installed under most drains to prevent sewer gases from entering living spaces. They’re usually tucked inside cabinets under sinks or connected to the drain tailpiece and waste line. Proper installation ensures a watertight seal and reliable venting, meeting common residential codes.
What is a P-trap and why it's essential
A P-trap is a curved section of pipe that holds a small amount of water to form a seal, blocking sewer gases from backing up into your home. If you're curious about where are p traps installed, the short answer is: under most sinks and other drains that connect to the main waste line. The trap also helps prevent backflow of wastewater and reduces the risk of clogs moving upstream. Properly installed traps minimize odors and protect indoor air quality, which is a key reason homeowners should understand their location and maintenance needs. In many jurisdictions, the P-trap is required by code for most fixtures, including bathroom sinks, kitchen sinks, and laundry trays. Regular inspection for leaks, corrosion, or dry traps is part of responsible home maintenance and can prevent more serious plumbing problems later on.
Typical locations for P-traps in a home
P-traps are most commonly found directly beneath kitchen and bathroom sinks, inside the cabinet below the drain fixture. They can also be present under utility sinks, laundry sinks, and some shower or tub drains that vent into the same waste line. In basements or crawl spaces, you may encounter floor drains with P-traps that connect to a main sewer line. When inspecting a home, look for the trap’s U-shaped section. The inlet side connects to the drain with a slip-nut, and the outlet side leads to the waste line. It’s important to verify there is water in the trap to maintain the seal; a dry trap can allow odors to escape into living spaces.
How to identify existing P-traps and measure size
To locate a P-trap, first remove the access panel under the sink (if present) and visually inspect the pipe right below the sink drain. Most residential P-traps are 1-1/4 inches or 1-1/2 inches in diameter, and you’ll often see a label on the trap body indicating size. If you’re unsure, measure the inner diameter of the drain pipe at the widest point of the trap’s inlet. When replacing a trap, matching the size to your fixture’s drain is critical for an effective seal. Bring a sample or take a photo to compare with store options. Some traps include a cleanout access that can simplify future maintenance.
Installation overview: space, access, and layout
The space under the sink must accommodate the trap’s height and elbow joints without forcing the pipes. Adequate vertical clearance allows you to align the trap with the tailpiece and the waste line. If the cabinet is shallow or crowded, consider a compact or right-angle trap design. Ensure the trap is level and the connections are tight but not overtightened, which can crack plastic components or strip threads. A horizontally offset setup may be necessary when the drain outlet location differs from the inlet; in such cases, use the appropriate elbow joint and couplings to preserve a clean, leak-free slope.
Common misconceptions and how to avoid them
One common misconception is that the P-trap can be installed anywhere or in any orientation. In reality, the trap’s outlet must face toward the waste line, and the trap must maintain a water seal at all times. Another mistake is using metal traps where plastic is recommended for DIY repairs, as metal can corrode in damp environments. Always check local code requirements before purchasing components, and avoid gluing or cementing traps in ways that hinder future maintenance. Finally, avoid using oversized fittings in an attempt to improve flow; incorrect sizing can cause gurgling and failure to maintain the water seal.
Code considerations and venting basics
Most building codes require a properly installed P-trap for most fixtures, with venting that helps maintain trap seal and drainage efficiency. In many jurisdictions, the trap and vent arrangement ensures wastewater flows smoothly while preventing siphoning. If you’re replacing a trap, verify that your replacement components meet the same diameter and connection standards as the existing system. Be aware that some locations (like laundry rooms or basements) may have unique venting requirements; consult the local plumbing code or a licensed professional if you’re uncertain.
Tools, safety, and best practices for installation
Before starting, collect all necessary tools and materials, including a compatible P-trap, slip-nuts, washers, adjustable wrench, plumber’s putty or silicone sealant, a bucket, and a towel. Always turn off the water supply and place a bucket under the area to catch any residual water. Use a rag to wipe the pipe surfaces and ensure dry, clean connections before assembly. When tightening slip-nuts, secure snugly to prevent leaks, but avoid overtightening, which can crack plastic adapters. If you’re replacing metal piping with plastic, ensure converters are used for a secure, leak-free fit.
Maintenance and troubleshooting after installation
After installation, run water through the fixture and inspect all joints for leaks. A slow drip may indicate a loose connection or a worn washer; reseating the nut or replacing the washer can often fix it. If the trap begins to emit a persistent odor, there may be a dry trap, incorrect seal, or venting issue upstream. Regularly inspect for corrosion, cracks, or mineral buildup that can compromise the seal. If odors persist after reseating and cleaning, consider replacing the trap or consulting a plumber for a pressure test.
Maintenance-friendly tips and long-term care
Keep a small maintenance kit handy with spare washers, slip-nuts, and sealant. Periodically check traps for moisture and replace any worn components; dry traps should be refilled with water to restore the seal. Avoid chemical drain cleaners that can degrade plastic components and instead use mechanical cleaning or enzyme-based products. Document the installation date in your home maintenance log to track when you last replaced the trap and inspect connected fittings during annual inspections.
Safe disposal and environmental considerations
When replacing P-traps, collect used parts and dispose of them according to local regulations. Many traps are recyclable, and metal components can go to metal recycling streams, while plastic parts should go to appropriate plastic recycling if available. Always clean up spills and ensure that any residual waste is disposed of safely to minimize exposure to wastewater. By following proper disposal practices, you reduce environmental impact and keep your home plumbing system in good condition.
AUTHORITY SOURCES
For further reading on plumbing traps and installation best practices, consult reputable sources:
- https://www.iccsafe.org
- https://extension.illinois.edu
- https://www.epa.gov
Tools & Materials
- P-trap assembly (size: 1-1/4(Match drain diameter to fixture; include slip-nuts and washers)
- Drain tailpiece(Short piece that connects to the sink drain)
- Adjustable wrench(For tightening slip-nuts)
- Plumber’s putty or silicone sealant(Use on metal-to-plastic joints as needed)
- Bucket or tray(Catch water during disassembly/installation)
- Rag or towels(Keep area clean and dry during work)
- Replacement washers/gaskets(Prevent leaks at slip-nuts)
- PVC adapters or fittings (if changing material)(Needed for material changes or mis-sized connections)
- _measuring tape_ or ruler(Confirm pipe diameter and trap size)
- Gloves(Keep hands clean and protected)

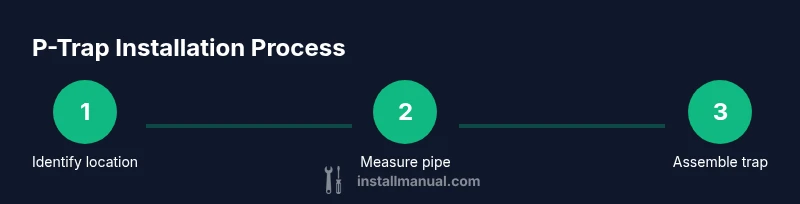

Steps
Estimated time: Total time: 60-90 minutes
- 1
Shut off water and prep area
Turn off the water supply to the sink and place a bucket beneath the trap. Remove the cabinet contents to create space. Clear the area so you can access the drain and old trap easily.
Tip: Have towels ready for spills; work on a dry surface to prevent slipping. - 2
Loosen and remove the old trap
Place the bucket under the trap, hold the trap steady, and loosen slip-nuts with an adjustable wrench. Remove the trap and inspect the washers for wear. Clear any debris from the drain tailpiece.
Tip: Improve visibility by using a flashlight; mirror angles help when reaching it from the back. - 3
Measure and select new trap
Measure the drain inlet and outlet diameters; ensure you buy a trap of matching size. If upgrading to a different material, select appropriate adapters. Dry-fit the trap to confirm alignment before sealing.
Tip: Choose a trap with a straight-through outlet if space is tight to minimize kinks. - 4
Install the tailpiece and washers
Install the new drain tailpiece to the sink drain and add a new washer. Align with the trap inlet, finger-tightening the slip-nut before final tightening with a wrench.
Tip: Apply plumber’s putty at the sink flange if you’re replacing a metal drain to maintain a watertight seal. - 5
Attach the P-trap
Connect the trap to the tailpiece and to the waste line using slip-nuts and washers. Ensure the trap is oriented correctly so the outlet points toward the waste line and there is a gentle downward slope.
Tip: Avoid overtightening; snug is enough to prevent leaks without cracking components. - 6
Check for leaks and adjust
Turn the water back on and run water through the fixture. Inspect all joints for leaks; tighten as needed. If you see persistent leaks, re-seat joints or replace washers.
Tip: Run both cold and hot water briefly to test for leaks in all configurations. - 7
Final cleanup and documentation
Wipe area dry, reinstall cabinet contents, and store extra washers. Note the date of installation in your home maintenance log for future reference.
Tip: Take a photo of the final setup for quick future checks.
Got Questions?
What is a P-trap and why is it required by code?
A P-trap is a curved pipe section that holds water to block sewer gases from entering your home. Most jurisdictions require a properly installed P-trap for fixtures like sinks and laundry trays to maintain venting and prevent odors.
A P-trap is a curved pipe under the drain that keeps sewer gas from entering your home; many codes require it for sinks and similar fixtures.
Where are P-traps typically installed in a house?
P-traps are usually found directly beneath sinks in kitchens and bathrooms, inside cabinets. They may also exist under utility sinks, laundry sinks, and some floor drains tied to the main waste line.
They're typically under sinks and some laundry or utility drains.
Can you install a P-trap inside a cabinet?
Yes. Many installations place the trap inside the cabinet. Ensure there is enough clearance and proper connection to the drain and waste line for a secure, leak-free fit.
Yes, in most cases you can place the trap inside the cabinet with proper clearance.
Do laundry sinks have P-traps?
Laundry sinks typically require a P-trap in the same way as kitchen and bathroom sinks. Check the drain size and use compatible fittings to ensure a proper seal.
Laundry sinks usually use a P-trap just like other sinks.
What maintenance is needed for P-traps?
Periodically check for leaks, odor, and blockage. Clean the trap if necessary and refill dry traps to maintain the water seal. Avoid harsh chemical cleaners that can corrode fittings.
Inspect for leaks and odors, clean if needed, and keep the trap filled with water.
Watch Video
Main Points
- Identify typical P-trap locations under sinks.
- Size and align traps to fixture drains for a watertight seal.
- Test thoroughly for leaks after installation.
- Follow local codes and document maintenance actions.
