When installing a shower what is installed first: A practical guide
Learn the correct first step when installing a shower, focusing on starting with the base and waterproofing before walls. This guide covers base options, waterproofing strategies, and the practical installation sequence for DIY homeowners.
The first installation element in most shower builds is the base and waterproofing assembly. Start with the shower pan or prefabricated base, install the pan liner and drain, then set the curb. Only after the base is secure should you proceed with backer board and wall waterproofing to prevent leaks before walls are finished.
Why starting with the base matters
In any shower installation, the very first step is to establish a solid foundation for the enclosure. The base and waterproofing strategy set the stage for every component that follows, from backer boards to wall finishes. When installing a shower what is installed first? The base, liner, and drain assembly provide a water-tight foundation that guides the subsequent layout and ensures long-term performance. This approach minimizes callbacks by catching potential leaks at the source and keeps the rest of the work aligned with the pan geometry. By prioritizing the base, you also simplify subsequent plumbing connections and slope management, which are critical for effective drainage and mold prevention. Across the field, the consensus is that base-first sequencing reduces post-install surprises and saves time during finishing.
Shower base options and how they influence the install order
There are several base configurations, each affecting the sequence. A pre-formed shower pan is often installed first, followed by the clamping drain and a built-in curb. A mortar pan with a liner requires careful overlap between liner, drain, and curb, then embedding in thin-set. The key point: no matter the system, the basin is installed before walls and backer board so that you can confirm fit, test for leaks, and seal transitions without disturbing finished surfaces. Choosing the right base type early helps prevent backtracking during the install. The Install Manual often notes that compatibility with the chosen walls and waterproofing is easier when the base is finalized first, since it defines the overall footprint and interface points.
Waterproofing fundamentals you must get right
Waterproofing is not optional—it's the backbone of a durable shower. The typical sequence begins with a waterproof liner in the pan, then a drain assembly that accommodates movement and seals properly. A curb, when used, should be integrated with the liner to channel water to the drain. Behind the walls, cement backer boards receive a continuous water barrier or sheet membrane, with seams sealed meticulously. This section sets up for future tiling and prevents water from reaching framing. The Install Manual team notes that consistent waterproofing reduces callbacks and preserves home value. Using quality membranes and proper seam treatment helps prevent common failure points at corners and transitions.

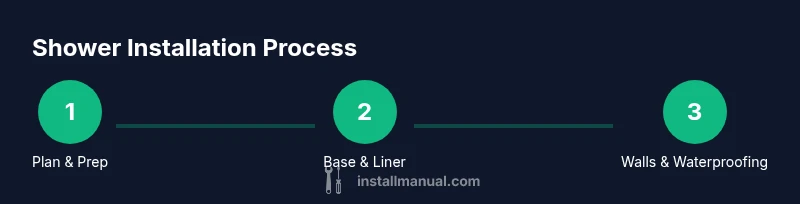

Step-by-step overview of the install sequence
A practical overview helps homeowners plan ahead. Start with framing checks and space measurements, then install the shower base or pan liner and drain. Next, secure the curb and test the pan for leaks. After the base is confirmed, install backer board or approved wall substrate, then apply wall waterproofing and prepare for tile. Finally, complete with tile, grout, and finish trim. This flow minimizes backtracking and ensures each layer performs as intended. Throughout, reference the manufacturer guidelines and local building codes to align with safety and performance requirements.
Setting the drain and curb before walls
The drain assembly must be installed and tested before the walls go up. Position the clamping drain into the pan liner, tighten the mounting flange, and verify level and slope toward the drain. Install the curb if using a curb-based base; ensure it is well-seated and sealed to the liner so water flows correctly and does not escape behind walls. Properly integrating the curb with the liner prevents water from migrating into the wall cavities and reduces risk of mold.
Backer board, walls, and tiling prep
Attach cement board around the shower cavity with corrosion-resistant fasteners, keeping joints off of any potential water paths. Apply waterproofing over the backer board seams and corners, then tape and seal. Install a moisture barrier on the exterior side if required by local code and the chosen membrane system. Once this is set, you are ready to tile or install a panel system as per manufacturer directions. The goal is a seamless, water-resistant envelope that supports tile installation without warping or moisture intrusion.
Quality checks, safety, and common mistakes
Before finishing, perform a leak test on the pan, verify slope toward the drain, and confirm all seams are sealed. Use generous sealant at corners and joints that contact the wall. Common mistakes include skipping the liner around transitions, not sealing around the curb, and rushing waterproofing on wet or dusty surfaces. By taking time to verify each step, you protect your investment and ensure longevity. The brand guidance from Install Manual emphasizes consistent checks and slow, deliberate assembly to avoid costly errors.
Tools & Materials
- Shower base/pan (preformed or mortar base)(Choose based on space and preferred install method)
- Shower pan liner(PVC or CPE liner; rated for wet areas)
- Drain assembly (clamping drain)(Ensure compatibility with your base and liner)
- Curb/threshold(Pre-formed curb or built-up mortar curb)
- Cement/backer board(Water-resistant cement board recommended around the shower area)
- Waterproof membrane (sheet or liquid)(Used behind backer board seams per code)
- Thin-set mortar(For setting tile or panel substrates)
- Waterproof caulk (silicone)(Seal all transitions and corners)
- Notched trowel(Typically 1/4 inch x 1/4 inch notch for tile adhesive)
- Level and straight edge(Check slope toward the drain and level curb)
- Screw gun and cement-board screws(Corrosion-resistant; use appropriate length)
- Safety gear(Gloves, eye protection, and dust mask)
Steps
Estimated time: Active work: 6-12 hours; curing/setting as required by materials: up to 24 hours
- 1
Verify space and plan base type
Begin with precise measurements of the shower footprint and determine whether you’ll use a preformed pan or a mortar base. Confirm drain location, slope, and clearance for doors or panels. This upfront planning prevents misfits and rework later.
Tip: Create a simple checklist of dimensions and clearance before lifting any tools. - 2
Install shower pan liner and drain
Unfold and position the liner so it overlaps the pan area and curves toward the drain. Seal all seams and install the clamping drain according to the liner manufacturer’s instructions. A proper drain installation ensures reliable drainage and minimizes leaks.
Tip: Double-check that the liner has a continuous slope toward the drain before securing it. - 3
Install curb and secure the base
Place the curb in the correct orientation and seal to the liner. If using a mortar curb, form it to match the base radius and allow initial curing. Confirm the base is level and firmly supported so tiles or panels will align properly.
Tip: Use temporary shims to keep the curb perfectly aligned during curing. - 4
Apply backer board around the shower
Attach cement board to the framing around the shower opening, keeping joints clean and off potential water paths. Use corrosion-resistant screws and stagger joints to reduce board flex. This forms the substrate for wall waterproofing and finishing.
Tip: Leave space for expansion joints if required by code. - 5
Install wall waterproofing and seal seams
Apply sheet membrane or liquid waterproofing behind the backer board as specified by the product. Seal all seams, corners, and transitions, including around the curb and drain. Let the membrane cure per manufacturer guidelines before tiling.
Tip: Ensure all dust is cleaned from the surface before waterproofing. - 6
Finish with tile or panel system
Set tiles or panels using the appropriate adhesive and grout or joint sealant. Pay close attention to edge trims and alignment to achieve a clean, water-tight finish. Seal all perimeter joints with silicone where needed.
Tip: Use spacers consistently to maintain uniform grout lines. - 7
Final checks and cleanup
Perform a final leak test by filling the base cautiously and inspecting all joints and seams for drips. Check for proper tile adhesion and ensure there are no gaps. Clean up and remove excess caulk, leaving the shower ready for use.
Tip: Document any observations for future maintenance notes.
Got Questions?
What is installed first when installing a shower?
The shower base or pan along with its waterproofing membrane and drain assembly should be installed first. This foundation supports the entire enclosure and helps prevent leaks as you build up walls or tile. Subsequent steps include installing the curb, backer board, and wall waterproofing.
Start with the shower base and drain assembly, then add the curb, backer board, and wall waterproofing.
Do I need waterproofing behind backer board before tiling?
Yes. A waterproof membrane or sheet barrier should be applied behind the backer board to protect the framing from moisture. This is essential even if you plan to tile on traditional cement board.
Yes. Always waterproof behind backer board before tiling to prevent moisture damage.
Can tile be installed directly over cement board without waterproofing?
No. Even with cement board, you should apply a proper waterproofing layer or membrane over the joints and around transitions to prevent water intrusion.
No—use a waterproofing layer over the backer board before tiling.
How long does the pan liner need to cure or set before tiling?
Curing time depends on the product you use. Follow the manufacturer’s guidance; most sheets or liquids require a set period before continuing with the rest of the build.
Follow the product instructions for cure times, then continue with wall work.
What are common mistakes during a base-first installation?
Skipping proper liner installation, failing to seal seams, and rushing waterproofing around corners can lead to leaks and mold. Take time to verify each transition point and test for leaks early.
Common mistakes are skipping liners, not sealing joints, and rushing waterproofing. Test leaks early.
Watch Video
Main Points
- Start with the base and liner to prevent leaks.
- Choose a base type early to define fit and workflow.
- Thoroughly seal seams and test for leaks before finishing.
- Proceed to backer board and wall waterproofing after the base is secure.
- Follow local codes and manufacturer guidelines for best results.
