Waterline Install: A Complete DIY Guide for Homeowners
Learn how to install a waterline safely with our step-by-step guide. This DIY waterline install guide covers tools, materials, safety, common fittings, and troubleshooting for a reliable home water supply.
A waterline install guides you through adding a new supply line to a fixture or appliance. You’ll learn safety checks, the exact tools and fittings needed, and a clear, 6-step process from shutting off water to leak testing. Ensure local code compliance and have the right materials before starting.
Understanding Waterline Install Essentials
A waterline install is the process of adding or extending a cold- or hot-water supply line to a fixture or appliance in your home. In residential settings, this often means connecting a supply line to a dishwasher, refrigerator with water dispenser, toilet, or outdoor faucet. The goal is a secure, leak-free connection that preserves water pressure and minimizes waste. Before you begin, assess whether the installation falls under standard DIY scope or if your local codes require a licensed professional. In all cases, plan your run to avoid sharp bends, exposed lines near heat sources, and potential interference with electrical or gas components. According to Install Manual, starting with clear measurements and a clean workspace dramatically reduces the chance of leaks and future repairs. Waterline install projects benefit from a simple blueprint: identify the fixture, map the route, choose compatible fittings, and test thoroughly after installation. Keep a photo log of connections for future maintenance and easier troubleshooting.
Safety, Codes, and Compliance
Safety is the foundation of any waterline install. Always shut off the appropriate valve before touching any copper, plastic, or braided lines. If you have to work near other utilities, contact your local building department to determine permit requirements and inspection steps. Use the correct materials recommended for your climate and household water pressure. For many homes, this means selecting approved fittings, corrosion-resistant materials, and compliant shutoff valves. Don't overlook backflow prevention requirements in some jurisdictions, which protect drinking water from contamination. The Install Manual team stresses that following local codes not only prevents leaks but also helps you qualify for warranties and insurance coverage. When in doubt, consult a licensed plumber or your city’s plumbing code guidance to confirm compliance.
Planning Your Waterline Run
Smart planning reduces waste and ensures reliable performance. Start by measuring from the shutoff valve to the fixture or appliance inlet, allowing extra length for future maintenance. Route lines away from heat sources (like ovens or water heaters) and avoid running lines parallel to electrical cables where possible to reduce interference. Determine whether a copper, PEX, or braided stainless steel supply line best fits your setup, considering factors such as spline compatibility, flexibility, and local code preferences. If space is tight, consider a short, fixed-length run with pre-made elbows to minimize joints that could leak. Waterline install projects typically require a clean cut, deburred ends, and secure mounting to prevent movement during operation.
Choosing Materials and Fittings
Selecting the right materials is critical for a reliable waterline install. Common options include copper, PEX, and braided stainless steel lines. Copper is durable but less forgiving for newbies; PEX offers flexibility and ease of use; braided stainless is strong for high-pressure lines and tight spaces. Valves should match the fixture type and be rated for potable water. Compression fittings, push-to-connect fittings, and threaded connections each have their own installation nuances, torque requirements, and leak-testing steps. For threaded connections, apply appropriate sealant or tape where recommended by the manufacturer, while avoiding tape on compression joints. The goal is a snug, leak-free seal without overtightening, which can damage fittings or pipe.
Step-By-Step Preparation: Shutting Down and Inspecting
Preparation matters. Before you touch any pipe, locate the main shutoff and the fixture shutoff. Clear the work area of clutter, lay down towels or a drop cloth to catch any dripping water, and gather all tools in a central location. Inspect all components for damage or wear: look for worn washers, nicked threads, or corrosion on metal parts. If you’re replacing an old line, photograph existing connections to guide reassembly. A well-prepared workspace minimizes surprises and reduces the chance of crossing wires or gas lines during the install.
Common Pitfalls and How to Avoid Them
Leak-prone installs often stem from mismeasured lengths, mismatched fittings, and overtightened joints. Always double-check the run length before cutting; account for bends and connector orientations. Use the correct size fittings for your line—don’t force a larger connection into a smaller valve. If you’re unsure about the pipe material, consult the manufacturer’s installation instructions or a local hardware expert. Avoid pinching or bending lines excessively, which can weaken the line over time. Finally, perform a thorough leak test after assembly with the water on at a low flow rate, increasing gradually to full pressure to confirm a secure setup.
Maintenance, Troubleshooting, and Longevity
After a successful waterline install, schedule a periodic inspection to check for any signs of leakage, corrosion, or wear. Inspect connections after the first few weeks of use and again after seasonal changes in water pressure. If you notice a slow drip, tighten moderately, then re-check; if the leak persists, disassemble and re-seat the fittings, replacing any worn washers. Keep spare compression rings and Teflon tape on hand for future maintenance. Document the install year and valve type in your home maintenance log to simplify future repairs or upgrades.
Tools & Materials
- Adjustable wrench(Two wrenches are helpful for opposite sides of a connection.)
- Basin wrench or pliers(Use for tight spaces around sink valves.)
- Tubing cutter or pipe cutter(Copper or plastic lines require clean, square cuts.)
- PEX cutter (if using PEX)(Clean edge for good crimps.)
- Teflon tape or pipe thread sealant(Use only on threaded connections as recommended.)
- Compression fittings and end caps(Select size to match line diameter.)
- Braided stainless steel supply line(Length should accommodate routing with minimal bends.)
- Shutoff valves (angle stop or under-sink valve)(One per fixture to allow future maintenance.)
- Bucket, towels, and rags(Contain spills and keep area dry.)
- Marker or tape measure(Accurate measurement reduces waste.)
- Safety glasses(Protect eyes from splashes and debris.)

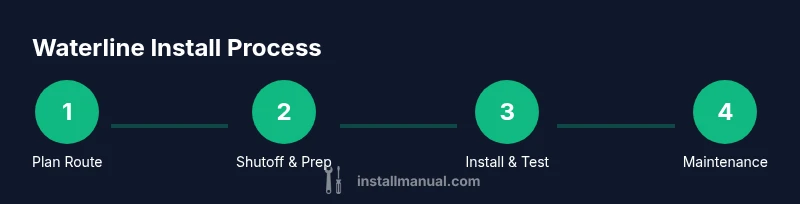

Steps
Estimated time: 30-60 minutes
- 1
Shut off water and prep area
Identify the appropriate shutoff valves for the fixture and the main supply. Turn them fully off, then open the faucet to relieve pressure. Clear the workspace, lay towels, and gather tools in reach.
Tip: Wear safety glasses; use a bucket to catch any residual water. - 2
Measure and select supply line
Measure the distance from the shutoff to the fixture inlet, adding a few inches for bends. Choose copper, PEX, or braided stainless steel based on code and accessibility.
Tip: Avoid excessively long runs; extra length creates more joints that can leak. - 3
Install shutoff valve and prepare connections
If there isn’t a valve, install an appropriate shutoff valve per manufacturer directions. Check threads, deburr pipe ends, and ensure clean mating surfaces.
Tip: Always use the correct valve type for your line material and pressure rating. - 4
Attach supply line to fixture
Connect the supply line to the fixture inlet or valve with appropriate fittings. Hand-tighten, then snug with a wrench without over-torquing.
Tip: Do not overtighten threaded connections; this can crack fittings. - 5
Secure, align, and inspect joints
Support lines to prevent movement and ensure they aren’t kinked or stretched. Verify all joints are properly seated and free of debris.
Tip: Use clamps or clips where recommended to reduce strain on joints. - 6
Test for leaks and finalize
Slowly restore water and check for leaks at every joint. If a leak appears, tighten slightly and re-test. Once confirmed, wipe lines dry and document the installation.
Tip: Test at low pressure first, then gradually increase to normal household pressure.
Got Questions?
Do I need a permit for a waterline install in a home kitchen or laundry area?
Permit requirements vary by location. Check with your local building department or a licensed plumber to determine if a permit or inspection is required for waterline installations. If a permit is needed, follow the local process to avoid code violations and ensure safety.
Permit requirements vary by location. Check with your city’s building department to confirm whether a permit is needed for a waterline install.
What fixtures commonly require a waterline install?
Waterline installs are common for dishwashers, refrigerators with water dispensers, toilets, and outdoor faucets. Always verify the fixture’s manual for inlet size and recommended valve type.
Common fixtures include dishwashers, fridges with water, toilets, and outdoor faucets. Check the manual for inlet size.
Can I reuse old fittings or do I need new ones?
It’s best practice to use new, undamaged fittings and seals. Reusing worn washers or corroded parts can lead to leaks and water damage. Inspect every joint and replace suspect components.
Avoid reusing aging fittings. Replace worn washers and corroded parts to prevent leaks.
What should I do if a leak appears after testing?
If a leak appears, tighten the connection slightly and re-test. If leakage persists, disassemble, inspect washers and threads, and replace any damaged components. If unsure, stop and consult a professional.
If you see a leak, tighten a tad and re-test. If it keeps leaking, replace damaged parts or call a pro.
How long should a typical waterline install take?
For a straightforward run with standard fittings, plan for about 30 to 60 minutes. More complex routes or difficult access may take longer and could require additional tools or components.
Most installs take about 30 to 60 minutes, depending on complexity.
Watch Video
Main Points
- Plan the run thoughtfully to minimize joints.
- Use the correct materials and fittings for your code and fixture.
- Test leaks at low pressure before returning to normal operation.
- Shutoffs must be accessible and clearly labeled.
- Document the installation for future maintenance.
