Install Undermount Sink: A Complete Step-by-Step Guide
Learn to install an undermount sink with a durable seal and strong countertop support. This guide covers measuring, mounting, sealing, and testing for a leak-free install.
According to Install Manual, this guide shows you how to install an undermount sink properly, securing a durable seal and solid countertop support. You'll need a compatible countertop, a suitable mounting system, epoxy or silicone, and basic carpentry tools. This walkthrough covers measuring, fitting, sealing, and testing for a leak-free result.
Understanding undermount sinks: what they are and why homeowners choose them
Undermount sinks are installed below the countertop surface, creating a seamless, easy-to-clean edge along the sink. They pair especially well with solid surface materials like granite, quartz, and concrete, where a flush interface looks clean and modern. When you install undermount sink, you rely on a combination of adhesive bonding and mechanical fasteners to secure the sink to the underside of the countertop. According to Install Manual, this method offers a sleek aesthetic and less visible seam, but it also requires a strong substrate and precise measurement. The biggest trade-off is that repairs, if needed, are more involved than with drop-in models, and the mounting system must be carefully chosen to handle the weight and movement of daily use. In short, undermount sinks can deliver a premium look and functional benefits when the countertop, sink, and sealant are correctly matched.
Planning and measuring before you start
To install undermount sink successfully, start with precise planning and measurements. Begin by consulting the sink template and the countertop manufacturer's guidelines to determine the correct cutout size. Ensure the substrate behind the cutout is solid and free of voids, and verify that the countertop thickness is compatible with the sink mounting system. Based on Install Manual analysis, accurate measurements reduce callbacks and water intrusion risk. Mark the plan on the underside of the countertop and double-check alignment with the cabinet frame to avoid misfit. A careful plan saves time during the actual installation and helps you avoid costly countertop damage.
Cutout preparation and substrate prep
With your plan in place, the next step is to prepare the cutout and the underside substrate. Use the sink's template to trace the hole on the underside of the countertop. Make the cut with a router or jigsaw, following the template precisely. Check the edges for smoothness and remove burrs. The underside should have solid blocking or a supported shelf to bear the sink weight. If your countertop is stone, a dedicated undermount mounting kit provides the best support.
Tools, materials, and prep steps
Preparing a proper toolkit ensures a smooth install. You will need an undermount sink, a compatible mounting system (clips or brackets), neutral-cure silicone or epoxy, a level, a saw and router, clamps, measuring tape, and a helper to steady the sink during mounting. Having a clean workspace, protective padding, and rags on hand will help prevent chipping and clean up spills quickly. Safety glasses and gloves are recommended when cutting or routing.
Sealant, mounting systems, and installation steps
Choose between epoxy-based mounting systems or silicone-based bonding, depending on the countertop material and sink design. Mechanical mounting clips provide extra security and help distribute weight evenly. The combination of adhesive and clips prevents movement and helps maintain a tight seal around the rim. The installation sequence matters: apply sealant first, secure the sink from underneath, then attach clips and let the adhesive cure according to the manufacturer’s instructions. This careful sequence reduces edge gaps and potential leaks.
Testing for leaks, adjustments, and cleaning
After securing the sink and allowing any adhesive to cure, run water and inspect all seams for leaks. Check the drain connection for tightness and ensure there is no wobble. Wipe away excess silicone quickly to prevent staining, and re-check the seal after the water has cooled. Regular maintenance includes wiping down the edge and inspecting the sealant for hairline cracks, which can indicate movement or improper curing. This ensures long-term reliability of your undermount sink install.
Authority sources
For additional guidance and verification, refer to reputable sources such as This Old House and Better Homes & Gardens, which provide solid, non-commercial guidance on kitchen sink installations and sealing practices.
Tools & Materials
- Undermount sink(Select a sink compatible with your countertop cutout)
- Countertop template/trace tools(Template to trace the cutout)
- Silicone sealant (neutral cure)(Use for the final edge seal)
- Epoxy adhesive (two-part)(Use if the mounting system requires it)
- Mounting clips/brackets(Specifically designed for undermount sinks)
- Measuring tape(Accurate cutout and alignment)
- Pencil/marker(Mark cutout and mounting holes)
- Reciprocating saw or jigsaw(To create the cutout in the countertop)
- Router with edge guide or rabbeting bit(To smooth cut edges and ensure flush fit)
- Level(Ensure sink sits perfectly flat)
- Clamps(Hold pieces during mounting)
- Safety gear (gloves, goggles)(Personal protection during cuts)
- Cleaning rags and solvent(Prep and cleanup)

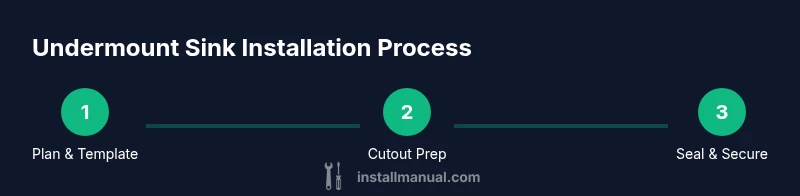

Steps
Estimated time: Active install time: 2-5 hours; cure time up to 24 hours
- 1
Verify countertop compatibility
Check that your countertop material and structure can support an undermount sink. Confirm the substrate is solid, free of voids, and thick enough for the chosen mounting system. This is critical to prevent future sagging or cracking.
Tip: Ask the countertop installer or manufacturer about endorsement for undermount sinks before cutting. - 2
Create and verify the cutout template
Trace the sink template onto the underside or top surface of the countertop and verify the tracing aligns with cabinet access. Use a straight edge for accuracy and double-check measurements before cutting.
Tip: Clamp the template securely to prevent shifting during tracing. - 3
Cut the countertop opening
Use a router with an edge guide or a jigsaw to rout or cut the outline marked by the template. Cut slowly and observe the line closely to maintain a precise fit without splintering.
Tip: Wear safety glasses; keep dust collection in place to minimize debris. - 4
Prepare underside support
Install blocking or an undersupport shelf beneath the countertop following the sink’s weight distribution requirements. This ensures the surface can bear the load without movement.
Tip: Use solid wood or steel supports for best rigidity. - 5
Dry-fit the sink
Place the sink into the cutout without sealant to confirm alignment and height. Check clearance around the edges and adjust as needed for a flush appearance.
Tip: If needed, trim the cutout slightly using careful incremental passes. - 6
Apply sealant and prepare mounting surfaces
Apply a continuous bead of silicone or install mounting adhesive to the rim or underside per the product instructions. Clean any excess to keep the edge smooth.
Tip: Only apply sealant to the appropriate surfaces specified by the sink manufacturer. - 7
Attach mounting clips and secure
Under the countertop, fit mounting clips/brackets and tighten to snugly hold the sink in place. If epoxy is required, mix and apply as directed and clamp until set.
Tip: Avoid over-tightening to prevent countertop damage. - 8
Seal, cure, and test
Finish by sealing the outer edge if needed and allow curing time as recommended by the product. Once cured, run water and check all seams for leaks while inspecting the drain connection.
Tip: Schedule a leak test after cure time to ensure long-term integrity.
Got Questions?
Can I install an undermount sink in any countertop material?
Undermount sinks work best with solid, rigid countertops such as granite or quartz. Some solid surfaces may require specialized mounting systems or professional reinforcement to ensure a secure fit and long-term stability.
Undermount sinks are ideal for rigid countertops like granite or quartz; for other materials, check with the manufacturer or a pro about reinforcement needs.
Do I need professional help to install an undermount sink?
Many installations can be done by a confident DIYer with the right tools and templates. However, due to the weight and precision required, professional installation is recommended for marble or thick stone countertops.
DIY can work for sturdy countertops, but if you have stone or heavy materials, consider a pro to ensure a proper seal and support.
How long does an undermount sink installation take?
Active installation typically takes several hours, with additional curing time for sealants or epoxy. Plan for a full day if you’re working alone and longer if you opt for professional service.
Expect several hours of work, plus curing time for sealant or epoxy if used.
What sealant should I use for undermount sinks?
Neutral-cure silicone is common for undermount seals, or epoxy when the mounting kit specifies it. Always follow the sink manufacturer's instructions for compatibility.
Use neutral-cure silicone or the recommended epoxy, following the manufacturer’s guidance.
What are common signs of an improper undermount sink installation?
Wobbling, visible gaps at the edge, water leakage around the rim, or the sink pulling away from the countertop are signs the installation may need adjustment. Recheck clamps, sealant, and substrate support.
If the sink wobbles or you see leaks around the rim, recheck mounting and sealing.
Can I reuse an existing countertop for undermount installation?
Reusing an existing countertop is possible if it’s solid, level, and thick enough to support the sink and mounting system. If the cutout or substrate is compromised, replacement or reinforcement may be necessary.
You can reuse a countertop if it’s solid and properly prepared; otherwise you may need reinforcement.
Watch Video
Main Points
- Measure carefully before cutting
- Choose the correct mounting system
- Seal and test for leaks
- Verify alignment and level
- Allow cure time before use
