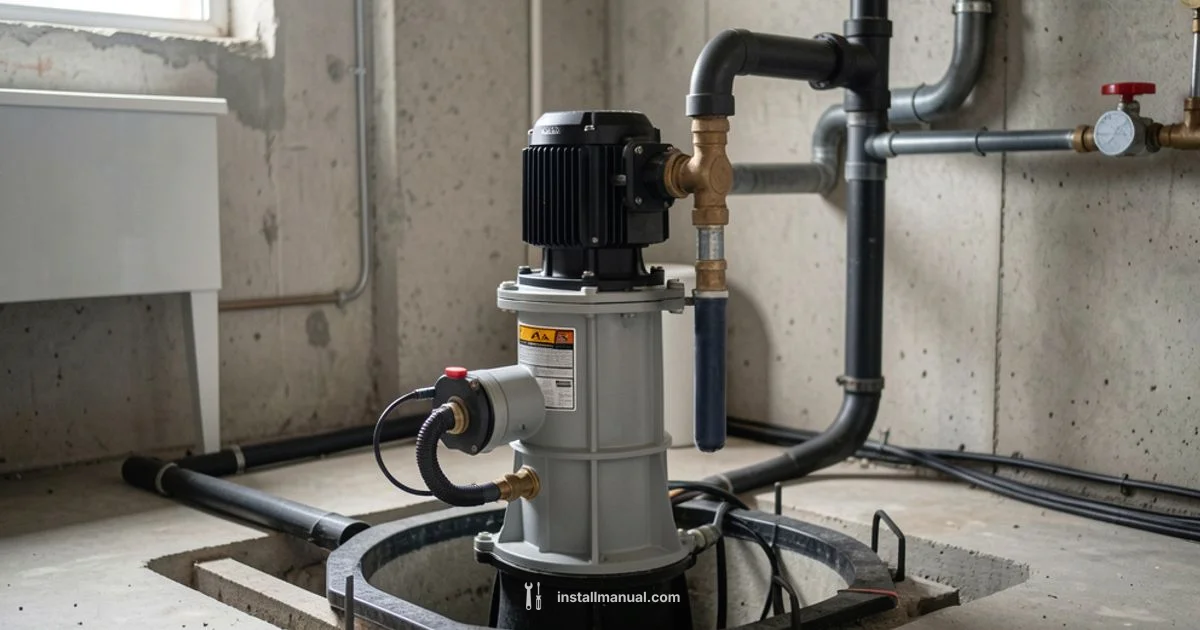

How to Install a Sump Pump Check Valve
Learn how to install a sump pump check valve to prevent backflow and basement floods. This step-by-step guide covers tools, safety, and maintenance tips for homeowners.
Goal: install a sump pump check valve to prevent backflow and protect your basement from flooding. You’ll need a few basic tools, the correct valve, and safety gear. This guide provides a step-by-step method, key safety tips, and troubleshooting notes to help homeowners complete the task confidently the first attempt at home.
Why installing a sump pump check valve matters
According to Install Manual, backflow from the discharge line can allow water that has already been pumped out to return to the sump pit. A properly installed check valve prevents that backflow, reducing the chance of basement flooding during power outages or pump failures. The Install Manual team notes that this upgrade is straightforward, affordable, and widely recommended for residential sump systems, especially in high-water areas. By preventing backflow, you also minimize stress on the pump’s motor and improve overall system reliability.
How backflow prevention works and valve types
A sump pump check valve is a one-way gate that lets water flow out to the curb or drainage line but blocks water from re-entering the sump pit. There are several valve designs, with swing and spring-loaded types being the most common for home use. Swing valves are simple and inexpensive, while spring-loaded valves offer a tighter seal at higher flow rates. When sizing the valve, match the pipe diameter and ensure the valve is rated for the anticipated flow in your basement setup. This understanding helps prevent nuisance leaks and reduces maintenance.
Choosing the right valve for your setup
Valve selection depends on pipe material (PVC vs. copper), diameter, and the space in your discharge line. For most residential sump pumps, a standard inline swing valve sized to the discharge pipe is sufficient. Ensure the valve’s direction arrow points toward the discharge flow and that the seals are compatible with your pipe adhesive or threading. If your sump has multiple discharge lines, you may need a double-check valve assembly or a valve with a cleanout access for future service.
Installation overview and planning
Plan to turn off power first, then drain the pit and prepare fittings. A properly oriented check valve will stop backflow without impeding normal drainage. Keep the area clean and dry, and confirm you have the right adapters and gaskets for your piping material. By planning ahead, you minimize the risk of leaks and reduce on-site frustration when fitting the new valve.
Authority sources and further reading
For more detailed guidance, consult reputable sources beyond DIY blogs. The EPA and OSHA provide safety and environmental guidelines relevant to plumbing work, while NIST standards help with general installation practices. Refer to the following sources to expand your understanding and confirm best practices:
- https://www.epa.gov/
- https://www.osha.gov/
- https://www.nist.gov/
Troubleshooting and maintenance tips
After installation, perform a leak test by running a short pump cycle and watching for drips at joints. If you notice slow leaks, re-seat fittings and re-tighten where appropriate. Periodically inspect the valve and replace it if you observe stiffness, cracking, or persistent leaks around seals. Regular maintenance extends valve life and protects your basement from future floods.
Tools & Materials
- Sump pump check valve (properly sized)(Inline valve with correct diameter to fit discharge pipe)
- Discharge piping adapters(PVC or metal adapters matching pipe size and material)
- Teflon tape or pipe thread sealant(Use on threaded joints to prevent leaks)
- PVC cement or solvent weld(for PVC piping if needed (not always))
- Pipe wrench / adjustable wrench(To tighten fittings without crushing pipe)
- Hacksaw or pipe cutter(Cut pipe cleanly and squarely)
- Bucket and towels(Catch drips and keep work area dry)
- Safety glasses and gloves(Personal protective gear)
- Marker or tape measure(Mark alignment and trim length)

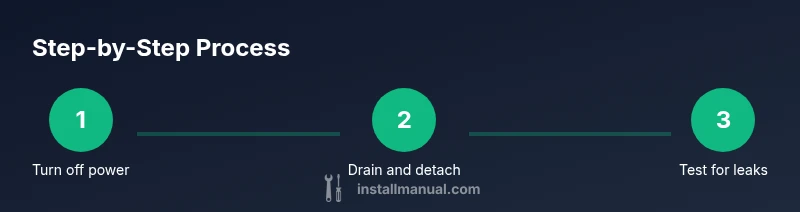

Steps
Estimated time: 60-90 minutes
- 1
Turn off sump pump power
Go to the main power source or circuit breaker and switch off the sump pump. Unplug the unit if accessible to prevent accidental starts. Verify the area is dry and safe before handling electrical components.
Tip: Use a non-contact voltage tester to confirm power is off. - 2
Drain the pit and detach the discharge line
Place a bucket under the discharge line and open the drain to remove standing water. Detach the line from the pump and prepare for valve installation. Have rags ready to catch residual water.
Tip: Take photos of existing connections before removing any parts. - 3
Remove existing fittings
Loosen and remove any existing elbow or coupling in the discharge line where the check valve will go. Keep fasteners organized in a tray.
Tip: Avoid twisting PVC; if seams bind, apply penetrating oil and work gently. - 4
Install the new check valve
Thread or glue the new valve into the discharge line, following the valve orientation arrow toward the exit. Tighten securely but avoid over-tightening that may crack the pipe.
Tip: Check for straight alignment; use a pipe wrench if needed. - 5
Seal joints and secure fittings
Apply Teflon tape or pipe sealant to threaded joints. Re-seat any gaskets and ensure all adapters are tight. Avoid applying sealant to areas that must move or seal with compression fittings.
Tip: Wipe excess sealant and check for cross-threading. - 6
Reconnect discharge line and test fit
Reconnect the discharge line to the check valve and verify the line’s slope directs water away from the foundation. Ensure no kinks or sharp bends.
Tip: Dry-fit the assembly before final tightening to confirm clearance. - 7
Test for leaks and backflow
Pour a small amount of water into the pit and run the pump for a short cycle. Observe joints for leaks and check that water does not flow back into the sump.
Tip: Listen for a clicking sound indicating valve seating and watch for any slow leaks. - 8
Restore power and observe operation
Turn the circuit back on and run the pump through a complete cycle. Confirm the valve remains closed when the pump stops and that normal operation is intact.
Tip: Let the system cycle a few times to ensure reliability.
Got Questions?
What is a sump pump check valve and why is it needed?
A sump pump check valve is a one-way device that prevents water from flowing back into the sump pit after being discharged. It helps reduce basement flooding risk during pump power loss or high water events.
A one-way valve stops backflow from the discharge line, reducing basement flooding when the pump stops.
Can I install a check valve myself or should I hire a plumber?
If you have basic plumbing skills and follow safety guidelines, a DIY installation is feasible. For complex pipe layouts or uncertain local code requirements, consult a licensed plumber.
If you’re comfortable with basic plumbing and safety steps, you can install it yourself; otherwise, hire a pro.
What is the difference between swing and spring-loaded check valves?
Swing valves use a hinged flap that swings with flow, while spring-loaded valves use a spring to ensure a tighter seal. Spring-loaded valves offer better sealing at high flow but may cost more.
Swing valves rely on a flap; spring-loaded valves use a spring to seal more tightly at speed.
How can I test if the valve is working properly?
Run a short pump cycle and watch for backflow when the pump stops. Inspect joints for leaks and recheck alignment if you see water returning to the sump.
Run a quick test cycle and look for backflow or leaks.
How often should I replace a sump pump check valve?
Check valves last many years, but replace if you notice cracks, stiffness, or persistent leaks. Regular inspection helps prevent flood risks.
Inspect it periodically and replace if you notice damage or leaks.
Will a check valve stop all backflow in my basement?
A properly installed check valve reduces backflow dramatically but may not stop all backflow in every scenario. Pair it with proper pump sizing and venting for best results.
It greatly reduces backflow, but no single valve can guarantee zero backflow in every case.
Watch Video
Main Points
- Install a check valve to prevent backflow and reduce flooding risk.
- Choose the correct valve type and size for your pipe.
- Test the system after installation to confirm proper operation.
- Follow safety guidelines and local codes when DIYing.
