How to Install a Submersible Well Pump
Learn how to install a submersible well pump safely with Install Manual. This guide covers planning, pump selection, electrical and water connections, testing, and maintenance for a reliable home water supply.
Goal: you will safely install a submersible well pump and establish a reliable home water supply. This guide covers required equipment, safety, wiring, piping, and testing to prevent common failures. Follow a step-by-step plan to minimize risk and ensure long-term performance. Embrace proper shutoff procedures, verify power isolation, and complete leak checks before returning water to service.
Why installing a submersible well pump safely matters
According to Install Manual, installing a submersible well pump correctly is essential for long-term reliability, water quality, and system safety. The phrase install submersible well pump reflects a task that combines mechanical setup with electrical know-how and site readiness. A well-executed installation reduces pressure-switch cycling, minimizes leaks, and protects wiring from moisture. Before you start, understand your well geometry, depth, and the pump’s flow rate requirements, and verify that the electrical supply and grounding meet local codes. Safety should come first: shut off the main power, wear protective gear, and use non-conductive tools when working near water. In many communities, a permit or inspection is required for replacement pumps or reconfiguration; check with your local building department. Plan for a clean work zone, adequate lighting, and a helper if you must handle heavy equipment. Finally, have a reliable plan for priming, if your system uses a suction line, and confirm that all fittings and seals are rated for potable water when applicable.
Key differences: submersible vs jet pumps
Submersible pumps are designed to operate while submerged in the water-filled well, with the motor sealed to resist moisture and contaminants. Jet pumps, by contrast, sit above ground and rely on atmospheric pressure to pull water up from the well face. The installation implications differ: submersibles require proper depth alignment, drop pipes, and a secure electrical feed, while jet pumps emphasize priming and air management. Understanding these differences helps you choose the right configuration for your water table, well depth, and household demand. For most deep wells, a submersible model provides quieter operation and fewer priming issues, but requires careful electrical and plumbing work to ensure longevity and safety.
Planning your installation: permit, power, and water well readiness
Begin with a plan that accounts for well depth, water yield, and your home’s daily water needs. Confirm well casing integrity and well cap condition, and ensure the site has a safe, dry workspace. Check electrical service availability, circuit capacity, and grounding requirements. Decide on a suitable horsepower and GPM rating based on usage, and plan for a pressure tank and control switch. If you’re unsure about well depth, static water level, or water quality, consult a licensed well contractor before purchasing parts. Gather local permit requirements, inspection criteria, and any code mandates related to electrical and plumbing work. A clear plan reduces surprises and helps you schedule helper support and tools in advance.
Safety and codes to check before you start
Before touching any equipment, lock out the power source and test for real voltage to avoid shock. Wear protective gear, including gloves and eye protection. Verify that your electrical plan complies with local codes, including GFCI protection where required and proper grounding. Use certified conduit fittings and moisture-rated enclosures for outdoor runs. Keep a clean, organized workspace to prevent cross-contamination of potable water lines. Finally, review any water quality concerns and ensure all fittings are food-grade if potable water contacts are possible.
Choosing the right pump and components
Select a pump with a depth-appropriate motor, suitable horsepower, and the required GPM to meet household demands. Check the drop pipe material, the correct size of the check valve on the discharge line, and compatibility with your well’s casing diameter. Include a pressure tank, a pressure switch with appropriate cut-in and cut-out settings, and a robust sealing kit. Don’t overlook the energy rate and duty cycle; a pump that runs continuously will wear faster. If you’re unsure about exact specifications, consult the manufacturer’s curves and, if possible, reference local installers’ recommendations. The right combination of pump, piping, and control components prevents premature failure and keeps water pressure stable.
Preparing electrical and water connections
Shut off mains and verify zero voltage at the wellhead. Route conduit or cable from the service panel to the wellhead using weatherproof fittings. Install a grounded disconnect near the well for service access. Pull or push the conductors through the conduit with the appropriate gauge for the motor amperage, and seal all connections to resist moisture. Mount the pressure switch and the control box in a dry location and ground the system correctly. Ensure the drop pipe and discharge fittings are clean and free of debris before assembly. Always use potable-water-rated components where the system may contact drinking water.
Installing the pump and check valves
Lubricate threaded fittings and apply plumber’s tape or thread sealant on all threaded joints. Attach the check valve to the drop pipe at the correct position, then lower the submersible pump into the well until the pump collar sits at the designed depth. Connect the electrical leads to the motor via the protective conduit, ensuring secure strain relief. Attach the discharge pipe to the pump outlet and route it toward the pressure tank, securing with clamps. Verify that the pump is level and free of vibration. Finally, test the connections for leaks before energizing the circuit.
Testing, priming, and troubleshooting common issues
Restore power and perform a controlled startup. Listen for uniform motor hum without unusual sounds indicating mounting or alignment issues. If the system is not delivering water, check the pressure switch settings and verify the pump is not starved for water. Bleed any air from the discharge line and ensure all seals are tight. Look for leaks around seals, check valves, and threaded joints. If faults persist, consult the manufacturer’s troubleshooting guide and consider a field service check if you suspect electrical or well-related problems.
Maintenance and long-term care to extend life
Schedule annual inspections of electrical connections, seals, and the pressure tank’s pre-charge. Flush the well periodically to monitor water quality and prevent sediment buildup in the pump and piping. Test and calibrate the pressure switch after adjustments. Inspect float valves and check valves for sticking or wear, replace worn components promptly, and keep the area around the wellhead free of debris. Regular maintenance enhances reliability and extends the pump’s service life.
Tools & Materials
- Submersible well pump (horsepower and depth rated)(Choose model matched to well depth, well yield, and planned GPM.)
- Drop pipe (galvanized or stainless steel)(Length should reach below the pump’s intake and align with well depth.)
- Check valve(One-way valve at top of drop pipe to prevent backflow.)
- Discharge piping and fittings(PVC or copper; ensure potable-water compatibility and leak-free joints.)
- Pressure tank(Size based on household demand; include air pre-charge as required.)
- Pressure switch(Set points appropriate for household use and well characteristics.)
- Electrical conduit and fittings(Weatherproof and properly rated for outdoor/wet environments.)
- Grounding electrode, conductors, and enclosure(Meet local codes; ensure proper grounding and bonding.)
- Wire nuts, tape, and sealants(Moisture-rated and appropriate for potable water areas.)
- Lockout/Tagout device(To ensure power remains off during work.)
- Personal protective equipment (PPE)(Gloves, eye protection, and non-slip boots.)
- Multimeter or voltage tester(Verify zero voltage before handling conductors.)
- Pipe thread sealant or plumber’s tape(Seal threaded joints to prevent leaks.)
- Silicone sealant or waterproof putty(Optional for outdoor sealing.)

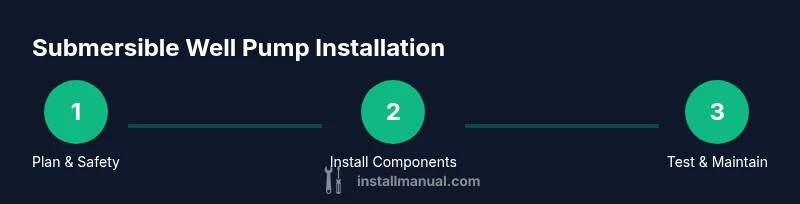

Steps
Estimated time: 3-6 hours
- 1
Shut off power and verify absence of voltage
Switch off the service disconnect and verify there is no voltage at the wellhead with a multimeter or non-contact tester. This prevents shock during installation. Keep the area clear of children and pets while you work.
Tip: Always double-check power at all circuit sources serving the well. - 2
Inspect the wellhead and prepare the work area
Visually inspect the wellhead for cracks, cap integrity, and moisture intrusion. Clear the workspace, lay out tools, and prepare drop pipes and fittings. Have a helper ready if you’re moving heavy components.
Tip: Take photos of the original setup before disassembly for reference. - 3
Install the check valve and drop pipe
Attach the drop pipe segments and install the check valve at the correct position on the discharge line. Ensure all joints are clean and plumb. Tighten fittings per manufacturer specs to avoid leaks.
Tip: Use plumber’s tape on threaded connections and hand-tighten before final torque. - 4
Lower the pump into the well
Carefully lower the submersible pump into the well to the designed depth, supporting it with a rope or line from above. Stop if you encounter resistance and reposition as needed to avoid cable damage.
Tip: Keep the power cable and discharge line separate to prevent snagging. - 5
Pull electrical wiring to the pump site
Run the controller, conduit, or direct-braided cable from the service panel to the wellhead. Maintain neat routing and secure with clamps, avoiding sharp bends that can fatigue wires.
Tip: Use a fish tape or pulling tool to guide conductors through the conduit. - 6
Connect power, switch, and grounding
Connect the pump leads to the motor terminals, install the pressure switch, and establish a solid ground connection. Mount protective enclosures and ensure all electrical components are dry and rated for outdoor use.
Tip: Verify motor rotation direction before finalizing connections. - 7
Install the pressure tank and set switch pressures
Mount the pressure tank in a dry location and wire it to the control system. Set the cut-in and cut-out pressures according to household needs and well performance, following manufacturer recommendations.
Tip: Document your settings for future reference. - 8
Prime, test, and check for leaks
Power up the system and prime the discharge line if applicable. Check all joints for leaks, verify pressure readings, and confirm water delivery. Bleed any air from the line to prevent air locking.
Tip: If the line remains air-locked, power down and re-check fittings for tightness. - 9
Finalize test and secure the installation
Run the pump under normal operating conditions for a full cycle. Confirm safe operation, no abnormal noise, and consistent water pressure. Clean the area and restore any coverings or protective plates.
Tip: Keep a maintenance log with dates and test results.
Got Questions?
What is a submersible well pump, and when should I install one?
A submersible well pump is placed underwater inside the well and sealed to prevent moisture intrusion. It is typically used for deeper wells and higher water needs. Installations should be considered when surface pumps cannot reach water at required depths or when quiet, reliable operation is desired.
A submersible well pump sits inside the well and moves water up through the pipe. It’s a good choice for deeper wells and steady water supply.
Do I need a permit to install a submersible well pump?
Permitting varies by location. Some jurisdictions require a permit for well work or electrical modifications, and inspections may be required after installation. Check with your local building or water authority before starting the project.
Check with your local building department to confirm permit and inspection requirements.
Can I install the pump myself, or should I hire a pro?
DIY installation is possible for those with solid plumbing and electrical skills, but improper installation can lead to leaks, electrical hazards, or pump failure. If you’re unsure about terms like GFCI protection or grounding, hire a licensed professional.
If you’re not confident with electrical and plumbing work, a pro is the safer route.
What size pump do I need for a typical household?
Sizing depends on well yield, depth, and household water use. Use manufacturer curves and professional guidance to select horsepower and GPM that meet demand without overworking the motor.
Sizing depends on your well and how much water your home uses.
What maintenance is required after installation?
Perform periodic inspections of electrical connections, seals, and pressure tank pre-charge. Flush the well as recommended, and monitor water quality to prevent sediment buildup in the pump and piping.
Keep an eye on the electrical parts and seals, and check water quality regularly.
How long does a submersible well pump last?
Lifespan varies with usage, water quality, and maintenance. With proper care, a well-installed submersible pump can provide reliable service for many years.
A well-maintained pump can last many years, depending on conditions and maintenance.
Watch Video
Main Points
- Plan and verify safety before touching electricals
- Choose the pump and components based on well depth and GPM needs
- Seal all joints for leak-free operation
- Test thoroughly and document settings for future maintenance
- Maintain the system to extend life
