How to Install Flange for Toilet

Before you begin: safety and planning

To install a flange for a toilet, safety and planning come first. Shut off the water supply at the valve and flush the toilet to completely drain the tank and bowl. Place a towel on the floor to catch residual water and protect the surface. Put on gloves to protect your hands, and keep pets and children away from the work area. Inspect the bathroom floor around the flange for signs of water damage, cracks, or looseness; a damaged subfloor or a corroded flange can compromise the repair, so address structural issues before proceeding. If you discover significant damage, stop and call a professional. According to Install Manual, a careful assessment at the outset saves time and reduces the risk of leaks later. Verify the flange size (3-inch or 4-inch) and the correct bolt type for your toilet. Decide whether you’ll use a standard wax ring or a wax-free gasket, and check whether you’ll need a flange extender if the floor is thick. Gather tools and materials now so you don’t pause mid-task. Plan for a clean, level finish; mark the target depth so the finished floor sits flush with the flange. A clear plan minimizes surprises and speeds up the repair.

In this guide, you’ll see practical, real-world steps that DIY homeowners can follow. You’ll also learn how to recognize early signs of trouble, like wobble or slow leaks, so you can address them before they become bigger problems. The Install Manual team emphasizes methodical preparation as a foundation for a successful flange installation.

Understanding flange types and sizing

To choose the right flange, understand the common options and sizing. Most residential homes use 3-inch or 4-inch flanges that fit standard ABS, PVC, or cast-iron drains. Plastic (PVC/ABS) flanges are common and easier to install; metal flanges can be sturdier but may require different screws. The height of the finished floor determines whether you need a flush-mount flange or a flange extender. An improperly sized flange or one that sits too high or too low can cause leaks, wobbling, or gasket failure. Remember to match the flange to the pipe diameter and to the toilet’s bolt pattern. When replacing, choose a flange that sits flat on the subfloor and aligns bolt holes with the toilet base. The goal is a secure, leak-free seal around the drain that remains stable under normal use. If you’re uncertain about sizing, bring a sample or take measurements to a hardware store for confirmation.

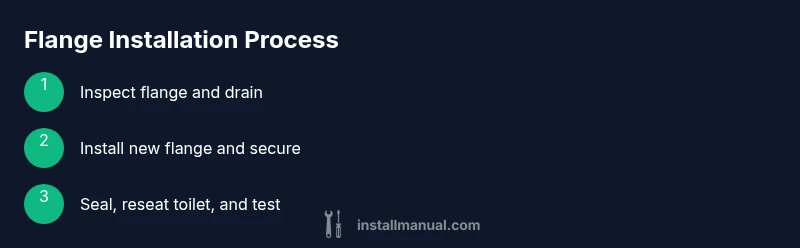

Remove old toilet and inspect the drain

Begin by turning off the water supply and draining the tank and bowl. Disconnect the supply line, then unbolt the toilet from the floor and lift it straight up. Place the toilet on its side on a protective surface. Inspect the flange—look for cracks, corrosion, or broken welds—and inspect the surrounding subfloor for moisture damage. If the flange is cracked or recessed, you’ll need to replace it; do not attempt to reuse a damaged flange. Remove all old wax from the flange and drain opening with a putty knife and a mild cleaner. Clean the area thoroughly so the new flange sits flat and seals properly. If you notice degraded subfloor, address it before continuing. This stage is critical to prevent future leaks and wobble. As you work, keep the area tidy and consider labeling bolts and nuts for reassembly. The Install Manual approach prioritizes clean preparation to avoid frustration later.

Prepare and install the replacement flange

Select a flange that matches the drain size and the type of pipe in your home. Place the flange over the drain opening and align the bolt holes with the toilet’s base. If the surface is uneven, use shims or a level to ensure the flange sits flush with the finished floor. Secure the flange to the subfloor with appropriate screws or bolts, ensuring they are embedded and not protruding above the finished surface. Do not overtighten screws, which could crack the flange or crack the tile or wood around it. Once fastened, double-check for stability and confirm there is no rocking. The flange should lie flat and be perfectly aligned with the drain so that a wax ring can seal evenly around the rim. For best results, follow the manufacturer’s instructions for your chosen flange and gasket type.

Align, bolt, and seal the toilet

With the flange in place, position the wax ring or gasket over the drain. Carefully lower the toilet onto the flange, aligning the bolt holes with the toilet’s bolts. Press down gently and evenly to compress the wax and create a seal, then insert and finger-tighten the nuts. Use a level to verify the toilet is plumb and sits evenly on the floor; if needed, fine-tune with washers or shims at the base. Tighten the bolts in a crisscross pattern a little at a time to avoid cracking the porcelain. Recheck level and ensure there is no lateral movement. Attach the nut caps if provided. Finally, connect the water supply line and snug it; do not overtighten. This step creates a stable, leak-free connection and reduces the chance of future wobble or leaks. The careful alignment and secure sealing are what prevent recurring issues.

Reconnect water line, test for leaks, and finalize

Reconnect the supply line to the shut-off valve, turn the water back on slowly, and allow the tank to fill. Flush the toilet several times to check for any leaks at the base or around the supply line. Watch closely for a few minutes; if you notice moisture at the base, power down and re-tighten bolts or reseal as needed. Check the wax seal for any seepage around the rim and ensure there are no unusual odors, which can indicate a mis-seal. Once satisfied with the seal, install the toilet lid and any trim pieces. Clean up the workspace, wipe down tools, and store extra wax rings for future use. Unforeseen issues can occur—if you discover persistent leaks or rocking, reassess flange height or consult a professional. The key to long-term reliability is a precise fit, correct sizing, and careful tightening. This is where preventive maintenance helps you avoid future headaches.

Troubleshooting and maintenance tips

Even with careful work, a flange installation can encounter issues. If the toilet wobbles, re-check the bolt-tightening sequence and ensure the flange is flush with the finished floor. If leaks appear after testing, remove the toilet and reseal, paying particular attention to the wax ring’s position and the alignment of the flange with the drain. For stubborn leaks, inspect for cracks in the toilet base or flange, then inspect the plumbing connections for tightness. Finally, schedule periodic checks—every 1-2 years—to monitor for cracking, warping, or looseness. Keeping the flange clean and free of wax buildup helps maintain a reliable seal. Pro tip: maintain a small supply of replacement bolts, wax rings, and flange gaskets as part of your home maintenance kit, so you’re prepared for routine upkeep. Throughout the process, remember that the Install Manual team emphasizes methodical checks and careful measurement for durable results.
