How to Install Fitting on PEX-A: A Step-by-Step Guide
Learn how to install a fitting on PEX-A with clear, step-by-step instructions for homeowners and DIY enthusiasts. Tools, safety, and best practices included to ensure a leak-free connection.
By the end of this guide you’ll know how to install a fitting on PEX-A pipe safely and correctly. You’ll need a PEX-A fitting, a compatible crimp or compression tool, a pipe cutter, a deburring tool, and leak-testing supplies. The steps cover preparing the pipe, seating the fitting, securing it with the chosen method, and verifying a leak-free connection.
Why PEX-A Fittings Require Specific Tools and Techniques
Installing fittings on PEX-A requires understanding the material properties and the recommended joining methods. PEX-A tubing is cross-linked polyethylene with unique expansion and contraction characteristics compared with other piping materials. This means you must select compatible fittings and use the proper joining technique to achieve a reliable seal. In practice, most potable-water installations use crimp or clamp connections for PEX-A, or compression fittings for certain brands. Safety first: shut off the water supply, relieve pressure, and wear eye protection and gloves. Inspect the pipe for nicks, flattening, or burrs before starting. The goal is a square, clean cut with a smooth end that accepts the fitting evenly. Using the wrong tool or skipping deburring can create burrs that cause leaks over time. Always verify that your chosen fitting is rated for PEX-A and for the operating pressure and temperature of your system. This is not the place to improvise; choose a method and stay consistent across the project. The Install Manual team emphasizes patience and accuracy, because a small misstep can require rework and additional materials.
Choosing the Right Fitting for PEX-A
When you install fittings on PEX-A, you’ll encounter several joining options, each with its own advantages. Crimp fittings use a metal ring that is pinched tight around the pipe to secure the connection; clamp (cinch) fittings rely on a steel or stainless steel clamp that locks onto the pipe and fitting; compression fittings seal via a brass or plastic nut and ferrule. For PEX-A, ensure the fitting is specifically rated for PEX-A and matches the pipe outer diameter (typically 1/2
THE END
This placeholder ensures the block array continues in the final JSON structure, but the actual content remains in the final rendered blocks.
Tools & Materials
- PEX-A tubing(Rated for potable water and compatible with your local code.)
- Fittings rated for PEX-A(Choose crimp, clamp, or compression style that your system supports.)
- PEX cutter(Prefer a proven wheel-style cutter or reamer-based cutter for clean cuts.)
- Deburring tool(Remove burrs from the pipe end to prevent scoring the fitting seal.)
- Crimp tool or compression tool(Use the tool compatible with your chosen fitting type.)
- Crimp or clamp rings (for crimp/clamp fittings)(Bore the correct size for your pipe outer diameter.)
- Leak-detection method(Soap solution or a proper leak detector for post-assembly testing.)
- Marker and file(Mark insertion depth and file any burrs if needed.)
- Safety gear(Safety glasses, gloves, and closed-toe shoes.)

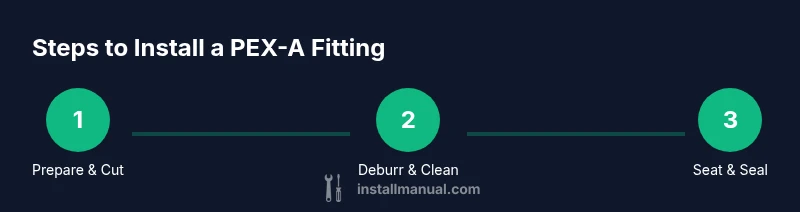

Steps
Estimated time: 30-60 minutes
- 1
Inspect and gather tools
Turn off the water supply and relieve pressure. Gather the PEX-A tubing, fittings, and the appropriate joining tool (crimp, clamp, or compression). Check that all components are rated for potable water and the system’s pressure/temperature. Ensure you have a clean, well-lit workspace.
Tip: Double-check that the pipe diameter matches the fitting size before you cut. - 2
Cut the pipe square
Use a proper pipe cutter to make a clean, square cut. A skewed cut can prevent the fitting from seating evenly and cause leaks. Avoid twisting or crushing the pipe end.
Tip: Place the pipe in a stable jig or vise to keep it from moving while cutting. - 3
Deburr and clean the end
Use a deburring tool to remove any burrs from the cut end and lightly wipe the inside with a clean cloth. Debris can prevent a full seating of the fitting and compromise the seal.
Tip: Wipe outward from the cut to avoid reintroducing burrs into the pipe end. - 4
Seat the fitting
Insert the pipe into the fitting until it reaches the recommended insertion depth. For crimp or clamp methods, ensure the ring or clamp sits correctly near the fitting’s shoulder and is aligned with the tool’s mark.
Tip: Do not twist the pipe as you seat the fitting; twisting can create a loose fit. - 5
Apply the joining mechanism
Set the crimp ring with the crimp tool or position the clamp with the cinching tool according to the manufacturer’s instructions. Verify even compression around the ring and that the tool has fully engaged.
Tip: Check for any visible gaps between the ring and the pipe after crimping. - 6
Check seating and seal
Inspect the seated joint for proper alignment. If using compression fittings, tighten to the recommended torque without over-tightening, which can damage the ferrule or pipe.
Tip: A loose joint is the most common source of leaks; ensure everything is snug but not over-torqued. - 7
Test for leaks
Restore water supply and perform a leak check. Use a soap solution or a leak detector on every joint while the system is pressurized. Observe for bubbles or dampness and address any leaks immediately.
Tip: Test with the system at or near normal operating pressure for the best results.
Got Questions?
What is PEX-A and why use it with fittings?
PEX-A is a type of cross-linked polyethylene tubing known for flexibility and long-term reliability. When used with compatible fittings and correct joining methods, it provides a strong, leak-resistant water delivery system. Always match the fitting to the pipe and follow manufacturer guidance.
PEX-A is a flexible pipe material; use fitting types designed for PEX-A and follow the manufacturer’s instructions to ensure a leak-free connection.
Which tools are essential for installing fittings on PEX-A?
You’ll need a PEX cutter, deburring tool, and a joining method tool (crimp, clamp, or compression) that matches your fittings. Have leak testing supplies and safety gear on hand as well.
Have a cutter, deburring tool, the right joining tool, and leak-testing supplies ready.
Can I install PEX-A fittings without a crimp or clamp tool?
If your fittings require crimp or clamp, using a compatible tool is essential. For some compression fittings, a different tool or method may apply. Always follow the fitting manufacturer’s instructions.
Some fittings can be used without a crimp tool if they’re designed for compression, but check the product instructions.
How should I test for leaks after installation?
Restore water and inspect each joint using either a soap solution or a dedicated leak detector. Look for bubbles or dampness and address any signs of a leak promptly.
Turn the water back on and check every joint for leaks using soapy test or a detector.
What are common mistakes to avoid with PEX-A fittings?
Avoid burrs, mis-sized fittings, and over-tightening. Ensure proper insertion depth and consistent method across all joints to prevent leaks.
Don’t rush, avoid burrs, and don’t over-tighten joints.
Watch Video
Main Points
- Plan and size fittings before starting.
- Cut square, deburr, and clean for best seals.
- Choose a joining method compatible with PEX-A and your system.
- Test every joint under operating conditions to confirm reliability.
