How to Install a Toilet Fill Valve: Step-by-Step Guide
Learn how to install a toilet fill valve safely and efficiently. This guide covers valve types, tools, step-by-step actions, testing for leaks, and maintenance tips for a quiet, reliable refill.
This guide shows you how to install a toilet fill valve safely and efficiently. It covers identifying valve types, selecting the right replacement, turning off water, removing the old valve, installing the new unit, adjusting the float, and testing for leaks. Required items include a replacement fill valve kit, adjustable wrench, towels, and a bucket. Follow these steps to achieve a quiet, reliable refill and prevent running toilets.
What is a toilet fill valve and why replace it?
If you’re exploring how to install a toilet fill valve, start by understanding the device that refills your tank after flushing. The fill valve controls how much water enters the tank and when the refill stops. According to Install Manual, choosing the right valve is essential for efficiency and long-term performance. In most homes you’ll encounter two common types: canister-style and piston-style fill valves. Canister valves usually seal more reliably and are found in newer, high-efficiency toilets, while piston valves are simpler and often cheaper. Common symptoms that indicate replacement is needed include a toilet that runs intermittently, constant refilling after a flush, or a low water level that never reaches the recommended line. Replacing the valve isn’t intimidating, but doing it correctly matters for leak prevention and a stable refill rate. This guide helps you identify the valve you have, pick the correct replacement, and install it with confidence.
Valve type and compatibility
Understanding your current valve helps you pick a compatible replacement. Canister valves are cylindrical and insert from the bottom with a threaded shank; piston valves are attached to the fill limit with a plastic cap and a float arm. Compatibility mainly revolves around the valve shank size (usually 7/8 inch), the connection to the water supply line, and the tank’s height. Before buying, measure the height and note the connector type on your supply line. If you have a compact or low-profile tank, a compact canister valve may fit better. For standard tanks, most canister or piston replacements will work. Always confirm the replacement model matches the tank’s brand and the installation hardware included in the kit.
Tools, parts, and safety prep
Before you begin, gather your tools and parts. A replacement fill valve kit typically includes the valve body, float, screws, and rubber seal. You’ll also need an adjustable wrench, pliers, a screwdriver, towels, a bucket, and a wrenches for the supply line. Safety begins with turning off the shutoff valve behind the toilet, then draining and drying the tank. Removing the water from the tank minimizes spills and protects the floor. Cleaning the threads and gasket surfaces ensures a tight seal. Having everything ready beforehand keeps the job moving smoothly and reduces the risk of leaks after installation.

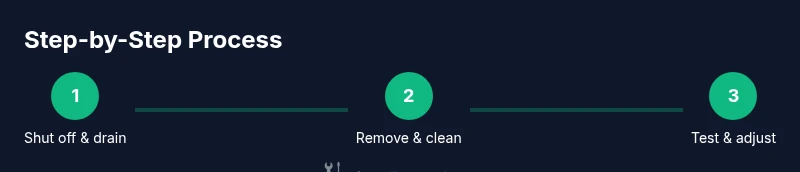

Step-by-step installation overview
This section provides an overview of the installation flow, which you will execute in the detailed steps that follow. Start by turning off the water supply and draining the tank completely. Remove the old fill valve and inspect the mounting nut and gasket area for wear. Clean any mineral buildup and ensure the tank rim is dry. Install the new fill valve according to the kit instructions, making sure the float is adjusted to the correct fill level. Reconnect the supply line, turn the water back on slowly, and test for leaks. Finally, adjust the float to achieve the proper water level and ensure the fill cycle stops promptly. If you encounter a leak around the gasket, reseat the valve and adjust the nut, applying plumber’s tape if needed. The goal is a stable refill with no running water.
Authority sources and verification
To corroborate the steps and best practices for installing a toilet fill valve, you can consult reputable sources. For water efficiency guidance, see EPA WaterSense guidelines. University extension programs also offer practical home repair tips that align with DIY plumbing projects. Always verify you are following local codes and manufacturer recommendations when replacing any toilet component. These sources provide general principles you can apply to a wide range of fixtures and ensure you maintain safety and efficiency in your home.
Maintenance and troubleshooting tips
After installation, regular maintenance helps extend valve life. Periodically inspect for leaks around the base and supply line; ensure the float arm moves freely and isn’t rubbing the tank wall. If the toilet continues to run or refills erratically, double-check the fill level mark, adjust the float, and ensure the gasket is seated correctly. Mineral buildup can impede the fill valve; cleaning with a mild vinegar solution (while the water is off) can help, but avoid harsh chemicals that might degrade gasket materials. If you notice frequent clogging or stuttering fills, you may need to replace the entire valve or upgrade to a more robust model designed for your tank size.
Safety and disposal
Always prioritize safety: shut off the water, drain the tank, and use towels to catch spills. If you remove the old valve and discover a cracked tank or corroded fittings, stop and assess whether you need to replace additional components. Recycle or dispose of the old valve per local guidelines and keep replacement parts away from children. After finishing, run several test fills to confirm there are no leaks and that the tank refills within the expected time window.
Tools & Materials
- Replacement toilet fill valve kit (canister or piston style)(Includes valve body, float, seals, and mounting hardware)
- Adjustable wrench(For loosening/tightening mounting nut)
- Channel-lock pliers(Optional for stubborn fittings)
- Screwdriver (Phillips and/or flathead)(To secure small screws or clamps)
- Bucket or shallow tray(Catches water when you disconnect the supply line)
- Towels or rags(Keep the area dry and prevent slipping)
- Teflon tape (PTFE) or plumber’s tape(Optional on threaded connections)
- Flexible supply line (new)(If your current line shows wear or leaks)
- Cleaning cloth and mild cleaner(Drying and cleaning tank fittings)
Steps
Estimated time: Total time: 60-90 minutes
- 1
Shut off water and drain the tank
Locate the shutoff valve behind the toilet and turn it clockwise until it stops. Flush the toilet to empty the tank and catch any remaining water with towels. This prevents spills and prepares the tank for valve removal.
Tip: Have towels ready; a bucket helps catch any residual water during disconnections. - 2
Disconnect the supply line
Place a bucket under the line and loosen the nut that connects the supply line to the fill valve. Carefully lift the line away from the valve inlet. If the nut is corroded, apply penetrating oil and let it sit for a few minutes before retrying.
Tip: Do not force the line; cross-threading can damage the valve or supply line. - 3
Remove the old fill valve
From inside the tank, loosen the mounting nut securing the fill valve. Remove the valve assembly and inspect the gasket and threads. If the old nut or gasket is damaged, replace them with the new kit’s components.
Tip: Keep track of the order of any washers or spacers for proper reassembly. - 4
Clean the tank mounting area
Wipe the tank hole and threads to remove mineral buildup. Dry the area completely so the new seal sits flush. A clean surface ensures a leak-free seal.
Tip: If mineral buildup is heavy, use a soft brush to scrub gently—avoid scratching plastic tank surfaces. - 5
Install the new fill valve
Insert the new valve through the tank hole and tighten the mounting nut from underneath. Install the gasket and seal per the kit, making sure the valve is vertical and seated firmly. Attach the angle-stop connector or flexible supply line as provided.
Tip: Do not overtighten the mounting nut; too much torque can crack the tank or strip threads. - 6
Reconnect the supply line and water
Reconnect the supply line to the valve inlet and snug the connection. Slowly turn the shutoff valve counterclockwise to restore water. Check for leaks around the connection and the base of the valve.
Tip: If you see a drip, tighten slightly and wipe away any water to confirm the source. - 7
Adjust the float and fill level
With water flowing, observe the tank filling. Adjust the float height so the water stops at the manufacturer’s recommended fill line. A higher float reduces water noise; a lower float prevents overflow. Test by flushing and observing the refill cycle.
Tip: Make small adjustments and test multiple times to dial in the correct level. - 8
Test for leaks and function
Close the tank lid and flush several times to ensure proper operation. Inspect the valve inlet, gasket, and supply line for leaks. Recheck water level and ensure the fill valve stops refilling after the tank is full.
Tip: If the toilet runs continuously, recheck the gasket seating and float adjustment. - 9
Final verification
Let the tank sit for a few minutes, then perform another pair of flush tests. Confirm that the bowl refills cleanly and the shutoff valve remains dry. Replace any cosmetic parts and keep tools organized.
Tip: Document the model and settings for future maintenance.
Got Questions?
Do I need to turn off the water supply before starting?
Yes. Shut off the shutoff valve behind the toilet and drain the tank to prevent spills while removing the old fill valve. This minimizes mess and reduces the risk of water damage.
Turn off the water at the valve behind the toilet, then drain the tank to begin safely.
Can I reuse the old fill valve parts?
In most cases, it’s best to replace the valve with a complete kit. Reusing old seals or components can lead to leaks or improper operation, especially if gaskets are worn.
Avoid reusing old seals; replace with a new kit for a reliable seal and performance.
What’s the difference between canister and piston styles?
Canister valves typically offer better sealing and are common in newer toilets. Piston valves are cheaper and simpler but may wear faster. Choose based on your tank design and budget.
Canister valves seal well and suit newer toilets; piston valves are affordable but may wear with time.
How long does the installation take?
Most DIY installations take about 60 to 90 minutes, depending on your familiarity with plumbing and your toilet model. Take breaks if needed to avoid rushing.
In about one hour to an hour and a half, you can complete the install if you follow each step carefully.
What are common signs of an improper installation?
Signs include persistent leaks around the gasket, a tank that overfills, or a float that won’t stop refilling. Recheck fittings and float adjustments and reseat the valve.
Look for leaks, overfilling, or continuous refilling and adjust accordingly.
Are there any safety tips I should follow?
Work in a dry area, wear eye protection if disassembly is stubborn, and keep small parts out of reach of children. Follow manufacturer instructions for the valve kit.
Stay dry, protect your eyes, and follow the kit instructions carefully.
Watch Video
Main Points
- Identify valve type before purchasing a replacement.
- Shut off water and drain the tank to prevent spills.
- Tighten fittings snugly but avoid overtightening.
- Test for leaks after installation and adjust the float as needed.
- Keep the work area dry and organized to avoid accidents.
