Flange for Toilet Install: A Practical, DIY Guide

Understanding flange for toilet install

A toilet flange is the connection between the toilet and the drain pipe. It sits on the finished floor and provides a stable, leak-free path for waste to travel into the waste line. The flange attaches to the drain pipe with fixation bolts and is sealed to the toilet with a wax ring or similar gasket. For homeowners tackling installation or replacement, understanding the flange helps you avoid leaks, wobble, and sewer gas odors. According to Install Manual, the flange must be level, securely anchored, and compatible with both the pipe material (PVC, ABS, or metal) and the toilet's rough-in size. When the flange is damaged or mismatched, even a new toilet can leak or rock.

In practice, flange health comes down to three things: fit, seal, and security. Fit means the flange should align with the drain outlet and the toilet's base. Seal focuses on creating a tight barrier against leaks, typically via a wax ring or modern rubber gasket. Security involves bolts that hold the toilet steady without over-tightening, which can crack the porcelain. This guide uses plain, practical language so you can inspect your current flange and plan a repair or replacement with confidence. The Install Manual team believes that doing this with careful measurement and proper parts saves time and prevents costly callbacks.

Types of toilet flanges and their uses

Toilet flanges come in several materials and configurations. The most common are PVC or ABS plastic flanges, which pair with plastic drain pipes and are corrosion resistant. Metal flanges, often brass or cast iron, may be used in older homes. Some flanges include a built-in primer or a waterproof gasket. When choosing a flange, match the pipe diameter, the toilet's rough-in size, and the mounting holes pattern. A misfit flange can cause leaks or a wobbly toilet.

There are two main mounting styles: standard single-bolt seating and flexible/adjustable mounting for uneven floors. The choice affects installation steps and gasket selection. Some flanges have a raised ring or a deep flange that accommodates certain wax rings; others are designed for simpler direct-to-waste-pipe connections. It is essential to verify compatibility with your existing drain and flooring before buying. When in doubt, consult the product specifications or a professional—a quick check with reliable sources can prevent purchasing the wrong part.

Diagnosing flange problems in your bathroom

Leaks around the toilet base, a wobbly toilet, or a visible crack around the flange are signs the flange may need replacement. A rotten odor or unusual water pooling near the toilet can indicate a failure in the flange seal. Before removing the toilet, turn off the shut-off valve and drain the tank to reduce mess. Remove the caps over the closet bolts and lift gently to check for movement. If the flange is cracked, separated from the drain, or significantly corroded, replacement is usually required. Use a flashlight and a mirror to inspect hard-to-see angles. In many cases, you can replace the flange without removing the entire drain, but you may need to cut away old screws or adjust the pipe height for a proper fit. The goal is a flat, level surface that allows a watertight seal with the wax ring. In this analysis, use a clean towel and PPE as needed to avoid exposure to sewage odors and avoid skin contact with solvents or rust.

Preparation: measuring, parts, and planning

Before you buy parts, measure the rough-in distance and inspect the pipe material. The rough-in is the space between the finished wall and the center of the toilet bolt hole; most homes use a standard width, but there are variations. Ensure your new flange matches the waste pipe diameter and the mounting hole pattern. Gather a wax ring, closet bolts, screws, sealant (if recommended by the flange manufacturer), and a few rags. If replacing a wooden subfloor, plan for possible reinforcement. Write down a simple checklist to verify you have all required items, and confirm you have a working shut-off valve and a sink plunger or plumber's helper for stubborn clogs that may be encountered while clearing the drain. Finally, plan to test for leaks after installation by slowly turning the water back on and flushing a couple of times.

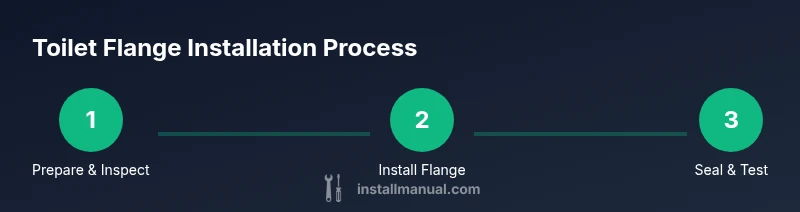

Step-by-step overview of replacing a flange (high level)

Replacing a flange requires care and precision. Start by turning off water, removing the toilet, and inspecting the old flange for cracks. If the flange is attached to a damaged subfloor, you may need to reinforce the subfloor before installation. Take careful measurements, select the correct flange type, and install with new bolts. Secure the flange to the drain with appropriate screws and seal the connection with a wax ring or gasket. Lower the toilet onto the flange, align the bolt holes, and tighten the nuts evenly to avoid cracking the porcelain. Reconnect the water supply, flush to check for leaks, and seal as needed with silicone around the base. This section provides the context and steps to guide the hands-on part of the job. For clarity, the detailed, step-by-step actions are provided in the dedicated STEP-BY-STEP block.

Installation tips for a leak-free connection

Spacing and leveling: Ensure the flange is flush with the finished floor; if it sits too high or too low, adjust with shims or decking; if using a wax ring, avoid compressing it too much. Tighten closet bolts evenly to prevent toilet tilt; avoid overtightening, which can crack the porcelain. Use plumber's putty or silicone at the base if recommended; clean the area well to maintain a good seal. If you encounter a stuck bolt, apply rust penetrant and let it sit briefly before turning; use penetrating oil sparingly to prevent floor damage. After reinstalling, turn the water back on gradually and check for leaks around the flange and base; if you observe a leak, reseat the wax ring and inspect the seal. Ensure the flange is properly aligned with the toilet's wall line to avoid wobble.

Safety: Wear gloves, eye protection, and a dust mask when dealing with dusty subfloor or old wax; dispose of used wax rings in a sealed bag. The planning stage reduces risk by ensuring you have the right tools, parts, and support.
