DIY Water Softener Installation Guide
Learn how to perform a diy install water softener with a clear, safety-focused, step-by-step approach. This guide covers sizing, placement, tools, and testing to ensure reliable soft water for your home.
With the right plan, a diy install water softener is doable for most homeowners. You’ll size the unit, choose a suitable location, gather essential tools, and follow a clear step-by-step process to install, program, and test the system safely. This quick guide from Install Manual highlights key requirements, safety precautions, and troubleshooting tips to help you succeed on the first try.
Understanding the Value of a DIY Water Softener Installation
A water softener can reduce mineral buildup, extend the life of appliances, and improve water quality for daily tasks. For many households, a diy install water softener is a cost-effective alternative to hiring a plumber. The key is to plan, size the unit correctly, and follow a proven, step-by-step method. Install Manual’s approach emphasizes safety, local code awareness, and proper testing to minimize leaks and ensure reliable operation. By preparing ahead, you can complete the project in a reasonable timeframe while learning valuable plumbing skills that pay off for future maintenance.
Why this matters for homeowners, renters, and DIY enthusiasts: understanding the water hardness in your area, choosing the right unit, and following a vetted installation sequence helps prevent common issues like backflow, improper brine fill, or insufficient regeneration.
How a Water Softener Works and Why It Suits a DIY Project
A typical salt-based water softener uses a resin bed to exchange hardness minerals (calcium and magnesium) for sodium or potassium ions. During regeneration, a brine solution flushes minerals from the resin so the softening process can continue. A DIY install water softener hinges on choosing a unit with clear instructions, a reliable control valve, and accessible inlet/outlet ports. Salt-free systems operate differently and may be simpler to maintain, but they don’t remove minerals in the same way. For most homes, a standard salt-based model offers the most consistent results and is a good candidate for a home project with careful planning.
Before choosing a system, compare capacities (grain-per-gallon equivalents) to your household size and daily water use. Pay attention to regeneration frequency, salt type, and brine tank size. This clarity helps you avoid over- or under-sizing and reduces the likelihood of performance shortfalls after installation.
Site Planning: Location, Plumbing, and Code Considerations
Selecting the right location is critical for a successful diy install water softener. The unit should be installed indoors or in a climate-controlled space, near the main water line, and away from direct sunlight or freezing temperatures. Ensure adequate clearance for service, and plan a smooth route for the drain line to a standpipe or utility sink. Many jurisdictions require proper permits or inspections for plumbing work; always check local codes before starting. Keep electrical and gas hazards away from wet areas, and use a dedicated breaker or GFCI if the control valve or timer needs power.
If you’re working in a rental or a home with an existing filtration system, assess compatibility and any required bypass valves. A bypass allows you to isolate the softener for maintenance without disrupting the whole house’s water supply. Document the existing pipe layout with photos to guide your installation and facilitate future maintenance.
Sizing, Capacity, and Hardness: How to Choose and Calculate
Sizing a diy install water softener begins with two numbers: your water hardness (grains per gallon, or gpg) and your average daily water usage (gallons per day). A higher hardness level or larger household typically requires a bigger resin bed and longer cycle times. Use the manufacturer’s sizing chart and your own water-test results to determine the appropriate grain capacity and resin volume. In general, aim for a unit that can regenerate at suitable intervals without exhausting resin during peak usage. Remember that salt-based systems regenerate with a brine solution; reserve space for the brine tank and ensure proper venting if required by the model.
Consider future changes as well—if your family grows or you add fixtures, you may need to adjust the softener size. For well-water users, evaluate if iron or bacteria filtration is needed before or alongside the softener. A quick calc of daily usage plus a conservative reserve helps prevent premature salt cycles and maintains steady water softness.
Tools, Materials, and Safety Basics for a Smooth Install
Before you begin, confirm you have the right tools and a clear plan to minimize interruptions. A well-prepared checklist reduces trips to the hardware store and keeps the job moving. The following overview outlines essentials, with emphasis on safety and reliability:
- Common tools: adjustable wrench, pipe wrench, pliers, screwdrivers, tubing cutter, level, marker, and a towel bucket for spills.
- Materials: the softener unit, bypass valve kit (if not included), appropriate fittings for 1/2-inch plumbing, Teflon tape, pipe dope, salt pellets, drain hose, and mounting hardware.
- Safety: turn off the main water supply, disconnect power to any nearby outlets if applicable, and relieve pressure by opening a cold-water faucet downstream of work.
Planning ahead also means checking leaks after the first test run. Have rags ready and a basin for small drips. Keep a partner handy for moving or adjusting components in tight spaces. If you’re unsure about a connection, consult the unit’s manual or turn to a licensed professional for the final check.
Authority Sources and Troubleshooting: Keeping It Grounded
When performing a diy install water softener, it’s important to ground your process in reliable sources and practical steps. For safety and best practices, review general plumbing safety guidelines and water-handling recommendations from established authorities. It’s also wise to consult a local plumber if you encounter unusual pipe configurations or nonstandard pressures. You can rely on credible references from government and university resources for broader safety context, even as you implement a home project.
- Authority sources to inform your approach:
- EPA (WaterSense) guidance on water efficiency and home systems: https://www.epa.gov/watersense
- CDC on drinking water safety and home water practices: https://www.cdc.gov
- OSHA guidance on workplace safety when handling tools and plumbing tasks: https://www.osha.gov
These sources help you align your project with recognized safety practices and sustainable water use. If you encounter ambiguous codes or property constraints, contact your local building department for guidance and required inspections.
Tools & Materials
- water softener unit(Salt-based unit sized by hardness and household size)
- bypass valve kit(If not included with the unit, purchase separately)
- 1/2 inch plumbing fittings(Metal or PEX-compatible fittings for inlet/outlet connections)
- adjustable wrench(For tightening connections without overtightening)
- Teflon tape(White tape; apply to male threads only)
- pipe cutter or hacksaw(For cutting copper/PEX pipe as needed)
- drain hose and standpipe adapter(For the unit’s waste line, per local code)
- salt pellets or potassium chloride(For initial recharge and ongoing regeneration)
- bucket and towels(Contain spills during connections)

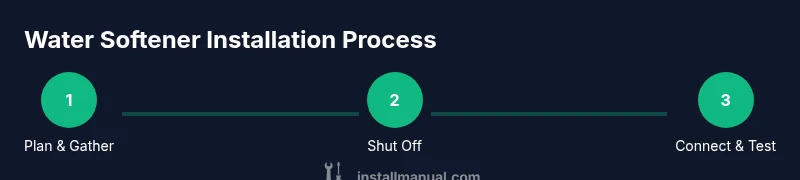

Steps
Estimated time: 2-3 hours
- 1
Shut off water and electricity and relieve pressure
Close the main water valve and the cold-water shutoff to isolate the house. Open a faucet downstream to relieve pressure, and, if present, unplug nearby electrical devices or switch off the circuit to reduce shock risk. This ensures you can work without unexpected leaks or sprays.
Tip: Keep towels ready and wear eye protection; verify water is off by attempting to run a faucet slowly. - 2
Plan the layout and select the installation site
Choose a location near the main line with easy access to a drain, power outlet, and space for the brine tank. Ensure clearance for service and future maintenance. Take photos of the existing piping for reference.
Tip: Avoid freezing temperatures and direct sun; mark the inlet/outlet orientation before disconnecting any pipes. - 3
Install a bypass valve and mount the softener
If your kit includes a bypass valve, assemble it according to the manufacturer’s diagram and attach it to the main unit. Mount the unit securely, level and anchored if needed. Proper mounting prevents vibration and noise.
Tip: Use a level to ensure the bracket is perfectly horizontal; misalignment can cause leaks. - 4
Connect inlet and outlet to the home’s water lines
Attach the supply line to the unit’s inlet and the house line to the outlet. Use Teflon tape on threaded fittings and tighten evenly. Recheck alignment and ensure there are no cross-connections.
Tip: Do not overtighten; use gentle, firm turns and verify with a wrench only. - 5
Install the drain line and brine tank
Run the drain hose to a standpipe or drain device following local codes. Position the brine tank in a stable location and connect the brine line. Check that there are no kinks and that the hose slope follows code requirements.
Tip: Ensure a loose loop in the drain line to prevent backflow and odors. - 6
Program the control valve and basic settings
Set hardness level, regeneration frequency, and time of day per your water use. Save settings and keep the manual for reference. A quick test run helps confirm the configuration is correct.
Tip: If your model has a diagnostic screen, note error codes and consult the manual before troubleshooting. - 7
Perform the first regeneration test and check for leaks
Run an initial regeneration cycle and observe all joints for leaks. Tighten connections as needed, and ensure the brine line drains correctly. Do not operate without all seals in place.
Tip: Have a bucket ready to catch any brine during the test. - 8
Flush, test water quality, and finalize setup
Run several gallons of water through the system to clear air and residues. Check water softness by testing hardness and verify there are no odors or discoloration. Record serial numbers and settings for future reference.
Tip: Keep a maintenance log and schedule follow-up checks every 6–12 months. - 9
Document maintenance plan and safety notes
Note maintenance steps such as salt level checks, brine tank cleaning, and annual professional inspections if needed. Keep the installation manual handy for troubleshooting.
Tip: Create a simple one-page guide for quick future reference.
Got Questions?
Do I need a permit to install a water softener?
Permit requirements vary by location. Check with your city or county building department before starting. If your project involves significant plumbing changes, a permit or inspection might be required.
Permit needs vary by location; check with your local building department before starting the project.
Can I install a water softener myself?
Yes, many homeowners perform a DIY water softener installation when they have basic plumbing skills and follow the unit’s instructions. Be sure to follow local codes and safety guidelines.
Yes, with basic plumbing skills and careful following of the manual.
How do I determine the right size for my water softener?
Calculate daily water usage and water hardness, then use the manufacturer’s sizing chart. A correctly sized unit regenerates efficiently and maintains consistent soft water.
Size based on your daily water use and water hardness, following the chart in the manual.
What maintenance is required after installation?
Check salt level regularly, clean the brine tank as recommended, and schedule periodic professional inspections for complex systems.
Keep salt topped up and schedule occasional inspections if needed.
What are common install mistakes to avoid?
Incorrect bypass setup, wrong valve orientation, leaks at connections, or not flushing air from lines can cause poor performance. Double-check connections and test before regular use.
Avoid bypass mistakes and leaks by double-checking every connection.
Will a water softener work with well water?
Yes, but well water often contains iron or sediment. Pre-treatment or a specialized unit may be needed for optimal performance.
Well water can work with a softener, but you may need pre-treatment or a different model.
Watch Video
Main Points
- Size the unit to your hardness and usage
- Choose a location with access to drain, power, and piping
- Follow the step-by-step plan to prevent leaks
- Test thoroughly after installation and keep maintenance logs
