Bathroom Vent Install Guide: A Step-by-Step Home Upgrade
Learn to install a bathroom vent exhaust fan safely with a clear, step-by-step guide. Plan the route, choose a moisture-rated fan, route ductwork, seal joints, and test performance.
You're going to perform a bathroom vent install, from planning and measuring to mounting, ducting, and wiring. Before you begin, check local codes and choose a fan rated for moist environments. Gather tools, ensure attic access, and plan a short duct run to the exterior. This guide uses safe, step-by-step instructions suitable for DIY homeowners; consult a licensed electrician for electrical work.
Planning the Vent Route
Before you cut or drill, map the vent’s path from the bathroom ceiling to the exterior. The goal is to exhaust moist air efficiently while minimizing energy loss and backdrafts from other exhausts or combustion appliances. Start by locating ceiling joists, electrical wiring, and plumbing lines that could block the route. Decide whether to run the duct through the attic or directly to an exterior wall or roof, depending on your home’s layout and climate. If attic access exists, prioritize a path that keeps the duct as short and straight as possible. According to Install Manual, the most reliable vent installs begin with careful planning: confirm ceiling height and fan location, choose a fan with appropriate CFM for the bathroom size, and sketch a simple schematic showing the fan, duct path, and exterior termination. Consider future remodels, ensure there’s no interference with insulation, and review local building codes and permit requirements. Plan for a termite shield, flashing, and an exterior vent cap to prevent water entry. With a solid plan, you reduce surprises during installation and improve performance.
Choosing the Right Fan and Ducting
Selecting the right fan and ducting is as important as the installation itself. A moisture-rated bathroom exhaust fan with a sealed motor and corrosion-resistant housing will stand up to humid conditions. Look for a model that maintains steady performance across the typical bathroom humidity range and has a damper that closes when the unit is off to prevent conditioned air from escaping. Match the fan’s CFM to the bathroom size and the length of the duct run; a mis-sized fan can waste energy or fail to remove moisture effectively. For most homes, a 4-inch round duct is sufficient; upgrade to 6 inches only if you have a large bathroom or a long run with many elbows. Rigid or semi-rigid ducting is preferred over cheap flexible ducting to reduce airflow resistance and minimize leaks. Plan for a clean route with few bends, and ensure the exterior hood is correctly flashed. Install Manual analysis, 2026, emphasizes sizing accuracy, durable connections, and proper exterior termination with a damper.
Tools, Materials, and Safety Prep
Prepare a comprehensive toolkit and the necessary materials before you start. Essentials include the bath fan, ducting, exterior vent hood, mounting hardware, and ceiling cutting tools. Safety equipment is non-negotiable: ladder, safety goggles, gloves, and a dust mask. For wiring tasks, have a junction box, wire nuts, and electrical tape on hand, and know whether you’ll tie into an existing circuit or create a new run. Sealant, foil tape, and primer or caulk help create airtight joints, while insulating duct runs through unconditioned spaces reduces condensation. If you’re unsure whether you should power the fan from a dedicated circuit, consult a licensed electrician. Precise measurements and careful preparation prevent rework and damage.

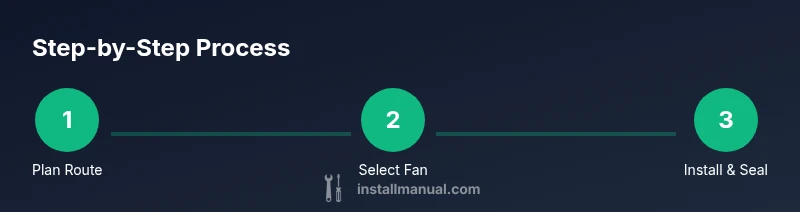

Step-by-Step Installation Overview
Here is an overview of the sequence you’ll follow in the detailed steps that appear below. Start with planning and powering down the circuit, then cut the ceiling opening to fit the fan housing. Mount the fan, route and secure the ducting with minimal bends, and seal every joint with foil tape or silicone. Install the exterior vent hood with proper flashing, and verify the damper operates freely. Finally, test the system for airflow and leaks, and address any condensation issues. This overview helps you understand how the pieces fit together before you dive into the step-by-step actions.
Common Pitfalls and How to Avoid Them
Common mistakes include undersized fans, long duct runs, and poorly sealed joints. Avoid these by calculating the needed CFM, using rigid duct, and sealing every connection with foil tape and silicone. Vent should terminate outside and not into an attic. If the route requires cutting through insulation, seal around penetrations to maintain energy efficiency. Regularly inspect the vent for signs of moisture, mold, or corrosion, and replace components as needed. A thoughtful layout reduces noise, drafts, and energy waste, ensuring consistent moisture removal.
Authority Sources and Compliance
For official guidance, consult reputable sources such as federal and university publications. You’ll find practical insights about ventilation, moisture control, and safety from agencies like the U.S. Department of Energy, OSHA, and CDC. Following these standards helps ensure your bathroom vent install is safe, code-compliant, and effective.
Tools & Materials
- Moisture-rated bathroom exhaust fan(Select a unit sized for your bathroom and with a moisture-resistant housing.)
- 4-inch or 6-inch round ducting(Rigid duct is preferred; minimize bends.)
- Exterior vent hood with damper(Ensure proper flashing and weathertight seal.)
- Ceiling cutout tool or hole saw(Use the correct size for your fan housing.)
- Junction box and wire nuts(Only if wiring from existing circuit; follow local code.)
- Electrical wiring (14/2 or 12/2)(Only if wiring from a new circuit; hire an electrician if unsure.)
- Foil tape and silicone sealant(Seal duct joints and vent connections.)
- Foam backer or insulation(Insulate ducts in unconditioned spaces.)
- Safety gear (gloves, goggles, dust mask)(Protect yourself during cutting and drilling.)
- Ladder(Stable platform for ceiling work.)
- Screwdriver set and pliers(For mounting and duct connections.)
Steps
Estimated time: 90-150 minutes
- 1
Plan the route
Create a simple, to-scale diagram showing the bathroom, attic path, and exterior termination. Note joists, insulation, and any plumbing or electrical lines that could interfere. Recheck your route with a hardware store or DIY guide to prevent rework later.
Tip: Mark the route on the ceiling with painter’s tape before cutting. - 2
Turn off power
Switch off the circuit powering the bathroom light or fan at the main panel. Use a non-contact voltage tester to confirm there is no power at the switch box. Do not proceed with wiring until you are sure the circuit is dead.
Tip: Double-check with a tester before touching any wires. - 3
Cut ceiling opening
Using a drywall saw or hole saw, cut an opening that matches the fan housing dimensions. Use a stud finder to avoid joists and confirm there is clearance for duct routing. Deburr rough edges and clean the dust before mounting.
Tip: Cut slightly smaller than the housing and adjust as needed. - 4
Mount the fan housing
Insert the housing into the ceiling cutout and secure it with brackets or screws. Ensure the unit sits flush and level, and support the duct connection from above if needed. Check that the electrical box aligns with your wiring plan.
Tip: Use a support brace to prevent sagging over time. - 5
Run and secure ducting
Attach ducting to the fan outlet and route toward the exterior. Keep bends to a minimum and maintain a straight-ish run where possible. Seal every connection with foil tape and avoid kinks that restrict airflow.
Tip: Test the duct for movement before final fastening. - 6
Install exterior vent
Secure the exterior vent hood at the chosen exterior location, ensuring proper flashing and a tight seal to prevent leaks. Confirm the damper opens freely and vents air outdoors. Seal around the vent with silicone to prevent water intrusion.
Tip: Check for interior backdraft by blocking the damper momentarily. - 7
Seal and insulate ducts
Seal all duct joints with foil tape and apply appropriate caulk as needed. If ducts pass through unconditioned spaces, insulate to prevent condensation. Inspect for air gaps that could allow leaks or moisture intrusion.
Tip: Ensure insulation maintains the rated R-value without compressing. - 8
Test the system
Restore power and run the fan to verify airflow and noise level. Look for leaks around joints and ensure the exterior vent is exhausting properly. Recheck moisture removal after a brief run and adjust seals if necessary.
Tip: A simple home test: hold a piece of toilet paper near joints to see if air pulls it.
Got Questions?
Do I need a building permit to install a bathroom vent?
Permit requirements vary by location. Many bathroom vent installs don’t require a permit if you’re only replacing a fan and no wiring changes are made. If wiring work or exterior vent alterations are involved, check with your local building department.
Permit rules vary by location. Check with your local authority before starting if wiring or exterior vent changes are involved.
Can I vent the fan into the attic?
Venting into the attic is not recommended. Moist air can condense on the roof or insulation, promoting mold and structural damage. Always vent to the exterior with a properly flashed hood.
Vent to the outside, not into the attic, to avoid moisture problems.
Is hardwiring required for a bathroom vent?
Hardwiring may be required for new installations or when replacing a fan that’s on a dedicated circuit. If you’re unsure, hire a licensed electrician to ensure code compliance and safe connections.
If unsure about wiring, hire an electrician to ensure code compliance.
What determines the right CFM for my bathroom?
The general guideline is to match fan capacity to room size and ventilation needs. A larger bathroom or higher humidity may require a higher CFM, while smaller rooms need less. Always verify with the fan’s specifications.
Choose a fan sized to your bathroom and humidity level.
How can I tell if the vent is properly sealed?
Check for air leaks by feeling along joints and inspecting with a tissue near the ducting. A sealed system should show little to no airflow escaping at joints when the fan runs.
Look for air leaks around joints and seal them if you feel air escaping.
What duct material is best for a bathroom vent?
Rigid or semi-rigid metal ducts offer the best airflow and durability. Flexible foil ducts are easier to install but can trap moisture and sag over time.
Prefer rigid ducts for durability and airflow.
How long does a bathroom vent install typically take?
A straightforward install on a typical ceiling can take about an hour or two for DIYers, longer if attic routing or wiring requires professional help.
Most installs take a couple of hours depending on routing and wiring.
Watch Video
Main Points
- Plan the vent route before cutting.
- Choose a moisture-rated fan with appropriate CFM.
- Seal joints airtight and route ducting with minimal bends.
- Test the system for leaks and proper exhaust.
- Consult a licensed electrician for wiring when needed.
