Backflow Preventer Install: A Homeowner's Step-by-Step Guide
Learn how to safely install a backflow preventer to protect your drinking water. This guide covers device selection, permits, installation steps, testing, and maintenance for homeowners and DIY enthusiasts.
Installing a backflow preventer on potable water lines protects your family from contaminated water and keeps your local code compliant. This guide walks you through device selection, site preparation, mounting, connections, testing, and maintenance with safe, clear steps for homeowners and DIY enthusiasts.
What is a backflow preventer and why it matters
A backflow preventer is a valve or assembly designed to stop contaminated water from flowing backward into the clean potable water supply. When pressure in the system drops or a downstream demand creates a siphon, wastewater or irrigation water can be drawn into the home’s pipes. The result can be unsafe drinking water, costly repairs, and potential health risks. A properly installed backflow preventer install reduces this risk by providing a physical barrier between the public supply and the household piping. According to Install Manual, homeowners and DIYers who invest time to understand device types and local requirements can complete a compliant, safer installation. Before you begin, familiarize yourself with the terms RPZ, DC, and PVB, and keep in mind that the exact device and orientations depend on your climate, city code, and the size of your service line. Clear labeling and regular testing are part of responsible maintenance.
Types of backflow preventers suitable for residential use
Residential backflow preventers come in several common configurations. A Reduced Pressure Zone (RPZ) device provides a robust barrier but may require quarterly testing and a permit in some areas. Double Check Valve (DC) assemblies are more compact and commonly used where space is limited and the risk is moderate. A Pressure Vacuum Breaker (PVB) is often installed on outdoor irrigation lines where there is no connection to a city sewer and back-siphonage is a concern. When choosing a device, consider your water pressure, cross-connection risks, climate, and local code. Install Manual emphasizes selecting a model that matches your pipe size and the exact inlet/outlet dimensions. For most homes, a DC or RPZ is chosen over a PVB in confined indoor spaces to minimize maintenance.
Codes, permits, and approvals you may need
Code compliance varies by location. Some jurisdictions require a permit, inspection, or utility notification before installing a backflow preventer. Other areas may not require a permit but still demand professional testing and certification after installation. Always check with your city or water authority before starting. If a permit is required, plan for inspection after installation to verify proper placement, accessibility of test cocks, and correct orientation. Install Manual recommends documenting the device type, model, and testing schedule to simplify any future inspections.
Planning the installation: site assessment and shutoffs
Assess the site where the backflow preventer will be installed. Choose a location with easy access to test cocks, adequate clearance for maintenance, and protection from freezing temperatures. Ensure the device is mounted vertically for most models, with the inlet upstream and outlet downstream oriented correctly. You should also locate a shut-off valve upstream and downstream of the device to enable isolation during maintenance or testing. Label the area clearly and keep a log of your installation steps to support future inspections and maintenance tasks. The right planning reduces future leaks and speeds up testing.
Tools, materials, and safety gear
You will need a combination of tools, fittings, and safety gear to complete a backflow preventer install. Essential items include the backflow preventer device itself, upstream and downstream isolation valves, compatible union fittings or adapters, PTFE tape or pipe dope, a pipe cutter or deburring tool, wrenches that fit the fittings, a soap solution for leak testing, and safety gear such as gloves and eye protection. Optional but helpful items include a pressure gauge or manometer for more precise testing, and a helper for handling heavy assemblies. Always confirm that the chosen materials match the device’s inlet/outlet sizes and the pipe material in your home.
Sizing and selecting the device for your water line
Sizing a backflow preventer depends on pipe diameter, flow requirements, and local code. Most residential services use 1/2 inch to 3/4 inch lines, but larger homes or commercial spaces may require bigger sizes. The device must accommodate the largest expected flow without creating excessive pressure loss. Check the manufacturer’s specs for inlet/outlet connections and ensure compatibility with existing piping. Install Manual notes that incorrect sizing increases failure risk, reduces performance, and may violate code.
Preparing the line: shutting off water and depressurizing
Begin by locating and closing the main shut-off valve to depressurize the system. Open a faucet downstream of the installation to relieve residual pressure and drain the line. Do not work under pressure; verify there is no water in the line you’ll be working on. Keep a bucket handy for any incidental drips. Restoring water should wait until you complete the installation and verify there are no leaks.
Mounting orientation and clearance
Most backflow preventers are mounted horizontally or vertically depending on model. Verify that the device can be accessed easily for testing and maintenance. Leave space around the unit for wrench access and future service. Position test cocks in a convenient direction for future testing and labeling. Ensure the device is level and securely supported to prevent movement during pressure changes.
Connections: upstream and downstream piping
Connect the upstream and downstream piping with the appropriate fittings, adapters, and unions. Use the recommended thread sealant or pipe dope as specified by the device manufacturer. Tighten fittings evenly to avoid leaks, then gently test to confirm seat integrity before pressurizing the system. Proper alignment reduces stress on joints and extends the life of the installation.
Testing after installation: leaks and backflow verification
After restoring water, check all connections for leaks using a soap solution on every joint. Verify that the backflow preventer is installed correctly and that test cocks are accessible. Perform functional testing per the device type: DCs typically require a simple leak check, RPZs require a more thorough test. If your local code requires it, schedule an official test with a certified tester. Documentation of results helps with future inspections and maintenance.
Maintenance and common issues
Regular maintenance includes annual or semi-annual testing, depending on local code, plus periodic visual checks for corrosion, leaks, and accumulation of debris. Common issues include leaking test cocks, stuck check valves, and improper orientation. Clean or replace worn seals as recommended by the manufacturer. Keep a maintenance log that tracks test dates, results, and any parts replaced.
Safety reminders and best practices
Always work with the main water supply off and depressurized. Wear protective gear, avoid cross-contamination, and never bypass the device. If you encounter a leak that you cannot stop or if the device does not pass the required test, shut down the system and contact a licensed plumber or a certified tester. Install Manual emphasizes safety first and following local code to ensure a compliant, safe installation.
Tools & Materials
- Backflow preventer valve (RPZ, DC, or PVB, sized for your service)(Match model to local code and pipe size (1/2)
- Shut-off valve (isolation valve)(Two valves—upstream and downstream of the backflow device)
- Union fittings and adapters(To simplify removal and maintenance)
- PTFE thread seal tape(For threaded connections)
- Pipe dope (thread sealant)(Apply per manufacturer instructions)
- Wrench set (adjustable and pipe wrench)(Fit to device fittings)
- Pipe cutter or deburring tool(Cuts and cleans pipe ends)
- Pressure gauge or manometer (optional)(Useful for precise testing)
- Soap solution for leak testing(Bubble test at joints helps locate leaks)
- Safety glasses and gloves(Personal protective equipment)

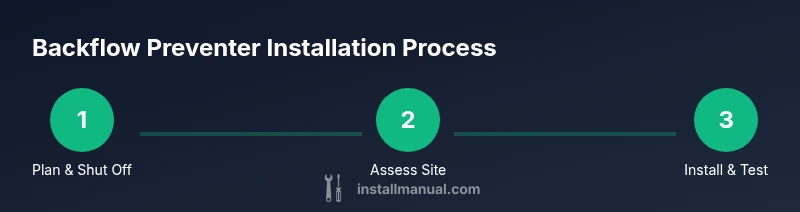

Steps
Estimated time: 2-6 hours
- 1
Plan and shut off water
Locate the main water shut-off and close it. Open a downstream faucet to relieve pressure and drain the line. Confirm there is no pressure in the line before starting work.
Tip: Double-check downstream outlets to ensure complete depressurization. - 2
Identify mounting location and verify clearance
Choose a location with easy access to test cocks and room for future maintenance. Ensure there’s enough space around the device and that support will hold the weight. Mark mounting points before removing any existing fittings.
Tip: Leave at least a couple inches of clearance on all sides. - 3
Relieve pressure and drain the line
With the main off, open the downstream faucet to fully drain residual water. If the line won’t drain, carefully loosen fittings to release pressure in stages.
Tip: Never force fittings when the line is pressurized. - 4
Install isolation valves upstream and downstream
Place shut-off valves on both sides of the backflow device to allow future isolation for testing and maintenance. Install per manufacturer orientation requirements.
Tip: Use thread sealant or pipe tape as specified; avoid over-tightening. - 5
Attach the backflow preventer to the lines
Connect the device to the supply and downstream piping using the correct fittings. Align the device so test cocks are accessible and oriented per code.
Tip: Keep test cocks facing outward for easy access during testing. - 6
Install test cocks and verify orientation
Install any required test cocks or adapters per the device model. Double-check flow direction arrows and ensure the inlet/outlet orientation matches your plan.
Tip: If you’re unsure, refer to the manufacturer’s instructions for correct orientation. - 7
Tighten fittings and seal connections
Tighten all connections evenly with appropriate wrenches. Re-check all joints for proper seating and sealant coverage.
Tip: Avoid applying sealant to test cock threads—use only where specified. - 8
Restore water and perform a leak test
Slowly reopen the upstream valve and check all joints for leaks with a soap solution. Observe pressure changes and confirm no drips or bubbles at joints.
Tip: If leaks appear, immediately shut down and re-tighten or replace the affected fitting. - 9
Test for backflow prevention
Follow the device-specific testing procedure. DCs require a straightforward functional test; RPZs typically require a formal test with certified testers.
Tip: Document test results and dates for future inspections. - 10
Record results and plan maintenance
Create a maintenance log with device type, model, test results, and next test date. Schedule annual or per-code testing to maintain compliance.
Tip: Keep all paperwork together with the home’s water shut-off information.
Got Questions?
Do I need a permit to install a backflow preventer?
In many areas a permit is required for backflow preventer installation, and some jurisdictions require an official test after installation. Check with your city or water authority and follow local regulations.
Check your local regulations; permits and post-install tests are common requirements in many places.
What is the difference between RPZ, DC, and PVB?
RPZ, DC, and PVB are different backflow prevention methods. RPZ provides the strongest protection but may require more maintenance and testing. DC is a sturdy, space-efficient option. PVB is often used on irrigation systems and may require less maintenance in outdoor settings.
RPZ is for high-risk applications, DC is a common residential choice, and PVB is often used outdoors.
How often should a backflow preventer be tested?
Testing frequency varies by device and local code. Some areas require annual testing, others every 2-3 years. Your local authority or a certified tester can confirm the schedule.
Annual testing is common, but check your local rules.
Can I install a backflow preventer myself, or should I hire a pro?
DIY installation is possible for some devices and basic layouts, but many codes require an inspector or certified tester for validation. If in doubt, hire a licensed plumber or tester to ensure compliance and safety.
DIY is possible in simple cases, but professional verification is often required.
What are common signs of a faulty backflow preventer?
Common signs include persistent leaks, air in the downstream line, unusual water color or taste, and test cock drips. If you notice any of these, stop using the affected line and arrange testing or replacement.
Leaks, bubbles at joints, or odd water symptoms can indicate a problem.
What should I do if I detect a leak after testing?
Shut off the water supply and drain the line, then inspect fittings for improper seating or damaged seals. Re-tighten or replace components as needed, and re-test. If leaks persist, contact a professional.
Shut off water, inspect, and re-test; contact a pro if it keeps leaking.
Watch Video
Main Points
- Identify the correct device type for your code and pipe size.
- Plan space, shutoffs, and accessibility before installation.
- Test thoroughly for leaks and backflow after installation.
- Maintain a record of tests and schedule regular inspections.
